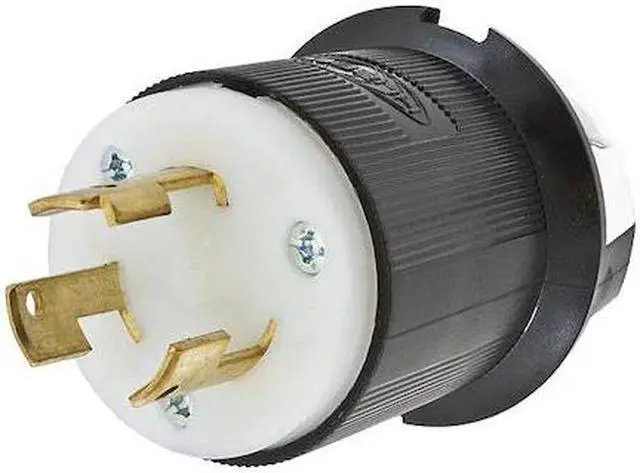

HUBBELL WIRING DEVICE-KELLEMS HBL3331GC Locking Plug, Non-NEMA, 30 A, 250V AC,

The HUBBELL 30A Locking Plug is an industrial electrical connector rated for use in specified applications and environments. This locking plug features a ribbed nylon housing; see specifications for material properties, as well as a cord grip design intended to reduce strain on wire terminations. The clear, funnel-shaped wire entry facilitates wiring process, while an integral dust shield over the wiring chamber helps keep contaminants out.

Key Features of the HUBBELL 30A Locking Plug:

• Amperage/Voltage Rating: Rated for 30 A and 250V AC single-phase applications


• Poles/Wires: 2-pole, 3-wire configuration with screw terminal connections


• Cable Range: Accepts cable diameters from 0.360" to 0.930"; accommodates #16 AWG to #8 AWG stranded copper wire


• Housing Material: Nylon construction provides chemical and impact resistance; ribbed exterior enhances grip


• Cord Grip Design: Protects against excess strain on terminations during use


• Wire Entry & Dust Shield: Funnel-shaped entry aids termination; integrated dust shield over the wiring chamber helps keep contaminants out


• Operating Temperature Range: Suitable for continuous operation from -40°C (without impact) up to +75°C


• Flammability & Dielectric Strength: Meets HB or better per UL94; withstands dielectric voltages up to 2,000V minimum


• NEMA Configuration/IP Rating: Non-NEMA plug type with IP20 suitability (indoor dry locations unless otherwise protected)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL498 standards
