HUBBELL WIRING DEVICE-KELLEMS HBL3430 Locking Receptacle, Non-NEMA, 30 A,

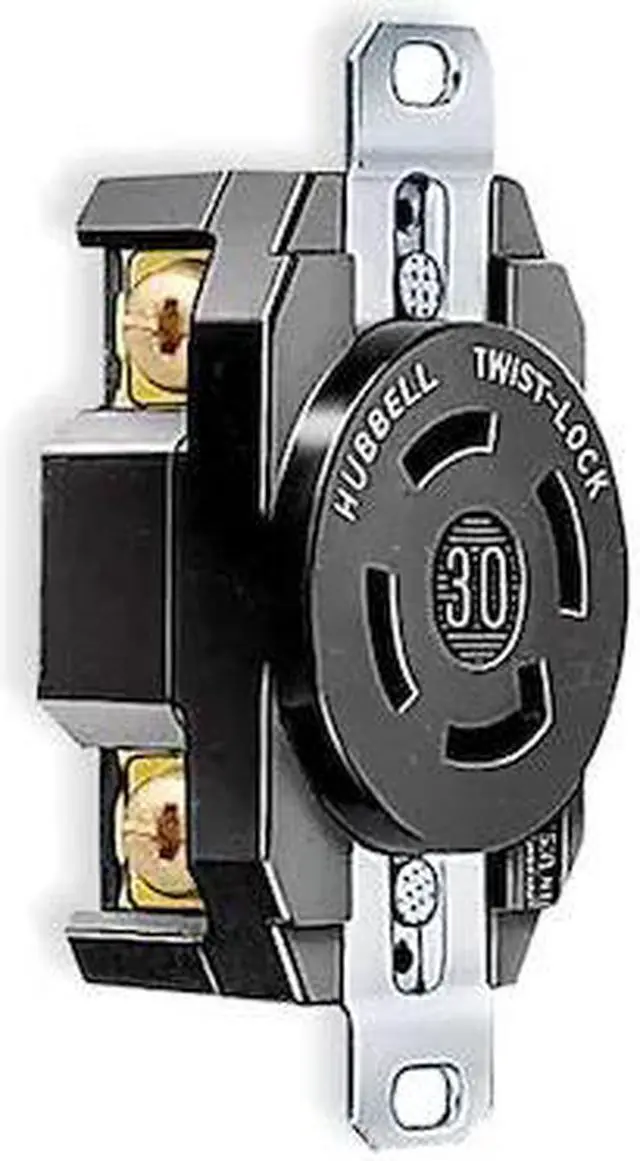

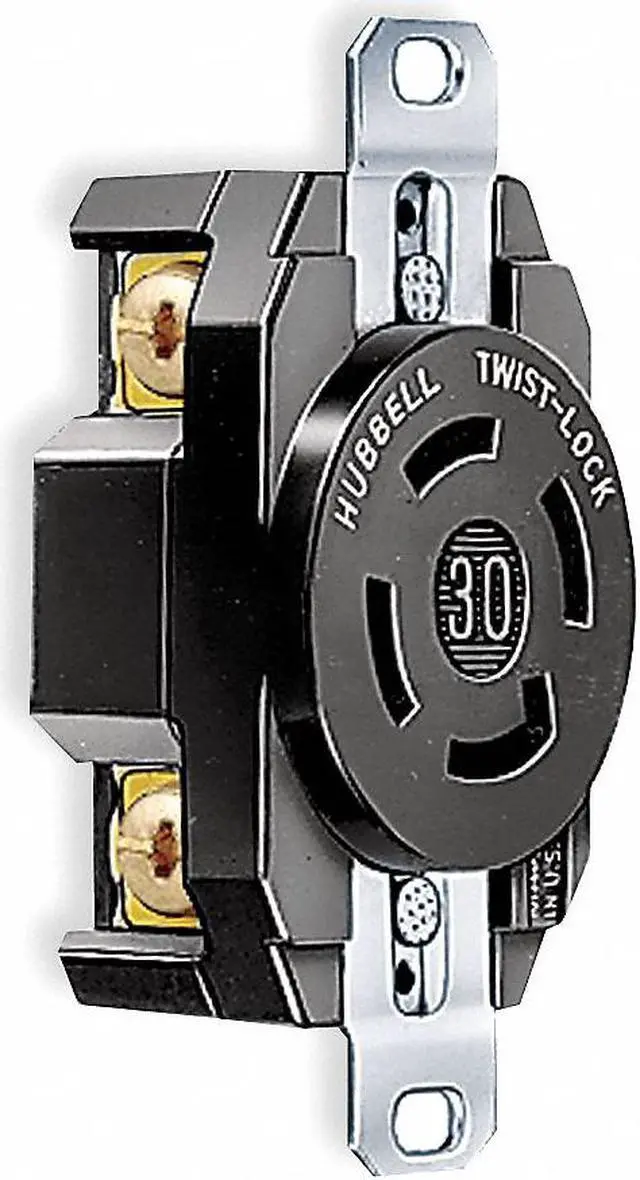

The HUBBELL 30A Twist-Lock Receptacle is a locking receptacle.

Key Features of the HUBBELL 30A Twist-Lock Receptacle:

• Amperage/Voltage: Rated for 30 A at 120/208V AC, three-phase operation


• Poles/Wires: Four-pole, four-wire configuration


• Material Construction: Impact-modified PBT base; nylon face and housing; brass contacts and mounting system provide corrosion resistance


• Mounting Type: Flush mount design with included screw-mount hardware


• Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals; supports both back or side wiring


• Operating Temperature Range: -40°C to +75°C (without impact)


• Flammability Rating: UL 94 V-2 or better for receptacles/inlets; HB or better for plugs/connectors


• Dielectric Strength & Performance: Withstands minimum 2,000V dielectric voltage; certified to interrupt current at the specified rating


• Coding & Identification: Face color coded by voltage; terminal identifications per UL 498 (X, Y, Z, White, Green)
