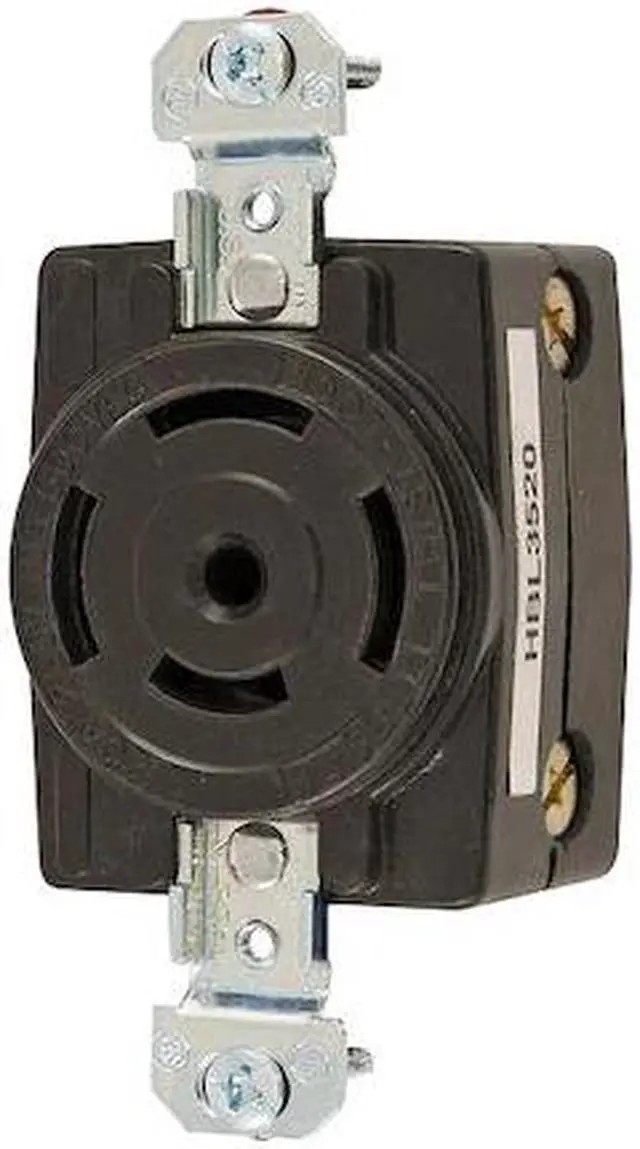

HUBBELL WIRING DEVICE-KELLEMS HBL3520 Locking Receptacle, Non-NEMA, 20/10 A,

The HUBBELL 20/10A Twist-Lock Receptacle is an industrial locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism with 4 poles and 5 wires; rated for operation at 250/600V AC; compatible with #16 AWG to #8 AWG solid or stranded copper wire. The device is constructed with a nylon face and housing, providing durability in demanding environments.

Key Features of the HUBBELL 20/10A Twist-Lock Receptacle:

• Amperage & Voltage Rating: Rated for 20/10 A at 250/600V AC single phase


• Lock Type: Twist-lock design intended to maintain plug connection during operation


• Material Construction: Impact-modified PBT base, nylon face and housing; brass contacts and mounting system


• Wire Accommodation: Accepts #16 AWG #8 AWG solid or stranded copper wire via screw terminals


• Mounting Type: Flush mount; includes mounting hardware (screw mounting)


• Environmental Suitability: For indoor dry locations only; IP20 rating


• Temperature Range: Operates from -40°C to +75°C continuous without impact


• Coding & Identification: Face color coding by voltage; terminal identifications per UL 498 (X, Y, Z, White, Green)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596; listed to UL 498


• Corrosion Resistance: All-brass grounding/mounting system provides resistance to corrosion compared to steel systems
