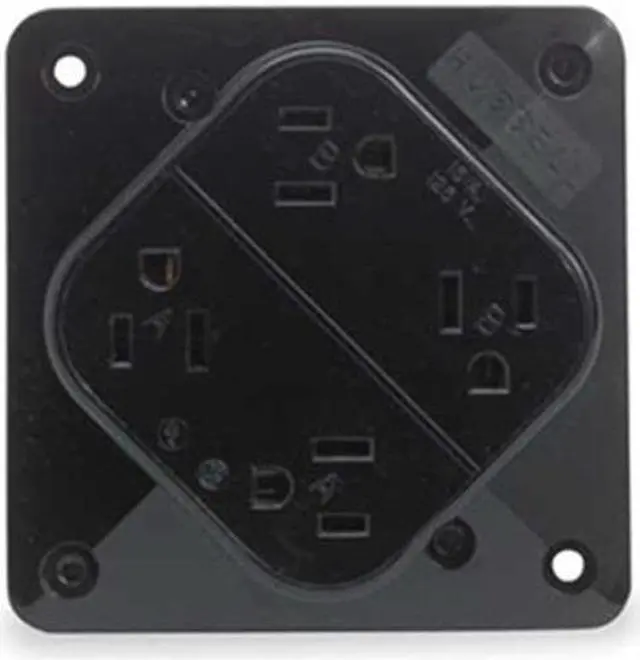

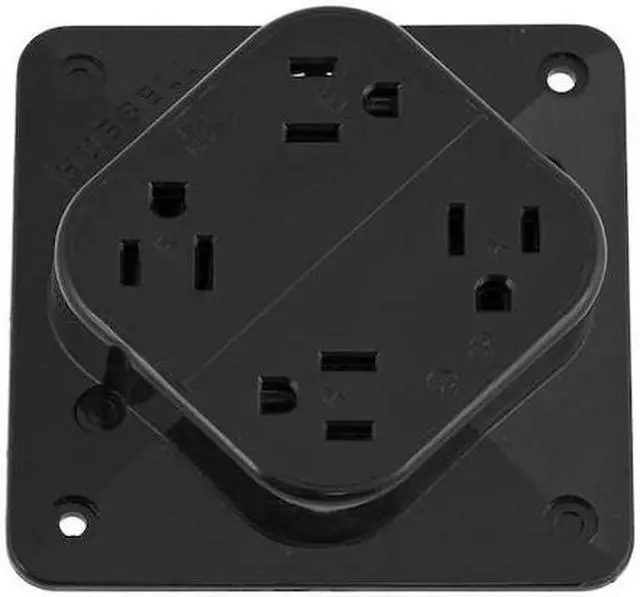

HUBBELL WIRING DEVICE-KELLEMS HBL415BK Straight Blade Receptacle, 5-15R, 15 A,

The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 15A and 125V AC. Suitable for use in commercial and industrial environments, it features four NEMA 5-15R outlets in a single housing with grounding capability. The receptacle uses screw terminals to accommodate #14-12 AWG stranded or solid copper conductors and supports back wiring for installation.

Key Features of the HUBBELL 4-PLEX Receptacle:

• Outlet Configuration: Quad (four) NEMA 5-15R straight blade outlets in one unit


• Amperage/Voltage Rating: Rated for 15A, 125V AC


• Mounting Type: Surface mount design suitable for indoor dry locations


• Material Construction: Polycarbonate housing with brass contacts; UL94 V-2 flammability rating


• Wiring Method: Back wired via screw terminals; accepts #1412 AWG copper wire


• Grounding: Grounded, two-pole three-wire configuration with green ground screw (#8-32 brass)


• Circuit Features: Anchor hole and loop feature secures solid wire; break-off tabs allow split wiring; triple wipe contacts designed to maintain electrical contact


• Certifications & Standards: Listed to UL Standard 498 File E2186, CSA Certified C22.2 No.42 File 285, NEMA WD-6 compliant
