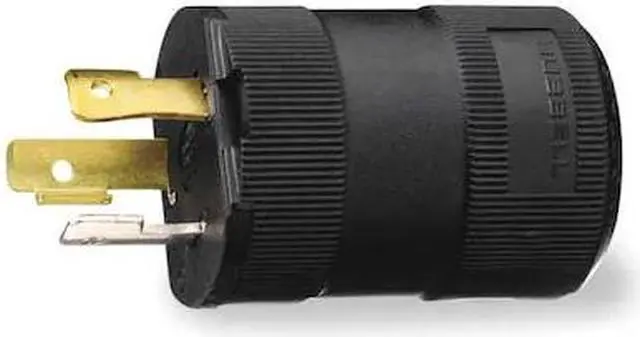

HUBBELL WIRING DEVICE-KELLEMS HBL4573VBK Locking Plug, L6-15P, 15 A, 250V AC,

The HUBBELL 15A Locking Plug (L6-15P) is a two-pole, three-wire plug intended for use in industrial settings where secure electrical connections are required. It features a nylon housing that is rated to withstand specified impacts, with cord grips help maintain connection integrity and minimize strain on wiring terminals. This locking plug is compatible with portable cords within the specified diameter range and is suitable for indoor dry locations.

Key Features of the HUBBELL 15A Locking Plug:

• Amperage/Voltage Rating: Rated for 15 A at 250V AC single phase


• Cord Accommodation: Accepts cord diameters from 0.220 in to 0.660 in (#18 AWG to #12 AWG stranded copper wire)


• Material Construction: Nylon body is rated for chemical exposure as per manufacturer specifications


• Screw Terminals: Hinged wiring style with captive multiple drive assembly screws


• NEMA Configuration: L6-15P; polarized design with grounding feature


• Performance Ratings: Withstands dielectric voltage of at least 2,000V; maximum continuous operating temperature of 75°C, minimum -40°C (without impact)


• Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596


• IP Rating: IP20 suitable for indoor dry conditions unless protected by additional means
