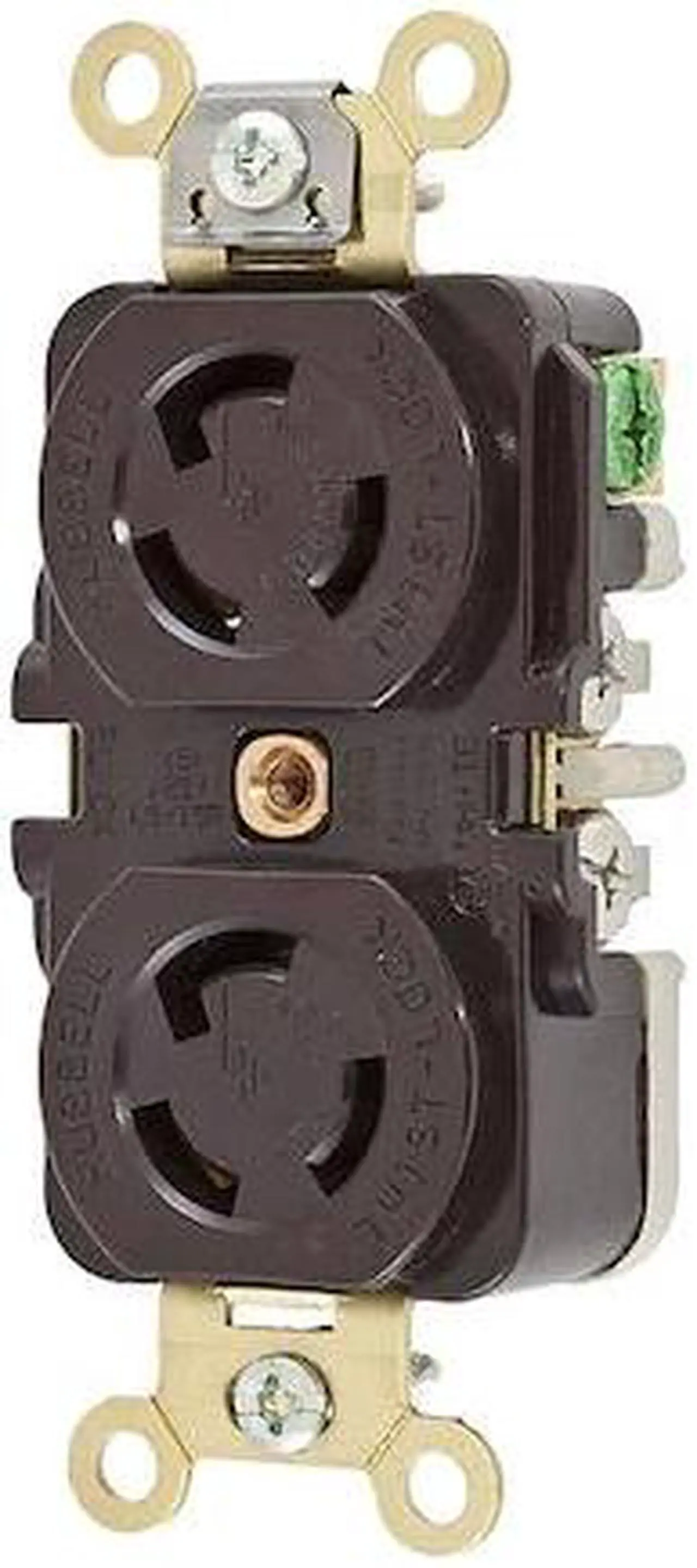

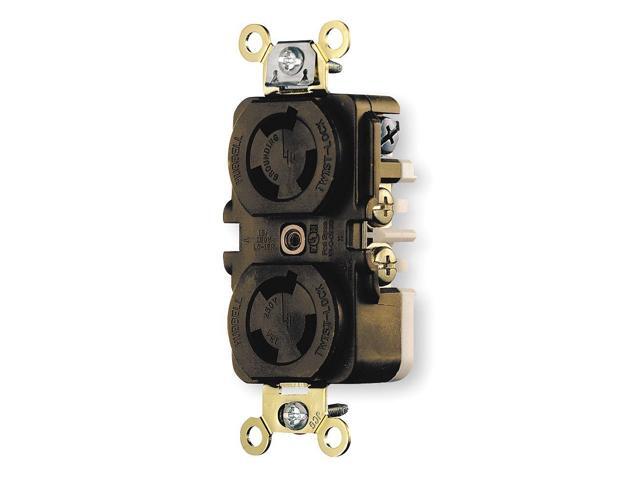

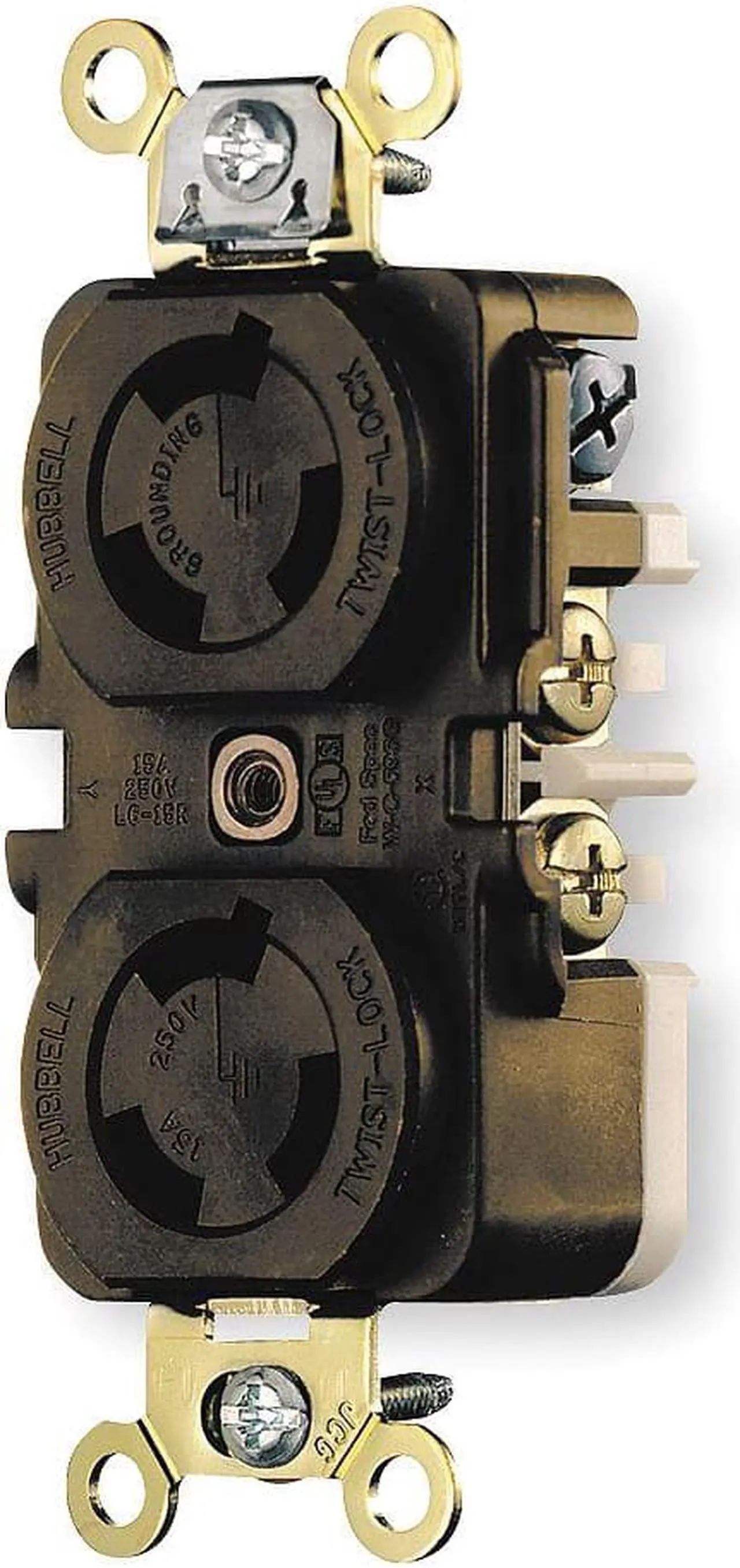

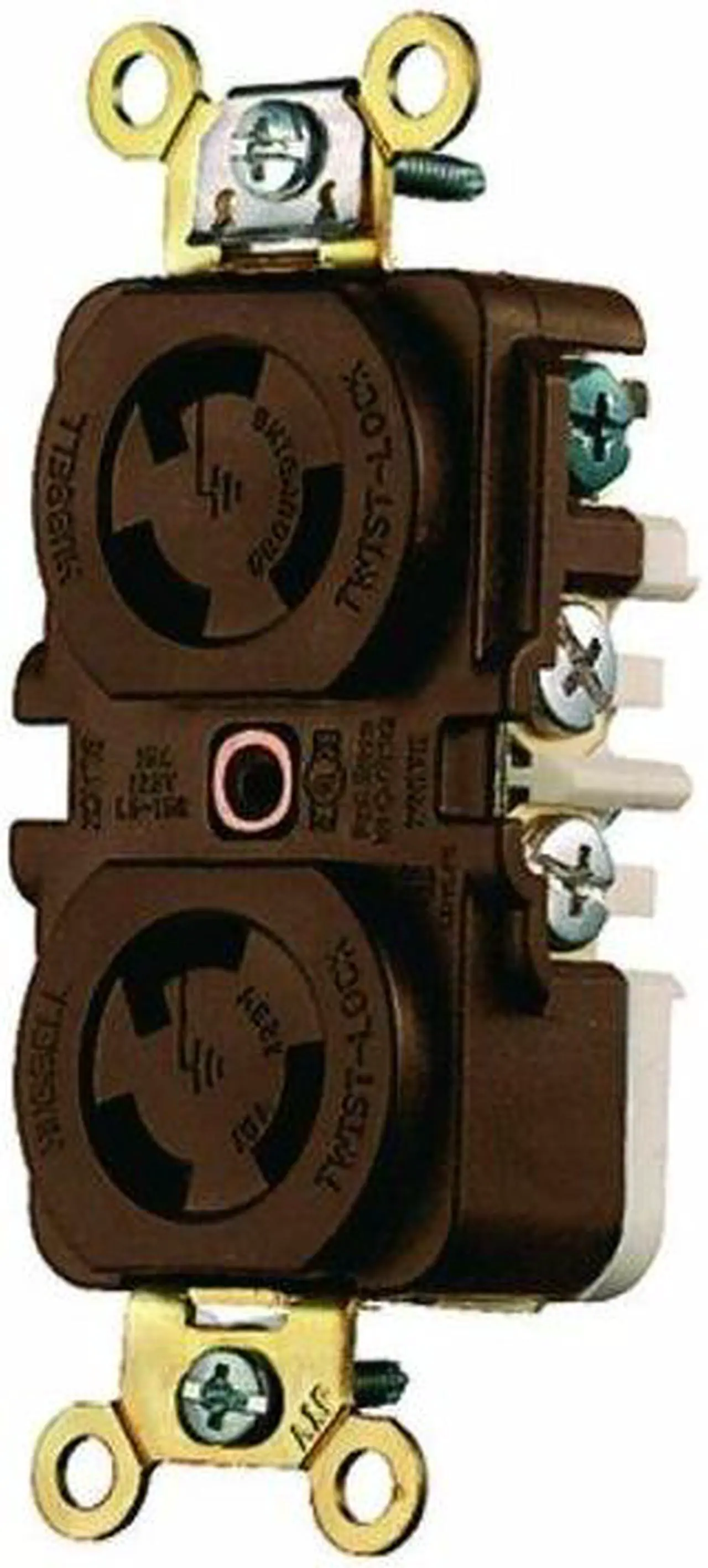

HUBBELL WIRING DEVICE-KELLEMS HBL4700 Duplex Locking Receptacle, L5-15R, 15 A,

The HUBBELL 15A Duplex Locking Receptacle (L5-15R BN) is a flush mount, twist-lock receptacle intended for indoor industrial applications. It features reinforced thermoplastic construction and all brass contacts with brass contacts for electrical connectivity to provide secure electrical connections for single-phase, 2-pole, 3-wire systems rated at 125V AC and up to 15 amps. This duplex locking receptacle includes mounting hardware and a cover, making it suitable for dry locations in locations requiring a power connection where reliable power connection is required.

Key Features of the HUBBELL 15A Duplex Locking Receptacle:

• NEMA Configuration: L5-15R; twist-lock design helps maintain secure plug retention.


• Material Construction: Reinforced thermoplastic base with nylon housing; impact resistant.


• Contact Material: Single piece, all brass contacts for consistent conductivity.


• Wire Connection Type: Screw terminals accept wire sizes from 18 AWG to 10 AWG (#14 AWG recommended).


• Operating Temperature Range: -40°F to 167°F (maximum continuous temperature of 75°C without impact).


• Mounting Type: Flush mount with included mounting strap and hardware; non-flanged design.


• Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed.


• NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20; intended for indoor use in dry environments only.
