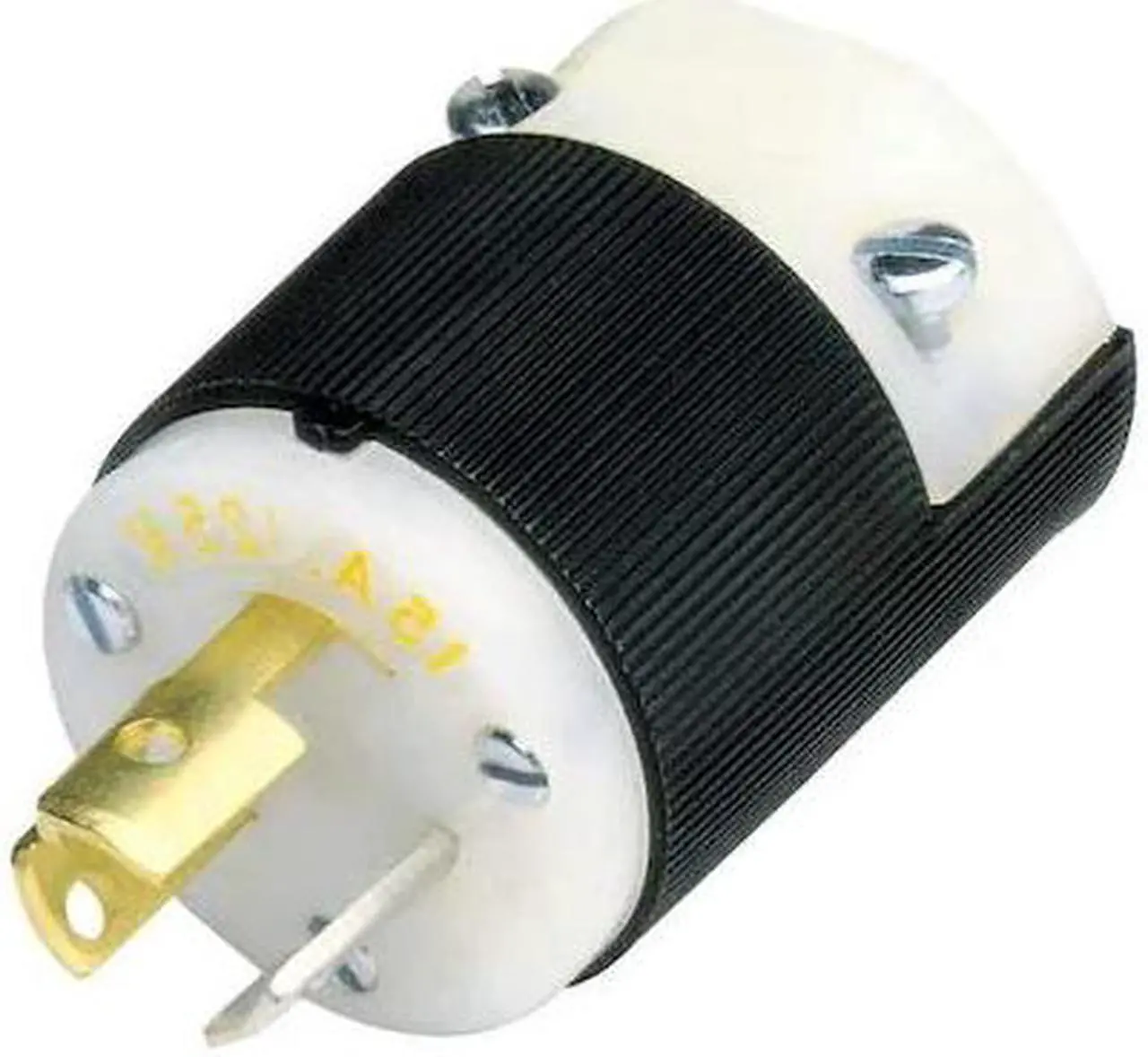

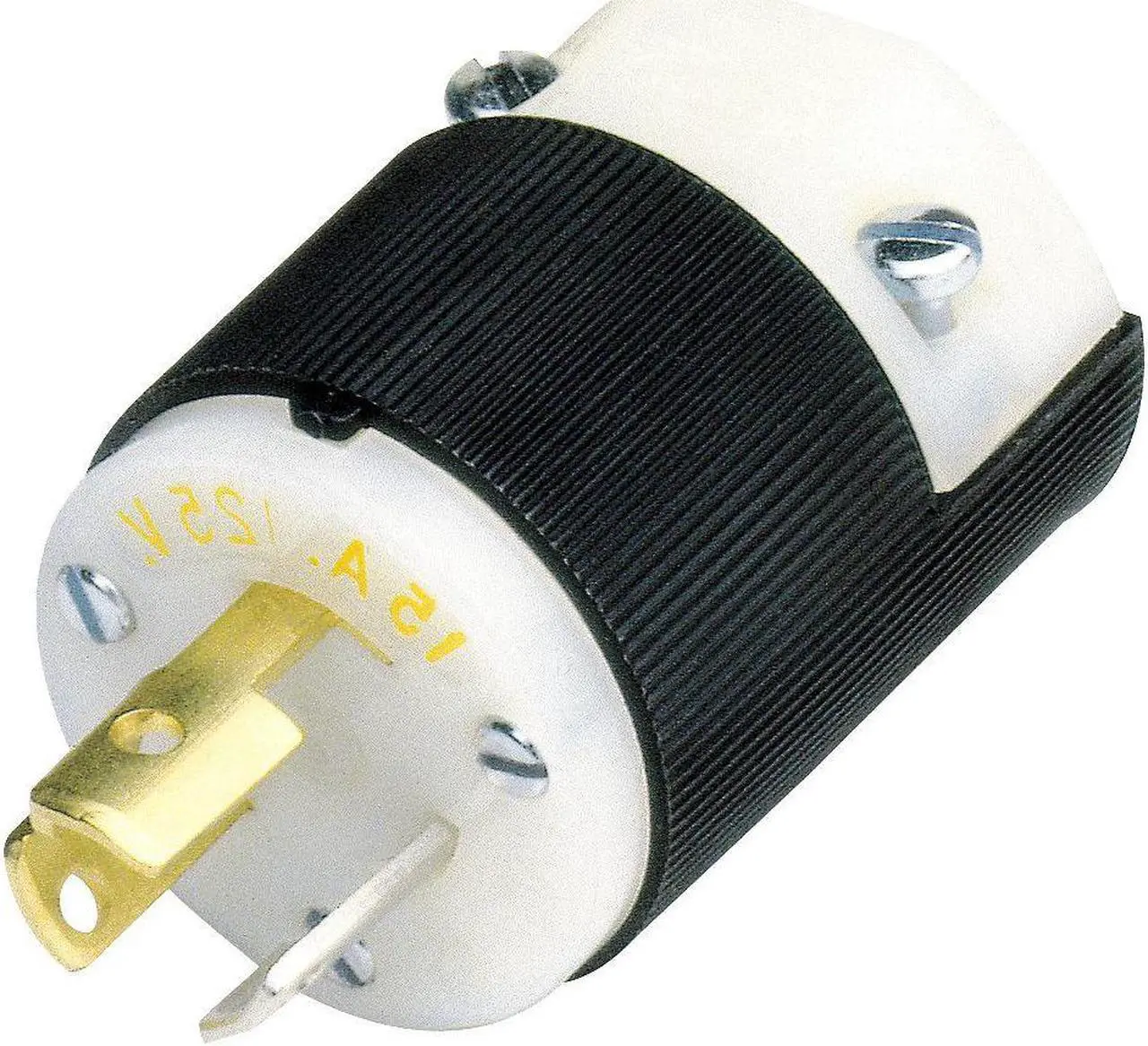

HUBBELL WIRING DEVICE-KELLEMS HBL4720C Locking Plug, L5-15P, 15 A, 125V AC,

The HUBBELL 15A Twist-Lock Plug L5-15P is a locking plug rated for use in demanding applications. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 125V AC at 15 amps. The plug includes an individually molded face for each blade configuration and a roomy wiring chamber to facilitate installation.

Key Features of the HUBBELL - 15A Twist-Lock Plug L5-15P:

• Amperage/Voltage Rating: Rated for 15 A, 125V AC single-phase operation


• NEMA Configuration: L5-15P (locking type)


• Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire; screw terminal connection


• Cable Range: Suitable for cord diameters from 0.230 in to 0.720 in; compatible with listed portable cords


• Housing Material: ribbed nylon housing


• Operating Temperature Range: Maximum continuous temperature of 75°C, minimum -40°C (without impact)


• Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V; flammability rating HB or better per UL94/CSA standards


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL Listed to UL498


• Environmental Suitability: For indoor use in dry locations unless protected by additional means; IP20 suitability
