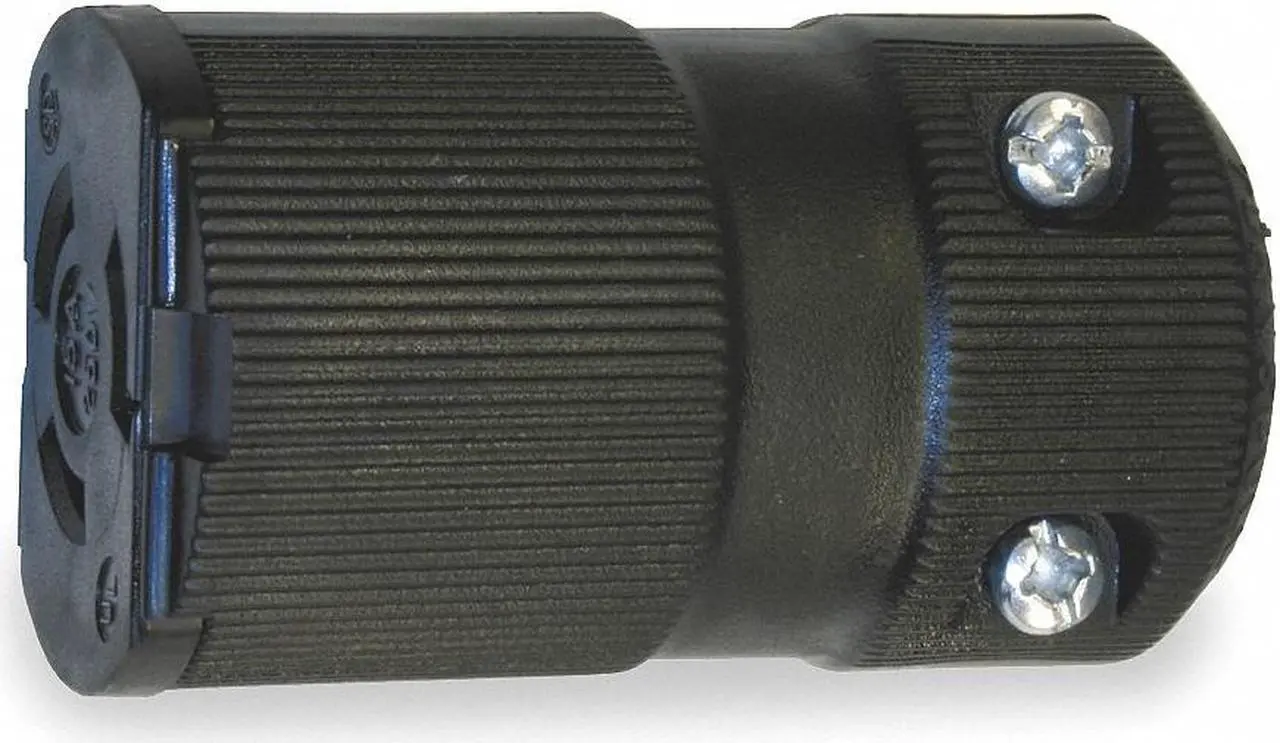

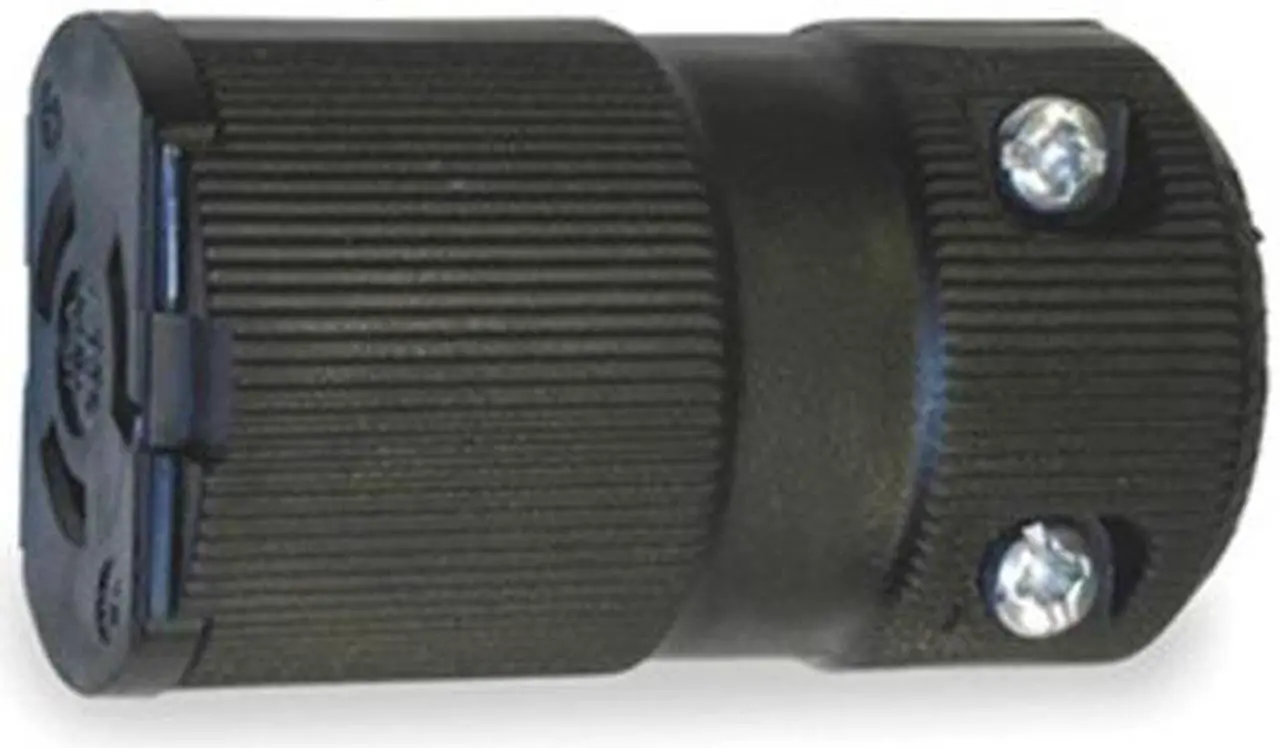

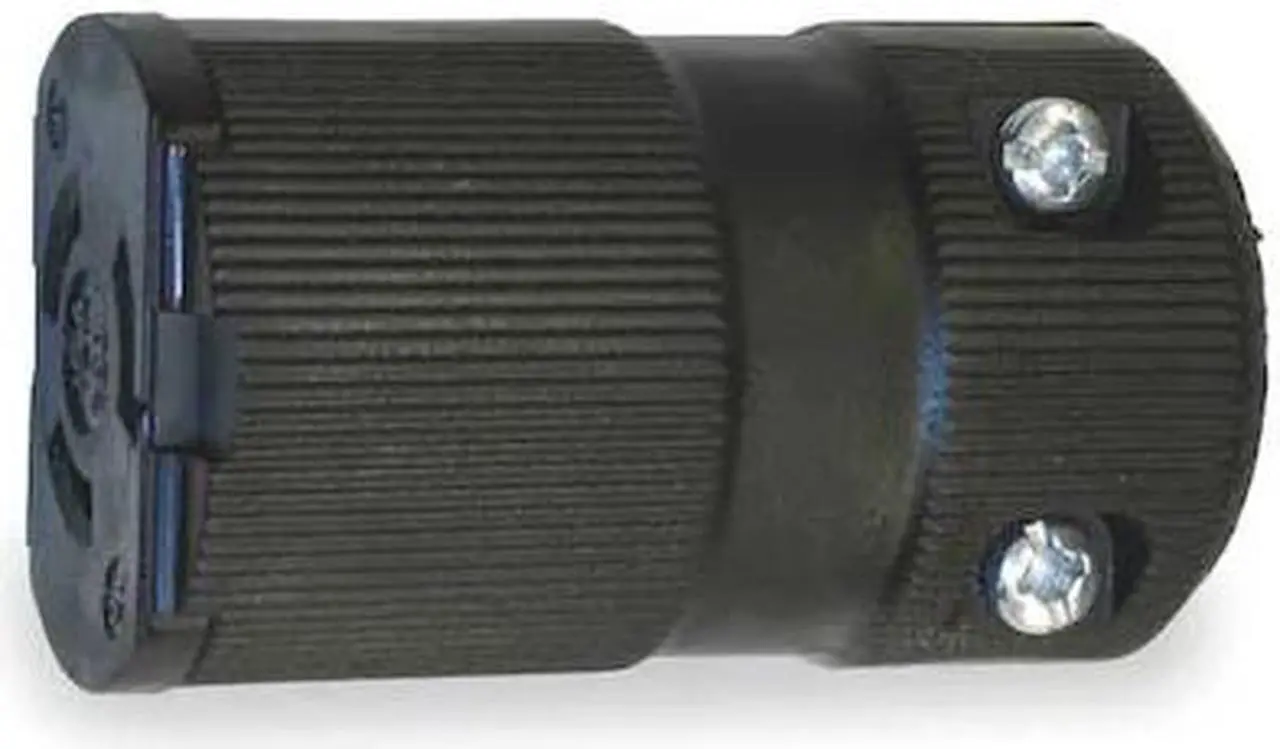

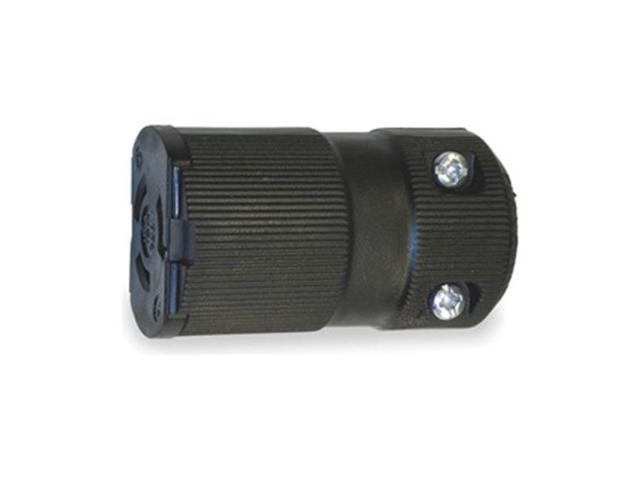

HUBBELL WIRING DEVICE-KELLEMS HBL4729VBK Locking Connector, L5-15R, 15 A, 125V

The HUBBELL 15A Midget Locking Connector (L5-15R) is a locking connector rated for use in indoor dry locations. It features a nylon body with insulation, impact resistance, and crush resistance.

Key Features of the HUBBELL 15A Midget Locking Connector:

• Amperage/Voltage Rating: Rated for 15 A at 125V AC single phase


• NEMA Configuration: L5-15R, grounded, with two poles and three wires


• Cable Range: Accepts cable diameters between 0.220" and 0.660"


• Body Material: Nylon housing provides insulation as well as impact and crush resistance


• Contact Material: Brass contacts


• Screw Terminals: Two captive multiple drive assembly screws simplify installation


• Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


• Temperature Rating: Operates continuously up to 75°C; minimum -40°C without impact


• Flame Resistance & IP Rating: HB or better per UL94; IP20 rated for indoor use only unless further protected


• Standards Compliance: Certified to CSA C22.2 No.42, Fed.Spec W-C-596, listed to UL498; terminals identified per UL498 requirements
