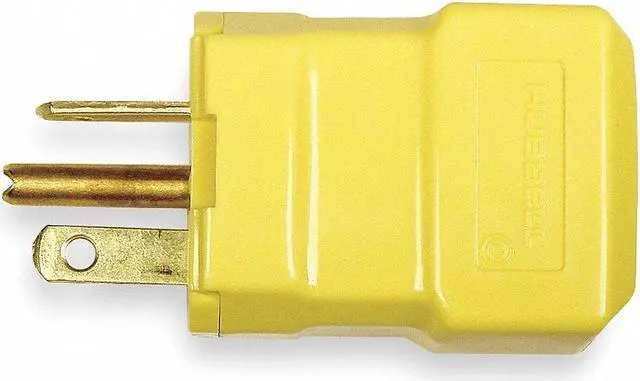

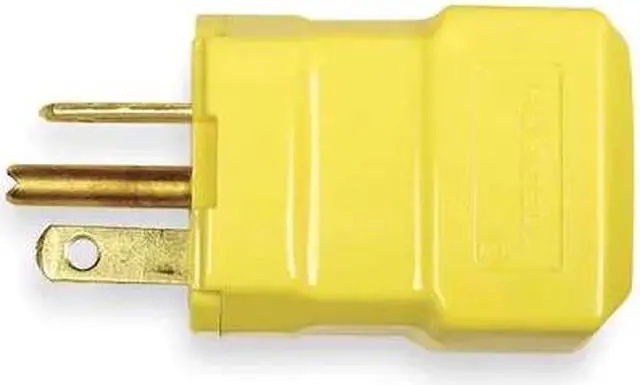

HUBBELL WIRING DEVICE-KELLEMS HBL5364VY 3 Wire Industrial Straight Blade Plug

The HUBBELL 3 Wire Industrial Straight Blade Plug is a plug rated for operation at 125V AC, up to 20 amps. It features a hinged, one-piece body design intended to facilitate assembly and utilizes screw terminals for wire connections. The plug accommodates three wires and is grounded; compatible with applications requiring NEMA 5-20P configuration.

Key Features of the HUBBELL 3 Wire Industrial Straight Blade Plug:

• Amperage/Voltage Rating: Rated for 20A at 125V AC


• NEMA Configuration: 5-20P, polarized and grounded


• Body Material: Impact modified nylon housing with polycarbonate components


• Cord Clamp Material: Noryl (polyphenylene oxide) cord clamp secures cables from 0.22 in to 0.66 in diameter


• Wire Accommodation: Accepts #18 AWG to #12 AWG stranded copper wire only


• Connection Type: Screw terminals with captive assembly screws


• Blade Materials: Solid brass blades; ground contact blade made from copper alloy


• Corrosion Resistance: Rated for use in dry environments per manufacturer specifications


• Flammability & Dielectric Strength: UL94 HB or better flammability rating; withstands dielectric voltage of up to 2000V per UL498 standards


• Operating Temperature Range: -40°C to +75°C (maximum continuous)


• Certifications & Standards: CSA Certified C22.2 No.42 File 280C, NEMA WD-6 compliant, UL Listed to UL498 File E1706
