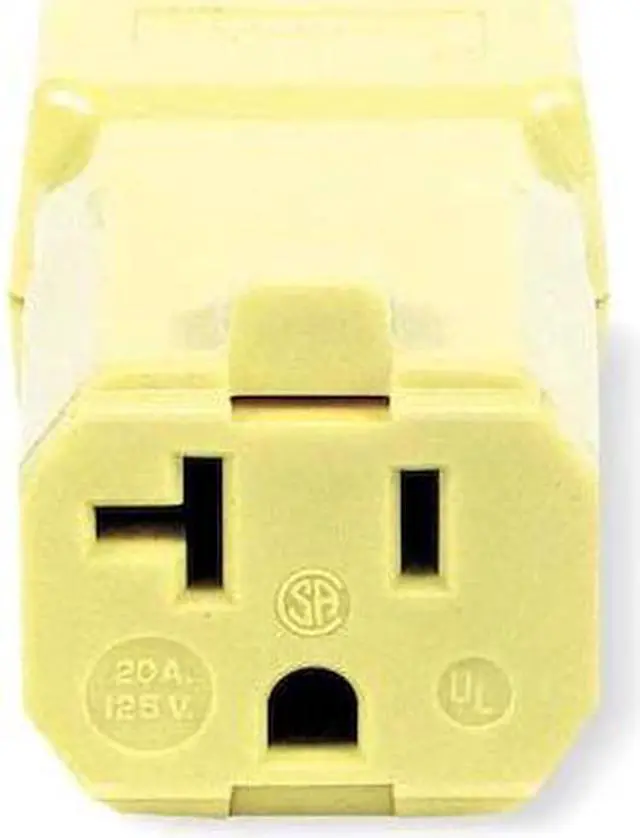

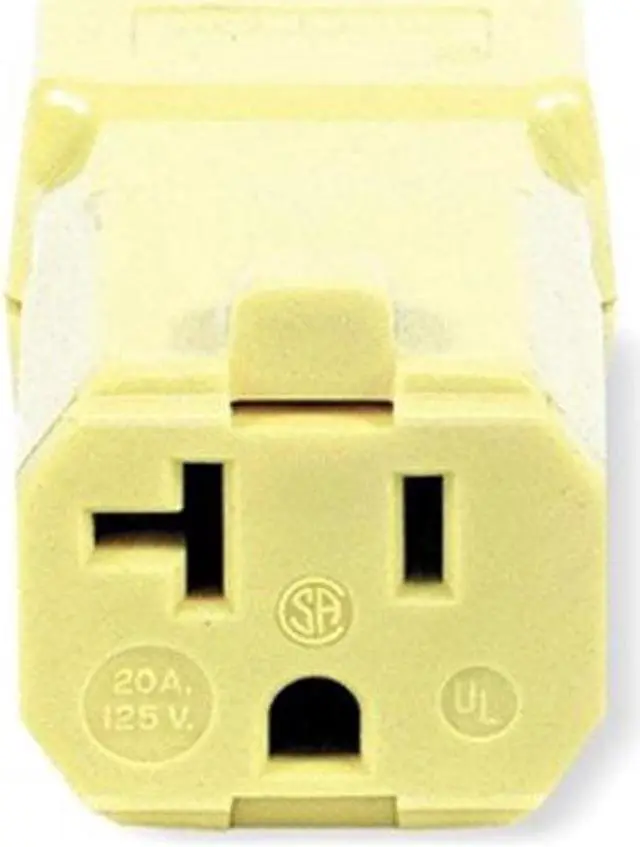

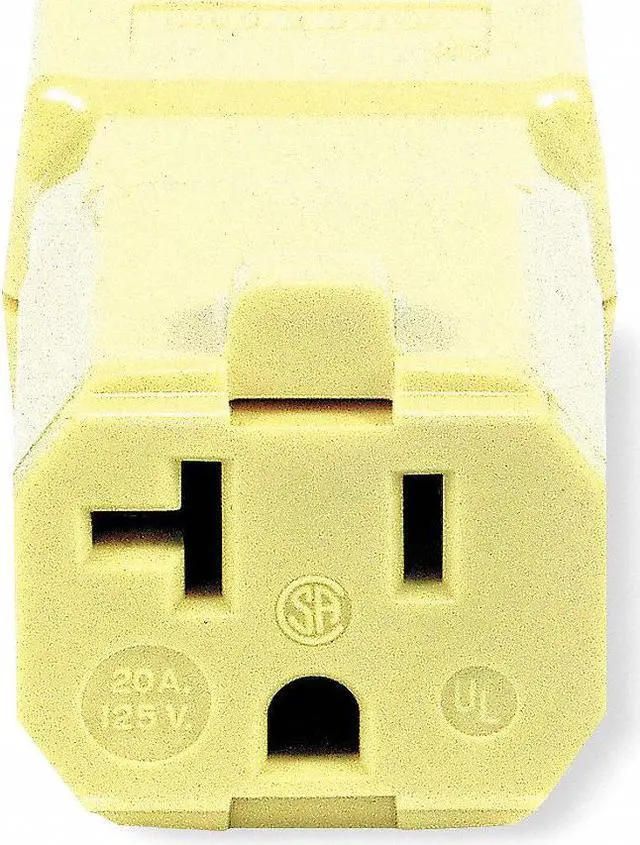

HUBBELL WIRING DEVICE-KELLEMS HBL5369VY Connector,5-20R,20A,125V

The HUBBELL 5-20R Straight Blade Connector is a 20A, 125V connector suitable for use in industrial and commercial electrical applications. It features an assembled using a hinged one-piece body design for straightforward assembly and utilizes screw terminals for wire connections. The connector accommodates #18 AWG to #12 AWG stranded copper wires and supports cord diameters from 0.300" to 0.660". Rated for indoor use in dry conditions, it is constructed with a thermoplastic elastomer housing and nylon material.

Key Features of the HUBBELL 5-20R Straight Blade Connector:

• Amperage/Voltage: Rated for 20 A, 125V AC


• NEMA Configuration: 5-20R, grounded, polarized


• Cord Range: Accepts cords from 0.300" to 0.660" diameter


• Wire Size Compatibility: Supports #18 AWG to #12 AWG stranded copper wire


• Connection Type: Screw terminals with captive assembly screws


• Bodies & Materials: Thermoplastic elastomer housing; brass contacts; insulated body construction


• Design Features: Hinged one-piece body allows access during wiring; offsetting cord grips are used to hold individual conductors in place


• Environmental Suitability: IP20 rated; indoor use in dry locations; moisture, dust, and weather resistant (IP20)


• Standards Compliance: CSA Certified, NEMA WD-6 compliant, UL Listed to UL498 standards
