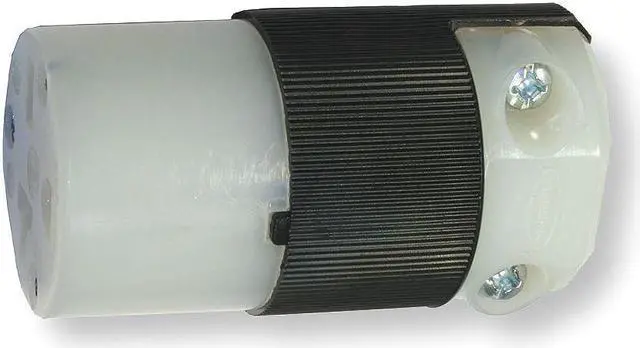

HUBBELL WIRING DEVICE-KELLEMS HBL5469C Straight Blade Connector, 6-20R, 20 A,

The HUBBELL 6-20R Straight Blade Connector is a cord-mounted electrical connector suitable for industrial and commercial applications. Rated for 20A and 250V AC, it features a straight blade configuration with screw terminal connectivity, compatible with #18 AWG to #10 AWG copper conductors. The housing is constructed from thermoplastic elastomer and nylon, providing resistance to moisture, dust, and weather in indoor dry locations unless additional protection is provided.

Key Features of the HUBBELL 6-20R Straight Blade Connector:

• Amperage/Voltage: Rated for 20A at 250V AC


• NEMA Configuration: 6-20R (2-pole, 3-wire grounding)


• Cord Range: Accepts cable diameters from 0.230" to 0.720"


• Wire Size Compatibility: Compatible with #18 AWG to #10 AWG copper conductors


• Connection Type: Screw terminals with individual enclosed wiring terminals


• Cord Grip Design: Offsetting cord grips secure individual conductors


• Housing Material: Thermoplastic elastomer body with nylon insulation


• Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous


• Ingress Protection Rating: IP20; suitable for indoor dry conditions only unless further protected


• Standards Compliance: CSA Certified, NEMA WD-6 Compliant, UL Listed (UL498)
