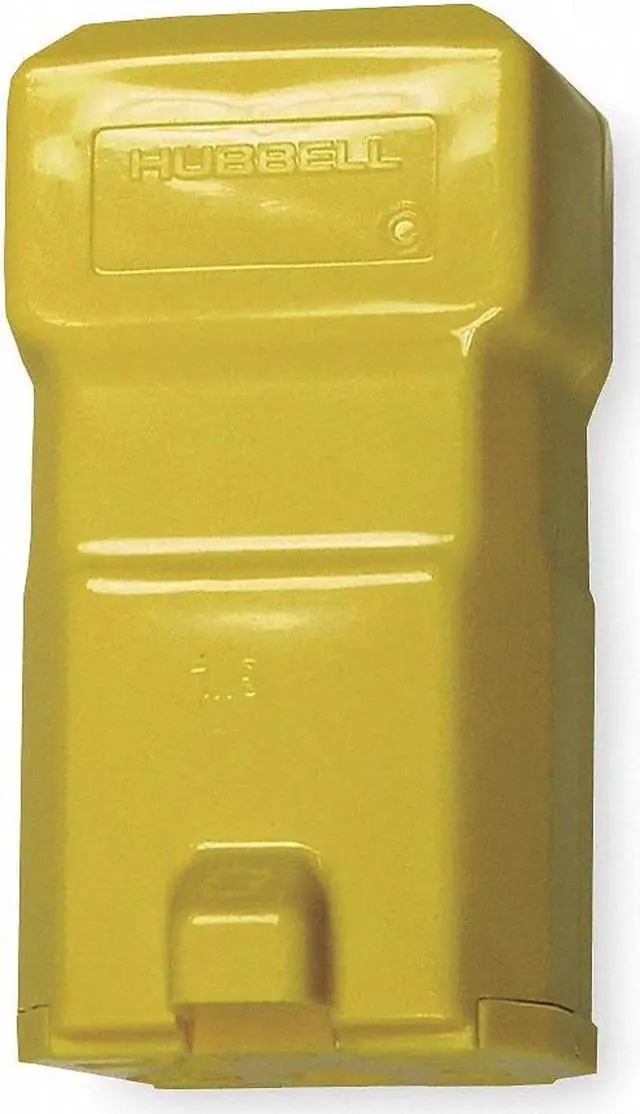

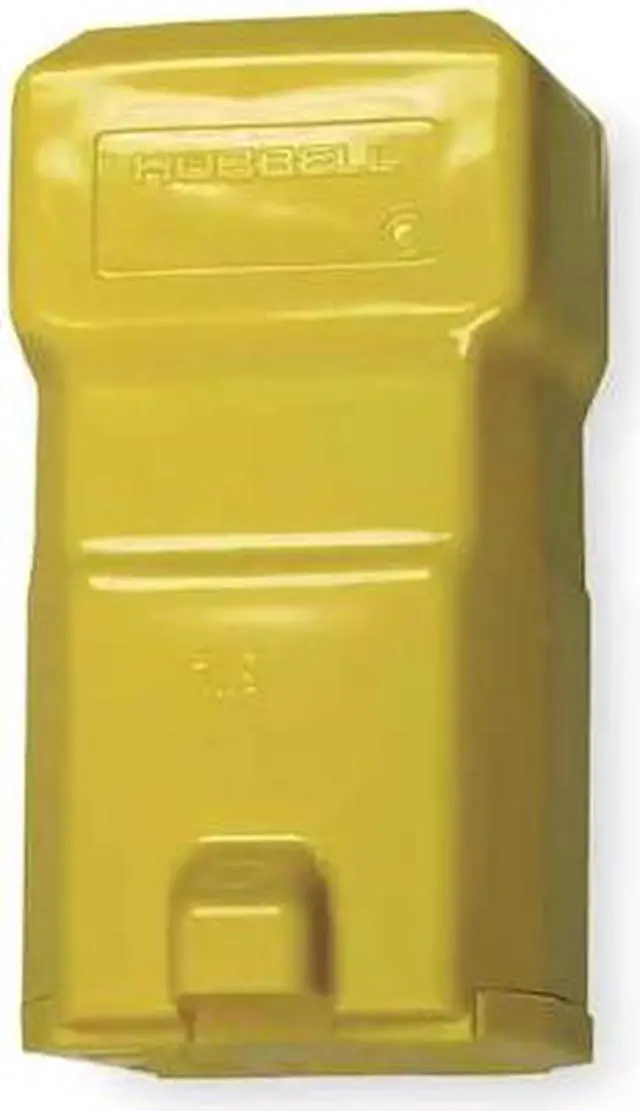

HUBBELL WIRING DEVICE-KELLEMS HBL5469VY Straight Blade Connector, 6-20R, 20 A,

The HUBBELL 6-20R Straight Blade Connector is a connector body for use in commercial and industrial applications. Rated for operation at 250V AC, up to 20A. Featuring a hinged, one-piece thermoplastic elastomer housing, this connector features screw terminals for assembly and secure wiring through screw terminals. It accommodates #18 AWG to #12 AWG stranded copper wire and supports cord diameters from 0.220" to 0.660". The device is grounded, polarized, and complies with NEMA 6-20R configuration standards.

Key Features of the HUBBELL 6-20R Straight Blade Connector:

• Amperage/Voltage Rating: Rated for up to 20A at 250V AC


• NEMA Configuration: Compatible with NEMA 6-20R receptacles


• Wire Accommodation: Accommodates #18 AWG to #12 AWG stranded copper conductors


• Cord Range: Supports cable diameters between 0.220" and 0.660"


• Housing Material: Thermoplastic elastomer housing; insulated body


• Connection Type: Screw terminal connection; includes captive assembly screws


• Design Features: Hinged one-piece body; offsetting cord grips hold individual conductors


• Environmental Suitability: Suitable for indoor dry locations unless otherwise protected; IP20 rated


• Standards Compliance: CSA Certified, UL Listed (UL498), NEMA WD-6 compliant
