HUBBELL WIRING DEVICE-KELLEMS HBL5666VY 3 Wire Commercial Straight Blade Plug

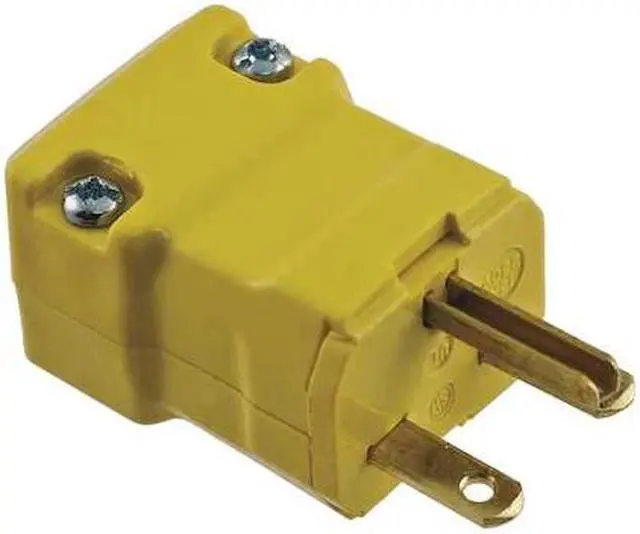

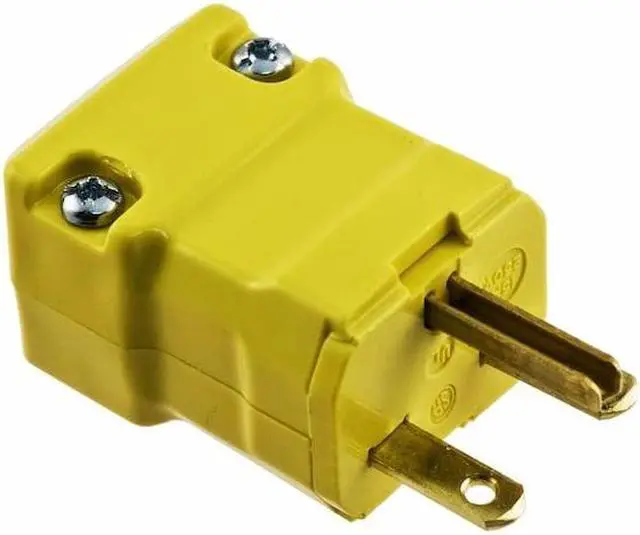

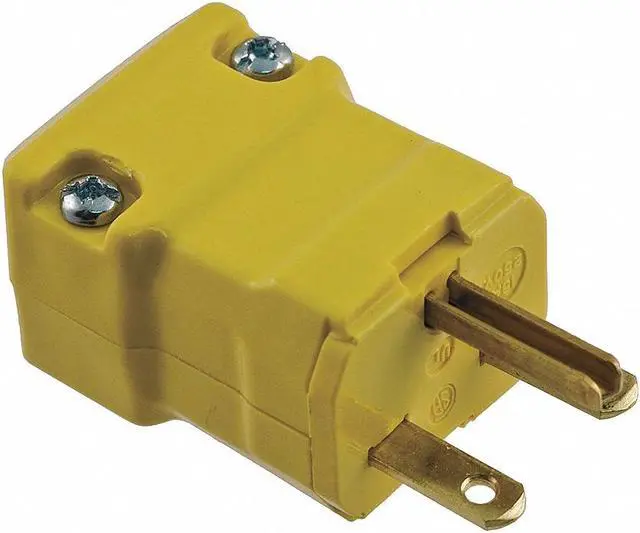

The HUBBELL 3 Wire Commercial Straight Blade Plug is a grounded electrical plug intended for commercial and industrial applications, rated for 15 amps and 250V AC. It features a hinged one-piece body design to facilitate assembly, with offsetting cord grips that are designed to hold individual conductors in place. The plug includes captive assembly screws. It is rated for use in dry locations.

Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:

• Current/Voltage Rating: Rated for 15A, 250V AC


• NEMA Configuration: 6-15P (2 poles, 3 wires)


• Body Material: Impact modified nylon housing; flammability rated HB or better per UL94


• Cord Clamp Material: Noryl (polyphenylene oxide), accommodates cord diameters from 0.22 in to 0.66 in


• Blade & Contact Materials: Solid brass blades (.060" main blades, .040" ground blade) for solid conductivity


• Wire Connection Type: Screw terminals; accepts wire sizes from 18 AWG to 12 AWG


• Operating Temperature Range: -40°F to +167°F (-40°C to +75°C maximum continuous)


• Corrosion Resistant: Yes; suitable for demanding conditions within dry locations


• Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6, UL498 File E1706
