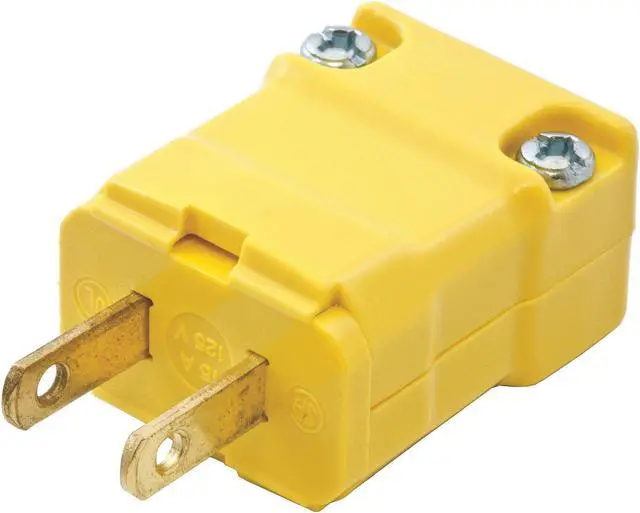

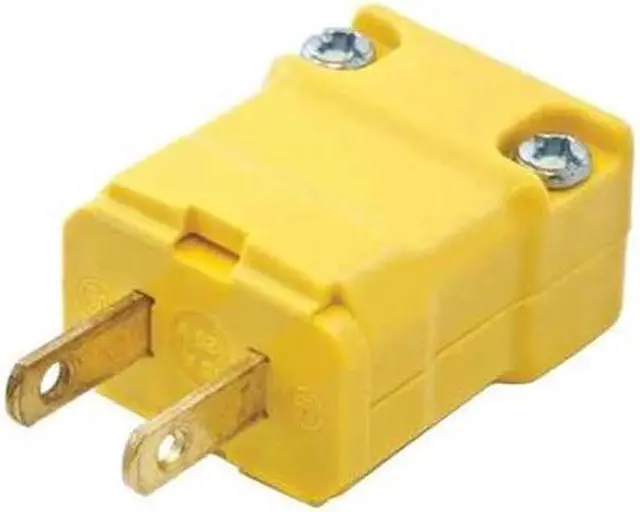

HUBBELL WIRING DEVICE-KELLEMS HBL5865VY 2 Wire Industrial Straight Blade Plug

The HUBBELL 2 Wire Industrial Straight Blade Plug is a non-grounding, straight blade plug designed for commercial and industrial electrical connections. Rated for 15 amps and 125V AC, this plug features a hinged one-piece nylon body for straightforward assembly and screw terminal wire connections. It accommodates two wires with brass contact blades and supports cord sizes from 0.218 in to 0.385 in diameter.

Key Features of the HUBBELL - 2 Wire Industrial Straight Blade Plug:

• Amperage/Voltage Rating: Rated for 15 A at 125V AC


• NEMA Configuration: 1-15P, non-polarized, non-grounding design


• Body Construction: Hinged one-piece nylon housing construction with corrosion-resistant properties


• Cord Accommodation: Accepts #18 AWG to #14 AWG stranded copper wire; suitable for cords between 0.218 in and 0.385 in diameter


• Cord Clamp Material: Noryl (Polyphenylene Oxide) clamp for conductor retention


• Contact Blades Material: Brass blades (.060" thick); steel ground screw (green finish)


• Dielectric Strength & Flammability: Dielectric strength: 2,000V minimum; UL94 HB flammability rating


• Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C (-40°F) without impact


• Standards Compliance: CSA Certified C22.2 No.42 File 280C; NEMA WD-6 Compliant; UL Listed to UL498 File E1706
