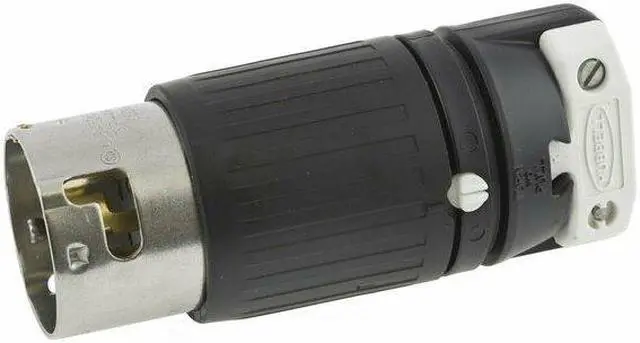

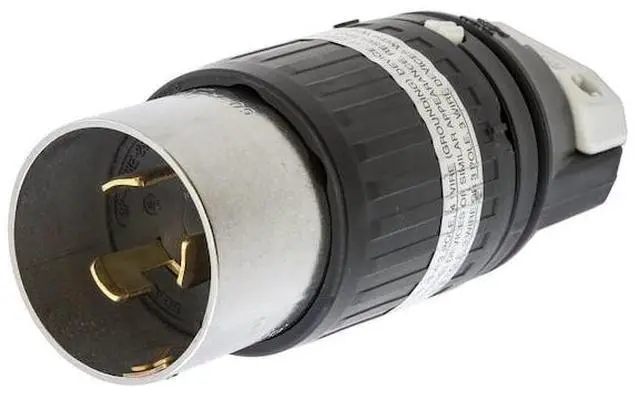

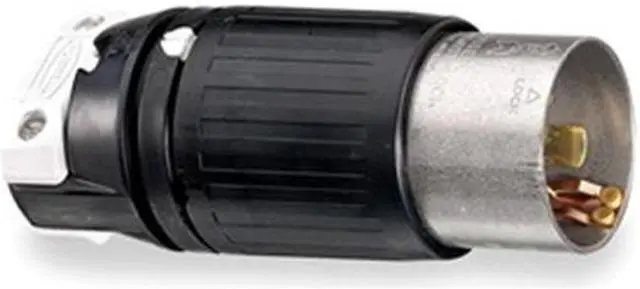

HUBBELL WIRING DEVICE-KELLEMS HBL7765C Locking Plug, Non-NEMA, 50 A, 250/600V

The HUBBELL 50A Twist-Lock Plug is a locking plug with twist-lock engagement intended for industrial electrical connections. It features a nylon housing and brass blades; intended for indoor use in dry locations. The plug accommodates cord sizes from 0.750 to 1.125 inches and supports wire sizes ranging from 8 AWG to 4 AWG, with screw terminal connections.

Key Features of the HUBBELL 50A Twist-Lock Plug:

• Current/Voltage Rating: Rated for 50 A at up to 600V AC or 250V DC


• Number of Poles/Wires: Three poles and four wires


• Housing Material: Nylon housing; impact and chemical resistance per manufacturer specifications


• Blade Material: Brass blade material


• Cord Size Range: Accepts cords from 0.750 in to 1.125 in diameter (maximum cable diameter up to 1.25 in)


• Wire Size Compatibility: Supports minimum wire size of 8 AWG and maximum of 4 AWG


• Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation


• NEMA Configuration: Non-NEMA; polarized design with shrouded construction


• Screw Terminals: screw terminal connections


• Standards Compliance: CSA Certified C22.2 No.42, UL498; UL94 HB flammability rating; IP20 rated enclosure
