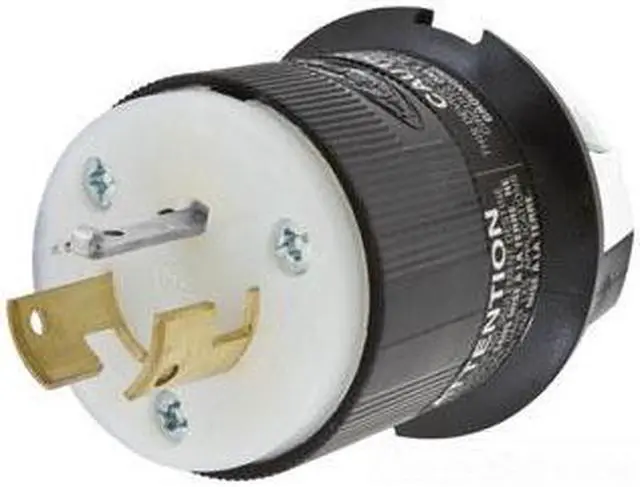

HUBBELL WIRING DEVICE-KELLEMS HBL9965C Locking Plug, Non-NEMA, 20 A, 125/250V

The HUBBELL 20A Locking Plug is a three-pole, three-wire device rated for 125/250V AC, suitable for use in industrial environments requiring robust performance. It features a ribbed nylon housing rated for impact and chemical resistance, along with a cord grip designed to reduce strain on wire terminations. The plug includes a clear, funnel-shaped wire entry intended to facilitate wiring termination and an integral dust shield intended to limit the ingress of contaminants into the wiring chamber.

Key Features of the HUBBELL 20A Locking Plug:

• Amperage & Voltage: Rated for 20 A at 125/250V AC single phase operation.


• Construction: Nylon housing offers durability against impacts and chemicals; brass blades provide reliable electrical connections.


• Cord Accommodation: Accepts cable diameters from 0.36 in to 0.93 in; suitable for all listed portable cords (#16 AWG to #8 AWG stranded copper wire).


• Wire Connection: Screw terminals with standard wiring style and straight connection orientation.


• Performance Ratings: Withstands dielectric voltage up to 2,000V minimum; certified current interrupting at full rated current; flammability rating HB or better per UL94/CSA standards.


• Operating Temperature Range: Maximum continuous temperature of 75°C and minimum -40°C (without impact).


• Ingress Protection: IP20 ratingintended for indoor dry locations unless additional protection is provided.


• Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596.
