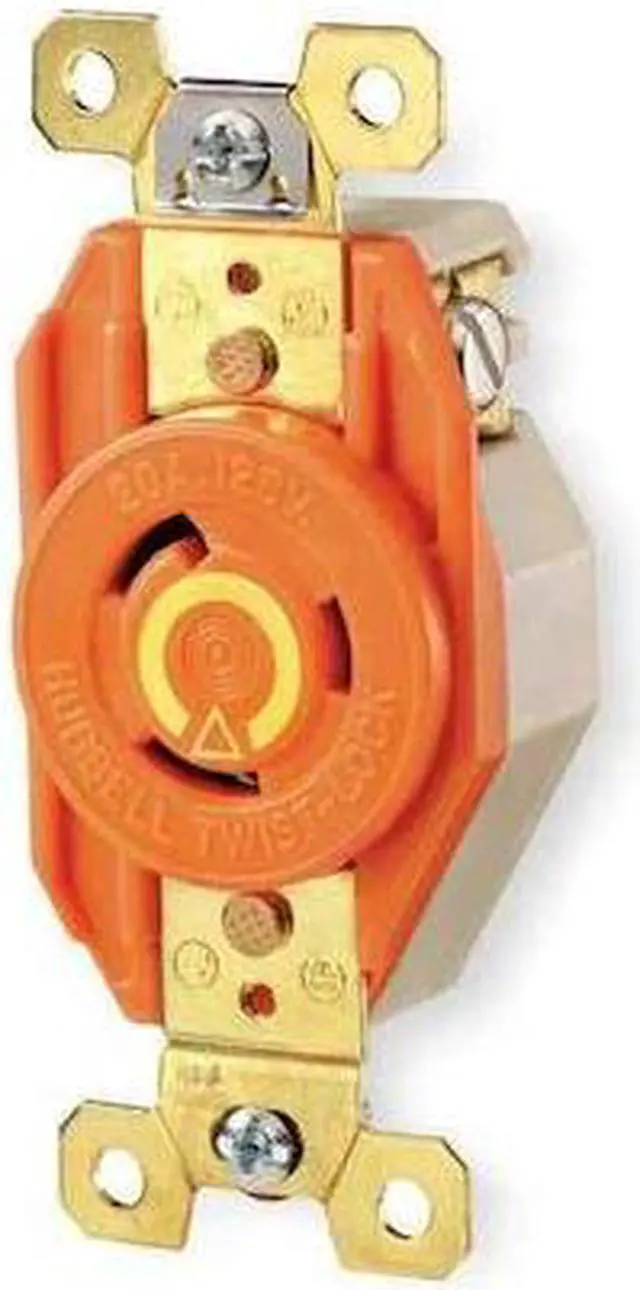

HUBBELL WIRING DEVICE-KELLEMS IG2310 Locking Receptacle, L5-20R, 20 A, 125V AC,

The HUBBELL 20A Isolated Ground Locking Receptacle is an industrial-grade device rated for use in specified electrical applications and environments. Featuring an isolated ground, this receptacle separates the ground contacts from the mounting strap to help reduce electrical noise. It accommodates two poles and three wires, rated for operation at 20 amps, 125V AC, and utilizes a twist-lock mechanism with NEMA L5-20R configuration.

Key Features of the HUBBELL 20A Isolated Ground Locking Receptacle:

• Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap; dedicated insulated ground wire required.


• Amperage/Voltage Rating: Rated for 20 A and 125V AC single-phase operation.


• NEMA Configuration: L5-20R twist-lock design designed for compatibility with NEMA L5-20R plugs.


• Material Construction: Impact-resistant nylon housing and face; brass contacts and all-brass mounting system constructed of materials selected for durability and corrosion resistance.


• Wiring Options: Accepts #16 AWG #8 AWG solid or stranded copper wire via screw terminals; supports both back and side wiring methods.


• Mounting Type: Flush mount installation with included screw hardware; non-flanged design fits standard single-gang boxes.


• Operating Conditions: Suitable for indoor dry locations (IP20); operating temperature range -40°C to +75°C without impact exposure.


• Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596; flammability rated V2 per UL94/CSA standards.
