HUBBELL WIRING DEVICE-KELLEMS MB303W Pin & Sleeve Receptacle, 30 A, - Phase, 3

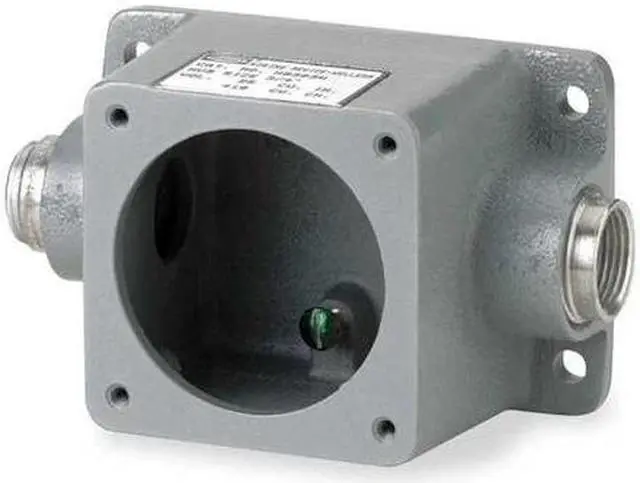

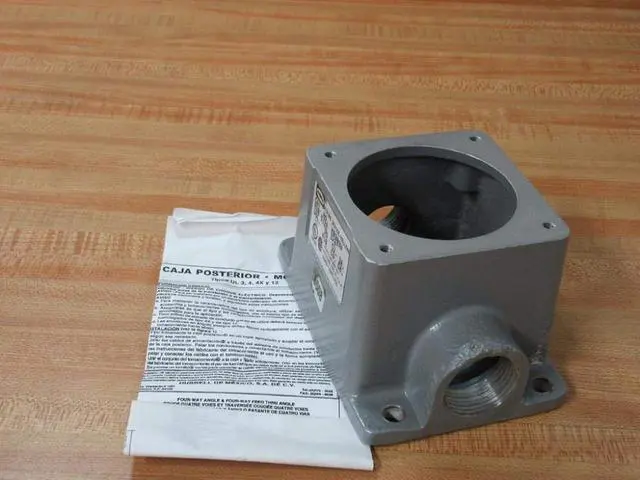

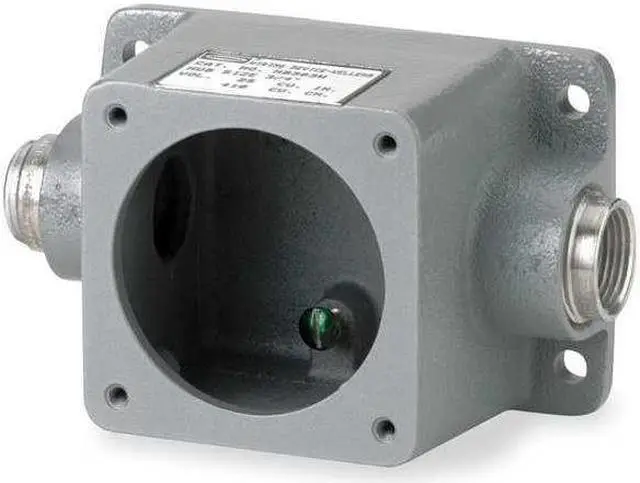

The HUBBELL Back Box, 30A, 3/4" Hub, Straight, Feed-Thru is a metallic back box compatible with Insulgrip Pin and Sleeve devices. Constructed from cast aluminum and suitable for surface mounting, it provides internal wiring space; includes provisions for connection to metallic conduit ground systems. This accessory features a straight feed-through configuration and is rated for use in demanding environments.

Key Features of the HUBBELL Back Box, 30A:

• Current Rating: Rated for 30 amps


• Box Type: Feed-through design with straight angle


• Cable Entry: Through a 3/4 inch NPT hub (dead end type)


• Material: Cast aluminum construction; metallic housing


• Mounting: Surface mount; includes mounting screws


• Compatibility: Compatible with Insulgrip Pin and Sleeve devices; accepts one device (1-gang)


• Performance Ratings: Rated for operation at up to 600V AC RMS; meets impact resistance requirements of UL746C standards


• NEMA Enclosure Rating: Rated NEMA 4X for protection against water and corrosion


• IP Rating: IP67 rated enclosure


• Temperature Range: Operates from -40°C to 75°C continuous temperature without impact


• Flammability Rating: UL94-5VA and V-0 classification
