Could this fit in regular desktop case?

I installed this into a Corsair Carbide Air 540. this case uses a quick release type mount. Because there are little metal tabs inside the Air 540's 5.25" bays to help load balance and align between where the drives go you cannot install this module. the tabs do line up with the visible slot cut into this module on the side but the tabs were too deep to let it slide in. I cut the tabs off from my case with the all mighty dremel and this module slid right in. If you have a case that does not have quick release drive bays and there are no obstructions in the 5.25" bays (just a perfectly smooth cube area) then yes you should be able to fit this. Be sure to check the area of clearance behind your bays. this module is pretty deep. this is a great product! it's sad to see so many cases using QR vs god old screws. I do hope that this helps you.

Why did you buy this?

I needed it to mount an SSD in my old desktop to use as a boot drive.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

ICYDOCK;MB453SPF-B;ICY DOCK MB453SPF-B $15 Mail-in Rebate at Buy.com

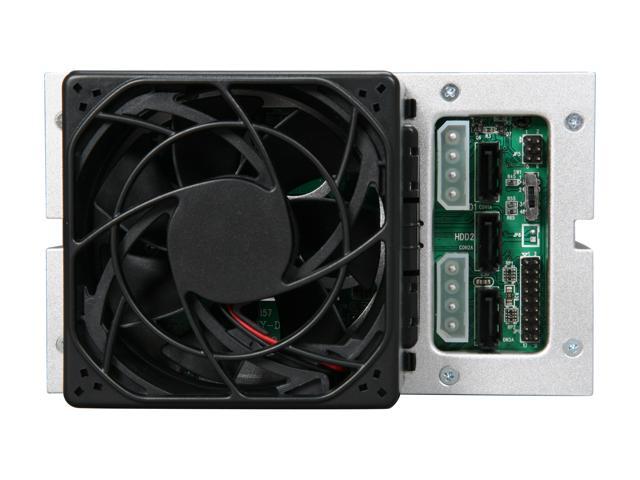

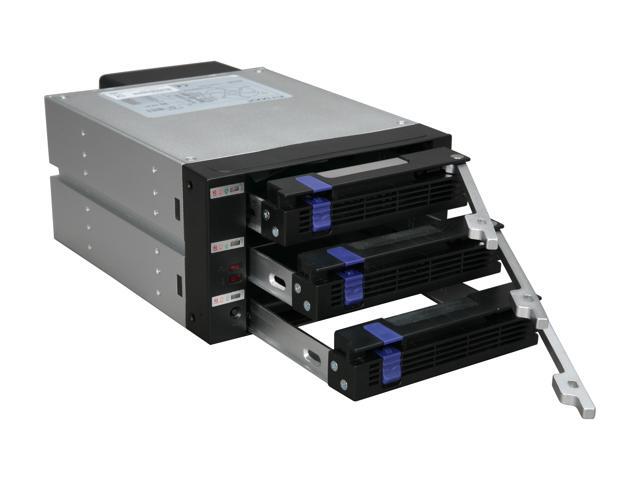

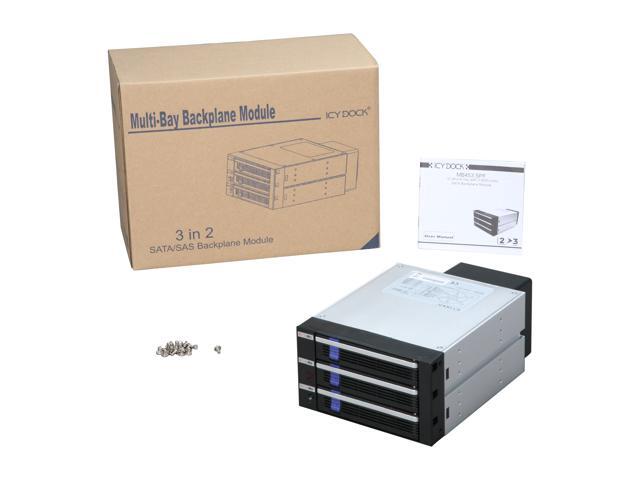

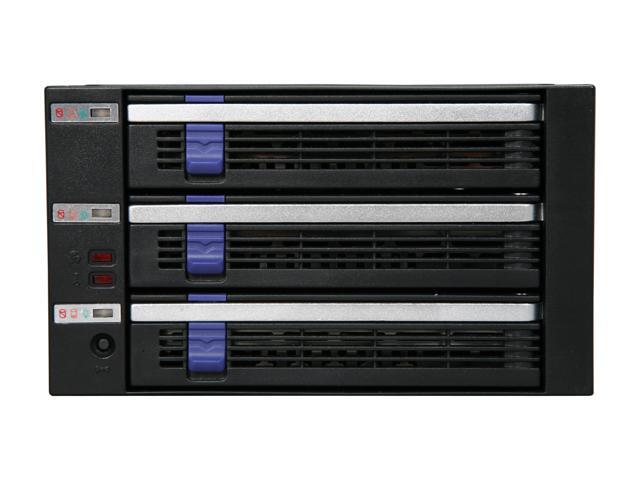

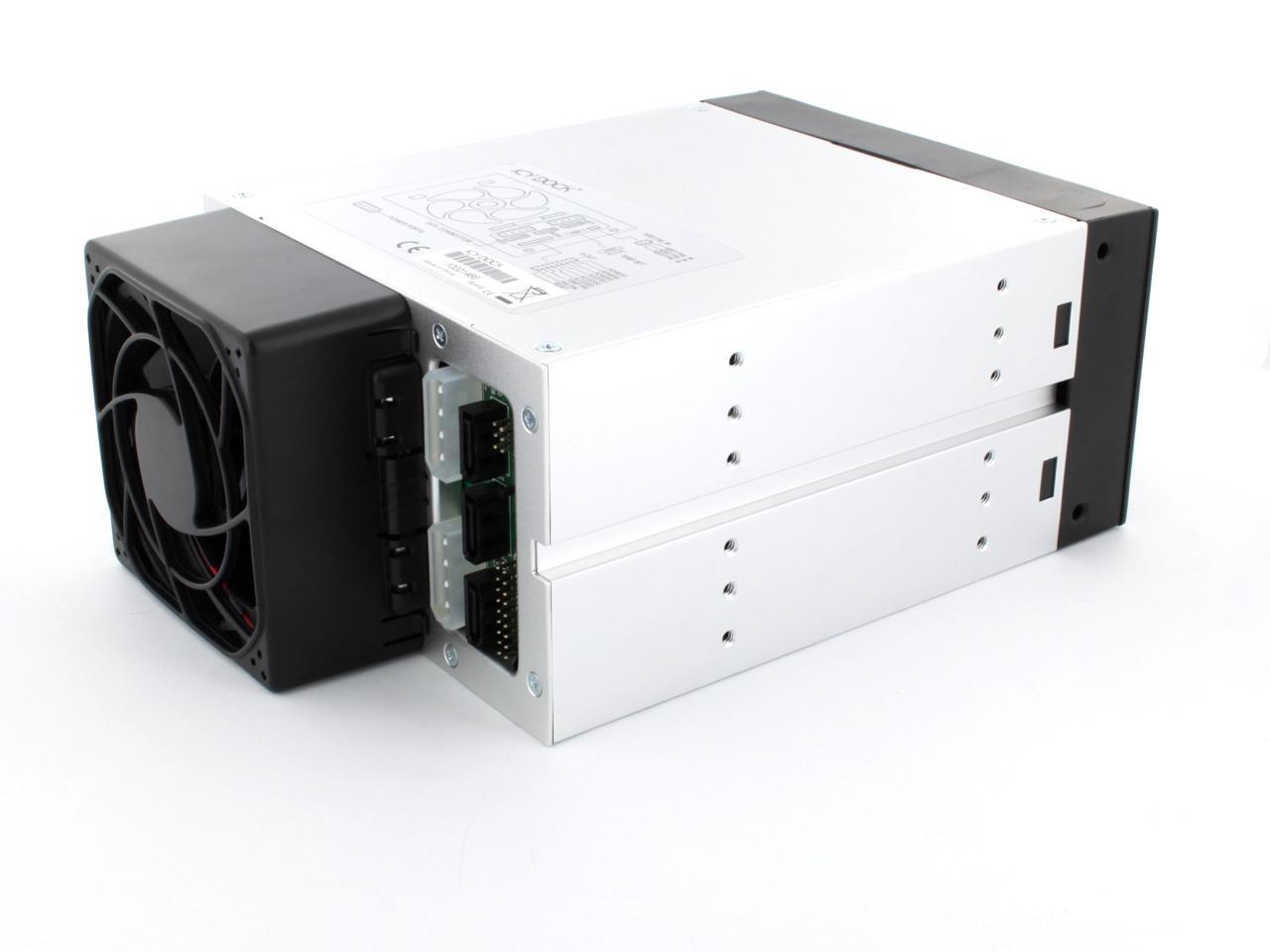

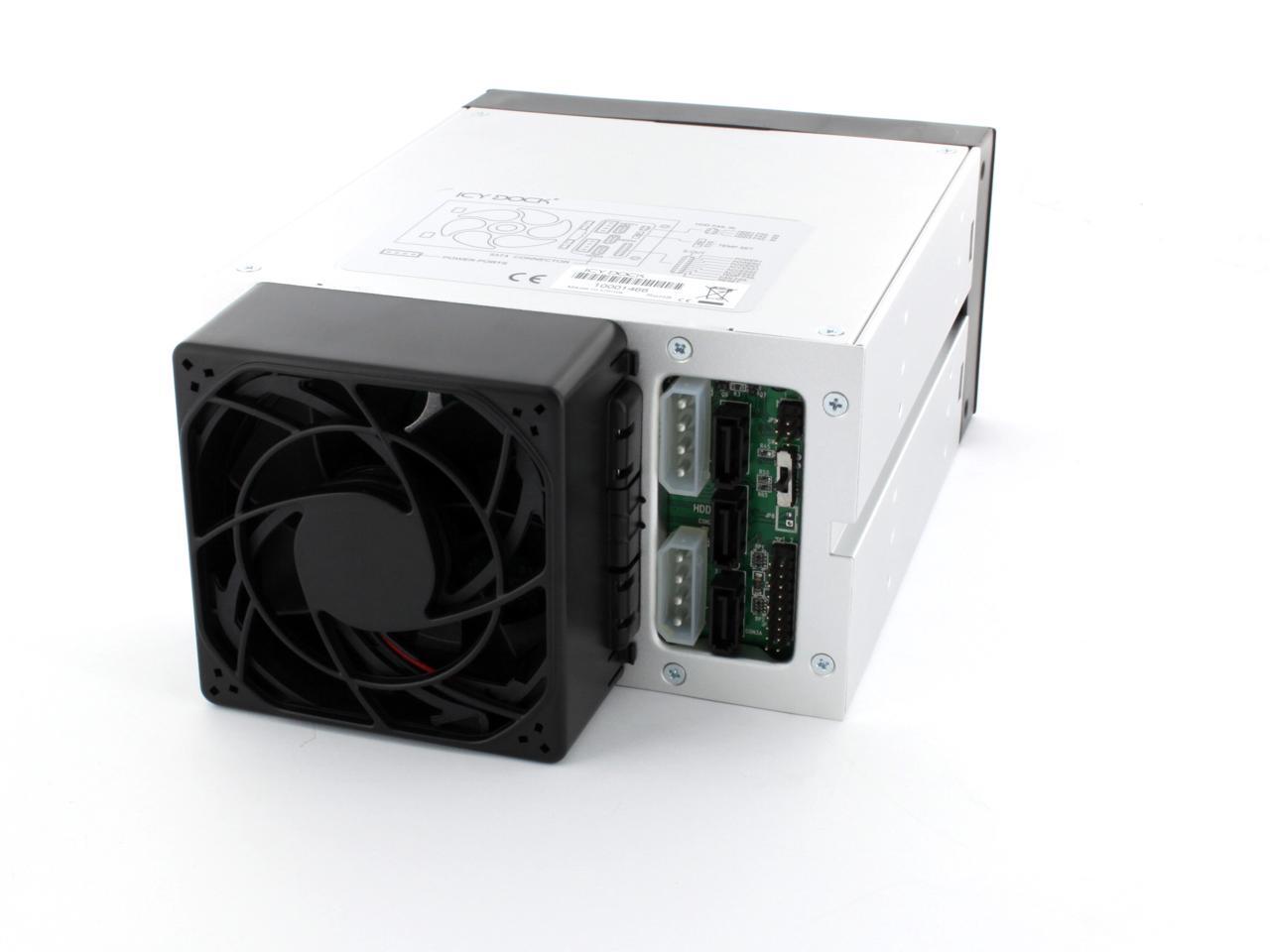

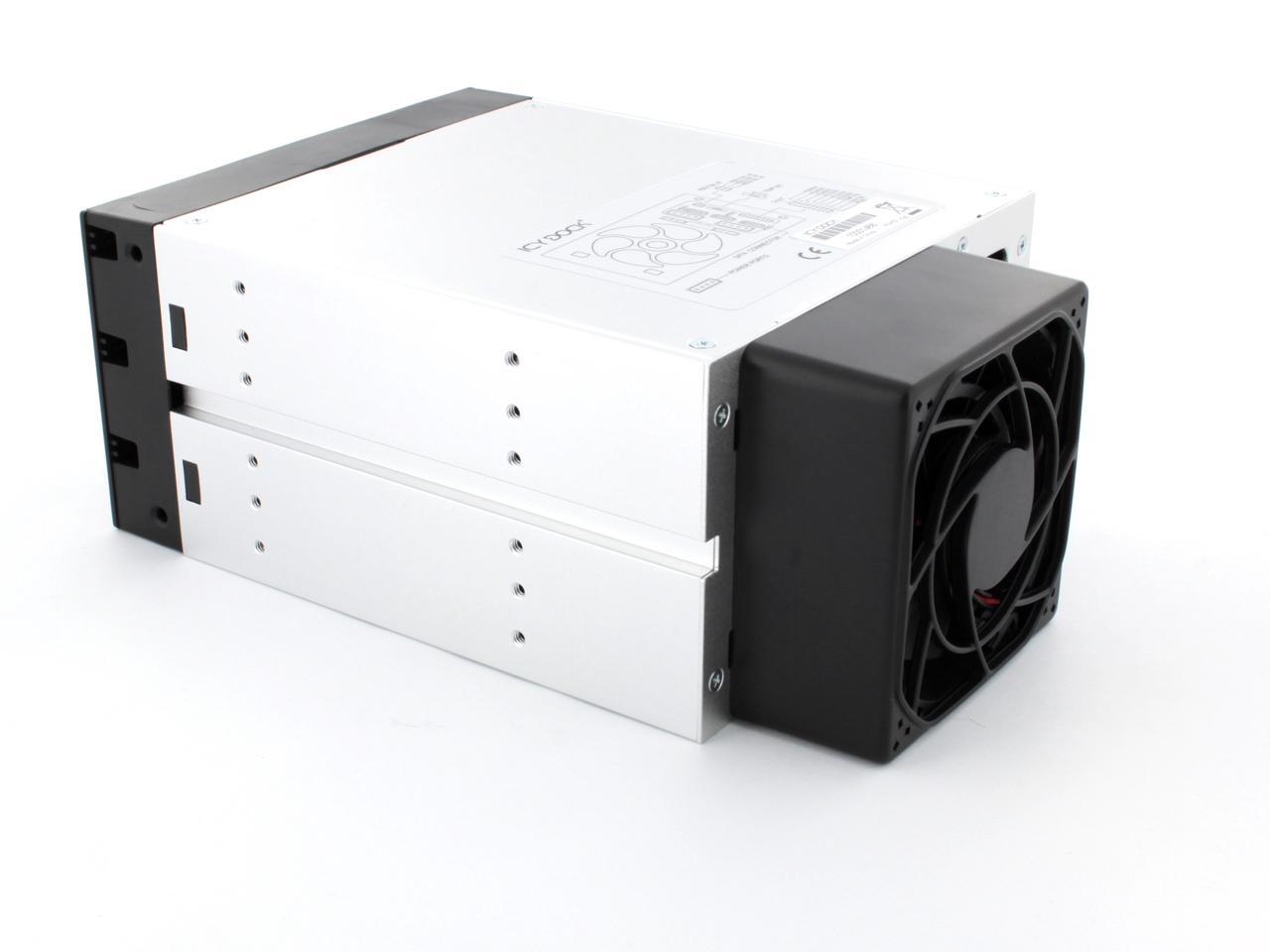

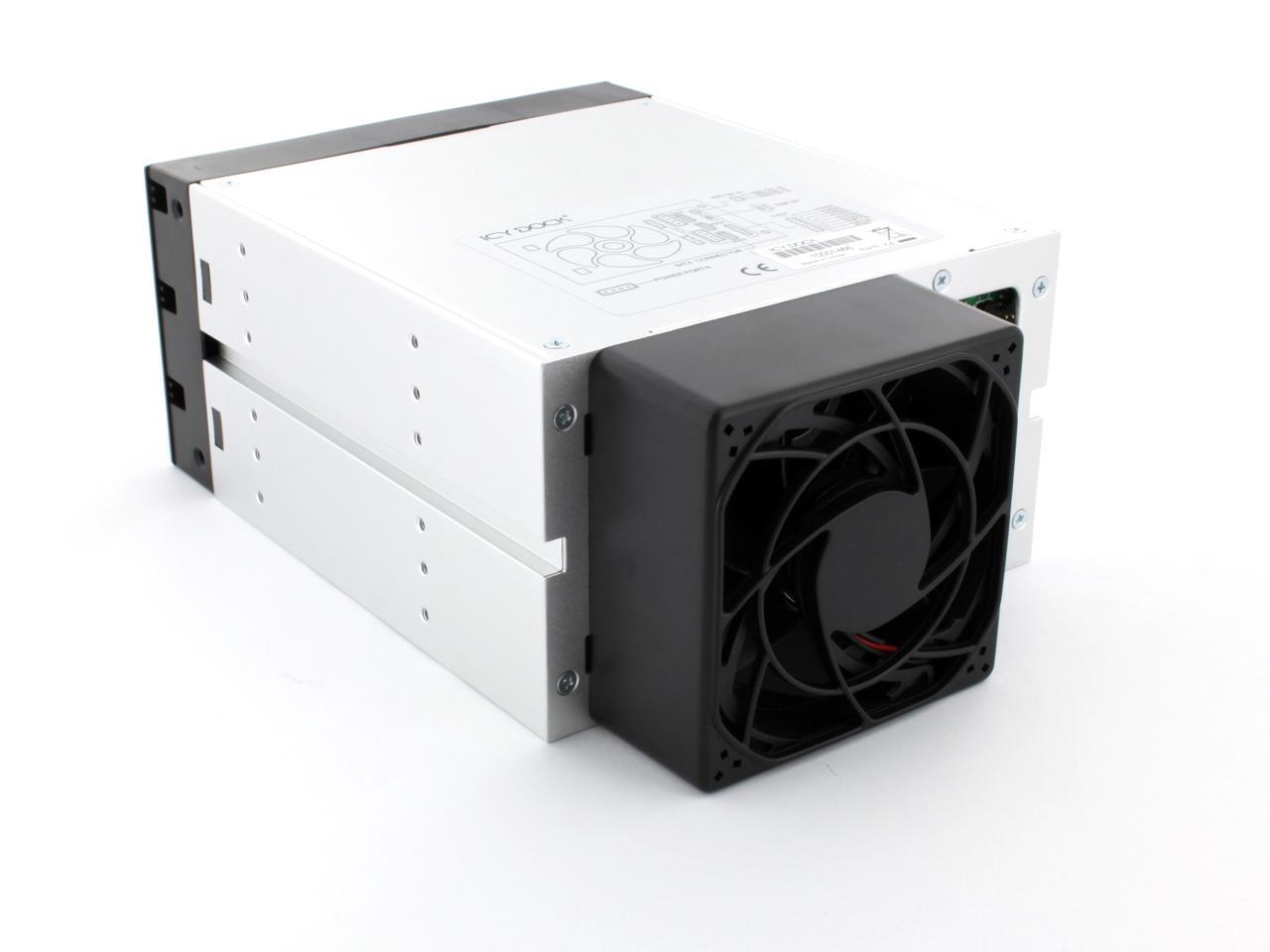

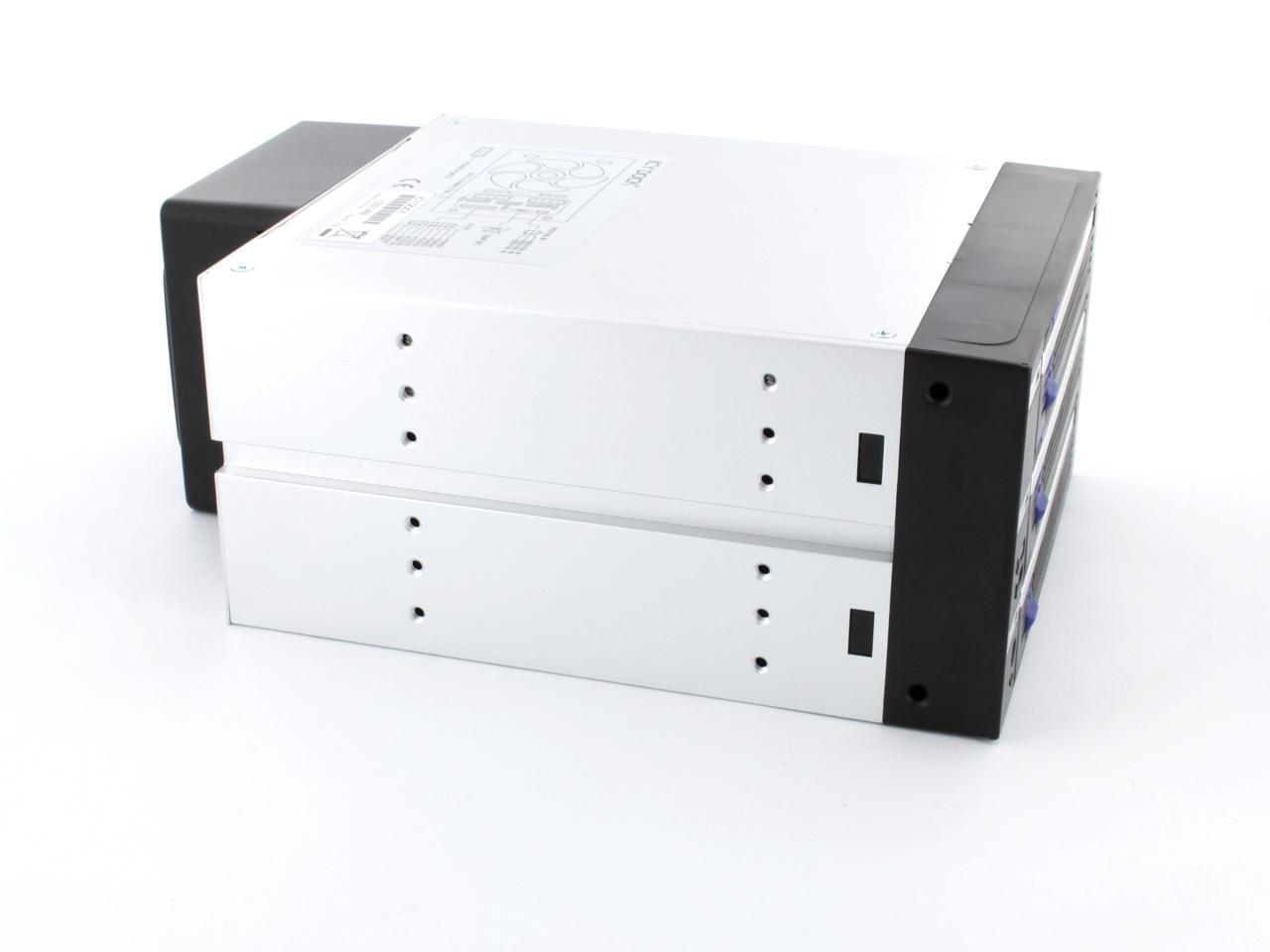

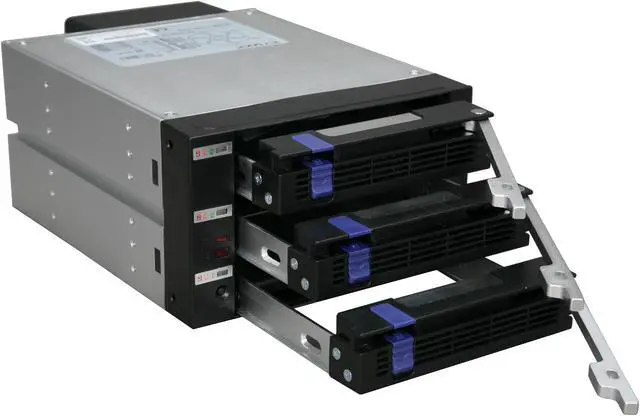

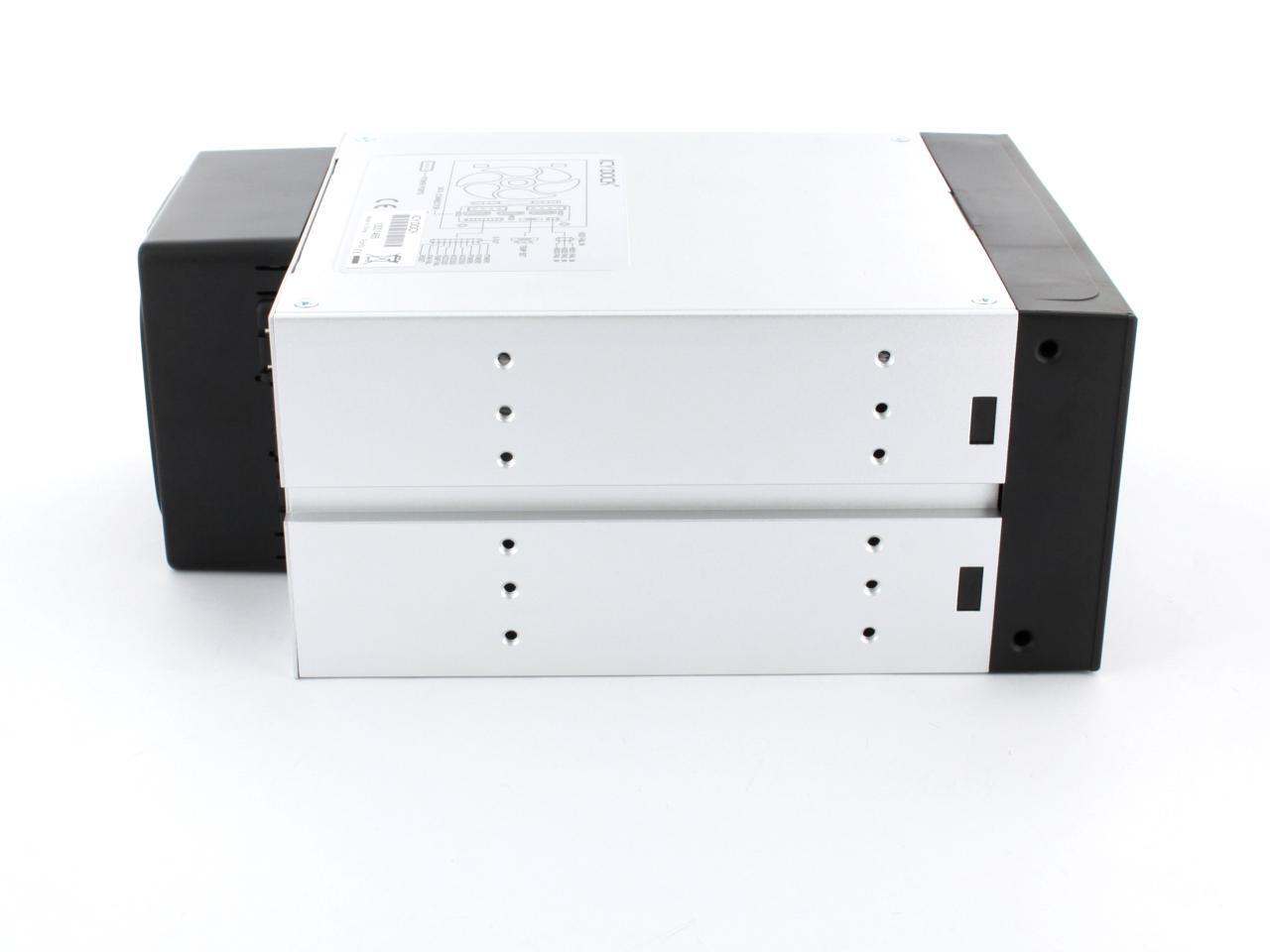

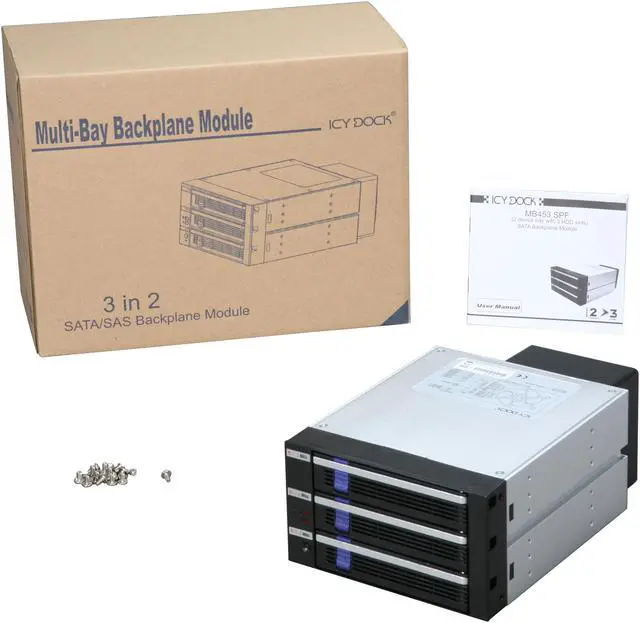

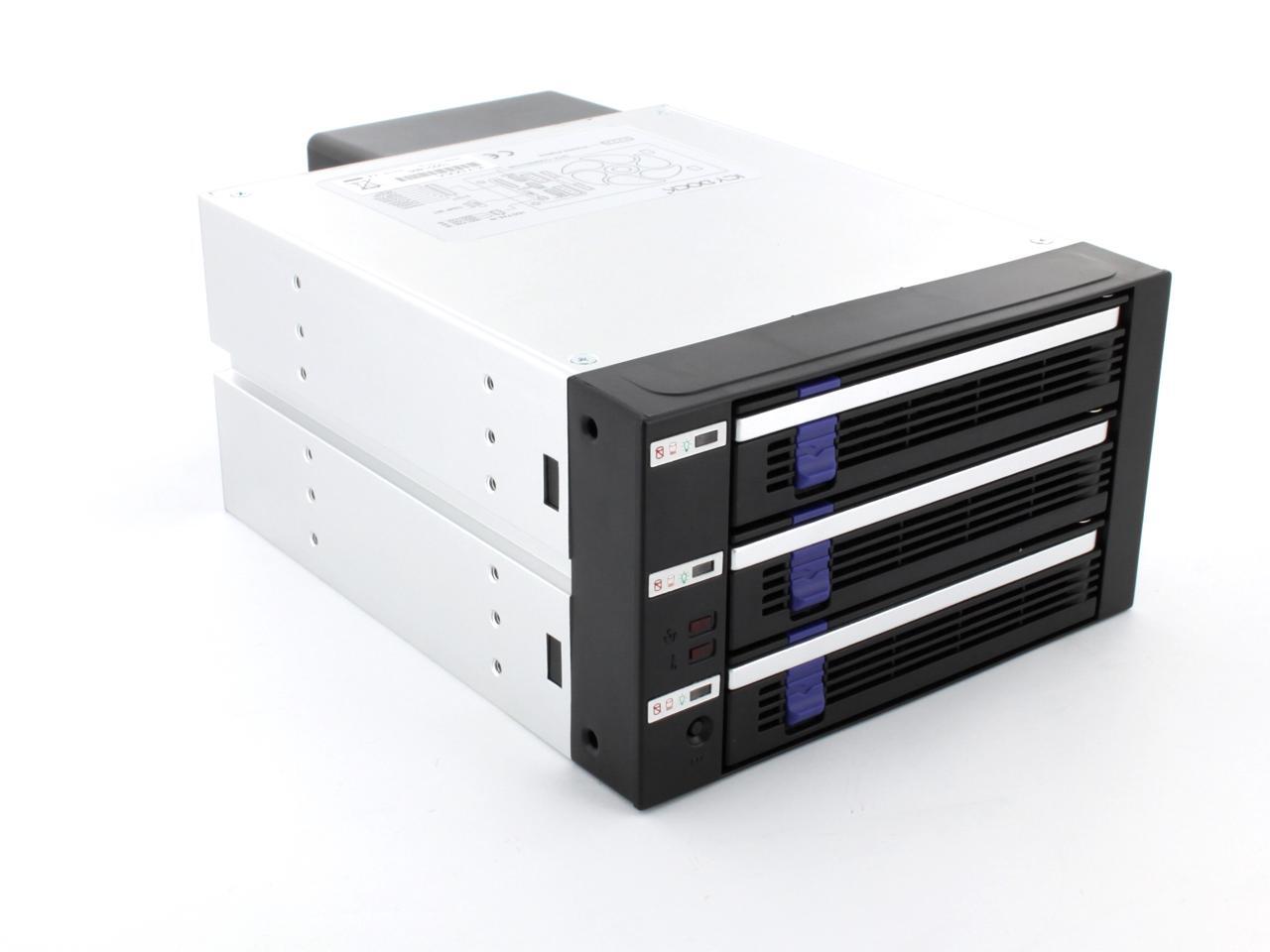

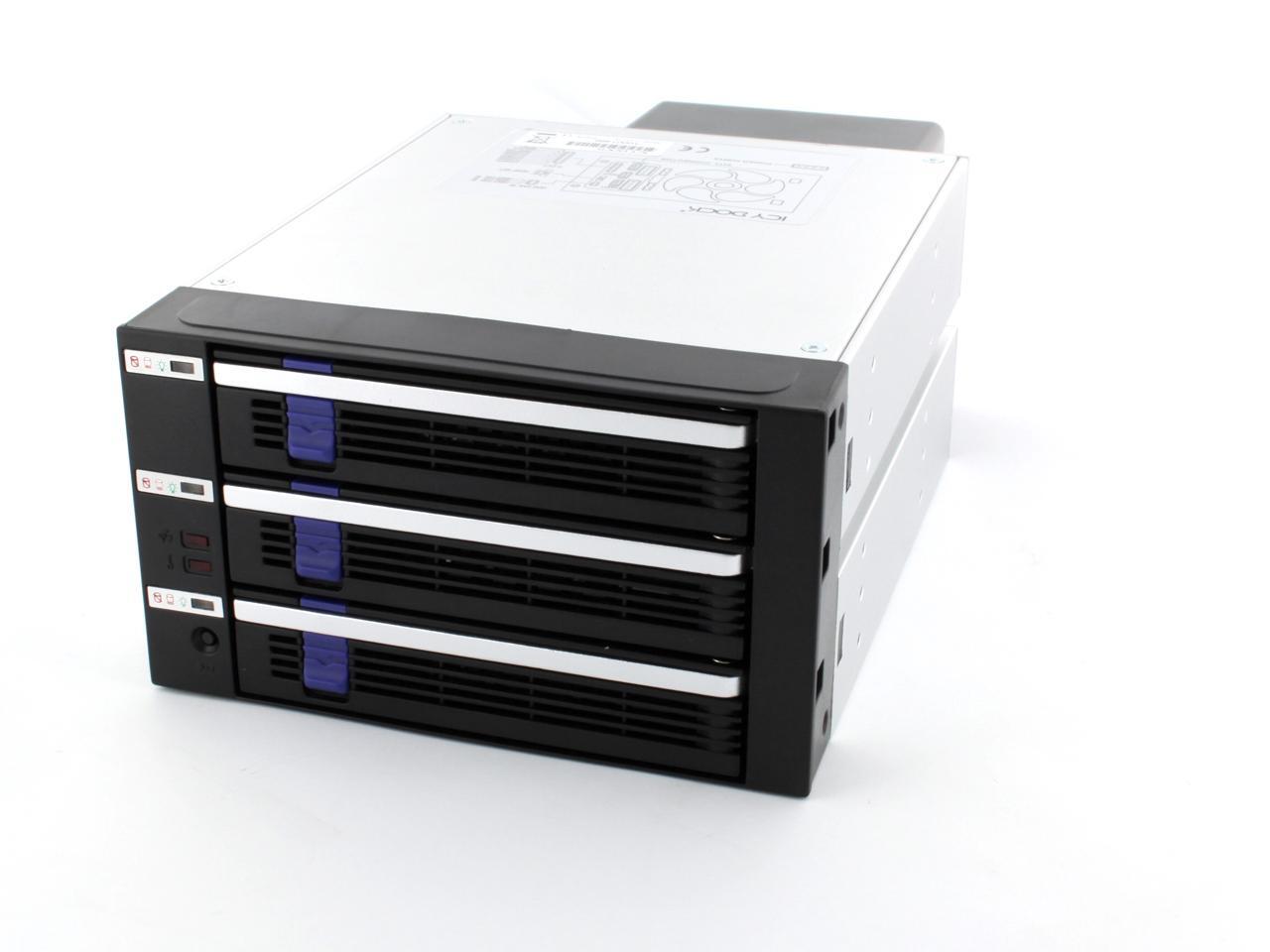

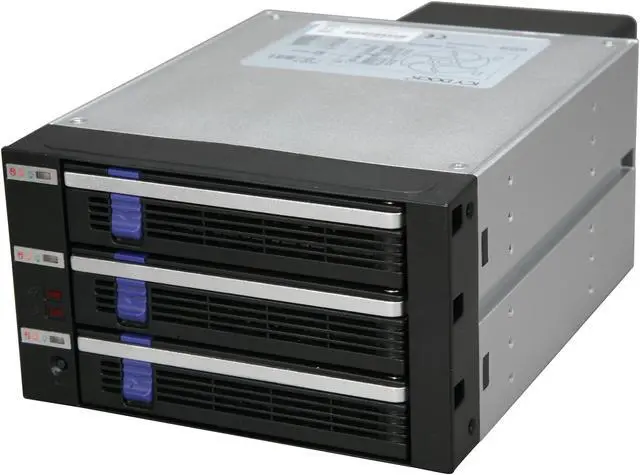

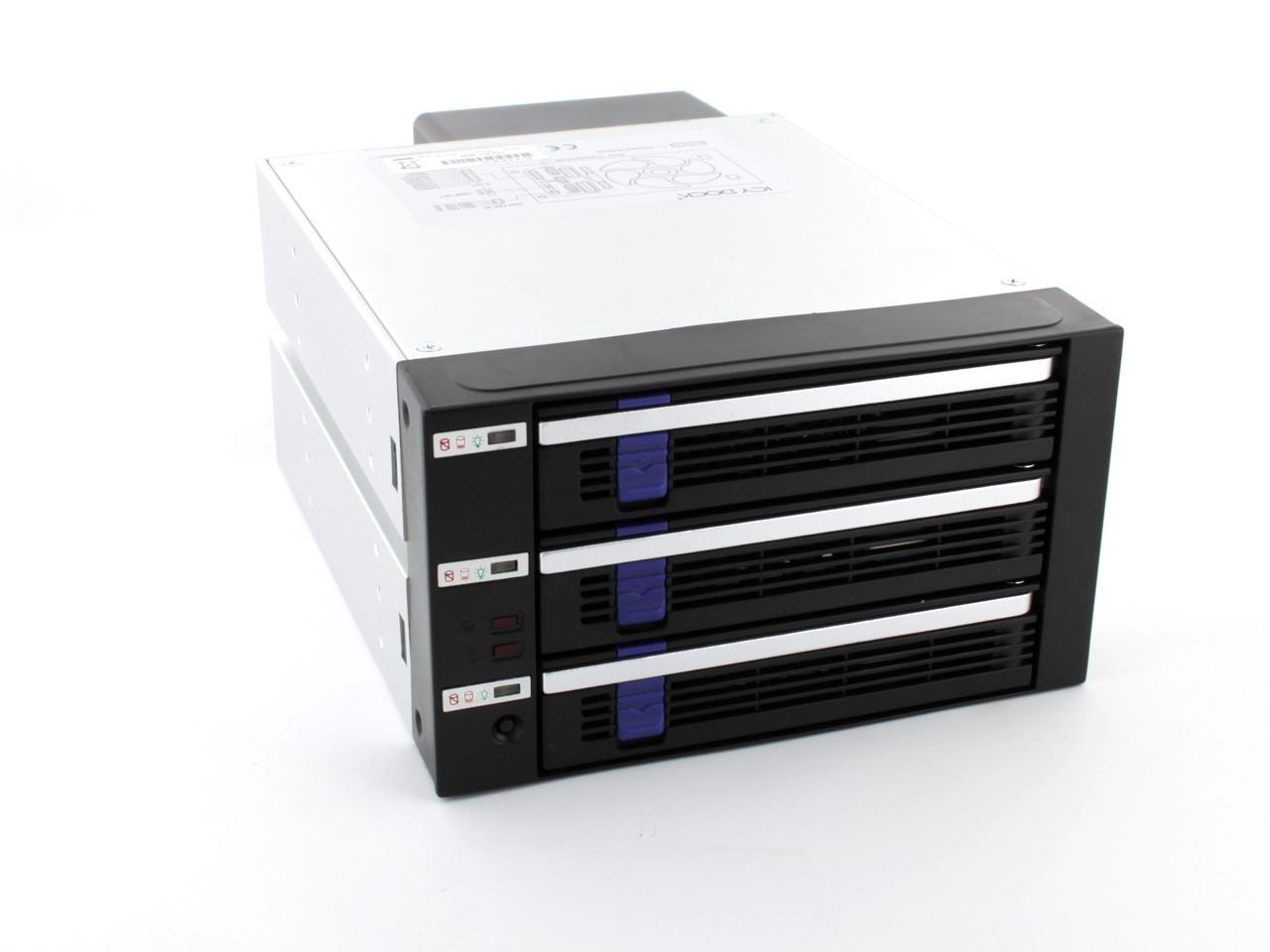

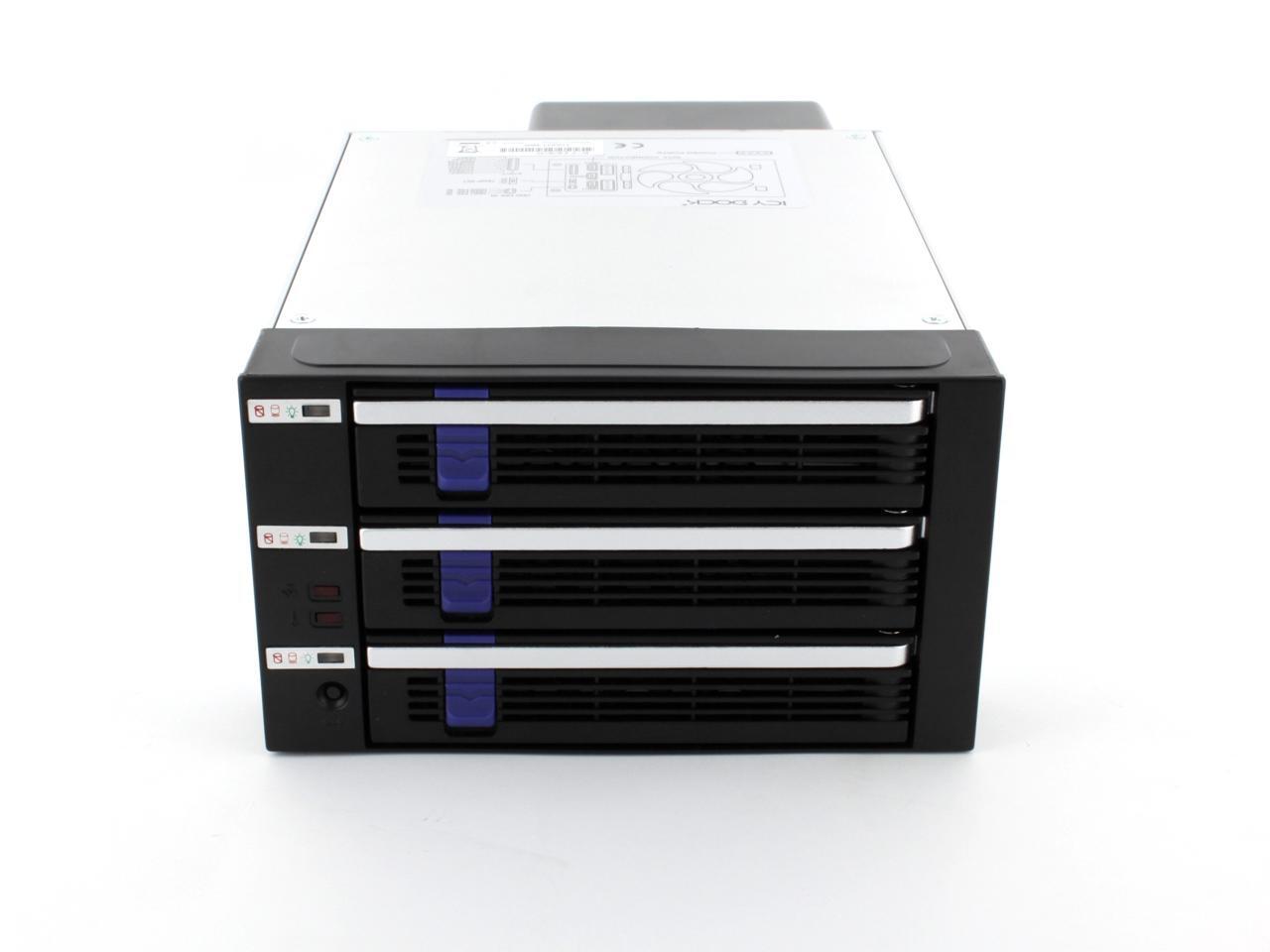

Main image of ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

100%

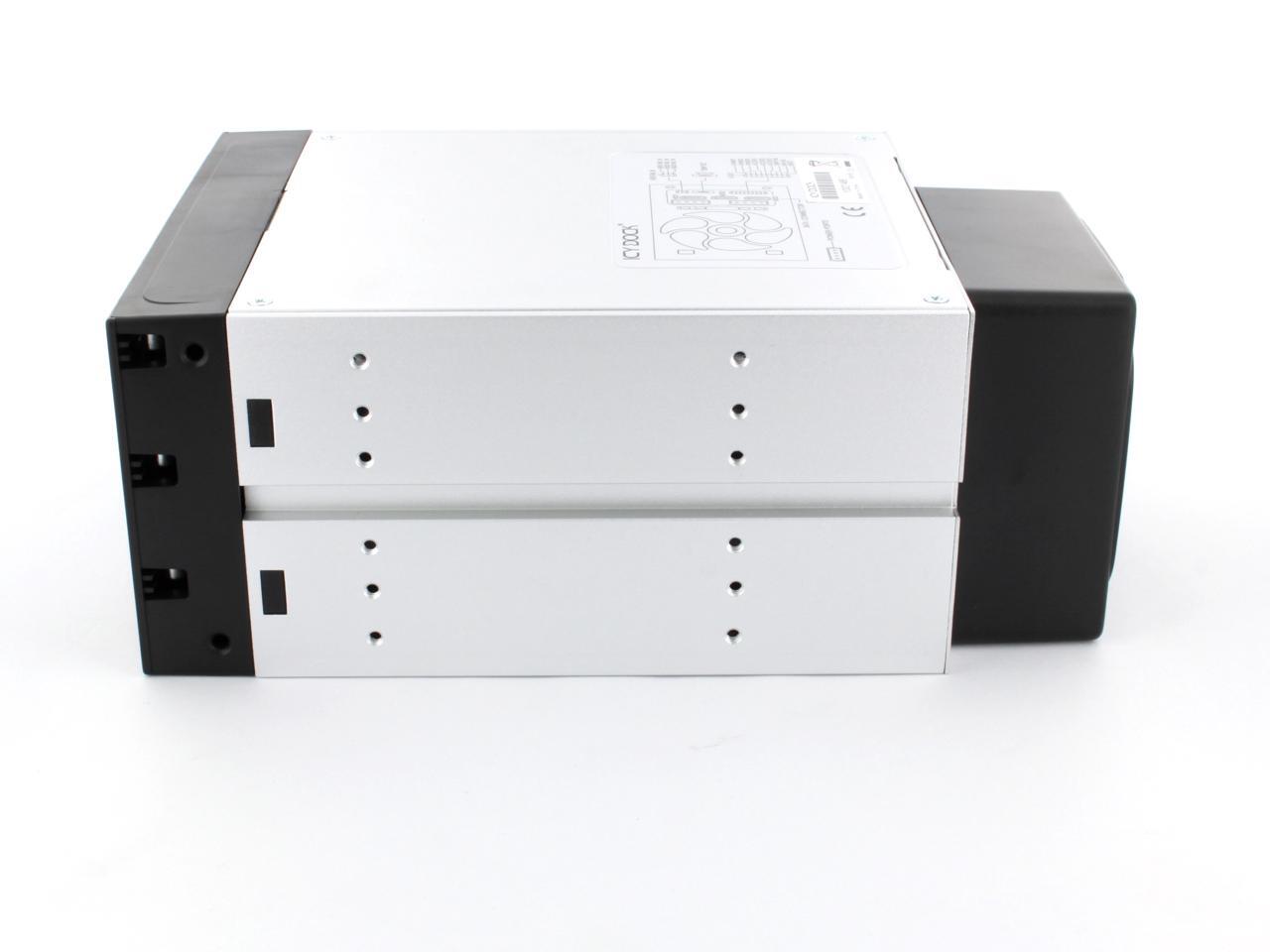

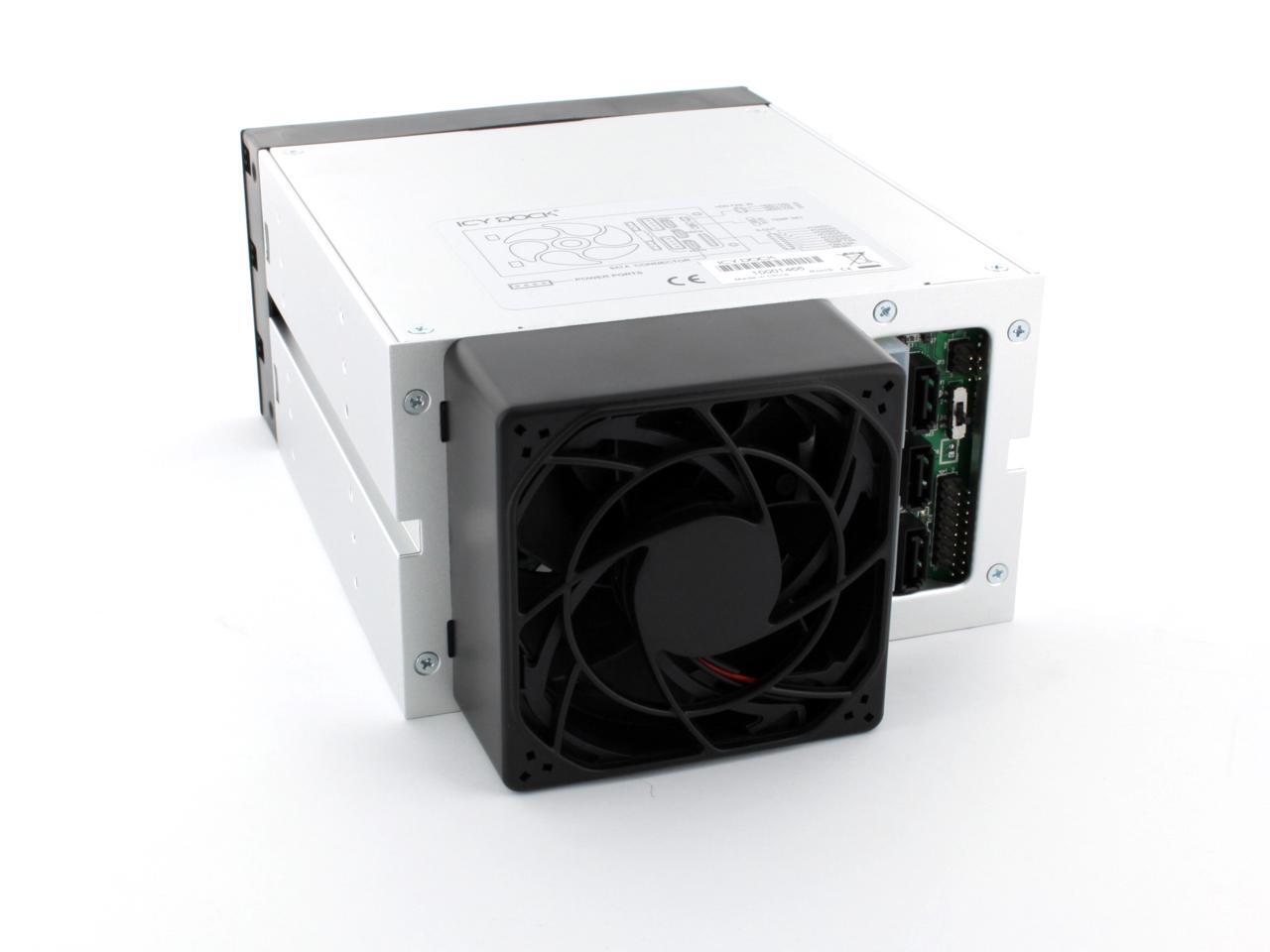

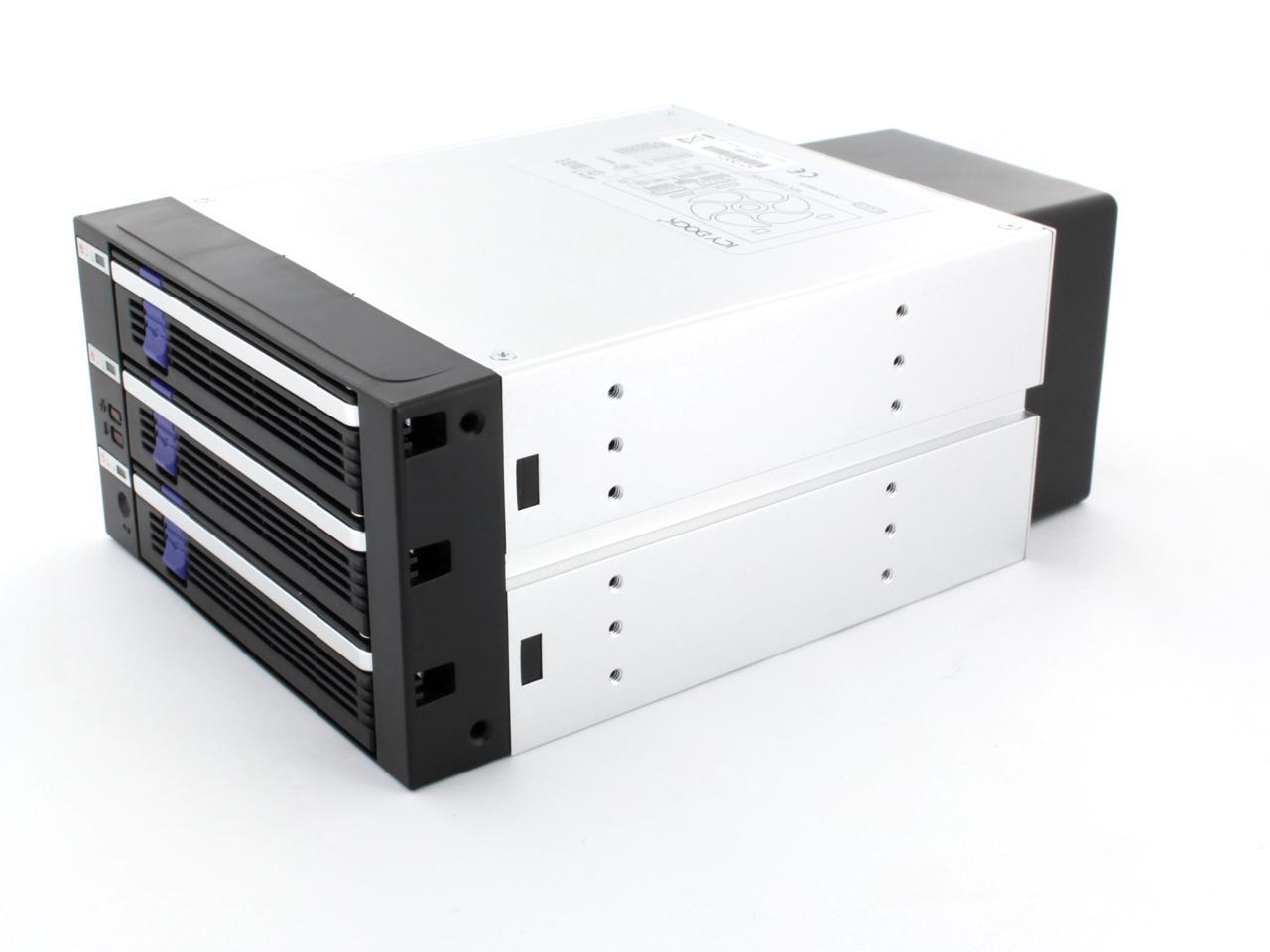

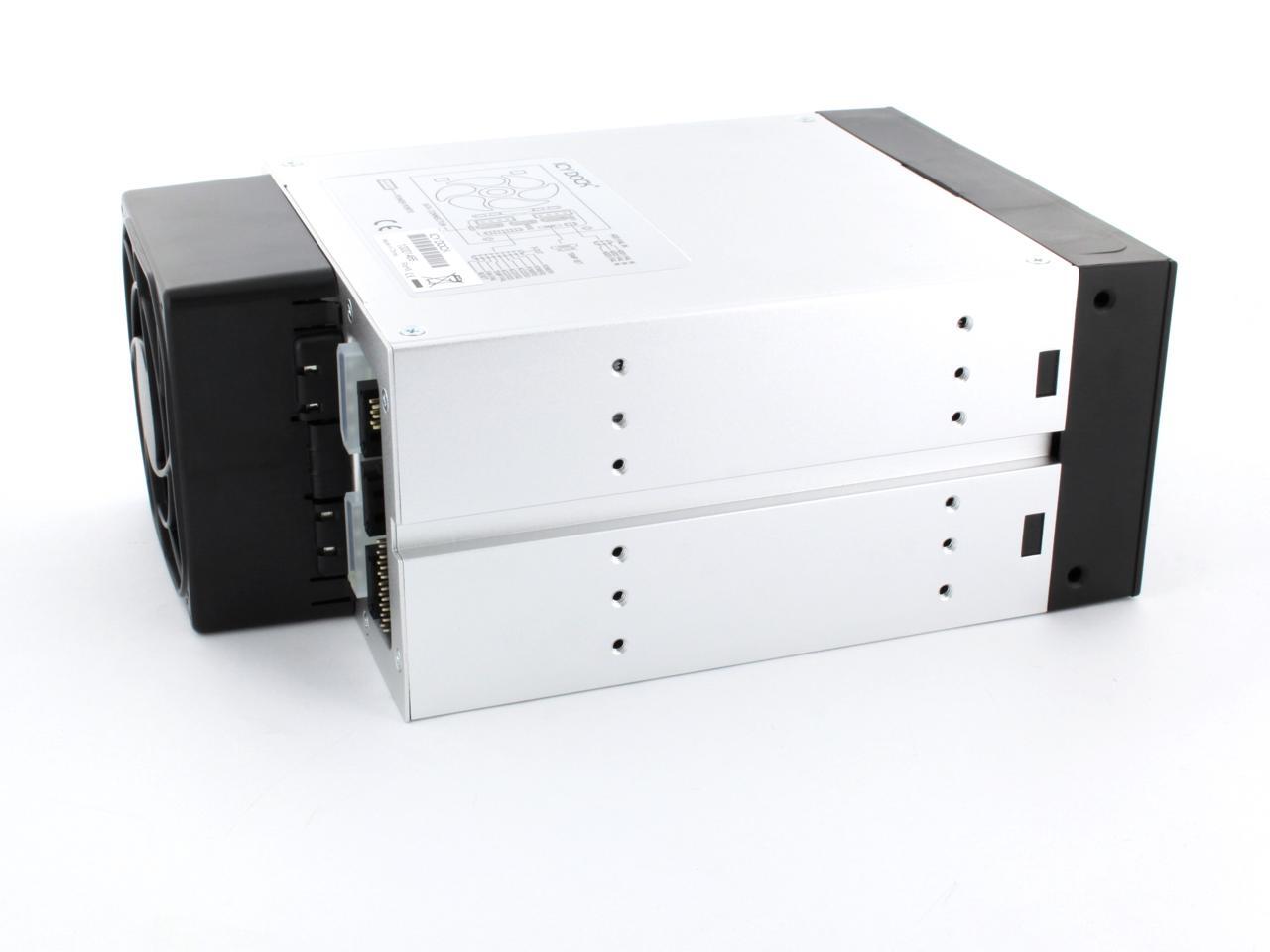

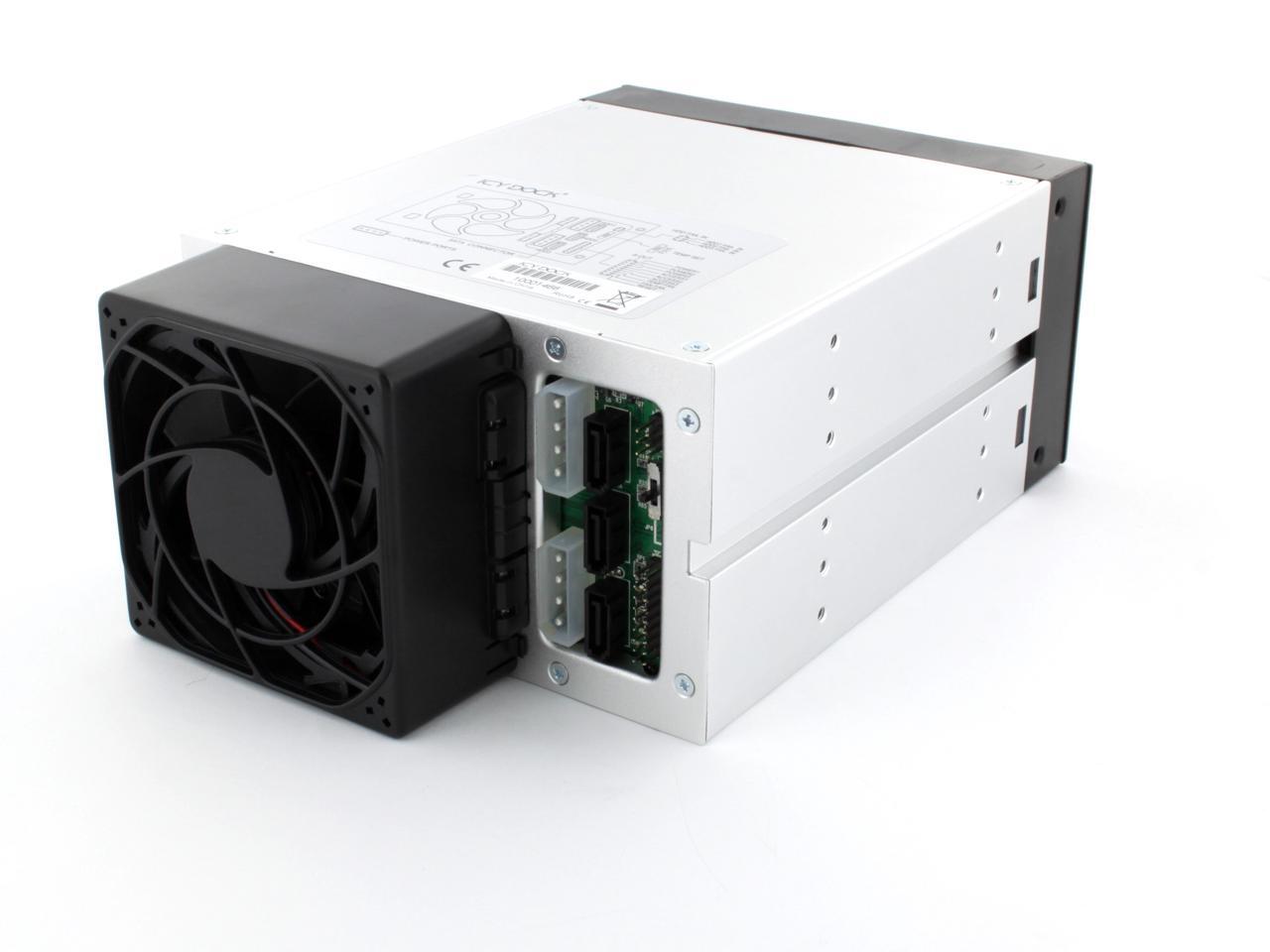

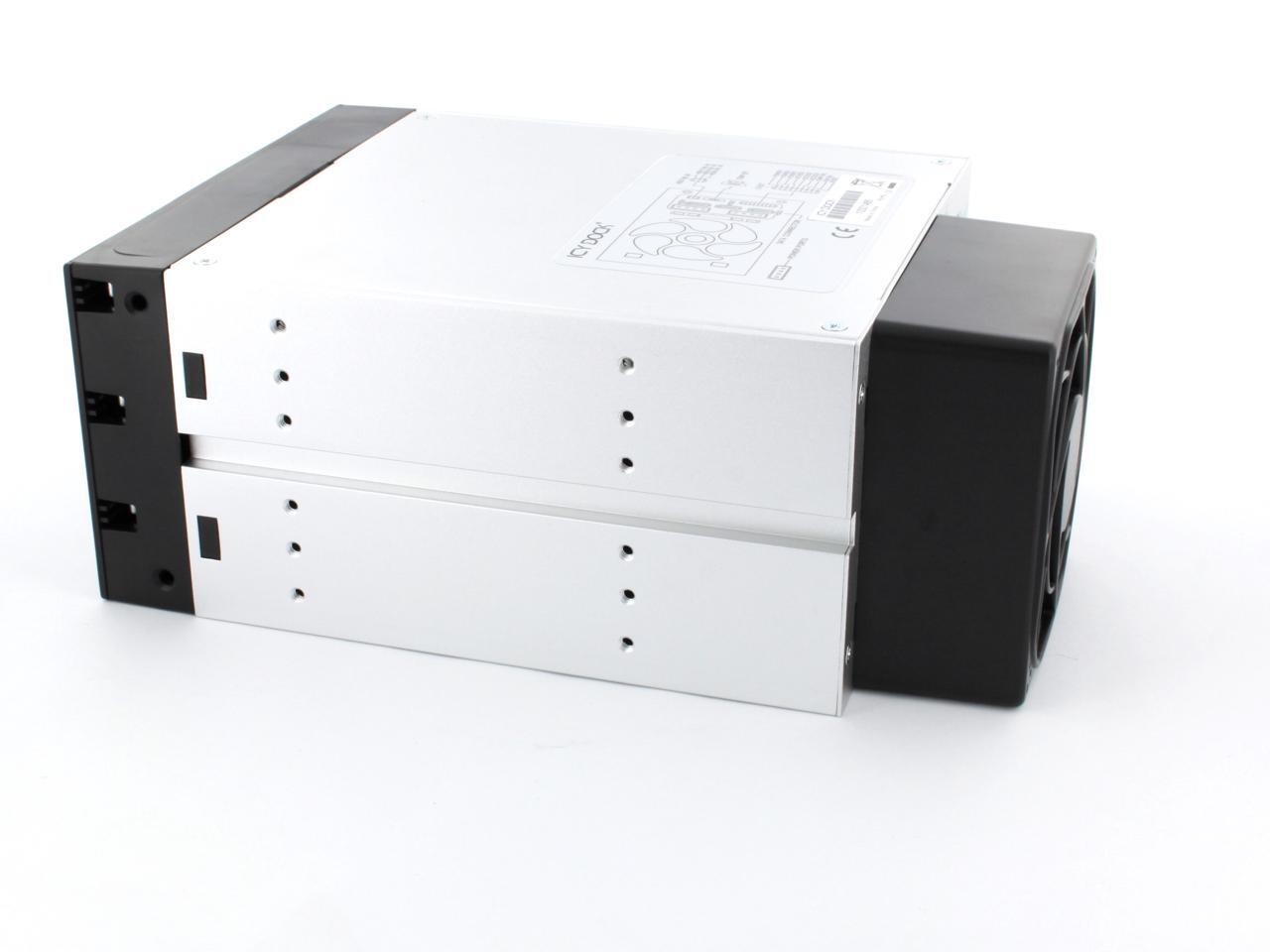

Alt view image 2 of 5 - ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

Alt view image 3 of 5 - ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

Alt view image 4 of 5 - ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

Alt view image 5 of 5 - ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

360^°

Shop All ICY DOCK Products

ICY DOCK MB453SPF-B 3 in 2 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

(60) Write a Review

Multi 3.5" Drives to Multi 5.25" Bays
SATA I/II/III

Overview

Specs

Reviews (60)

Any questions? Our AI beta will help you find out quickly.

Try me now

Full aluminum built cooling body constructed to fit three drives within a two 5.25" bay fitting, the MB453 Series follows the tradition of industrial systems' needs for stability, durability, toughness and high sensitivities for mass storage operating conditions. It's equipped with a hot swappable fan that may be detached if confined by depth limitations when integrated, or if replacement is necessary. Our removable fan requires no tools or wiring, simply swap with a new fan and back to operation! It is space saving and user friendly for industrialized system solutions.

Model
Brand	ICY DOCK
Model	MB453SPF-B

Details
Mobile Rack Drives Support	Multi 3.5" Drives to Multi 5.25" Bays
Mobile Rack Interface	SATA I/II/III

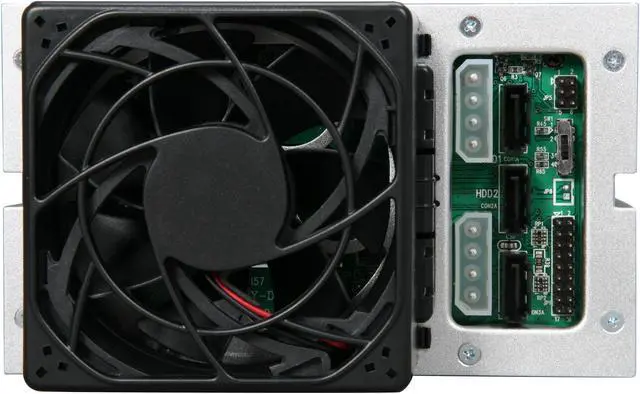

Specifications	Color: Black Host Interface: 7 pin SATA Drive Fit: 3 x 3.5" SATA 1.5 / 3 / 6 Gbit/s hard drive Drive Bay: 2 x 5.25" Transfer Rate: Up to 6Gb/sec. (depending on hard drive speed) Insert& Extract conection Via: Direct SATA hard drive connection Structure: Aluminum body w/ partial plastic Drive Cooling: Detachable rear outtake fan w/ aluminum heat dispersion Alarm Indication: Auto & Visual LED Indication: Drive activity/overheat/failure, Fan working/failure status LED Display Color: Green - Device Power, Amber - Drive activity/overheat/failure, Red - Drive failure Dimension (L x W x H): 220.0 x 146.0 x 86.0 mm (w/ fan), 180.0 x 146.0 x 86.0 mm (w/o fan) Weight: 2.40 lbs.

Features
Features	3 in 2 RAID back plane module. Fits three 3.5" SATA I/II hard drive fully supports Hot-Swap function. Compact and space saving for multiple drives fit (Three drives within two 5.25" bay fitting). Internal drive security, exchangeability, expandability and maintenance capabilities. Durable aluminum body for excellent heat dissipation with stylish outlook. Detachable 80mm ball bearing rear cooling fan for easy maintenance. Advanced drive monitoring system built internally w/ visual & audio indicators.

Additional Information
First Listed on Newegg	August 28, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
