Question 1

Will this case allow for tray hot swap modules, I use the Kingwin KF-813-BK mobile racks. And will it support 3 or 6 gb/sec e sata connections?

Accepted Answer

Not sure I fully understand your question, but here's what I believe you're asking -

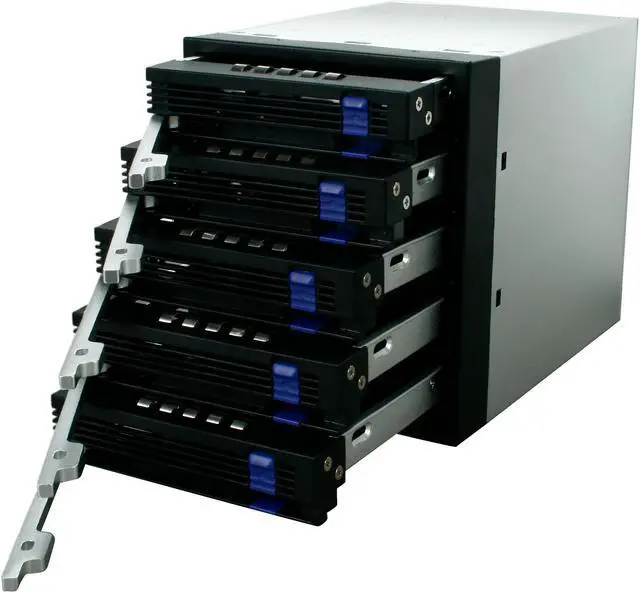

1. The "tray" (not so much a tray) is a simple bracket like you'd get from a Dell hot-swap disk array, meaning it is only a bar runner on each side (a rectangle with out a fourth edge, also without a top or bottom), in essence setting each drive on top one another with very little space in between, if not touching.

Best example one could give would be - take five drives and lay one flat. Then take remaining four drives and stack them atop the base drive as if building a tower.. Only difference with actual item is a bar which runs only along each screw hole. That't it.

2. No, you have no e-sata/external connections at all.. All internal hot-swap disk.

Hope this helps.

Question 2

Is this for external use?  How does it connect to the system?

Accepted Answer

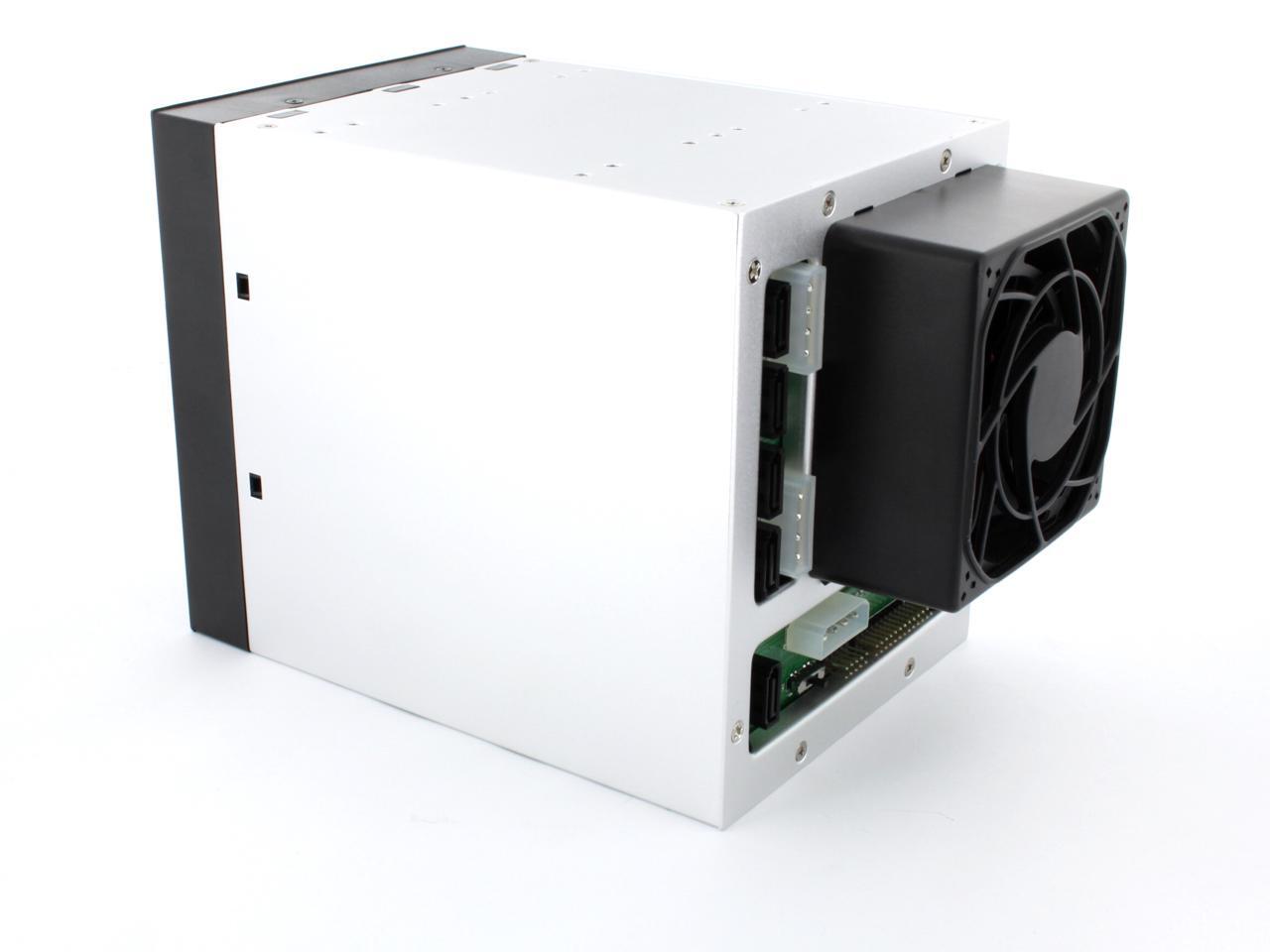

No, this is NOT an external unit.  It is an internal unit that allows you to fit 5 HD's into only 3 front bays of a PC.  The unit mounts horizontally, and is connected by individual sata cables and three power cables.

Question 3

What size drive can be used with this ?
I would like to use 4TB drives that are now available.

Accepted Answer

I have 4TB 3.5inch drives in mine...

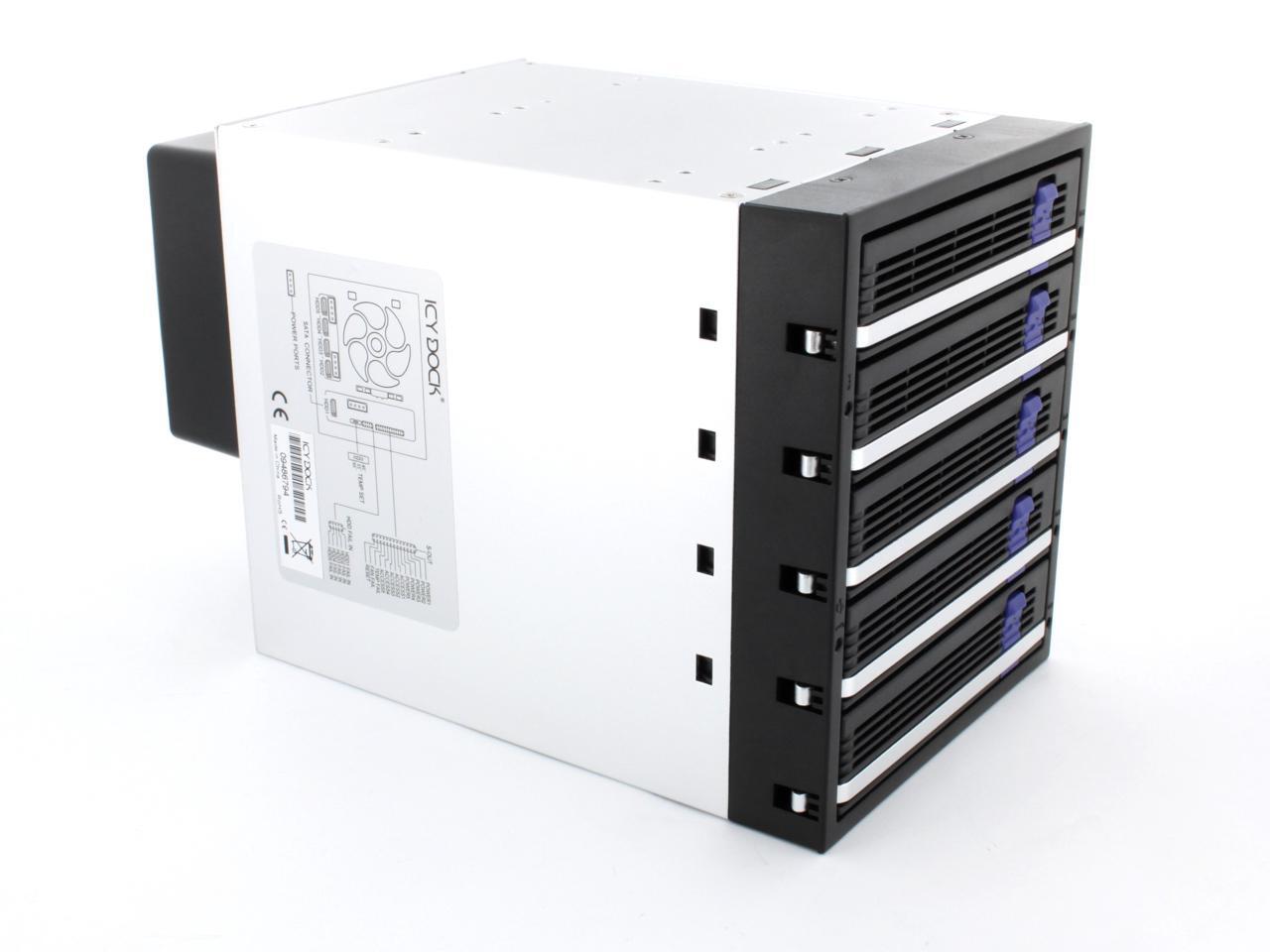

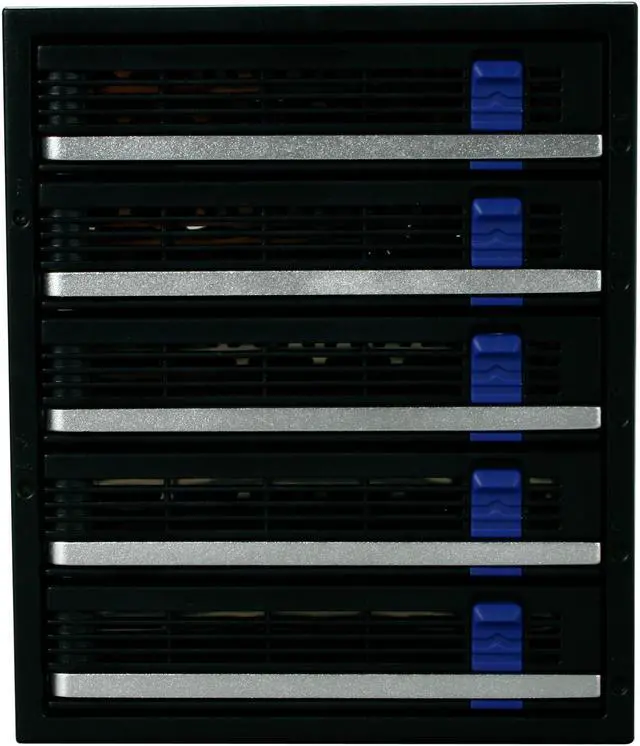

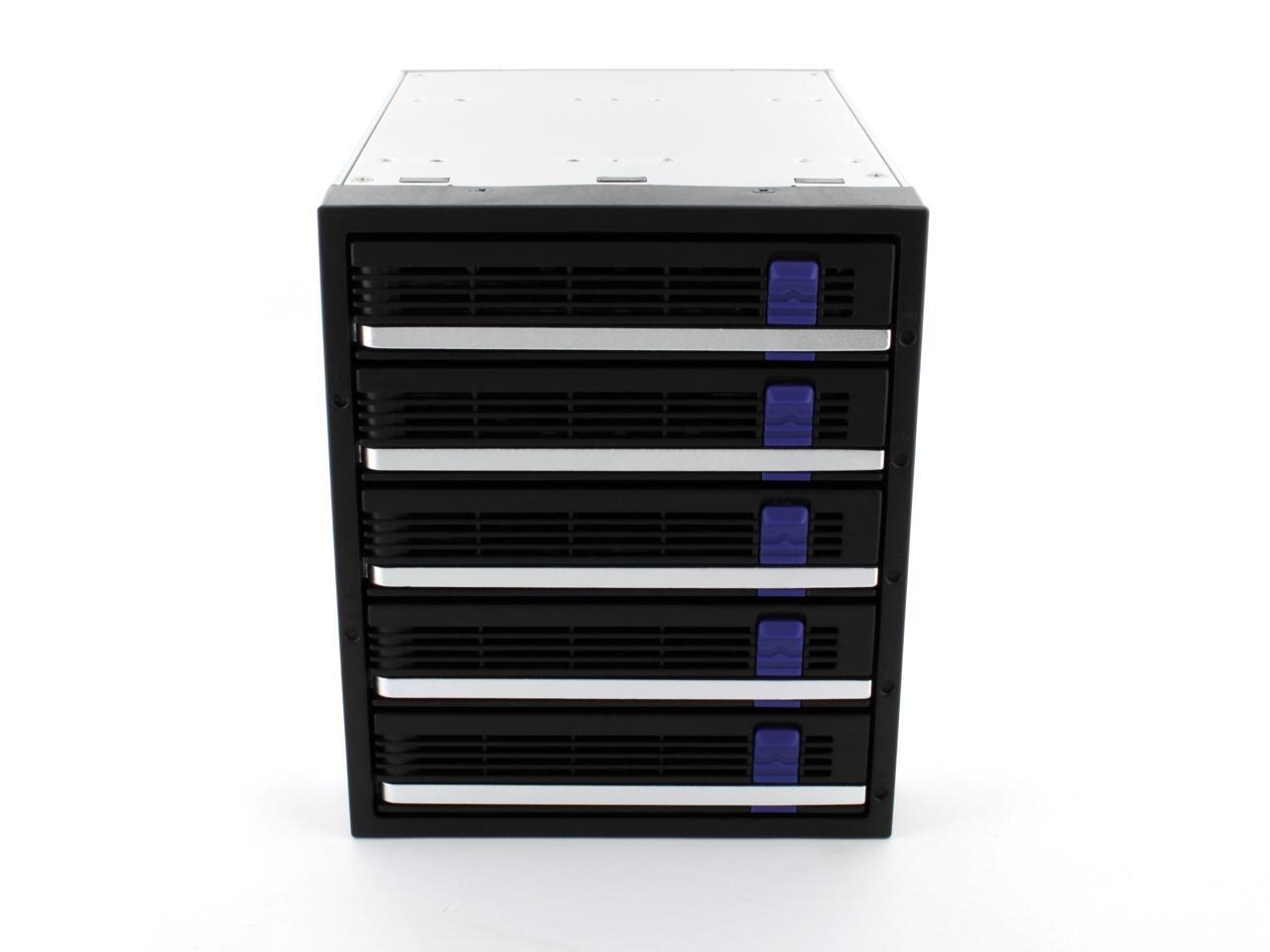

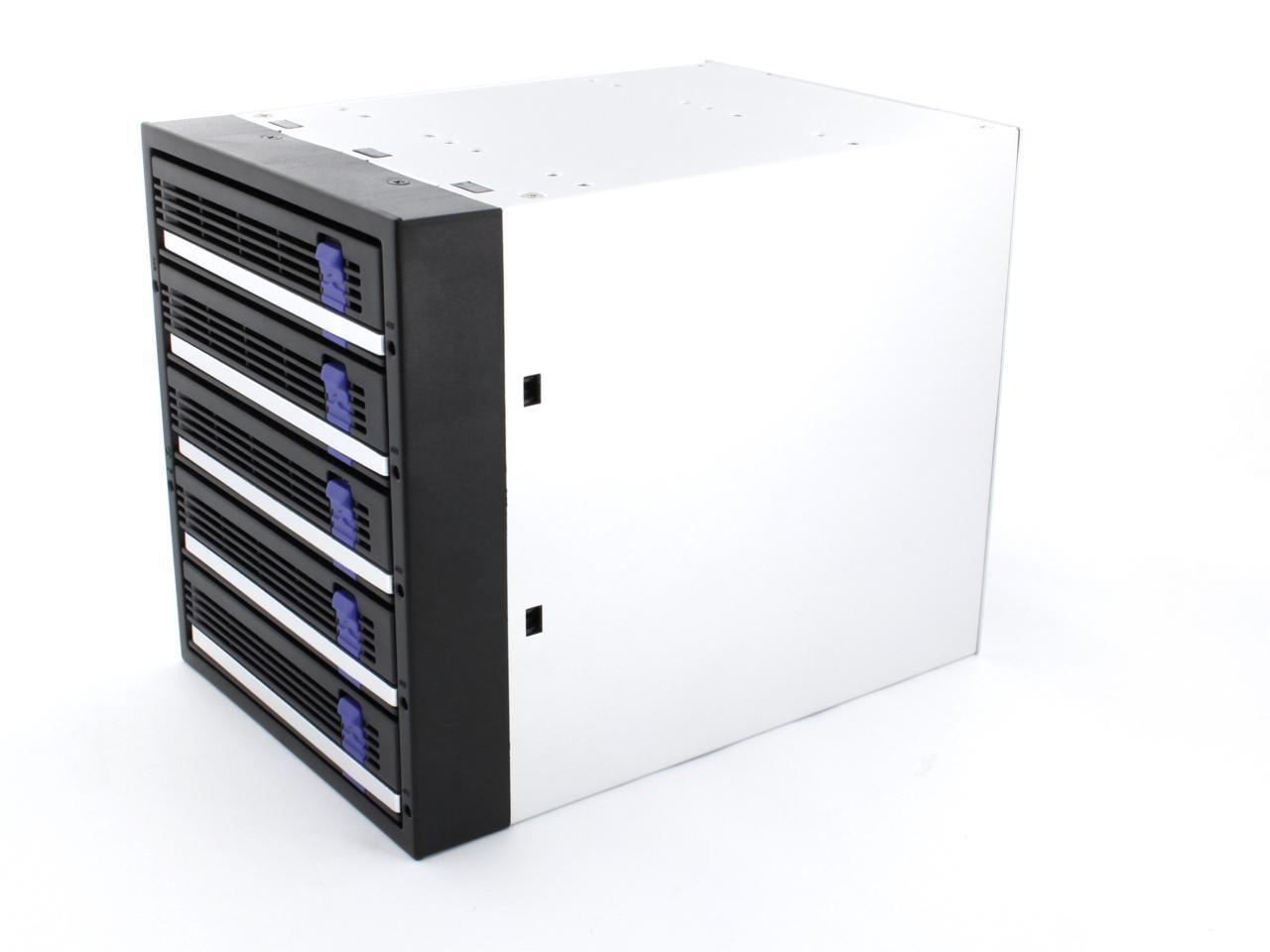

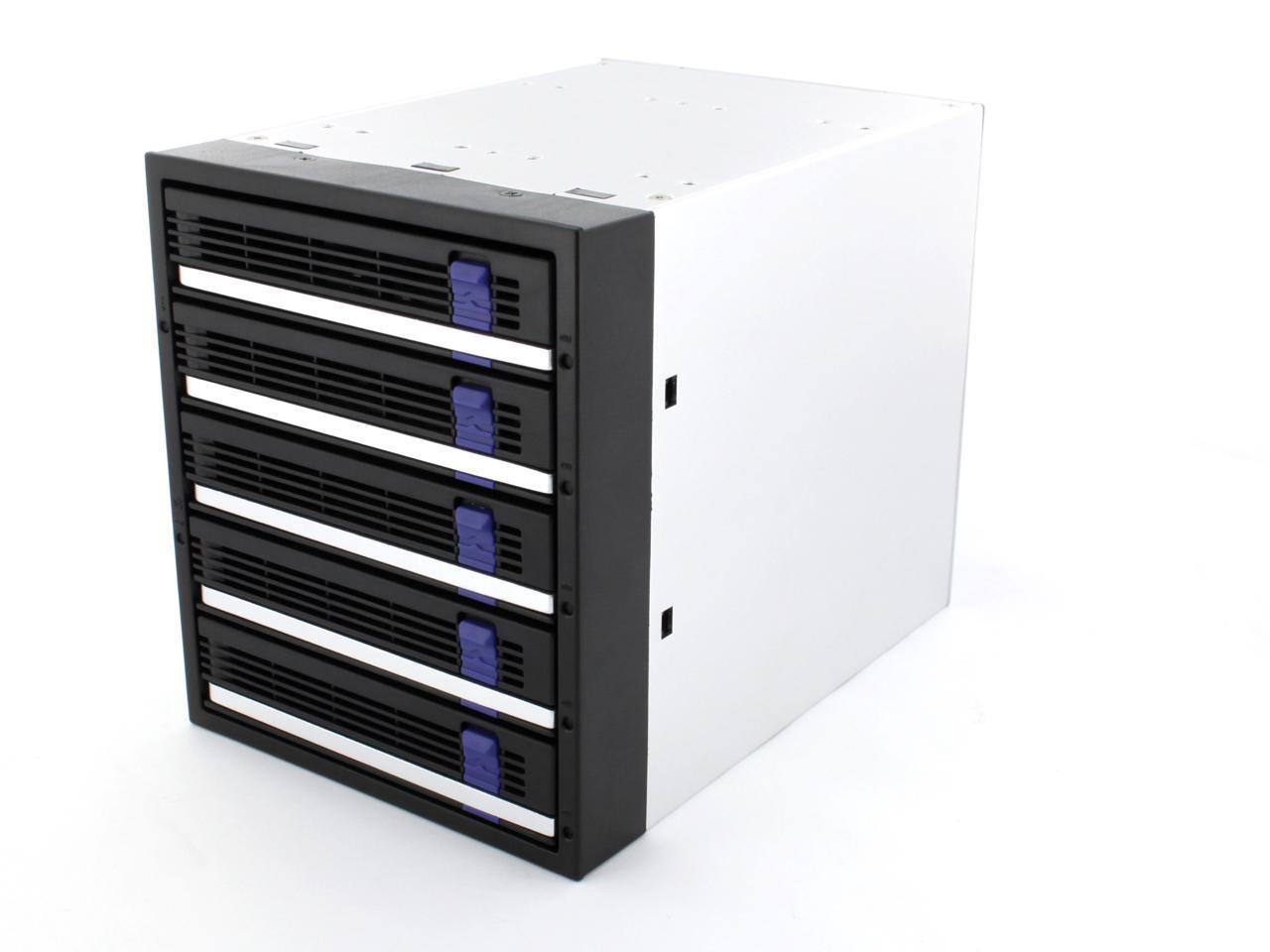

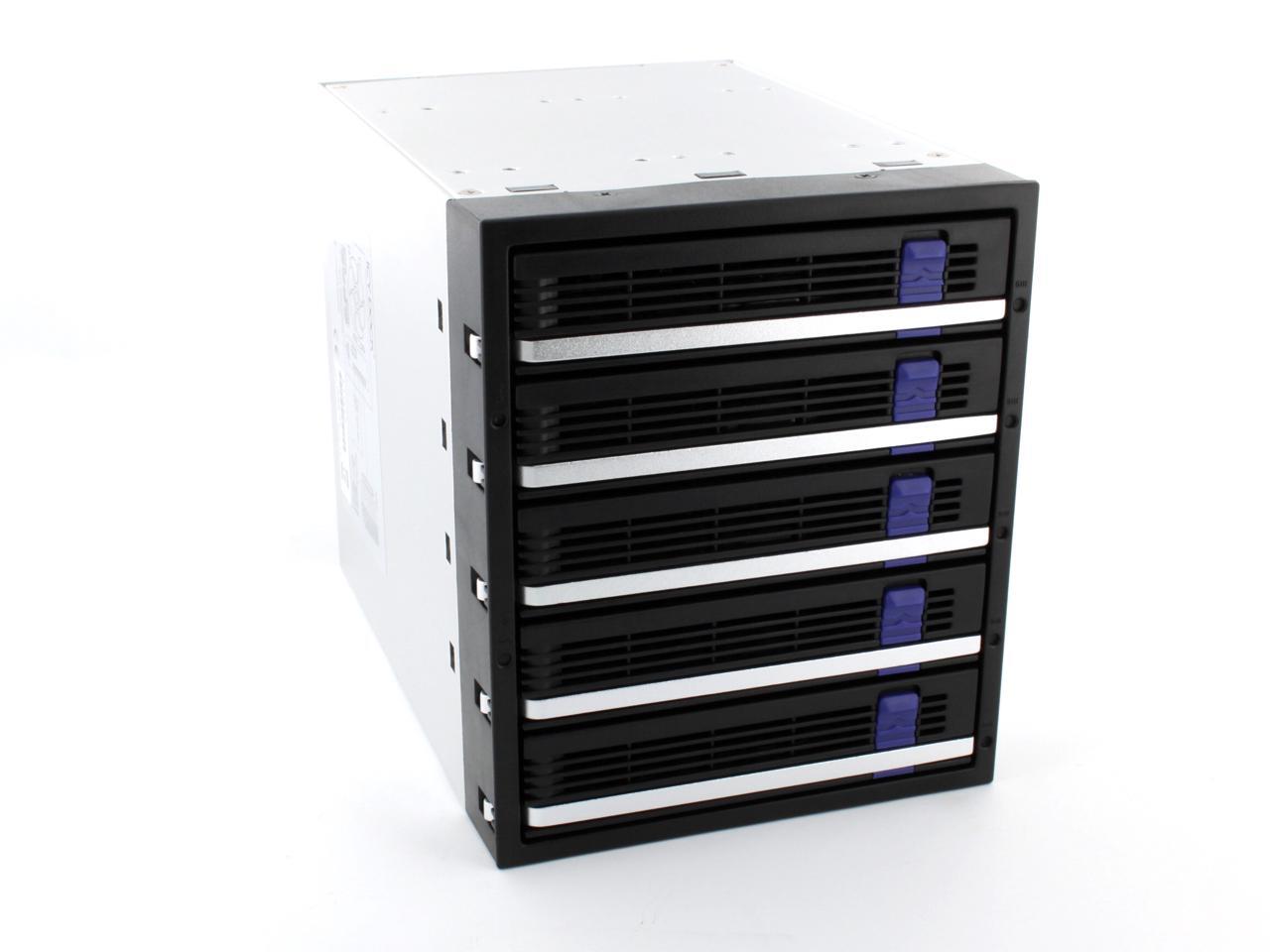

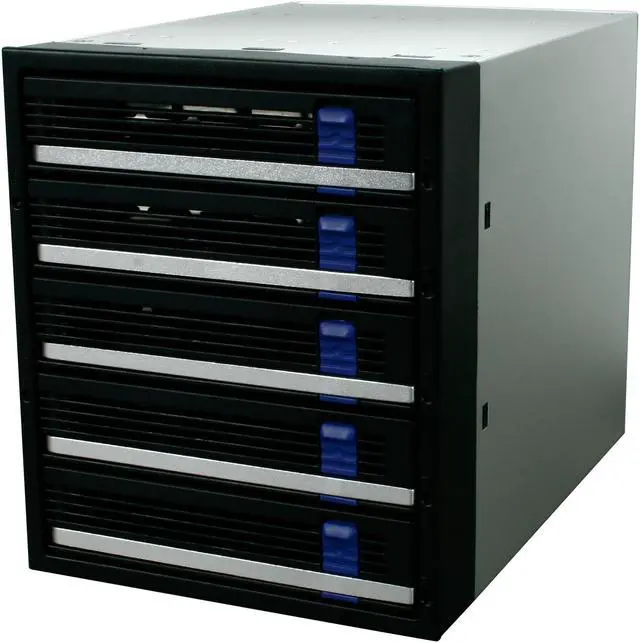

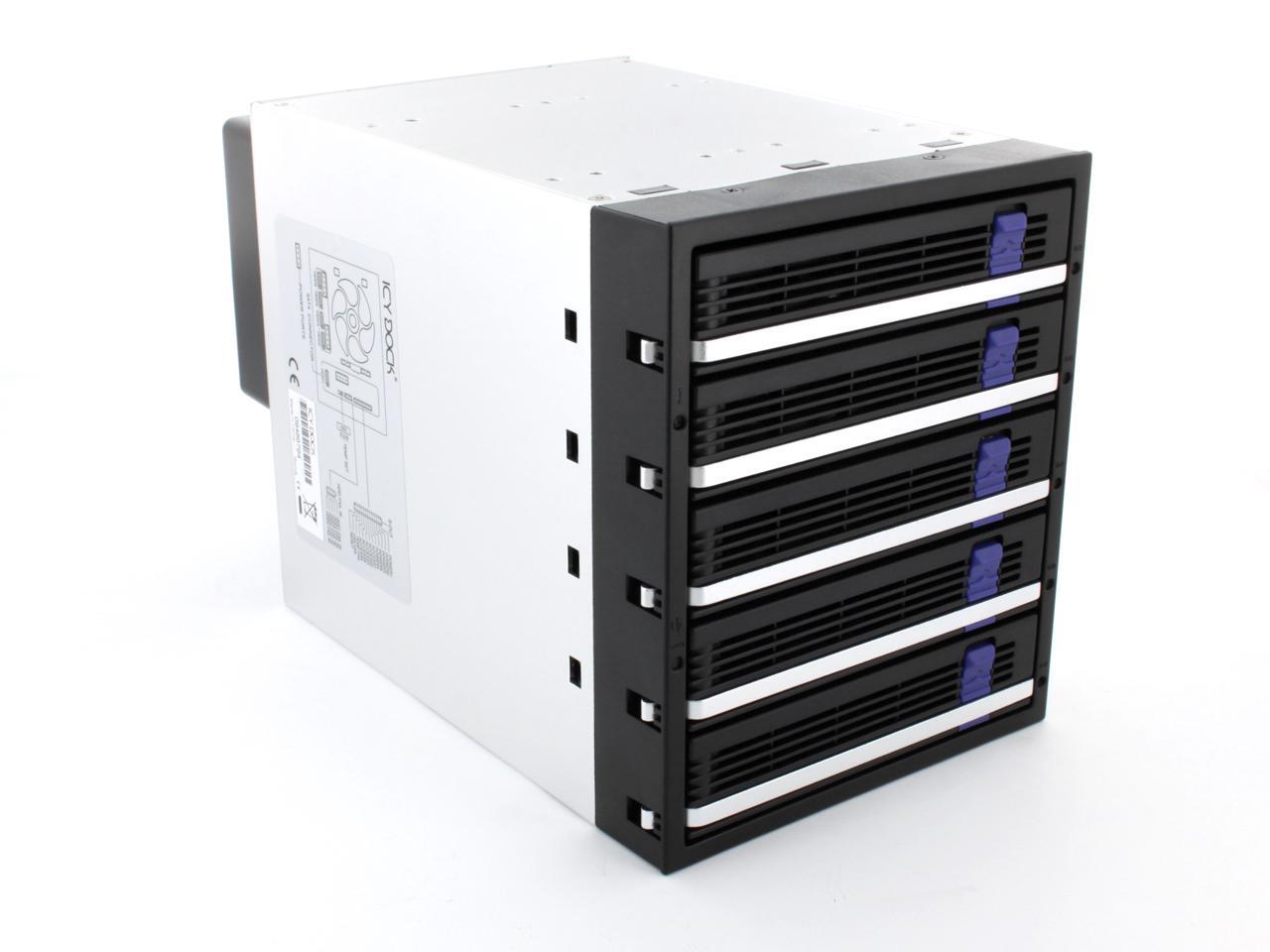

Note, the picture shows the drives as being horizontal, and they are actually vertical.

I have 10x 4TB drives in my system using 2 of these Icy Docks.

Question 4

does this install with the drives mounted vertically as shown in the MB155SP-B model? If not, can someone confirm if the photos are upsidedown? I have 2 of the "MB153SP-B 3" models and the drive latches open from left to right, not right to left as shown above...

Accepted Answer

I mounted mine verticao, had to bend some case supporters out of the way and it was a tight fit. Lever opens down and lights are on bottom.

Question 5

What is the difference between this product and ICY DOCK MB155SP-BN? They seem to be identical, yet this product costs $20.91 more!! Why?

Accepted Answer

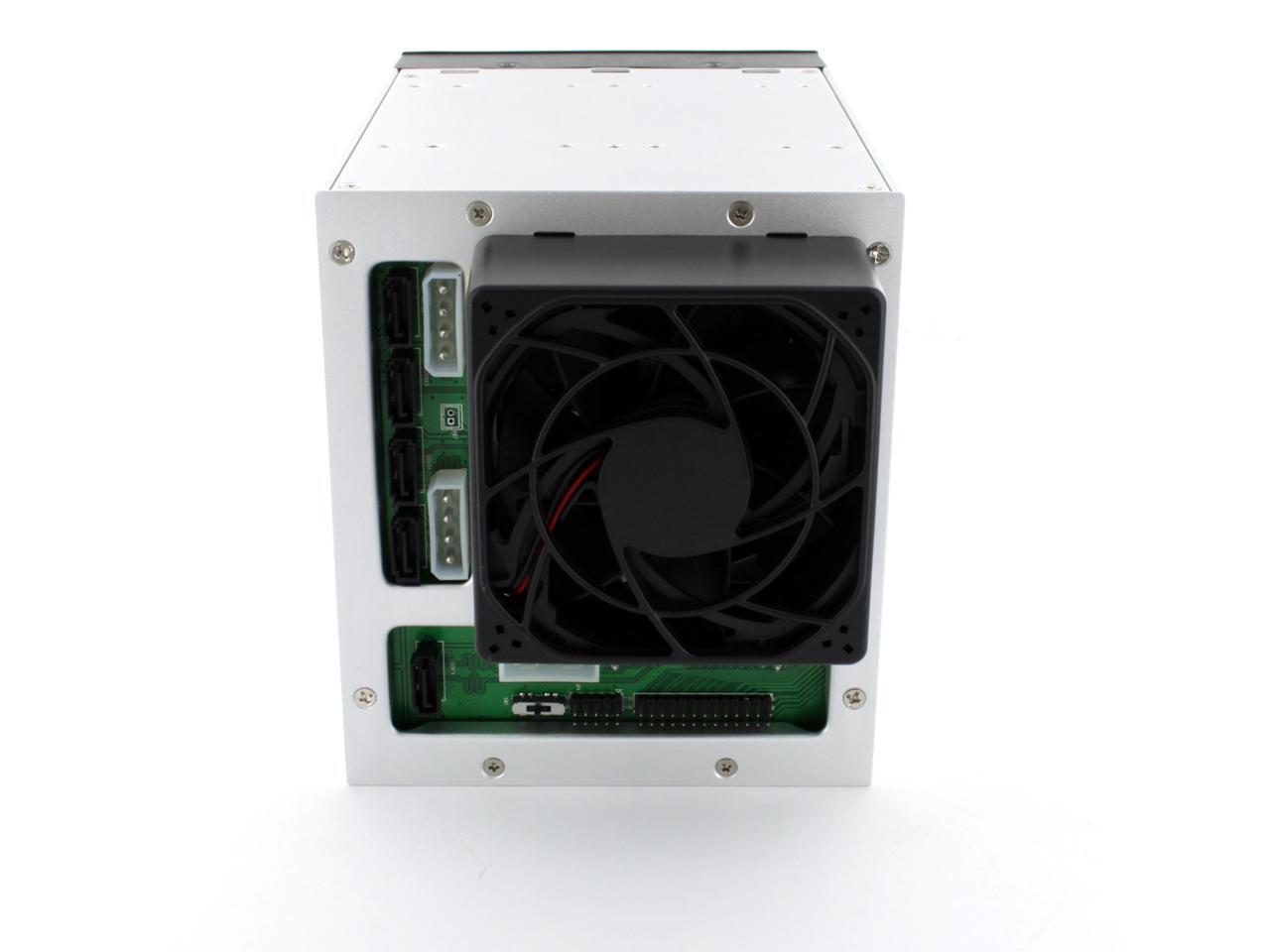

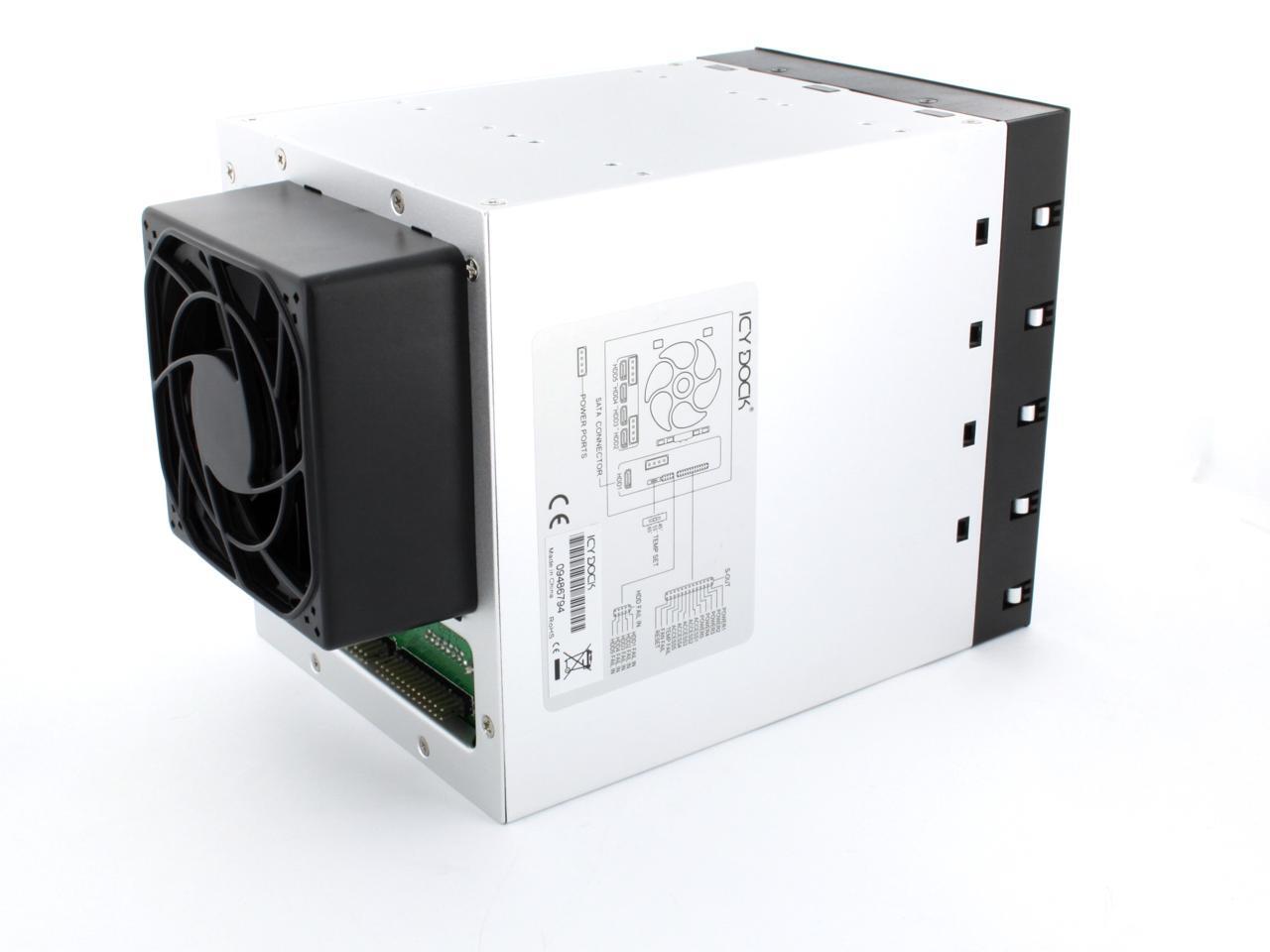

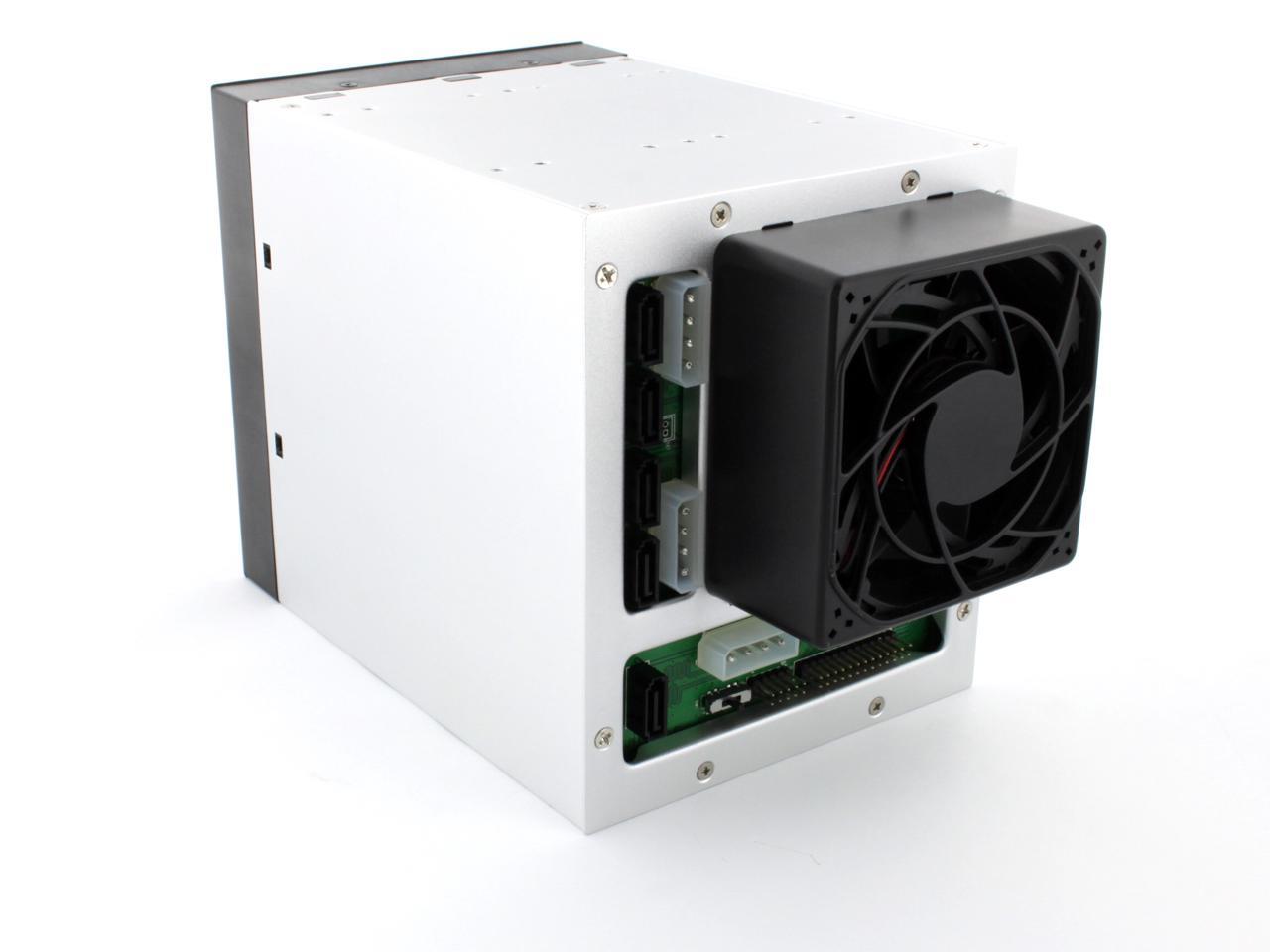

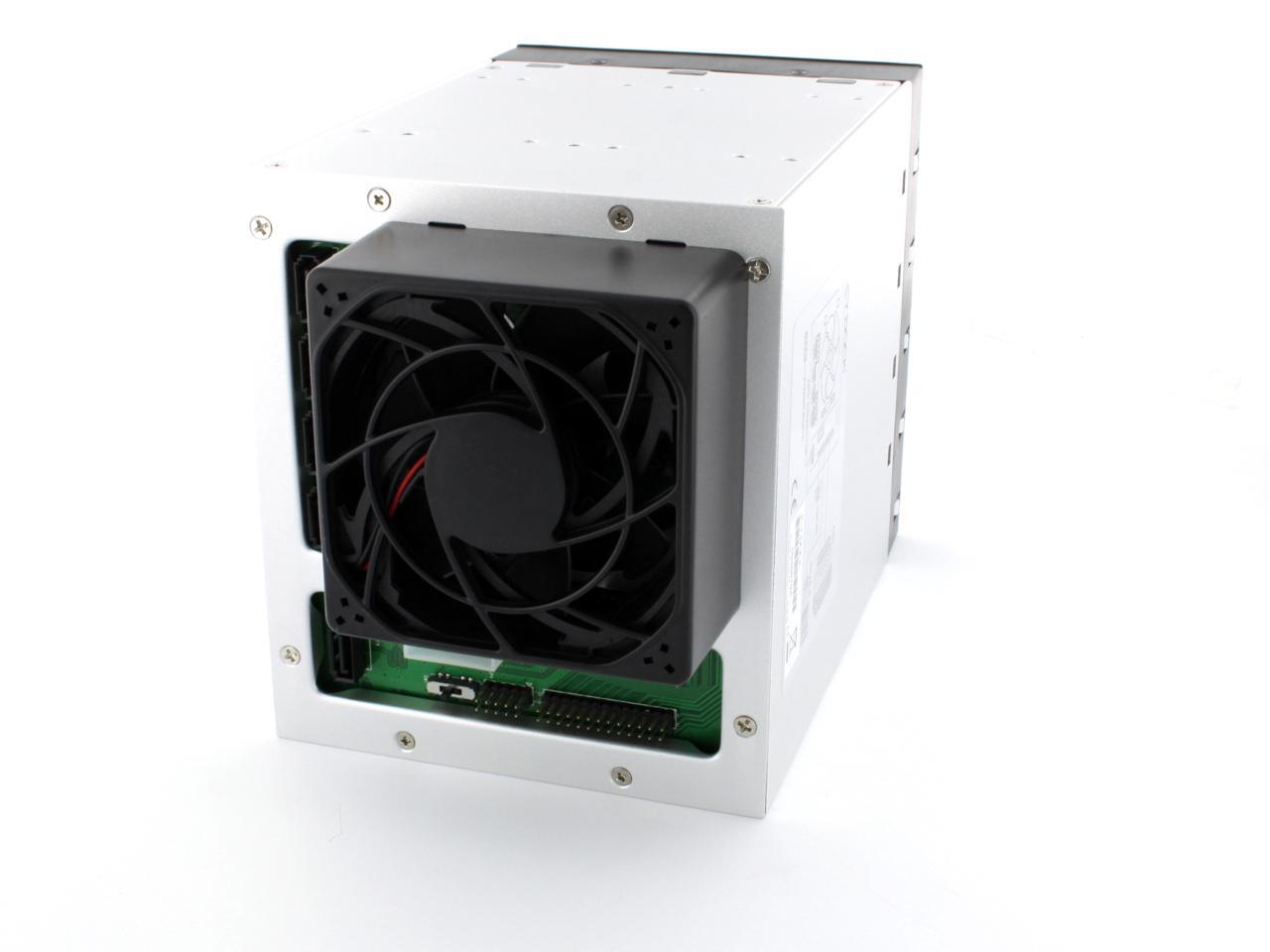

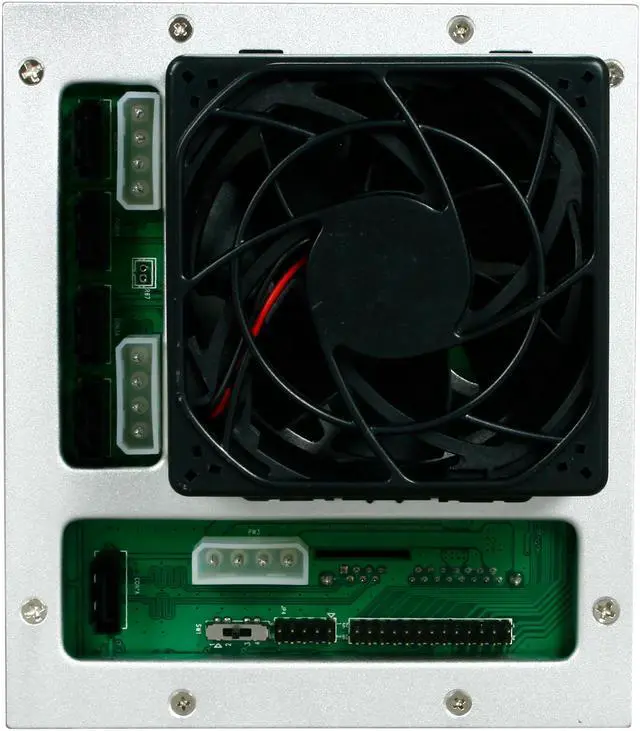

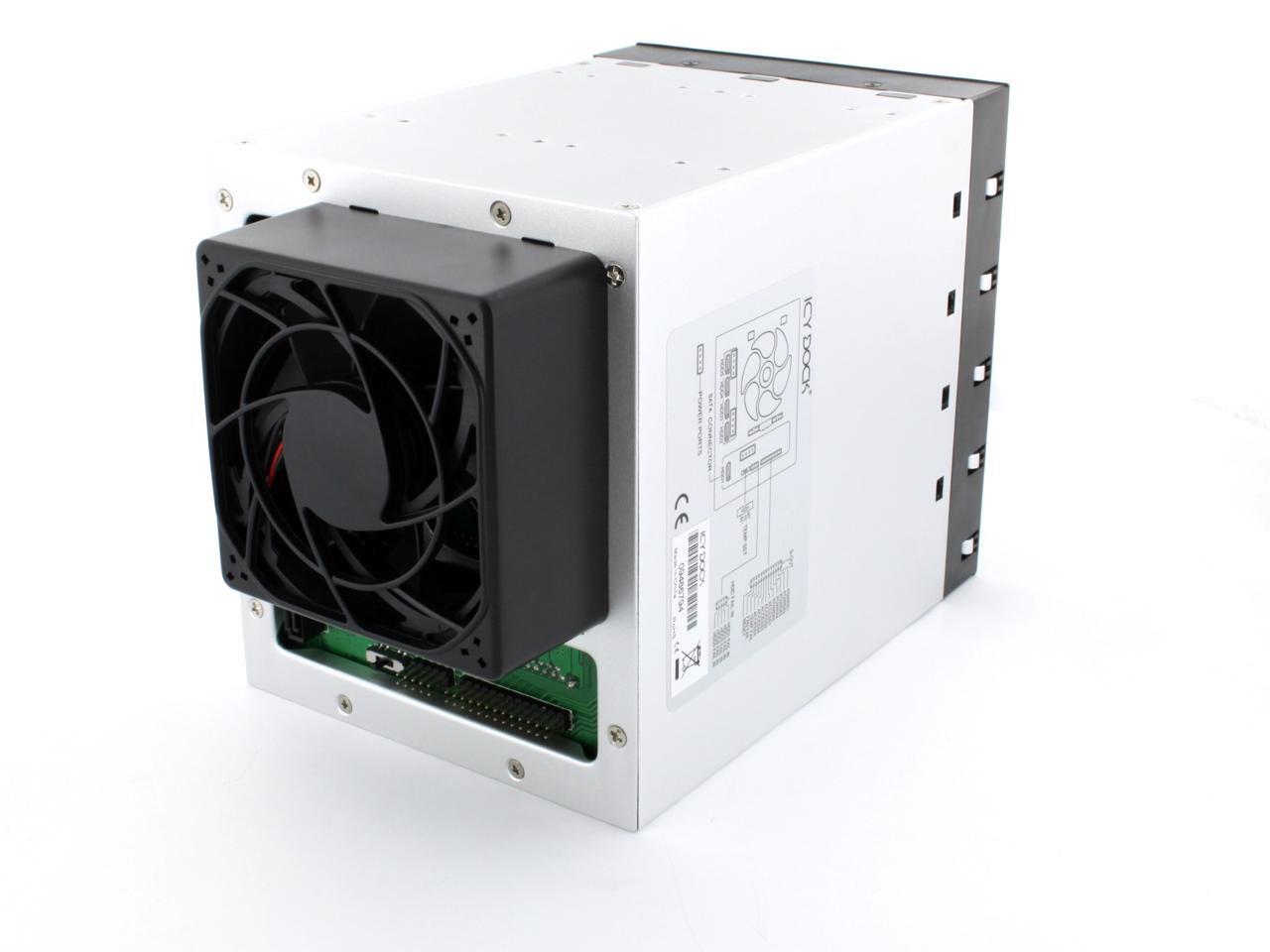

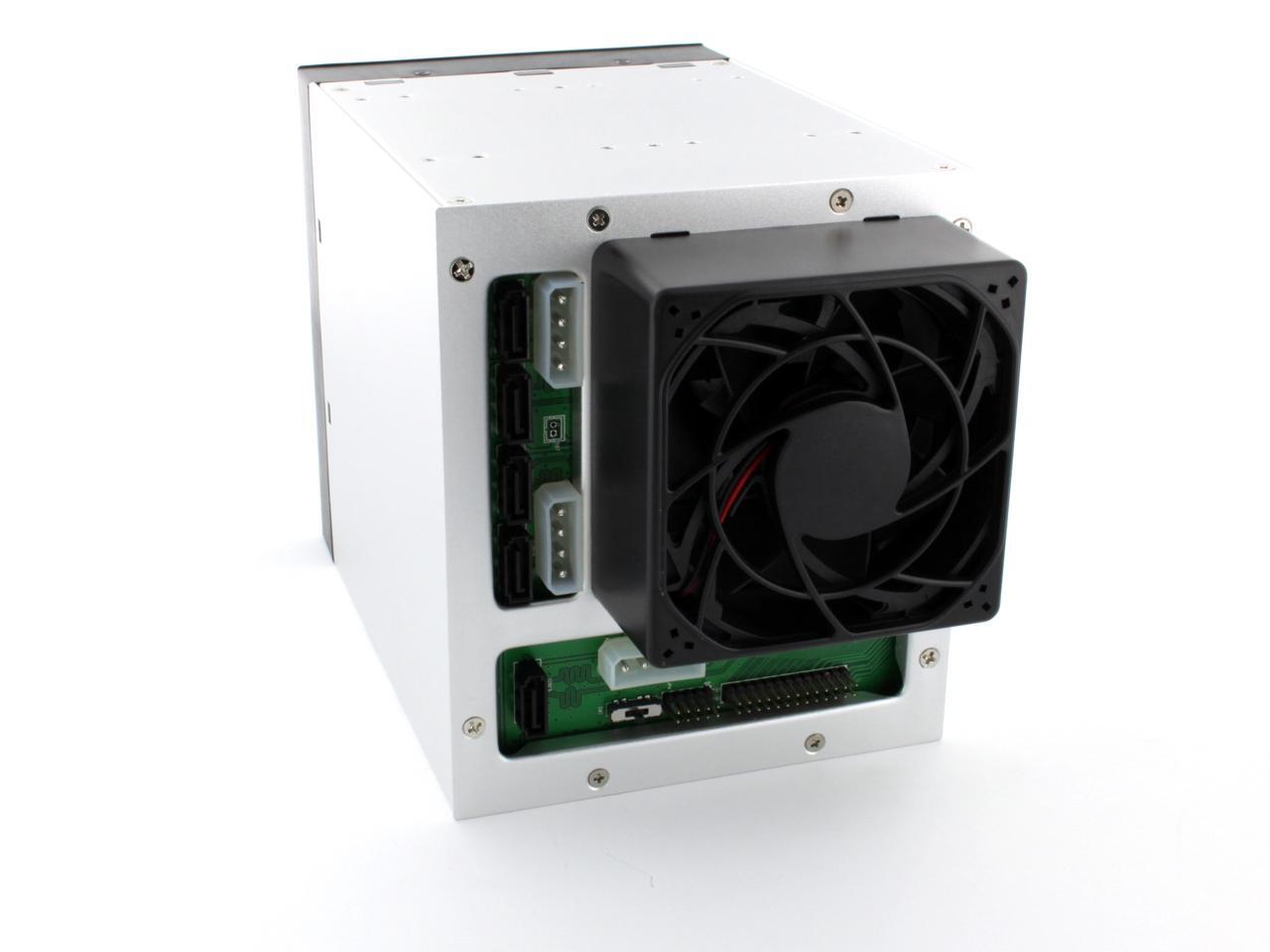

The MB455SPF-B has Standalone advanced environment monitoring system built internally w/ visual LED & audio indicators for power, access, hard drive & fan failure and selectable overheat alert. Also, the MB455 has a 80mm cooling fan while the MB155 comes with 92mm replaceable cooling fan.

Brand	ICY DOCK
Model	MB455SPF-B
Color	Black

Mobile Rack Drives Support	Multi 3.5" Drives to Multi 5.25" Bays
Mobile Rack Interface	SATA I/II/III
Specifications	Host Interface: 7 pin SATA Drive Fit: 5 x 3.5" SATA 1.5 / 3 / 6 Gbit / sec. hard drive Drive Bay: 3 x 5.25" Transfer Rate: Up to 6 Gb / sec. (depending on hard drive speed) Insert& Extract conection Via: Direct SATA hard drive connection Structure: Aluminum body w/ partial plastic Drive Cooling: Detachable rear outtake fan w/ aluminum heat dispersion Alarm Indication: Auto & Visual LED Indication: Drive activity/overheat/failure, Fan working/failure status LED Display Color: Green - Device Power, Amber - Drive activity/overheat/failure, Red - Drive failure Dimension (L x W x H): 220.0 x 147.0 x 127.0mm (w/ fan), 180.0 x 147.0 x 127.0mm (w/o fan) Weight: 3.60 lbs.

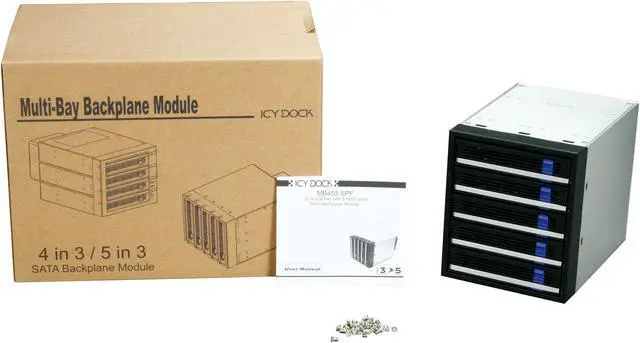

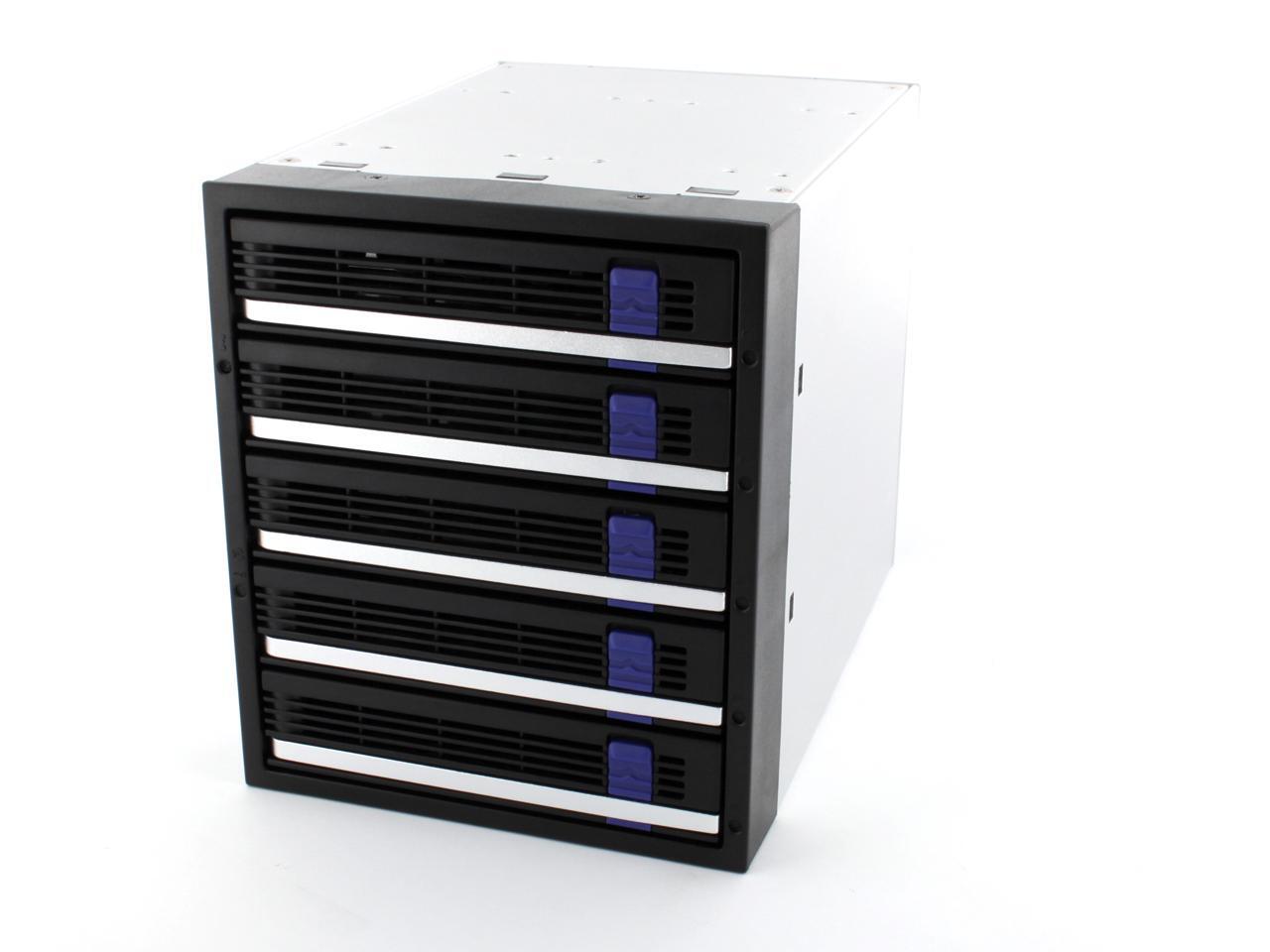

ICY DOCK MB455SPF-B 5 in 3 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module

Learn more about the ICY DOCK MB455SPF-B

Customer Reviews of the ICY DOCK MB455SPF-B

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16817994028
