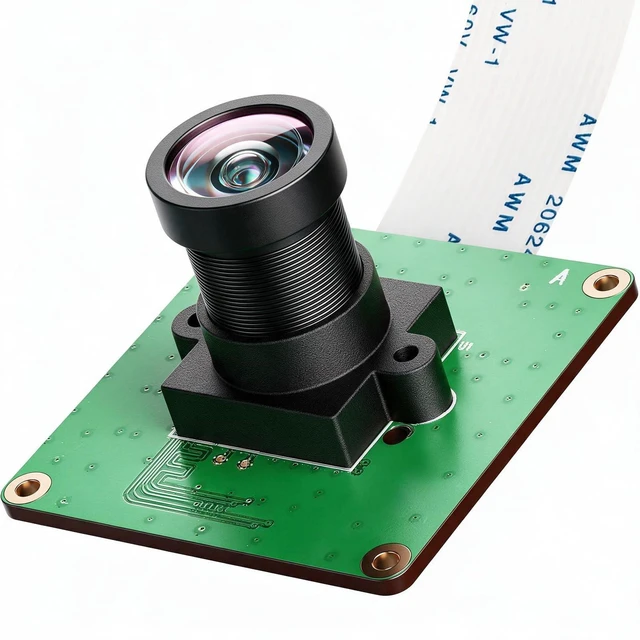

InnoMaker Raspberry Pi Industrial Camera Module STARVIS IMX462 Color CMOS Sensor 2MP Pixel for All Raspberry Pi, Support Bullseye libcamera and Raspbian Build-in Driver
- Raspberry Pi Camera CAM-MIPI462RAW is an Industrial Camera Module for all Raspberry Pi.
- Sensor Type: STARVIS IMX462LQR Color CMOS Active Pixel type Solid-state Image Sensor with Square Pixel Array 2 MP Effective Pixels. Diagonal 6.46 mm (Type 1/2.8). Pixel count: 1920x1080. High to 60 fps.

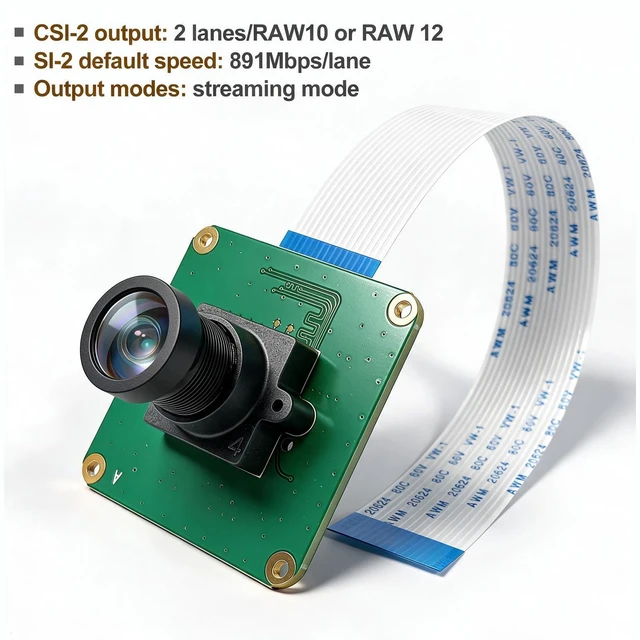

- This IMX462 module connects to the CSI connector on the Raspberry Pi directly. Using the build-in driver same as imx290(74.25M Hz).

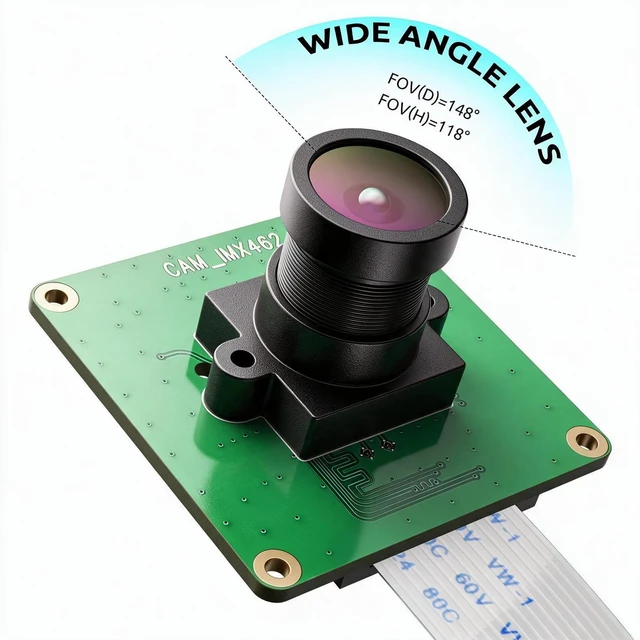

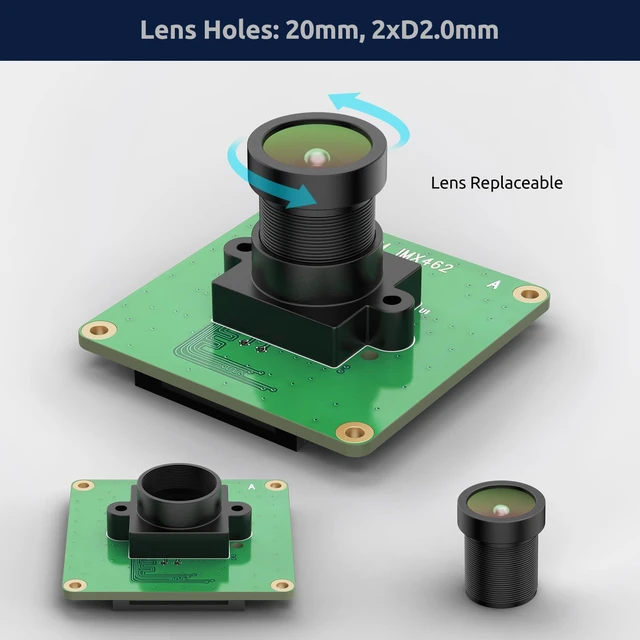

- Match a wide angle Lens. Fov(D)=148 degrees, Fov(H)=118 degrees. Focal distance is adjustable.
- Comes with user manual, test demo and friendly technology support. We offer custom-design service.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

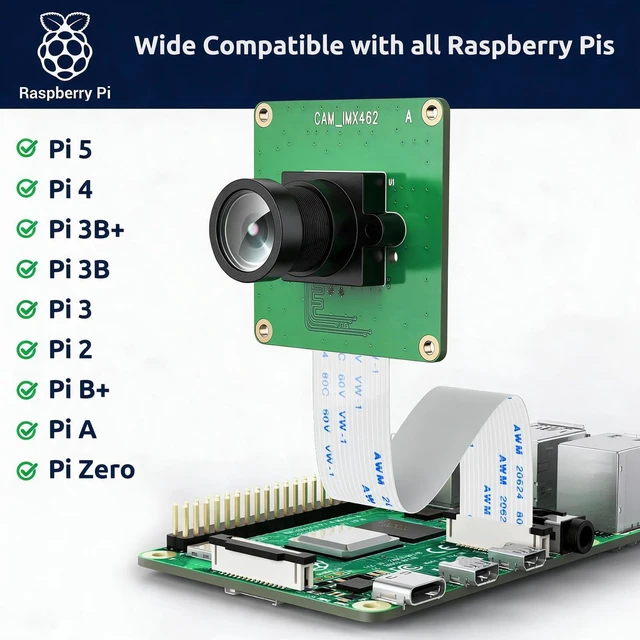

CAM-MIPI462RAW is a low-cost wider angle Lens excellent low illumination and High dynamic range(HDR) camera module, designed for whole series Raspberry(Pi5/Pi4/Pi3B+/PI3A+/PI3/CM4/CM3/CM3+/Pi Zero).

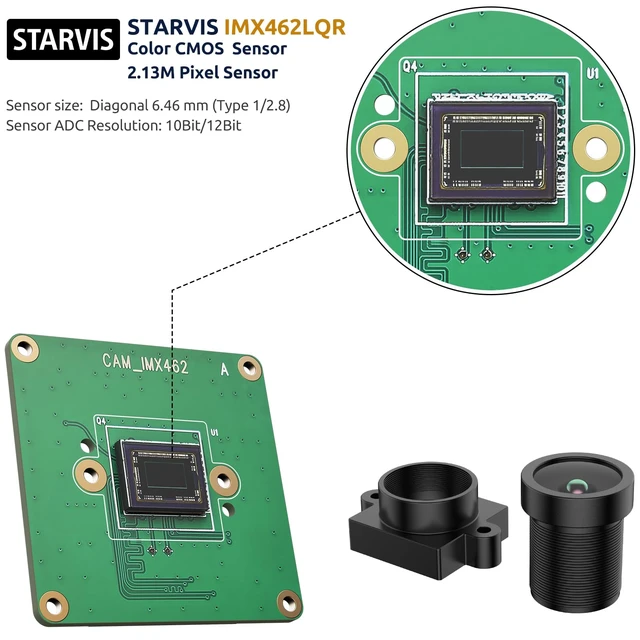

On-board IMX462LQR-C is a diagonal 6.46 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13M effective pixels. This chip operates with analog 2.9V, digital 1.2V, and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. Applications for: Surveillance cameras, FA cameras, Industrial cameras.
Support Raspbian build-in driver and Bullseye libcamera. Driver same as IMX290(74.25M Hz option). dtoverlay=imx290, clock-frequency=74250000.
