Question 1

Can you use it with Win. 10?

Accepted Answer

Yes you can, I had to install the Windows 10 and the drivers on a different pc than put in this one.

Question 2

is it included Memory ?
I read the review from slickdials

Accepted Answer

A Shopper --

There was a special offer last month which included a 4GB SODIMM
( G.SKILL 1.35v DDR3L - 1600 CL11-11-11 )

However, looking at the NewEgg Page for the NUC5PPYH, that deal is no longer being offered.

Still a nice little box for the price.

-- kjh

Question 3

What comes with this as in operating system ram or memory if no ram or memory what is the most the it can handle?

Accepted Answer

Hi Terrell,
There is no operating system, there is no hard drive or memory included.  I bought a cheap SSD and 8 gig of memory to finish it out then transferred a copy of Win 7 over to the SSD and upgraded to Win 10 for free.
This little thing works great and I love it but you have to finish it out yourself but it's small and can be attached to the back of a monitor with an included VESA mount.
Punch in the model number into a search engine and it will take you to Intel's page and you can read all the spec's on it, for the dollars invested it's pretty impressive ...........

Question 4

Does this have one memory slot or 2?  In otherwords, if I get the free 4gb ram, am I throwing that away to upgrade to 8gb ram?

Accepted Answer

Yes, there is 1 slot for memory. I acquired the Crucial 4GB DDR3 1600 SODIMM 1.35V 204 Pin, CT51264BF160BJ. Max 8GB supported So if you acquire an 8GB separately, yes, the included 4GB special that Newegg offers in a limited time will be useless.

Question 5

Are the graphics integrated by the CPU? Is the CPU replaceable?

Accepted Answer

I do no know if the graphics are integrated by the CPU, but the CPU is not replaceable.

Question 6

In this box is intel celeron n3700 or intel pentium n3700?Because on the top of the site is written intel pentium but  in specifications there is written intel celeron.

Accepted Answer

System ManufacturerINTEL
System Model                 NUC5PPYB
System Type                  x64-based PC
Processor                        Intel(R) Pentium(R) CPU N3700 @1.60GHz, 1601 Mhz,4 Core(s), 4 Logical Pr.....

BIOS Version/DateIntel Corp. PYBSWCEL.86A.0031.2015.060.1712, 6/1/2015

SMBIOS Version              2.8

This is what shows on my system..I bought NUC5PPYH and my system shows NUC5PPYB.

Question 7

Are the Intel SSD 600p Series M.2 Drives compatible with this NUC?

Accepted Answer

According to the intel specs page this model does not support the M.2 drives, only SATA drives up to 9.5mm in thickness.  Many of their other models do support M.2 storage.  Go to the intel web site and search on NUC and you'll see a spec comparison chart.

Question 8

Updated the bios, I am using Win 8.1. I cannot get the sound to work. Running HDMI to Samsung TV. Chipset drivers will not install. Intel has no idea what to do. Can anyone tell me what the latest bios revision is that they are using? No driver conflicts with the sound in Widows device manager.

Accepted Answer

Since this NUC has a built in audio you should make sure your sound playback device is set to the HDMI audio and not to speakers or the built in audio.  If still no go then make sure you have a quality HDMI 4.1 cable.  Last consider upgrading to Windows 10 and chances all your problems will be fixed as most nuc drivers are built into the os.

Question 9

what is the voltage rating for the power adapter?

Accepted Answer

Power adapter is included with a number of plugs for use with many different types of outlets.
Voltage as follows.

Input: 100-240v~,1.5A(1,5A) 50-60Hz
Output: 19V 3.43A(3,43A) 65W max

Question 10

Is an adapter required for a SSD drive?

Accepted Answer

No adapter required, you just slide the SSD in.  It's a tight fit, no screws required.

Brand	Intel
Series	NUC (Next Unit of Computing)
Model	BOXNUC5PPYH
Color	Black

Memory installed	No Memory
Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3L 1600/1333
Max Memory Supported	8GB

Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s

Onboard Audio	Up to 7.1 surround audio via HDMI Headphone/Microphone jack on the front panel Headphone/TOSLINK jack on the rear panel
Channel	7.1 Channel

LAN	Realtek 8111HN
Max LAN Speed	10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 3165 M.2 2230, wireless antennas (IEEE 802.11 ac, Bluetooth 4, Intel Wireless Display)
Bluetooth	Bluetooth 4.0

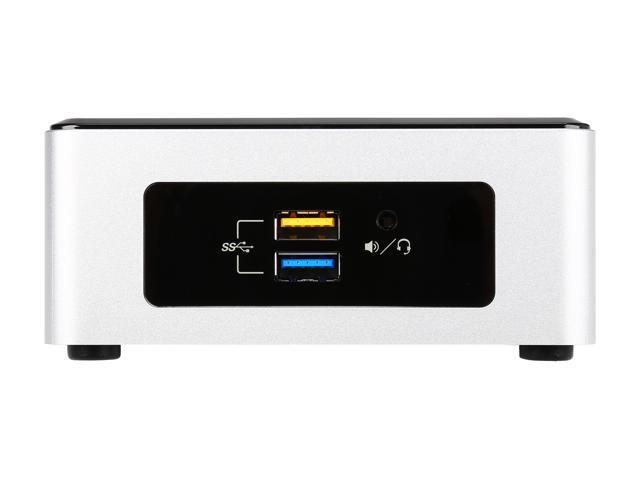

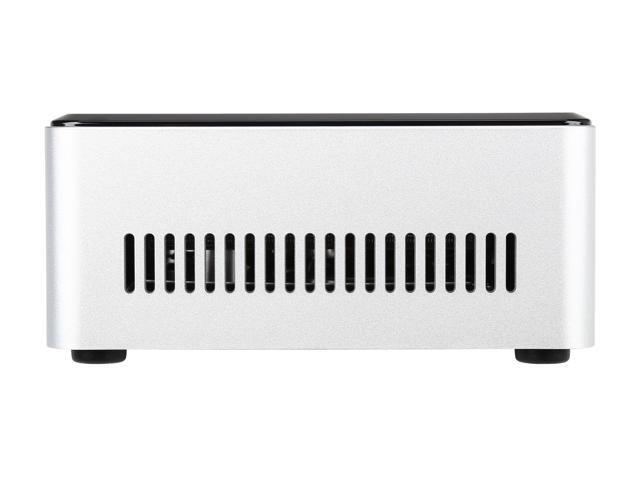

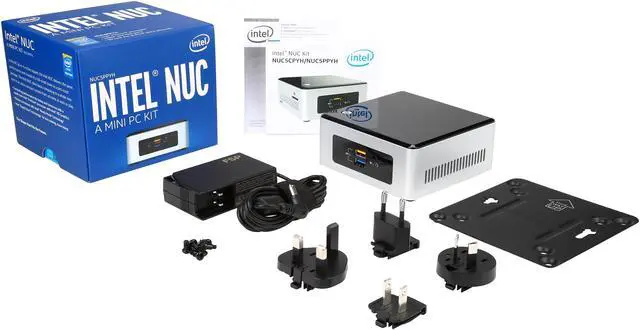

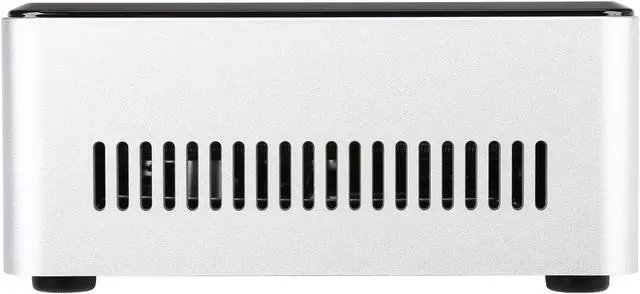

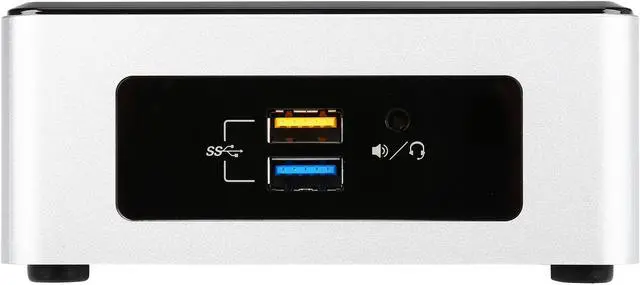

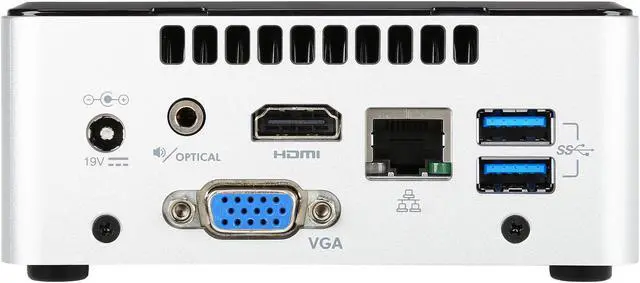

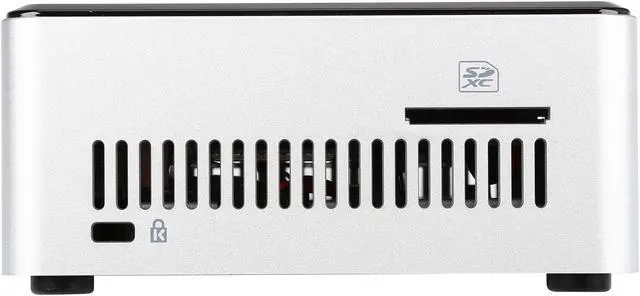

Intel NUC NUC5PPYH, HDMI, VGA, Intel HD Graphics, USB 3.0

Learn more about the Intel BOXNUC5PPYH

Customer Reviews of the Intel BOXNUC5PPYH

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Front USB	2 x USB 3.0 2 x Internal USB 2.0 via header Consumer Infrared sensor on the front panel
Other Front Ports	Reset, HDD LED, Power LEDs, power on/off

Item#: N82E16856102141
