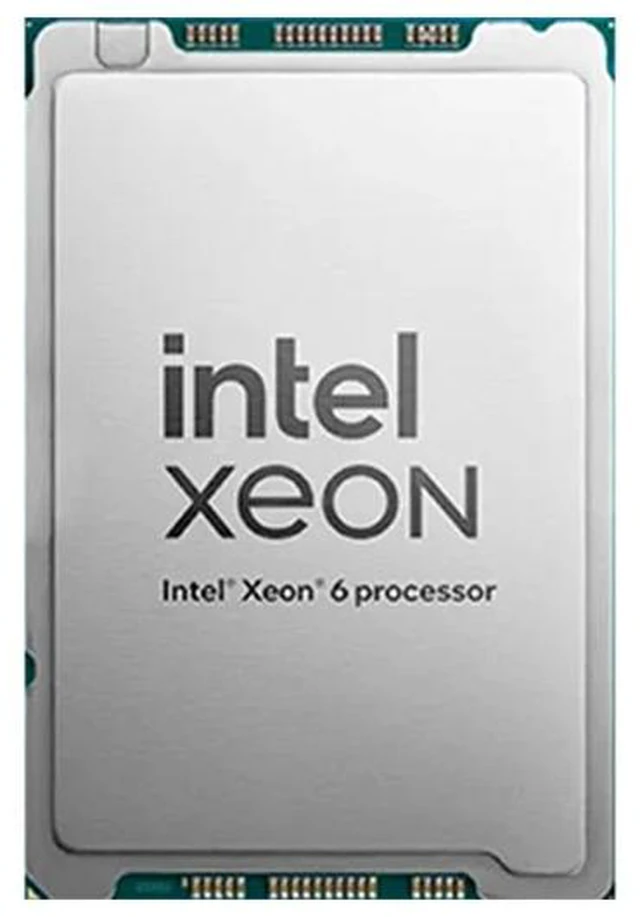

Intel Xeon 698X Granite Rapids 2.0 GHz 336MB L3 Cache LGA 4710 350W Server Processor - OEM
- 86-Core/172-Threads
- Intel 3 Granite Rapids
- 336MB L3 Cache
- 350W
+
+
Learn more about the Xeon 698X
| Brand | Intel |
|---|---|
| Series | Xeon 6 |
| Model | PK8072006491800 |
| Part Number | PK8072006491800 |
| Name | Xeon 698X |
| CPU Socket Type | LGA 4710-2 |
|---|---|
| CPU Code Name | Granite Rapids |
| # of Cores | 86-Core (86P+0E) |
| # of Threads | 172-Threads |
| Operating Frequency | 2.0 GHz |
| Max Turbo Frequency | Max Turbo Frequency: 4.8 GHz Intel Turbo Boost Max Technology 3.0 Frequency: 4.8 GHz Intel Turbo Boost Technology 2.0 Frequency: 4.6 GHz |
| Manufacturing Tech | Intel 3 |
| Memory Types | DDR5(6400MT/s) MRDIMM(8000MT/s) |
| Memory Channel | 8 |
| Max Memory Size | 4TB |
| ECC Memory | Supported |
| Integrated Graphics | None Integrated Graphics |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 |
| Max Number of PCI Express Lanes | 128 |
| Base Power | 350W |
| Max Turbo Power | 420W |
| Thermal Design Power | 350W |
| Cooling Device | Cooling device not included - Processor Only |
| First Listed on Newegg | September 07, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-916-377-7000
- Support Website
- View other products from Intel
LOADING...
The Intel Xeon 698X is an 86-core, 172-thread Granite Rapids server processor with 336MB of L3 cache, designed for data-center and workstation workloads that benefit from substantial parallel compute; it uses an LGA 4710, single-socket platform.
Recommended For
- Workstation users who run CPU-rendered 3D scenes or other heavily threaded production jobs and benefit from keeping many CPU cores busy.
- AI and data-science developers who work with large local datasets, CPU inference or matrix-heavy workloads, and can use the workstation platform’s high memory capacity and Intel AMX support.
- Engineering and research teams running parallel simulations, scientific computing, or complex data analysis on a workstation rather than splitting work across multiple CPU sockets.
- Workstation builders who need several high-bandwidth PCIe devices—such as multiple GPUs or fast storage—alongside large amounts of ECC memory in a single-socket system.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server and workstation workloads that can use 86 cores and 172 threads |
| Cores And Threads | 86 cores (86 performance cores, 0 efficiency cores) and 172 threads |
| Clock Speeds | 2.0 GHz base frequency, up to 4.8 GHz with Turbo Boost Max Technology 3.0 and up to 4.6 GHz with Turbo Boost 2.0 |
| Cache And Power | 336 MB L3 cache, 350 W thermal design power, and 420 W maximum turbo power |
| Socket And Platform | LGA 4710 socket, Granite Rapids architecture, Intel 3 manufacturing process, and 1-socket-only scalability |
| Memory Configuration | 8-channel memory controller supporting DDR5 at 6400 MHz and MRDIMM at 8000 MHz, with up to 4 TB memory capacity |
| Expansion And Instructions | PCI Express 5.0 with up to 128 lanes; supports Intel SSE4.1, SSE4.2, AVX2, AVX-512, and AMX instructions |
| Processor Features | 64-bit support, Hyper-Threading, and virtualization technology |
| Model Identifiers | Intel Xeon 6 Xeon 698X, part number PK8072006491800 |
