Take your HDTVs to the next level with multiple inputs and outputs, delivering the most convenient vivid and richest viewing experience available today in High Definition. The Iogear's 5x2 HD Matrix Switch enables you to connect 5 HD source devices and share them between 2 of your HDTVs for the ultimate viewing experience. It is an ideal solution for connecting multiple HD media devices.

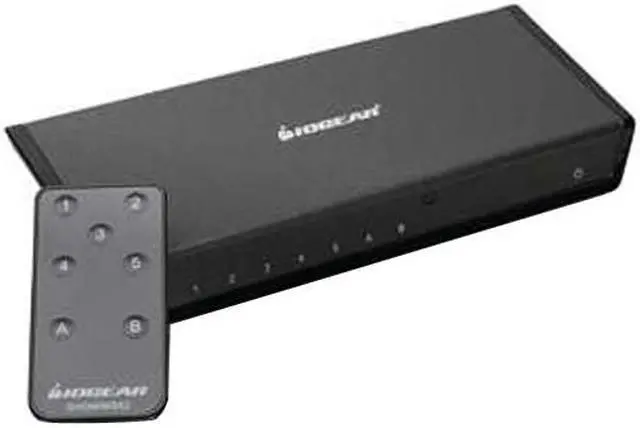

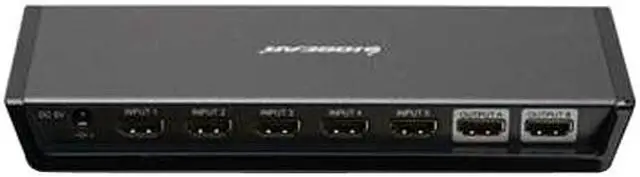

Remote HDMI SwitchThe box comes with 5 HDMI inputs and 2 HDMI outputs and cross-switches active devices between 2 different displays via a user-friendly remote control or front-panel pushbutton, so you will not be bothered by messy cables.
HDMI v1.3b CompliantThe 3-Port HDMI switch supports the HDMI 1.3b specification for up to 1080p resolutions and 8 channel surround sound through a single cable.
HDCP SupportThe 3-Port HDMI switch is fully HDCP compliant to unlock ultra-high resolution and superb quality protected content.
Learn more about the IOGEAR GHDMIMS52
Model
Brand
IOGEAR
Model
GHDMIMS52
Details
Type
HDMI Switch
Color
Black
Connectors
Connectors (Input): 5 x Female HDMI Connectors, 19 Pin
Connectors (Output): 2 x Female HDMI Connector, 19 Pin
Specifications
Data Rate: Up to 2.25 Gbps
Video Resolution: 480i/480p/720p/1080i/1080p; VGA/SVGA/XGA/SXGA/UXGA
Power Consumption: 10 Watts (max)
Power Voltage: 5V
Power Amps: 2A
Dimensions
8" x 0.88" x 3.75"
Weight
0.6 lbs. (0.86 lbs. w/accessories)
Features
Features
Cross-switch5 different HD media sources between 2 different HD TVs or displays
