I am looking to stream HD video from a computer to a projector that is 80' apart. Will this product do this and do I need the receiver if the projector has one built in or do i just need the transmitter?

You do need a receiver, but one is included in the kit. It sets up its own wifi connection automatically, so there's nothing to configure. I purchased this to drive two monitors (65"/32") in the front and back of the main room at our local makelab. I have a ChromeCast, an Apple TV, input from our data rack (VGA->HDMI adapter) and an extra HDMI cable attached for laptops that can't connect to the ChromeCast or the Apple TV. We're only going about 30', but the signal appears to be strong. I would suspect the advertised range of 200' is accurate. The delay is minimal, only a few milliseconds, and it works great showing the same video on both displays or showing different input on each. We can even have audio turned up on both and the delay is barely noticeable. I will probably get a few more receivers in the near future so that we can put monitors in the rest of the rooms. My only slight complaint is that sometimes takes five seconds or more to react to channel changes. It isn't "instant" when you change.

$1,323^.13

Free 30-day Returns

Limit 99999 per customer.

Ships from Canada.

Price alert

Add to wish list

Sold by BTE Outlet

3.5 (1,433 seller ratings)

Shipped by BTE Outlet

Best Sellers

NothingButSavings

Top Rated

4.5 (8,950 total ratings)

$599^.11

Meet Your Seller

BTE Outlet

See Seller Store

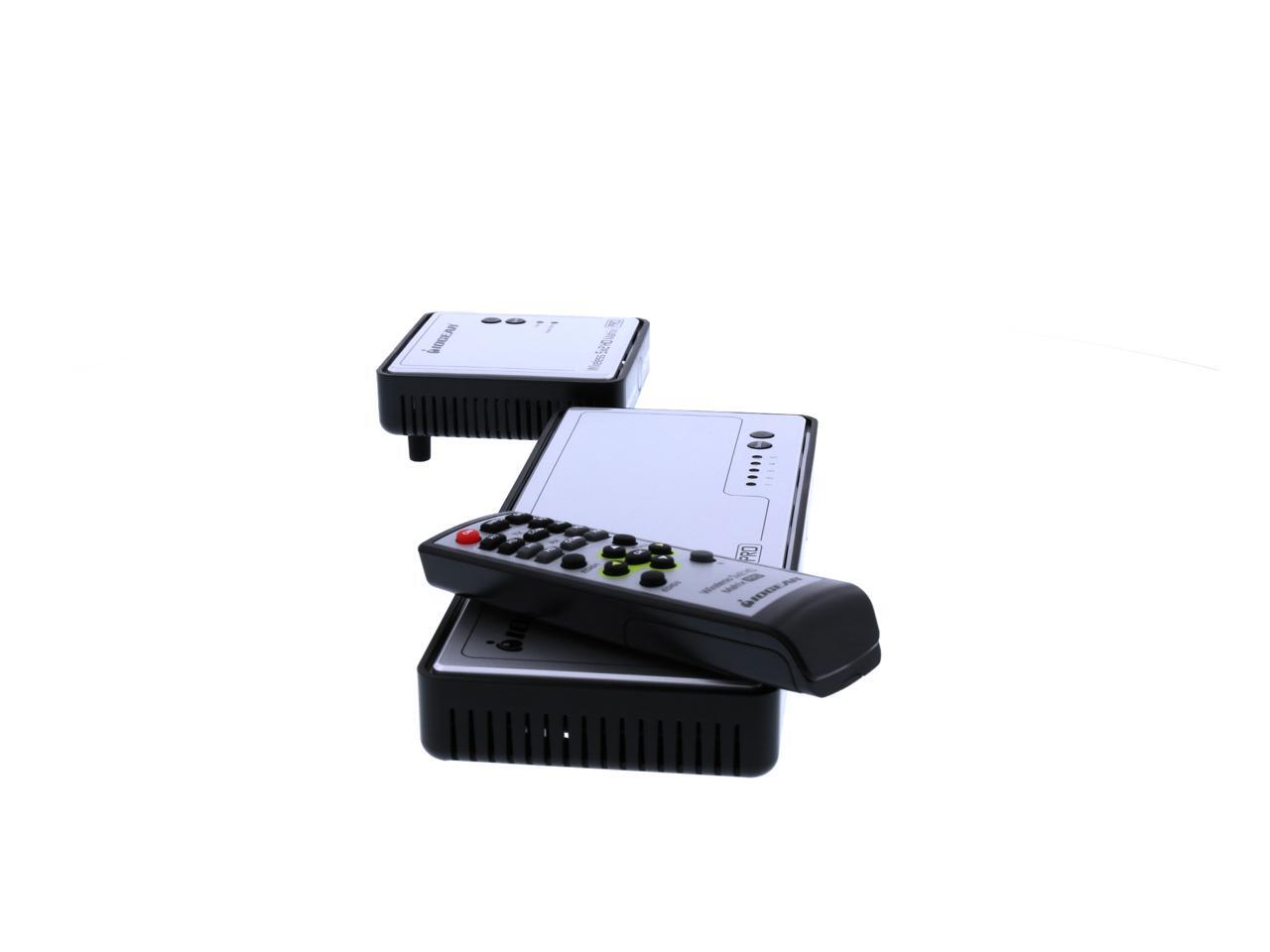

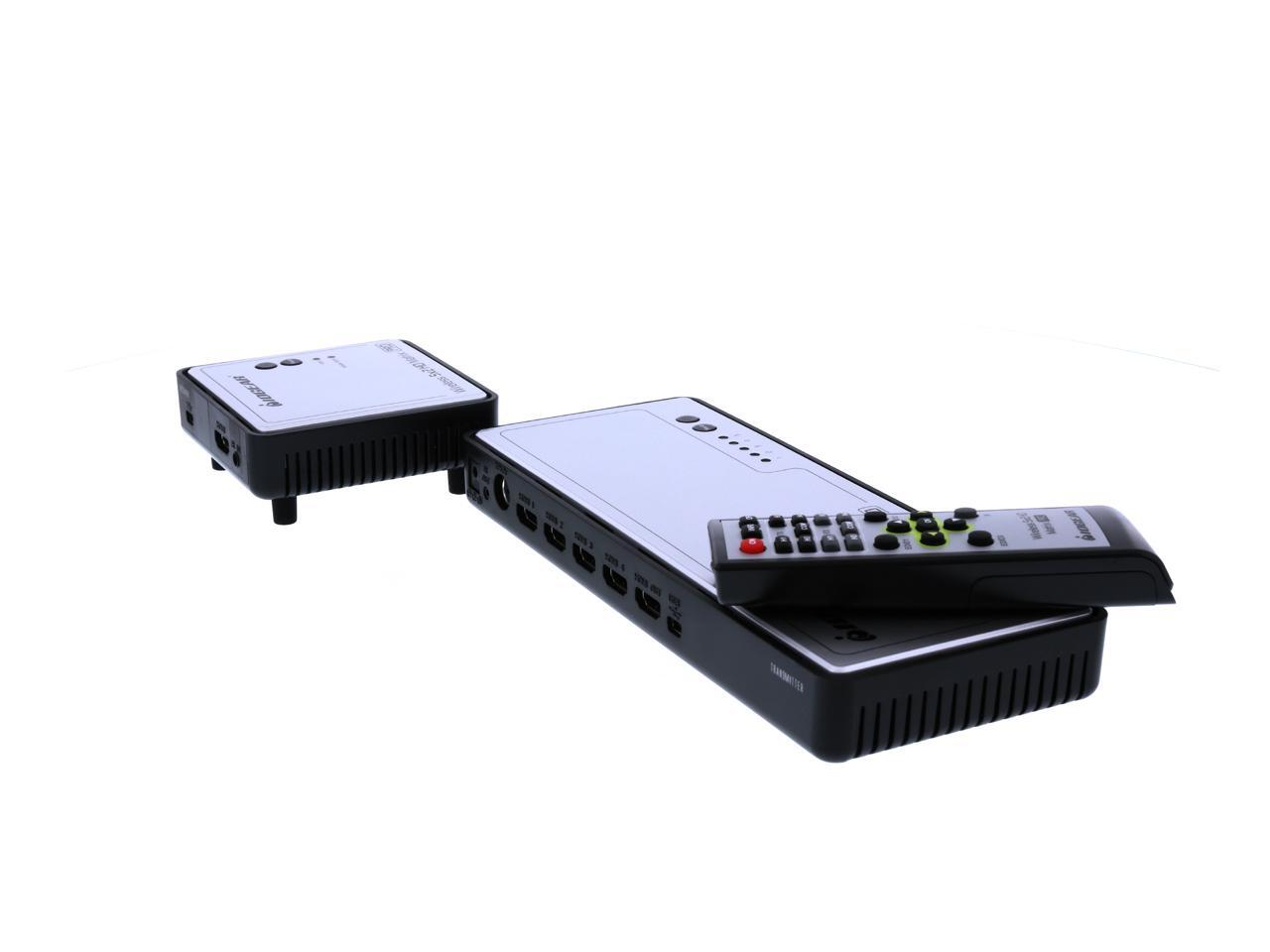

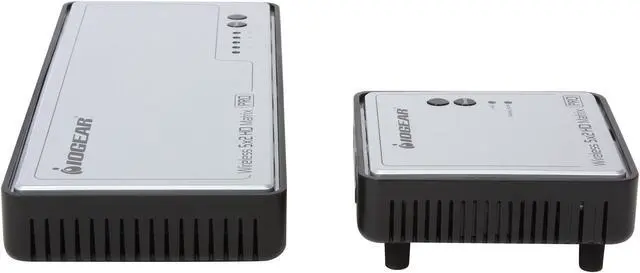

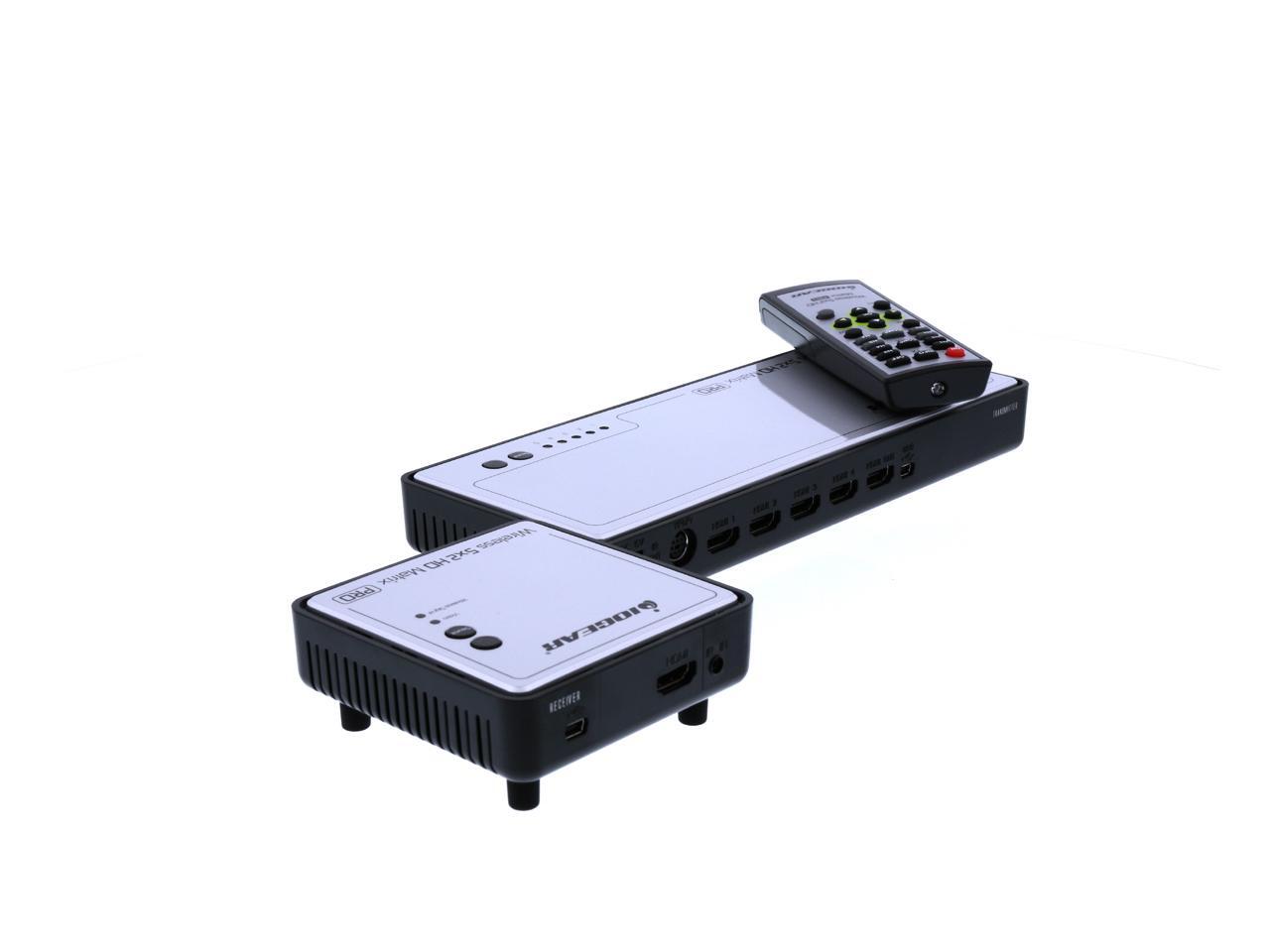

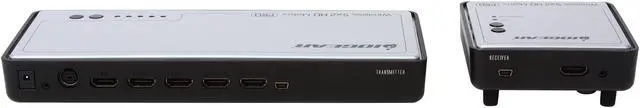

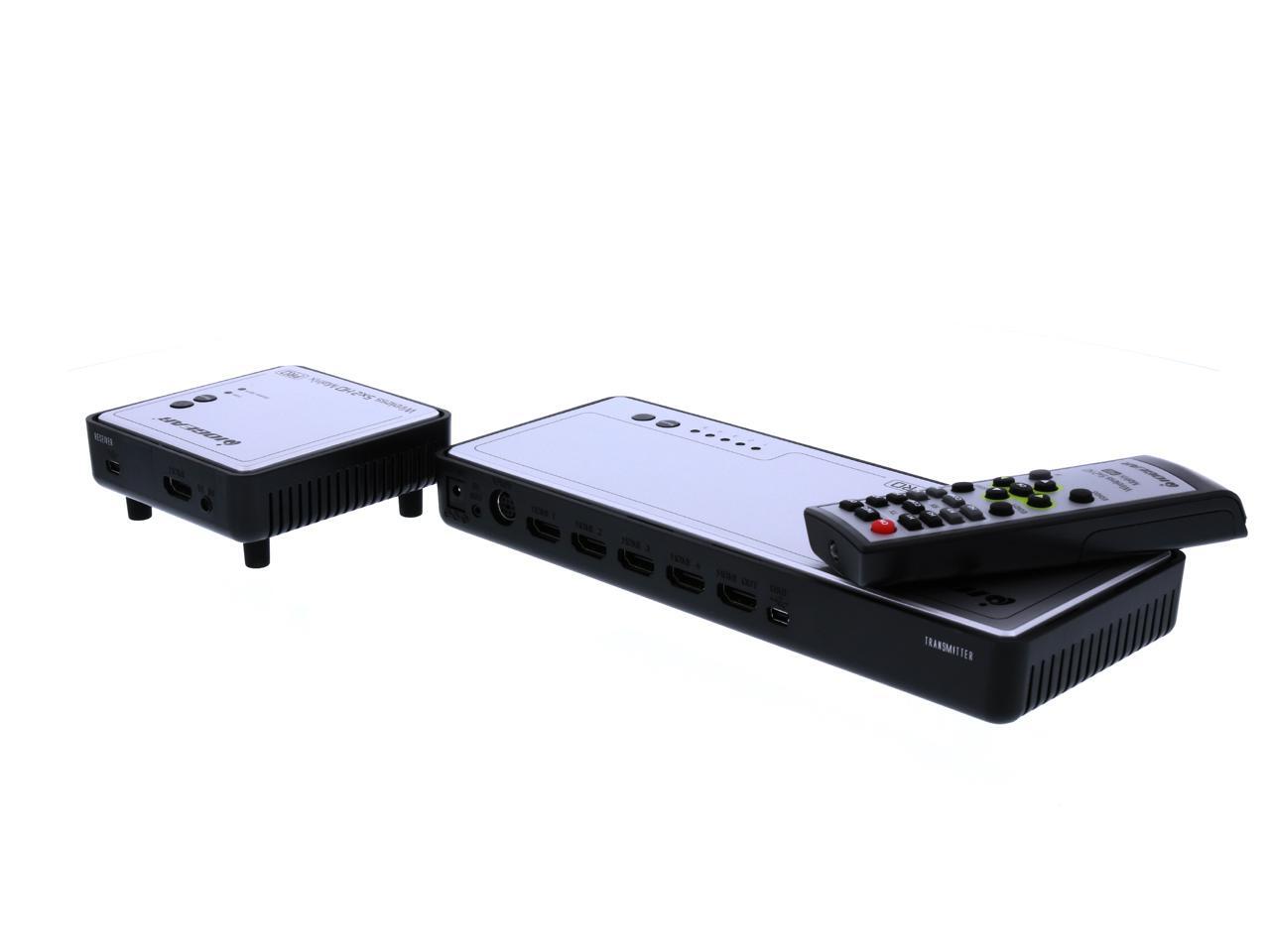

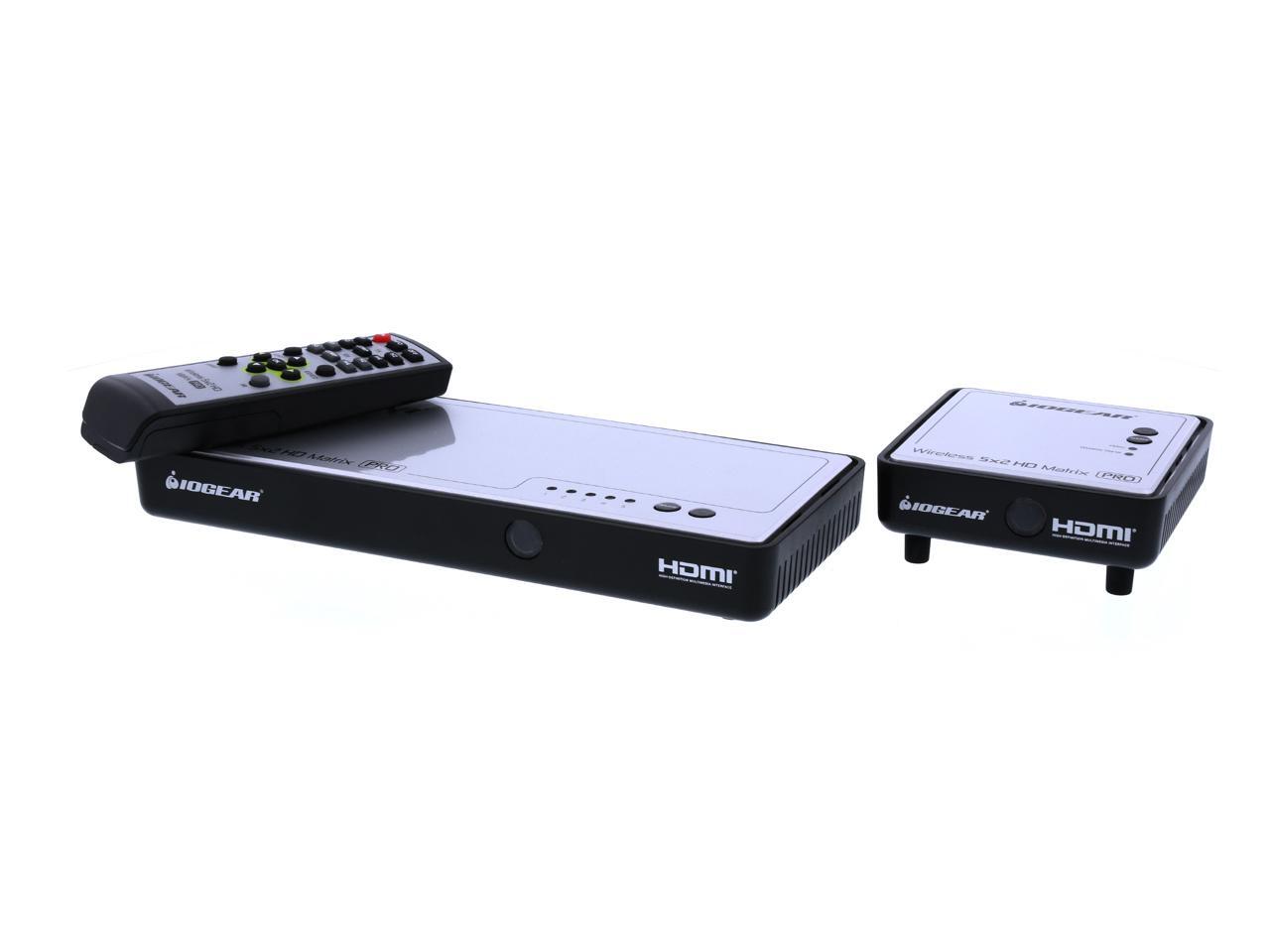

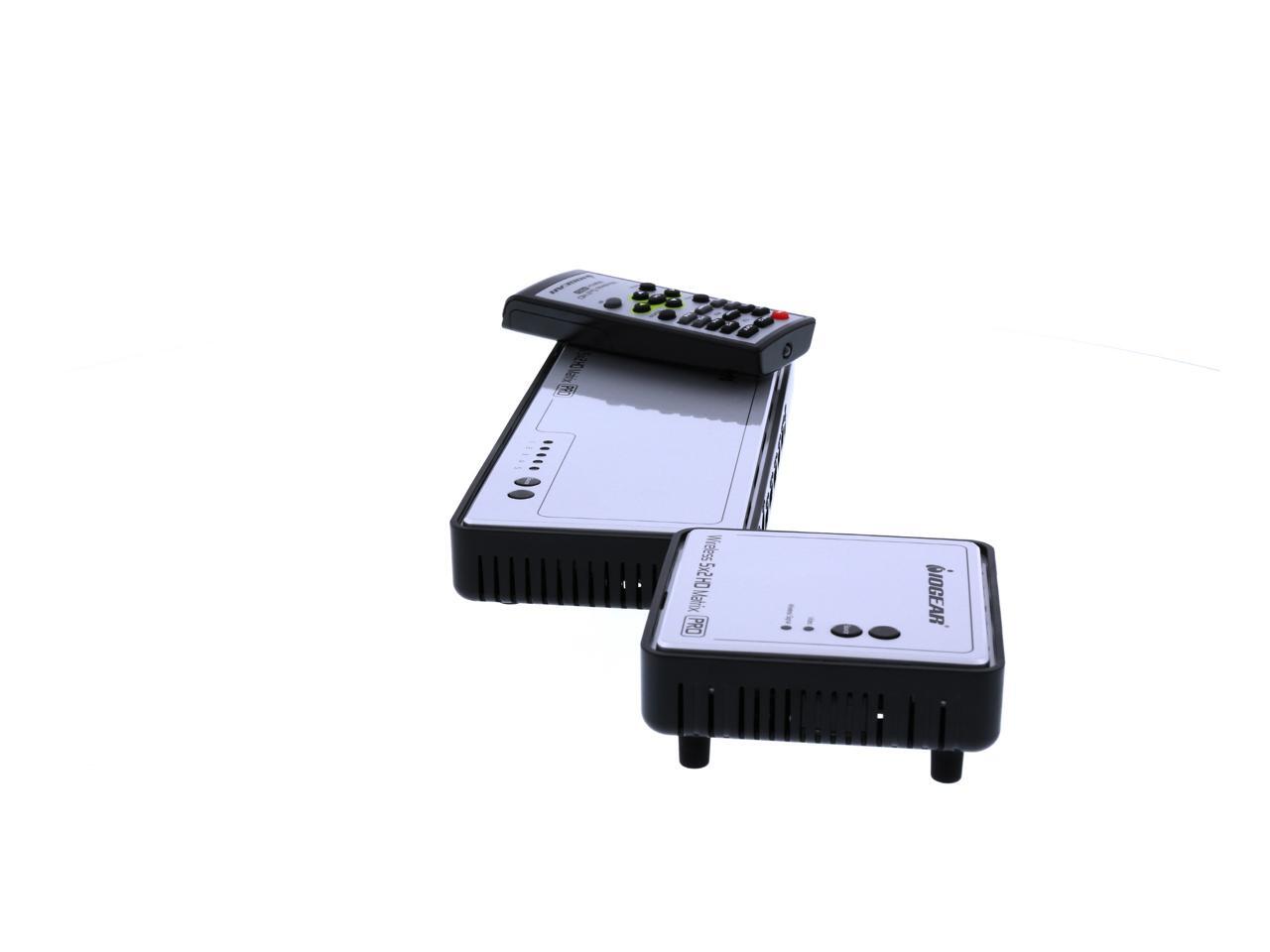

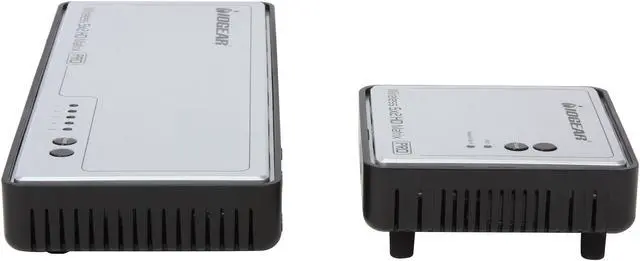

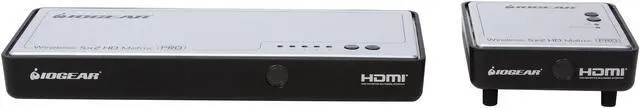

Main image of IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

100%

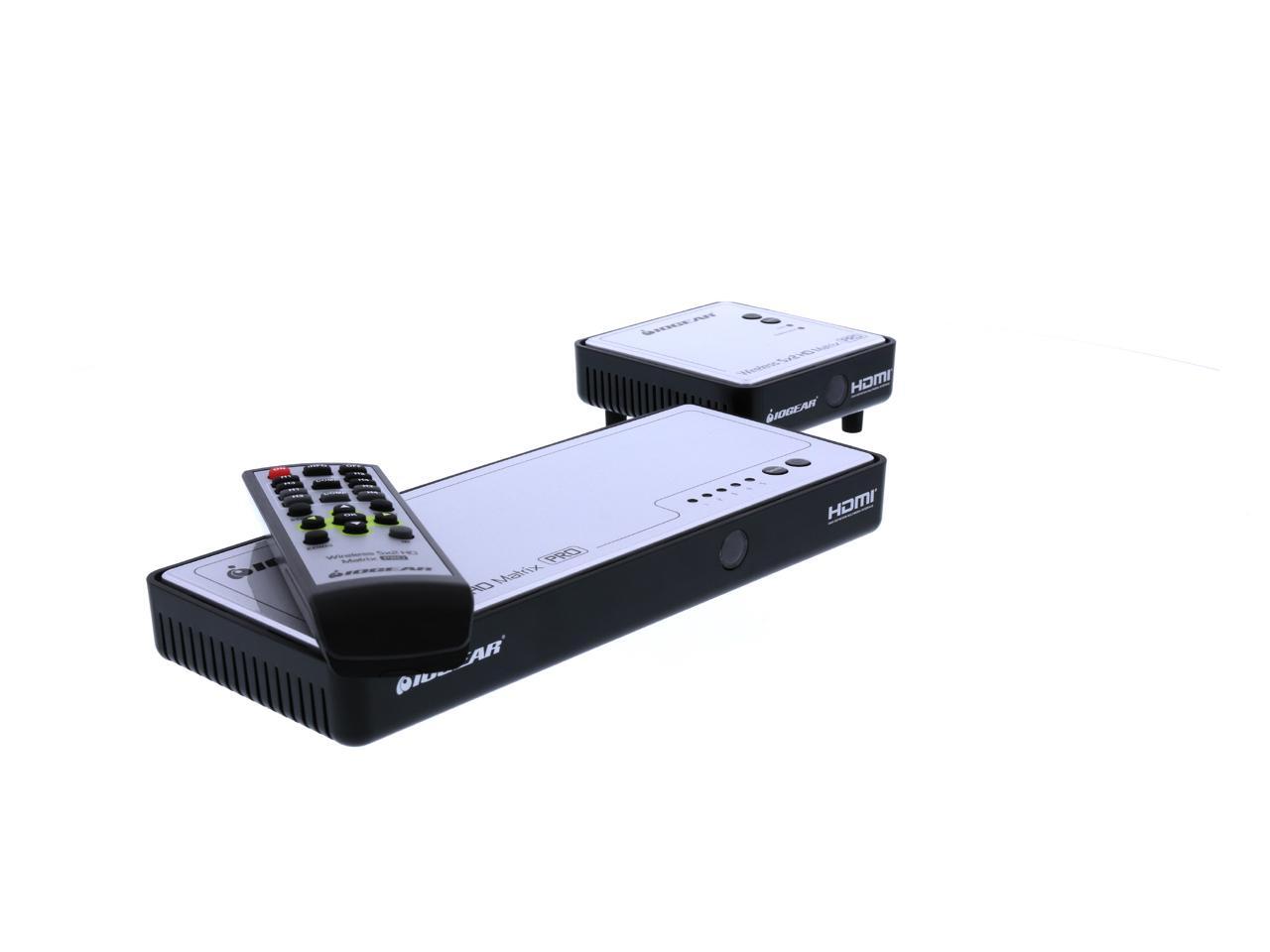

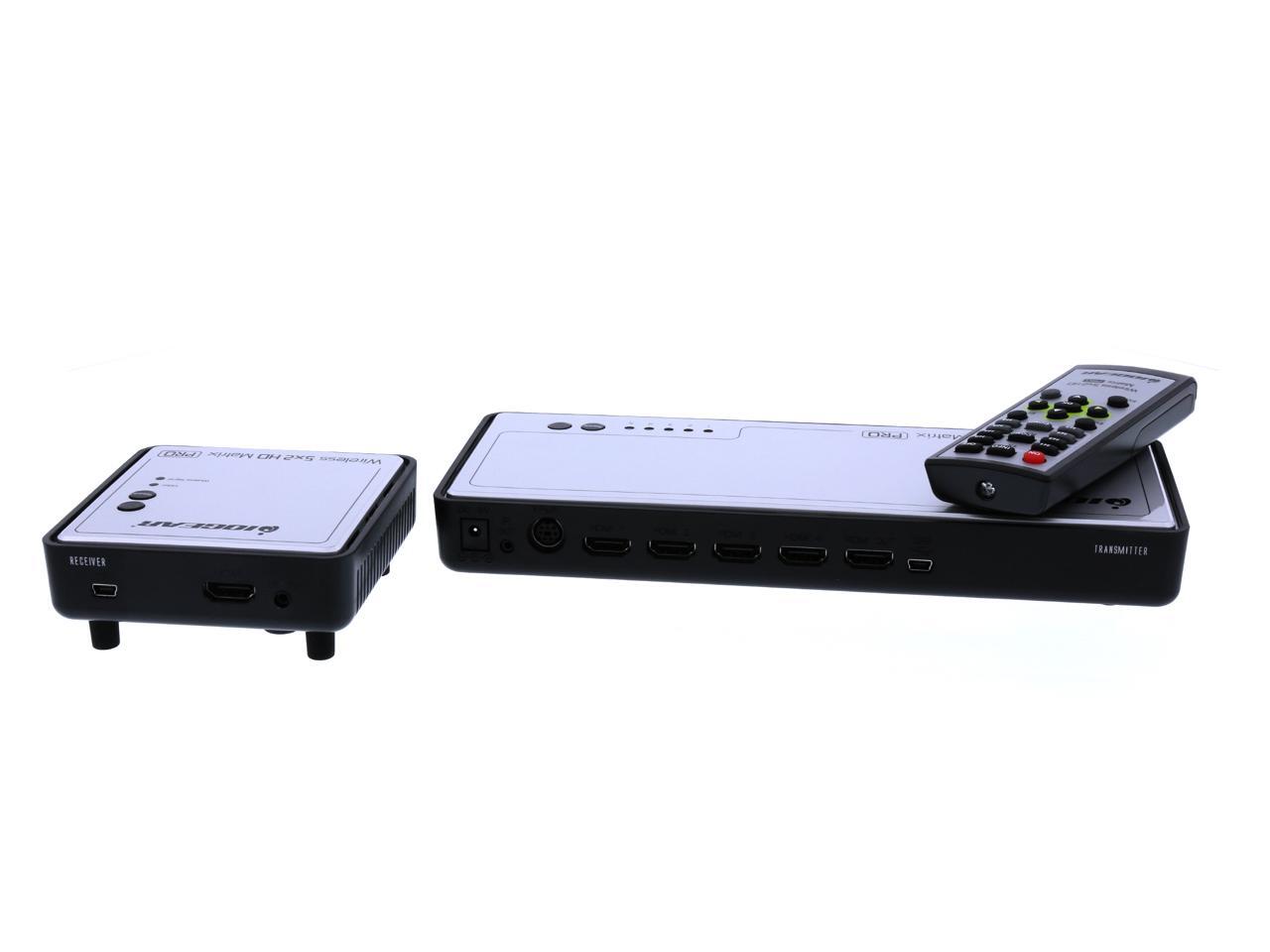

Alt view image 2 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

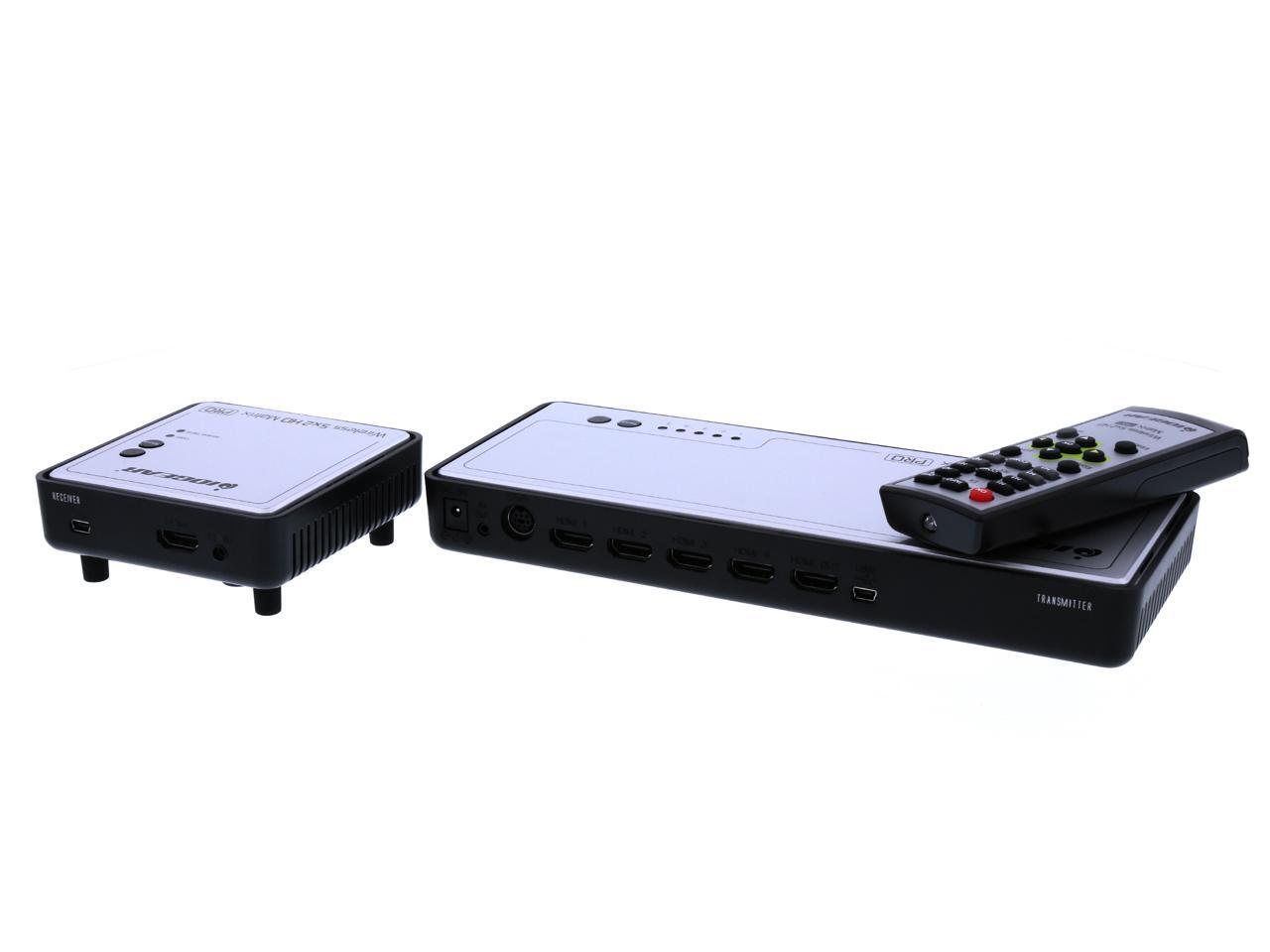

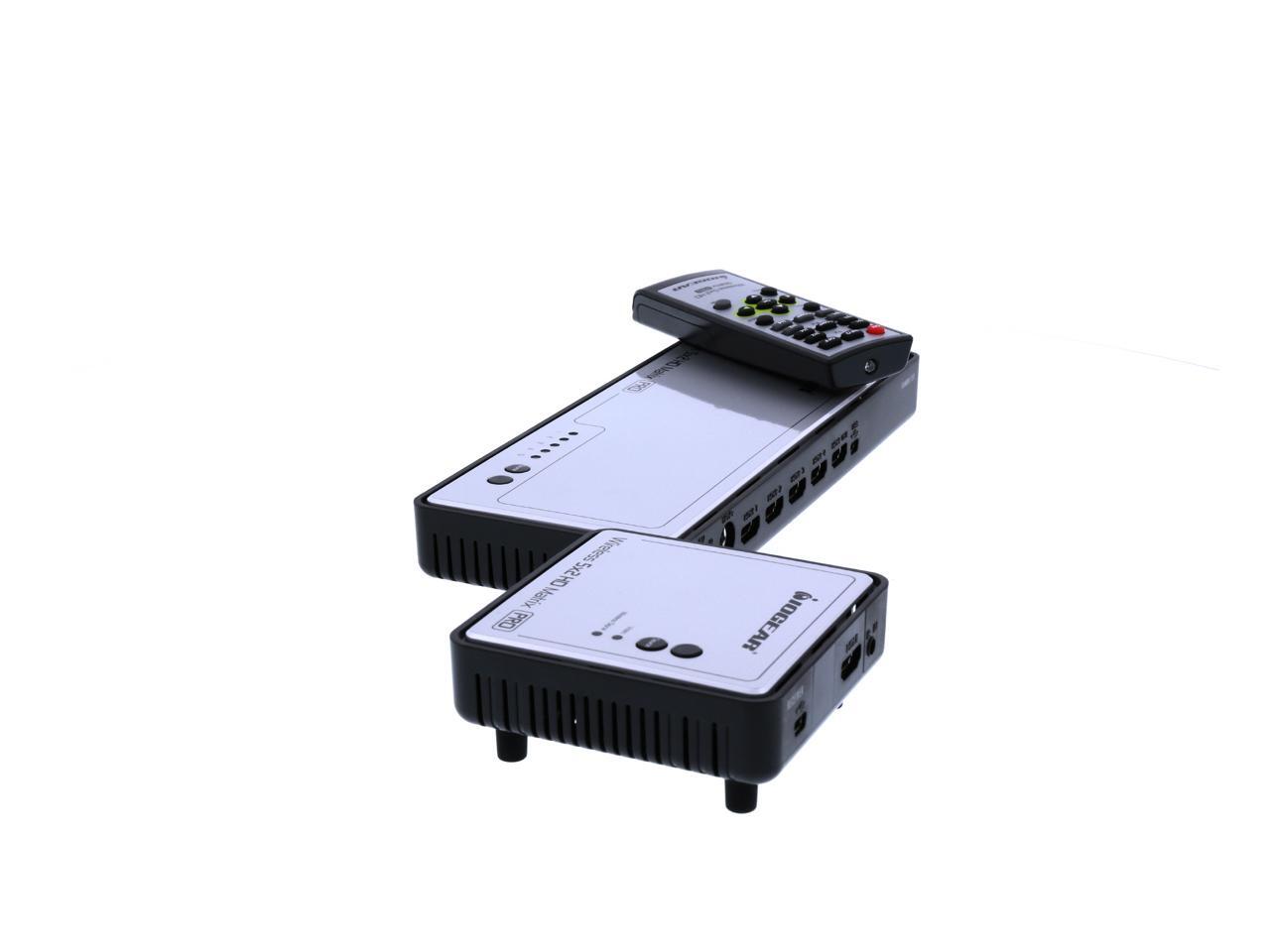

Alt view image 3 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

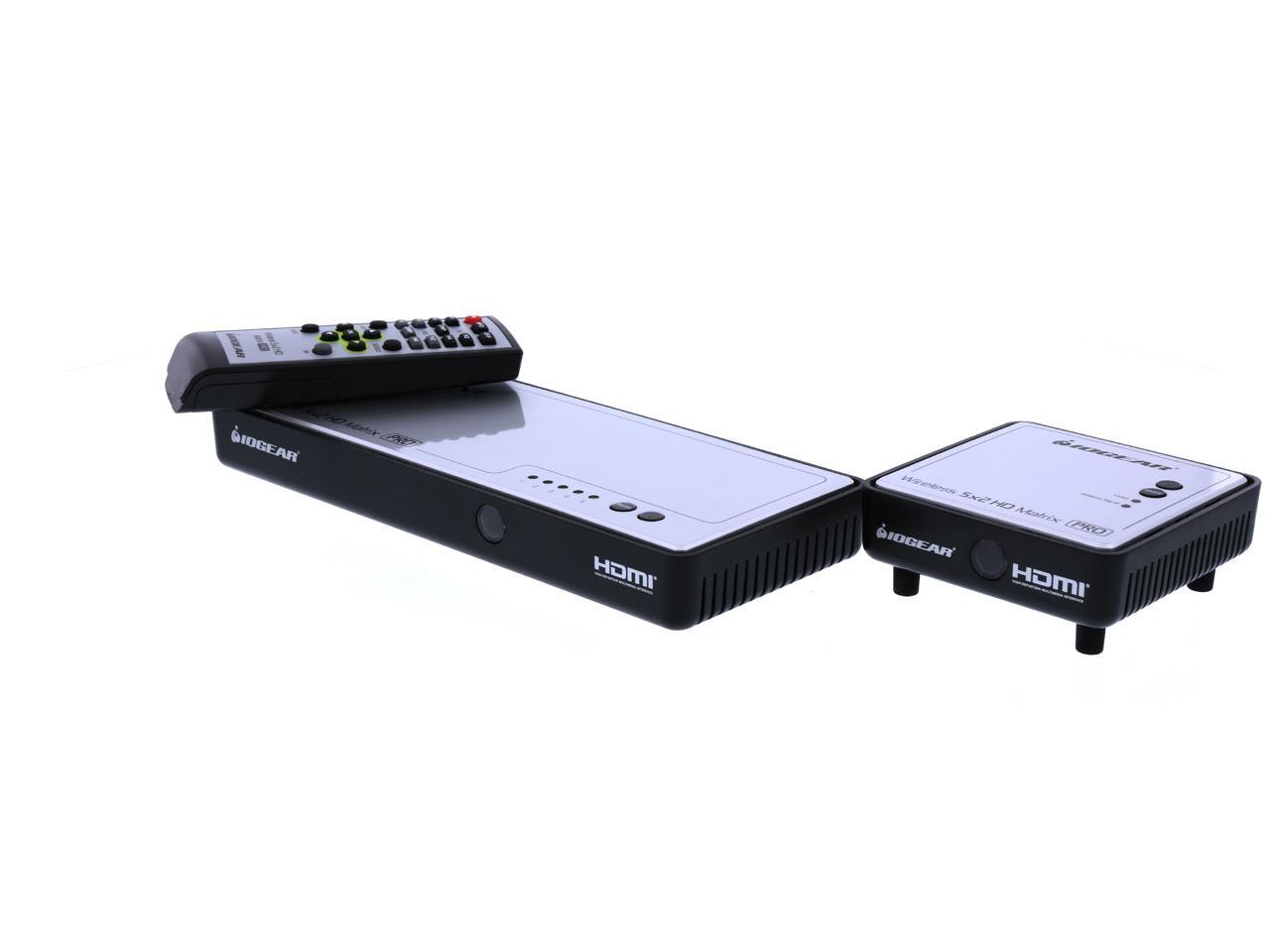

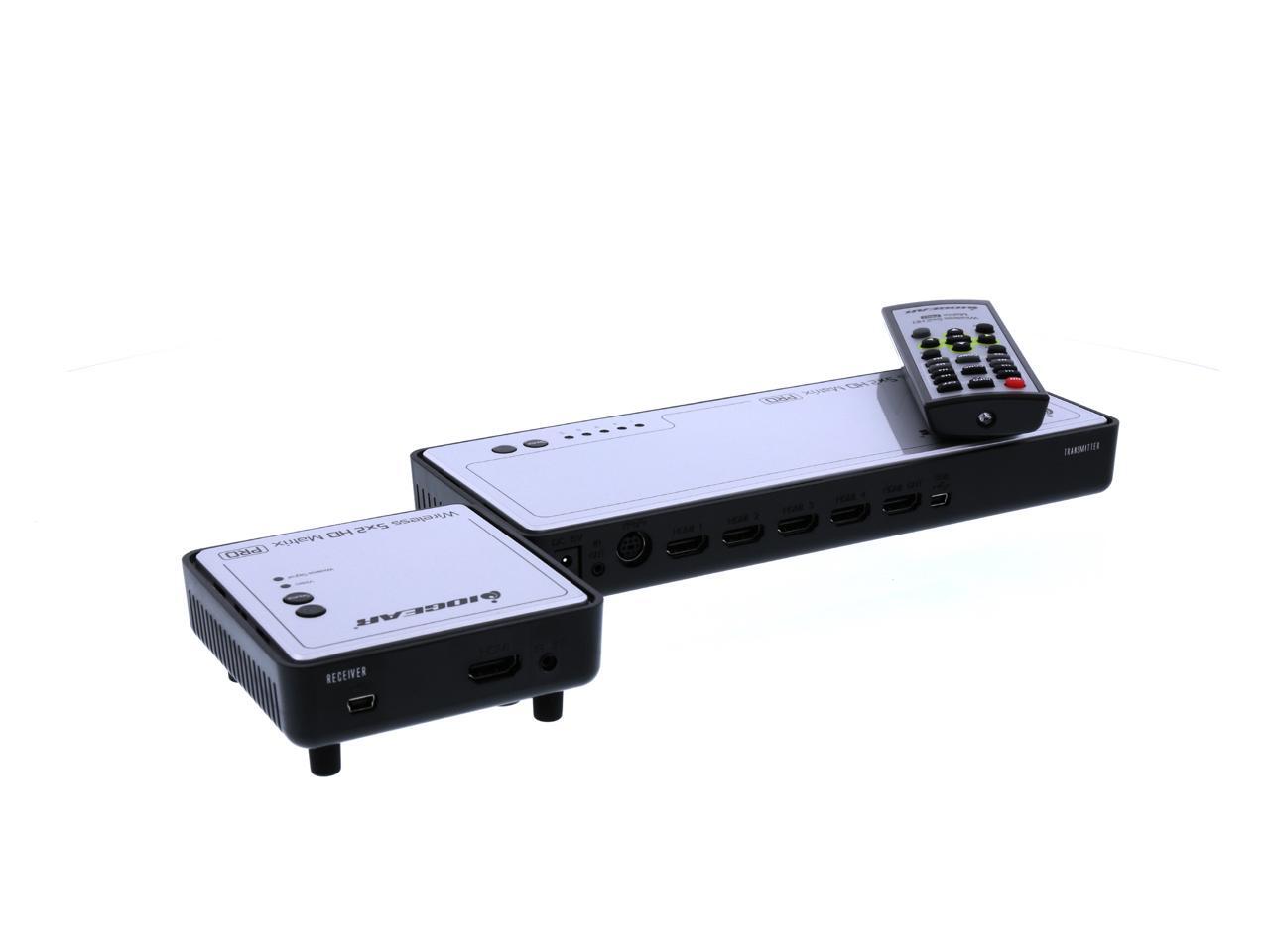

Alt view image 4 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

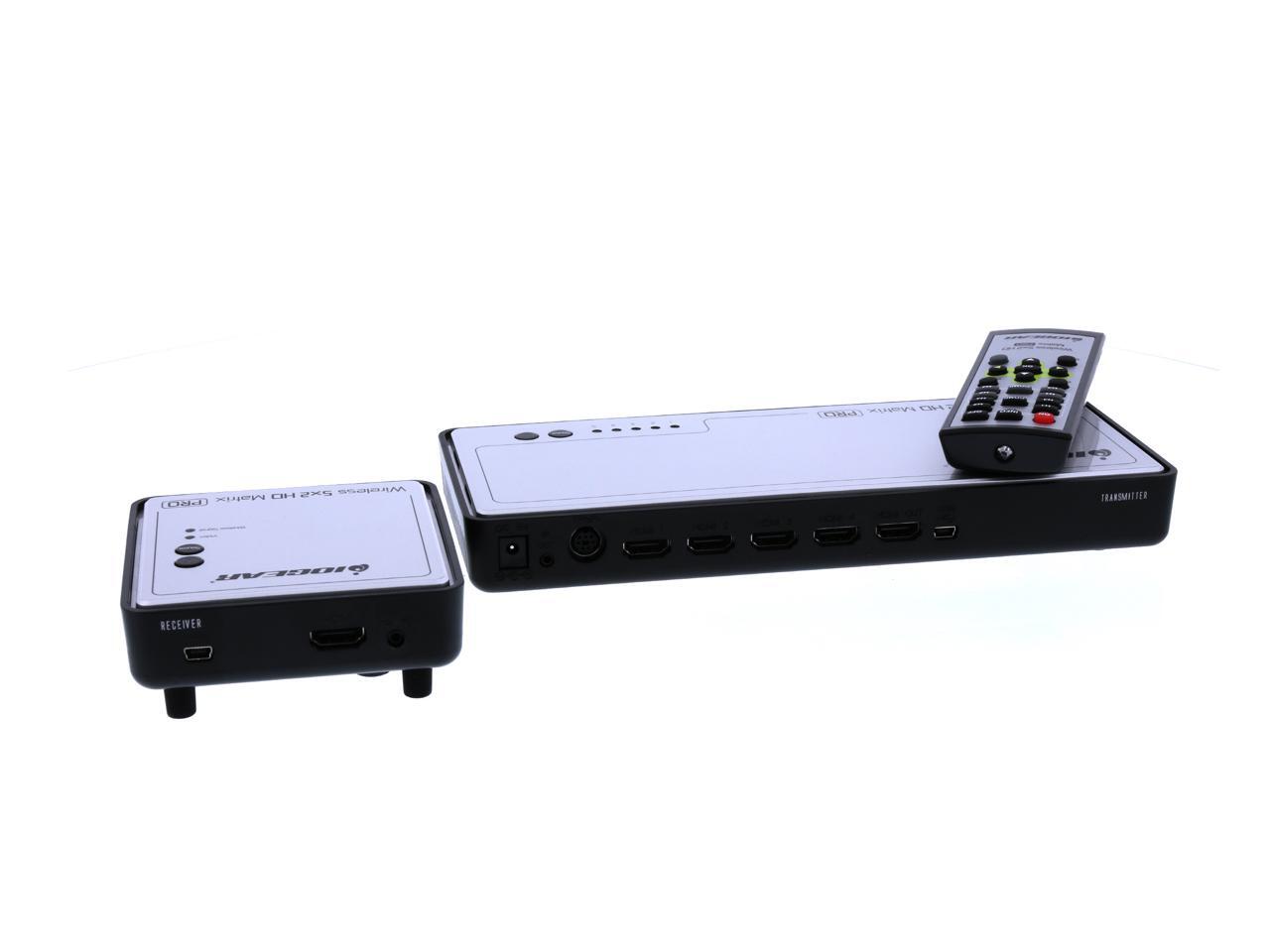

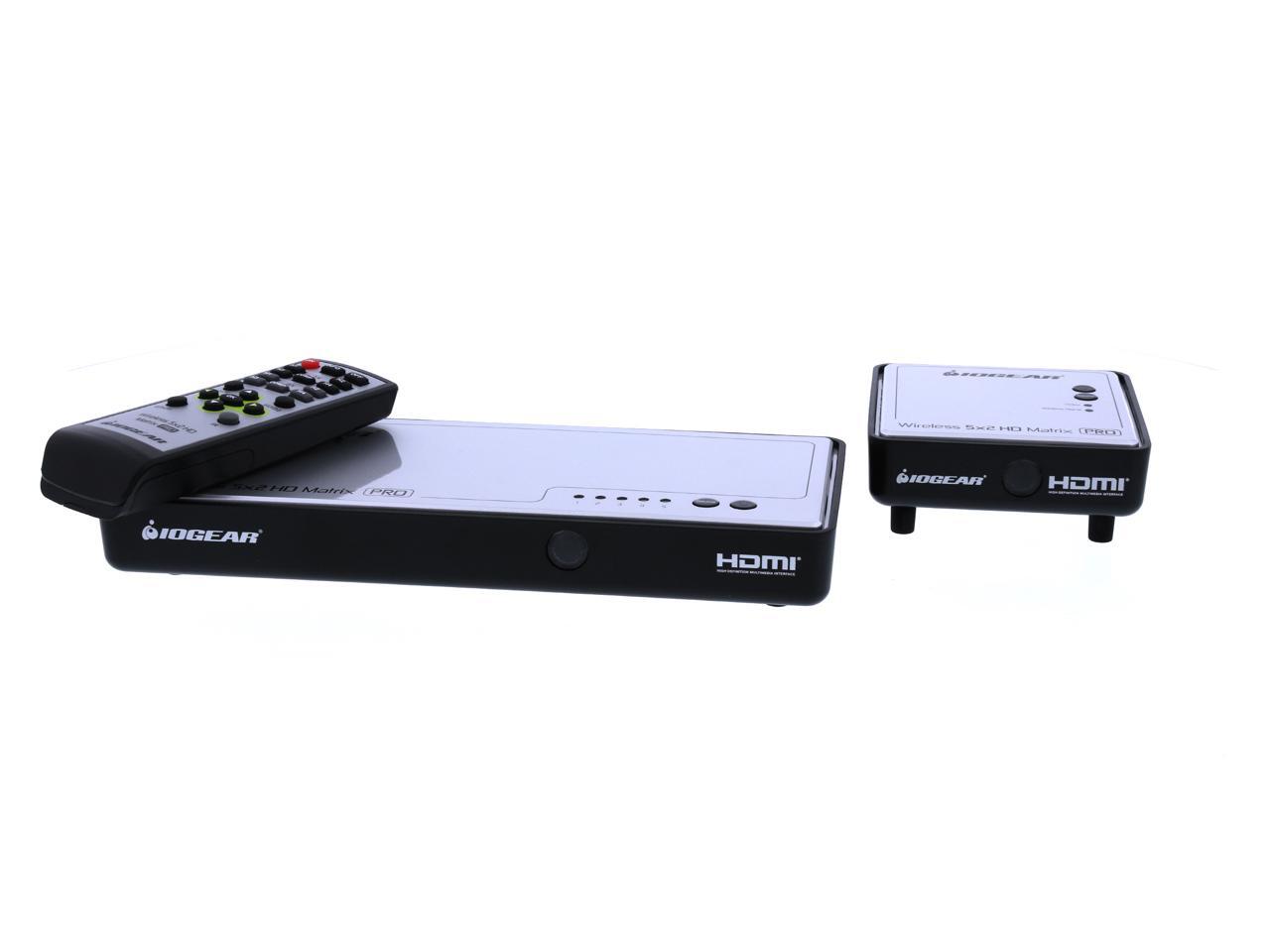

Alt view image 5 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

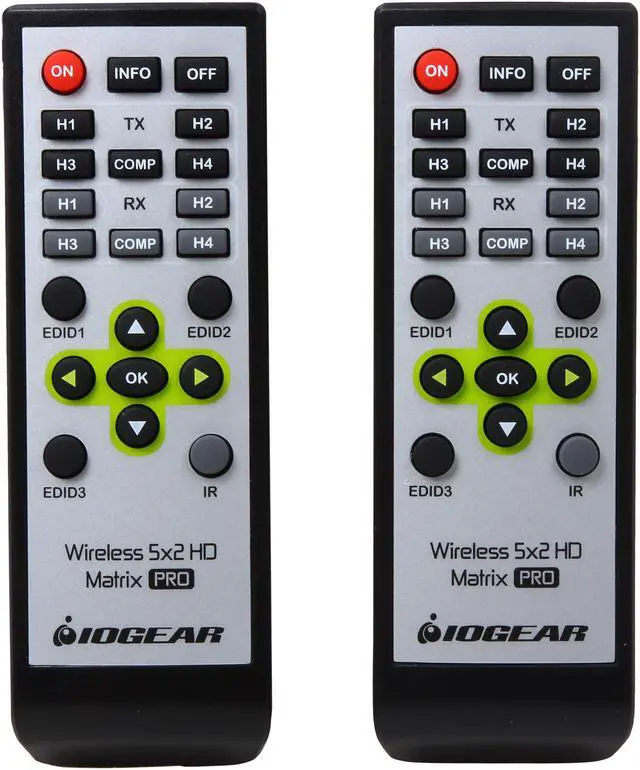

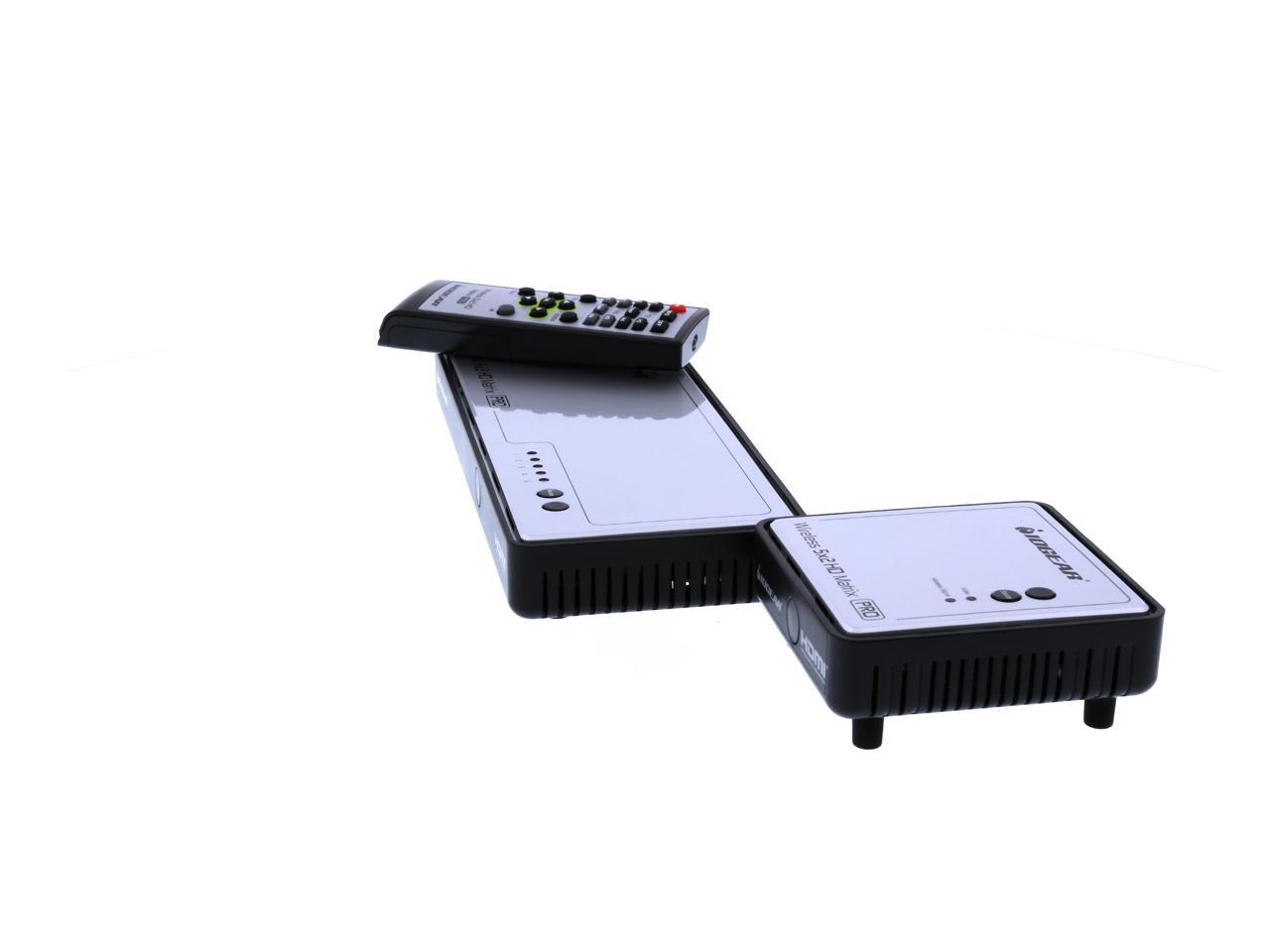

Alt view image 6 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

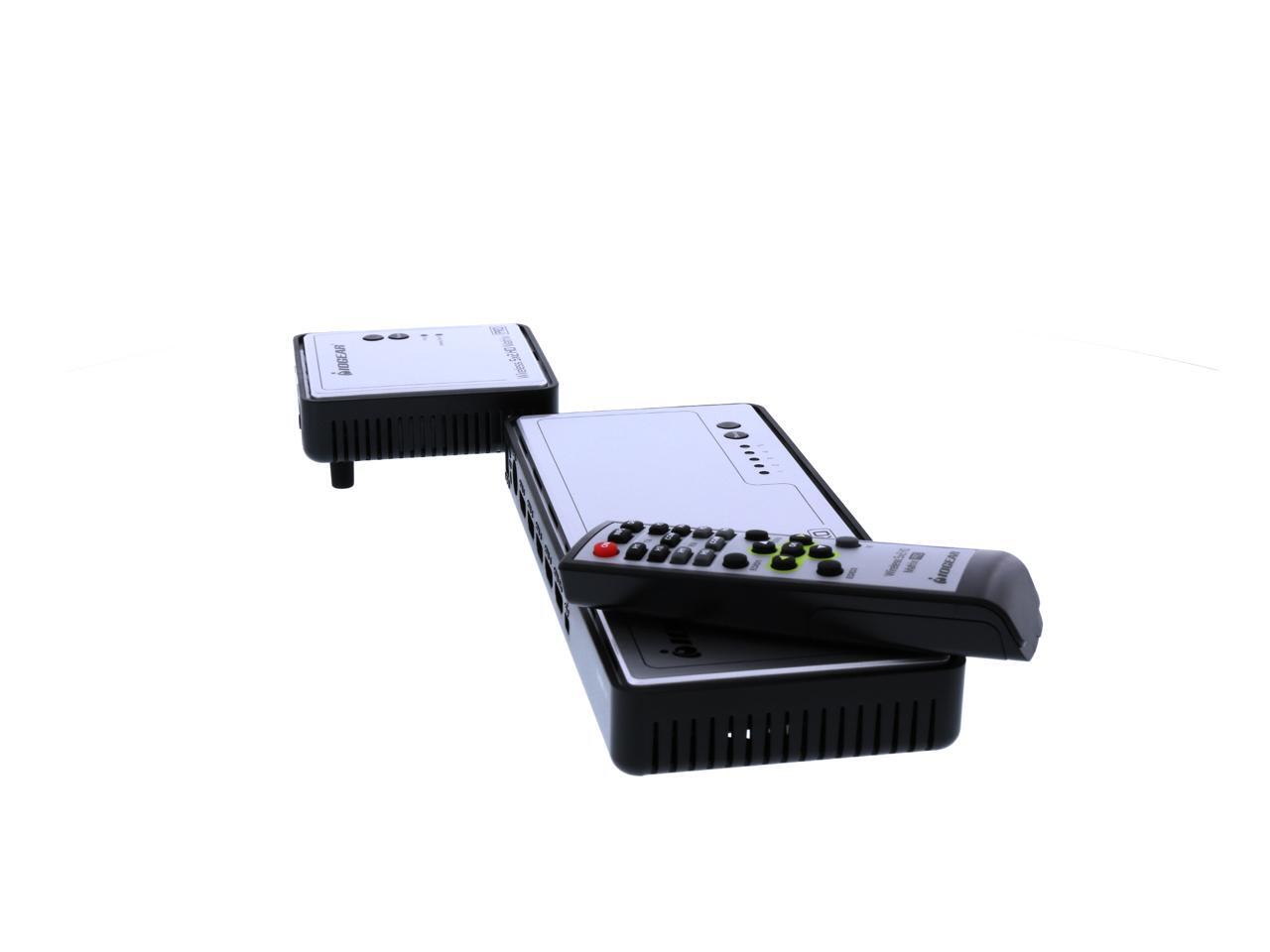

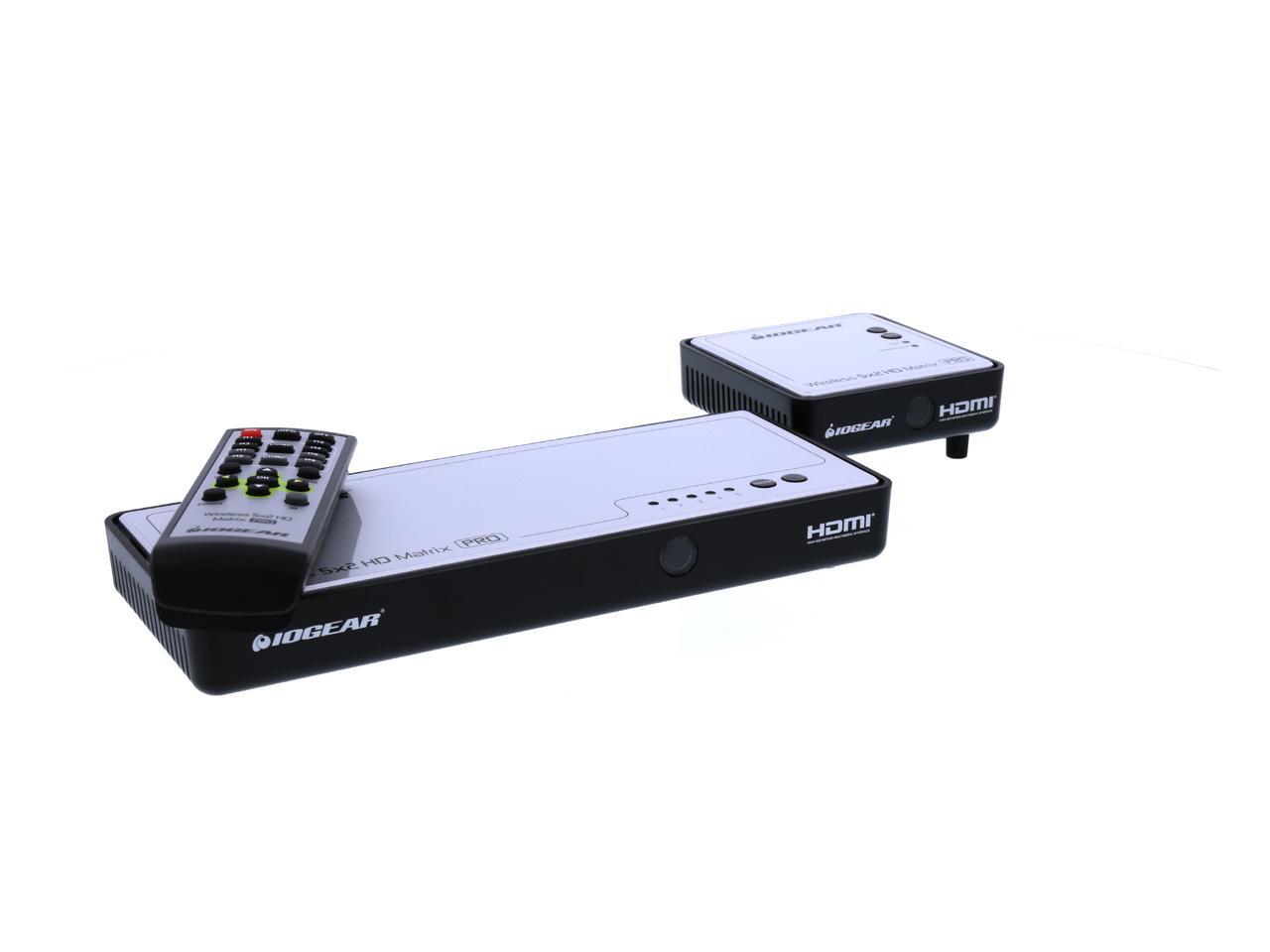

Alt view image 7 of 7 - IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

360^°

Shop All IOGEAR Products | Visit BTE Outlet Store

IOGEAR Long Range Wireless 5x2 HDMI Matrix PRO GWHDMS52MB

(1) Write a Review

Up to 200' Wireless Transmission
Multicast Up to 4 Wireless Receivers
Up to 1080p Resolution
3D Pass-Through
Input: 4 x HDMI, 1 x Component
Output: 1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

lOGEAR's Long Range Wireless 5 x 2 HD Matrix PRO with Multicast is the first to send uncompressed HD 1080p up to an astonishing 200 feet, including the ability of multicasting up to a total of 4 wireless receivers. The Wireless HD Matrix Receiver (Model: GWHDRX01) is available separately to build a customized wireless distribution management solution. Package Contents: 1 x Wireless Transmitter 1 x Wireless Receiver 2 x Remote Control 1 x Component Adapter Cable 1 x IR Blaster Cable 1 x IR Sensor Cable 2 x Power Adapter 1 x HDMI Cable 1 x Installation Guide 1 x Warranty Card Product Type: Audio/Video Switchbox Device Supported: TV Product Type: Audio/Video Switchbox Device Supported: TV Manufacturer Part Number: GWHDMS52MB Connectivity Technology: Wireless Connectivity Technology: Wireless Manufacturer: IOGEAR, Inc Product Name: Long Range Wireless 5x2 HD Video Matrix Pro Brand Name: IOGEAR Brand Name: IOGEAR Maximum Operating Distance: 200 ft Number of HDMI Inputs: 4 Component Video In: Yes HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 2 Number of Input Devices Supported: 5 Graphics Modes: Full HD Maximum Video Resolution: 1920 x 1080 Maximum Operating Distance: 200 ft Number of USB Ports: 2 Number of HDMI Inputs: 4 Number of HDMI Outputs: 2 Component Video In: Yes HDMI In: Yes HDMI Out: Yes Number of Displays Supported: 2 Number of Input Devices Supported: 5

Model
Brand	IOGEAR
Model	GWHDMS52MB

Performance
3D Support	Yes
Resolution Support	480p, 576p, 720p, 1080i, 1080p (24/30/60 fps)
Color	N/A
Audio	Audio Output: Digital 6 Mbps AC3 and DTS, Analog 48 KHz and 24-bit per sample Frequency: 4.9 ~ 5.9 GHz (Includes non-DFS and DFS Frequency Bands)

Connection
HDMI	Input: 4 x HDMI Output: 1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)
Component	1 In
Other Connector	1 x Power Jack (Transmitter and Receiver) 1 x Push Button (Transmitter and Receiver)

Indicater
LED Indicator	Power On: Green / Red LED (Transmitter and Receiver) Link: Green LED (Transmitter and Receiver) Input: 5 x Green (Transmitter) 1 x Green (Receiver)

Compatibility
System Requirements	Displays: HDMI HDTV or HD Projector Media Source: 1 HDMI Output or 1 Component Output* Multicast: Additional Wireless HDMI Receivers sold separately - Part# GWHDRX01 It is recommended that the distance between receivers to be at least 12 feet apart Cables: HDMI Cables (1 included) Component Cable (not included) RCA Audio Cable (L&R, not included) *Only 1 Component Input available on the Transmitter

Power
Power Supply	Voltage: 100~240V - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver) Amps: Transmitter: 2A, Receiver: 1.5A

Specification
Specification	Video Streaming: <1ms Latency Antenna Type: High Performance Internal Range: Maximum video transmission range is 200 ft. (60m) Infrared Frequency: 3 ft. IR Extension Cable 38 kHz, 47 kHz & 56 kHz Operating Temperature: 0-40 celsius degree Case: Plastic Cable Connections Input: Receiver: 1 x IR Extension Input Output: Transmitter: 1 x IR Output Security: 128-Bit AES Encryption

Feature
Feature	Allows you to switch and independently select any of 5 sources between 2 HDTVS Watch Cable TV in 1 location while playing a blu-ray in location 2 Multicast up to 5 HDTVs - Send content up to 5 locations at the same time (4 wireless)

Dimensions & Weight
Dimensions	1.25" x 9.50" x 3.88"
Weight	1.15 lbs.

Package Contents

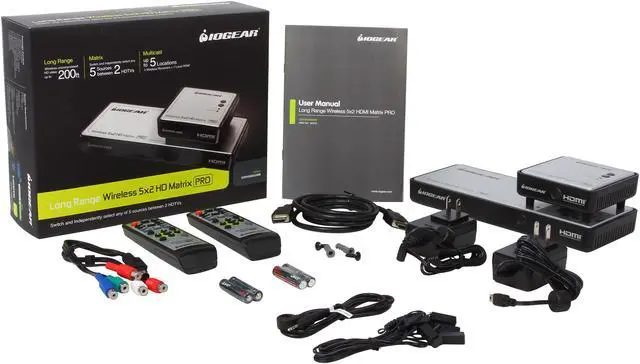

Package Content	1 x Wireless HDMI Transmitter 1 x Wireless HDMI Receiver 2 x Remote Controls 1 x Component Adapter Cable 1 x IR Blaster Cable (Transmitter) 1 x IR Sensor Extender Cable (Receiver) 2 x Power Adapters 1 x HDMI Cable 4 x AAA Batteries 1 x User Manual 1 x Warranty Card

Additional Information
First Listed on Newegg	December 17, 2022
