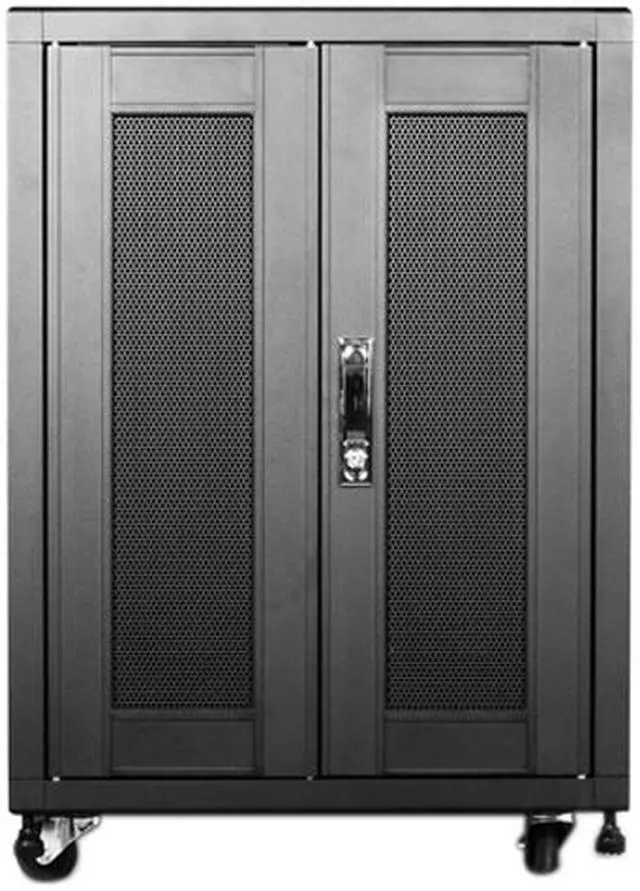

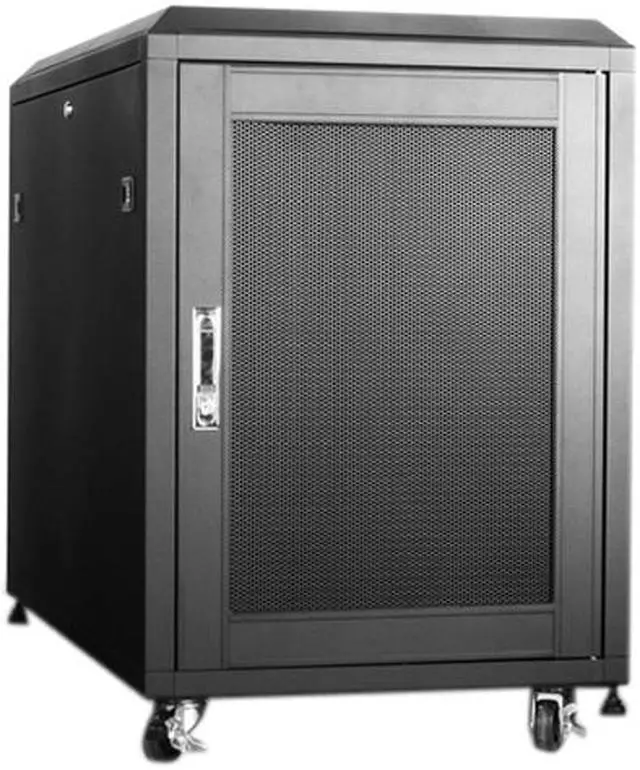

iStarUSA WN1510 15U 1000mm Depth Rack-mount Server Cabinet - OEM

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Black
  • Side Panel: SPCC t: 0.8mm
  • Horizontal Rails: SPCC t: 2.0mm
  • Vertical Rails: SPCC t: 2.0mm
  • Top Panel: SPCC t: 1.2mm
  • 2200 lbs. Weight Capacity
  • Rack Enclosure

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The WN Series Cabinet is designed with quality, security, and effective cooling in mind. The high-quality aluminum/steel cabinet with adjustable rails fits most rackmount chassis and equipment. The lockable front and rear doors and side panels help prevent unauthorized access. The efficient cooling fans and vented doors provide excellent air circulation for servers and other devices. It also features exclusive double rear doors for added convenience, and the locking mechanism design on casters provides the ultimate portability.

*Note: 50 sets of M5 mounting screws and cage nuts are included.

detailed view and application

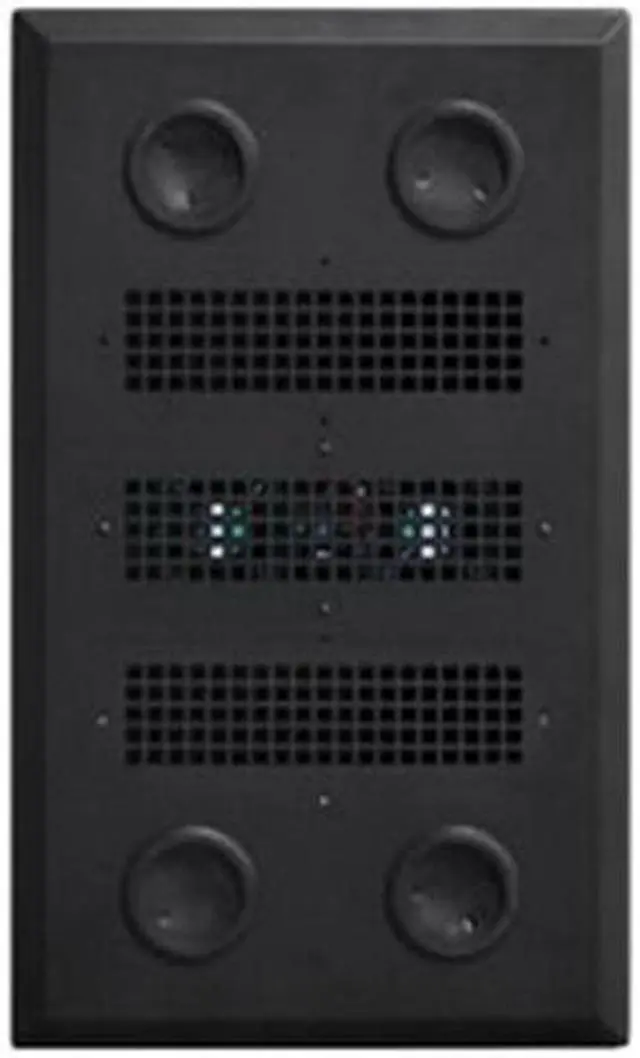

  • newegg Superior cooling performance The preinstalled 120mm AC cooling fans provide excellent air circulation, and the vented doors provide the maximum air flow.
  • newegg Maximum security Front, rear, and side security locks prevent unauthorized access to equipment and data.
  • newegg Unique double-rear doors design The exclusive double rear doors provide convenience and take less space to open.

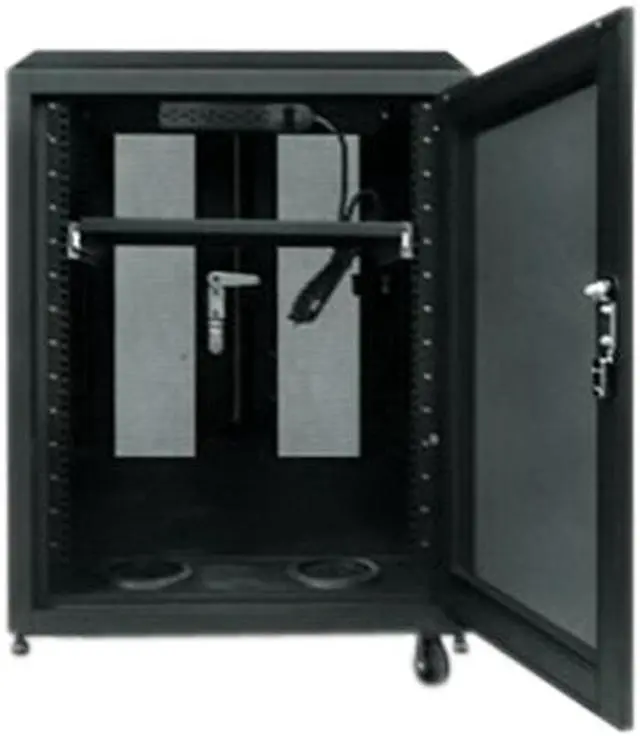

  • newegg Fully adjustable rails The mounting rails are horizontally adjustable to ensure the best fit of rack-mount chassis.
  • newegg Reduces dust buildup The stylish, secure 19-inch rack-mount cabinet protects your investment in computer equipment against environmental elements like heat and dust.
  • newegg Easy cabling management Cable entry is provided from top/bottom and front/back for easy cabling management.

Learn more about the iStarUSA Inc. WN1510

Model

|
Brand
iStarUSA
Model
WN1510

Details

|
Type
Rack Enclosure
Rack Units
15U
Color
Black
Material
Side Panel: SPCC t: 0.8mm
Horizontal Rails: SPCC t: 2.0mm
Vertical Rails: SPCC t: 2.0mm
Top Panel: SPCC t: 1.2mm
Cooling (Standard)
Pre-installed 1 set of 120mm 120V AC fan
Weight Capacity
2200 lbs.
Specification
RoHS Compliance Version: Yes

Supported Chassis Depth: 35" and under

Internal Dimensions:
Width: Post-to-post:17.75"::Hole-to-hole:18.5"
Height: 27.25"
Depth: 34.25" max

Features

|
Features
Universal Fit Most of Rackmount Chassis and Equipment.

Double Rear Doors Provide Convenience and Take Less Space to Open.

Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data.

Easy Cabling Management. Cable Entry Provided from Top / Bottom and Front / Back.

Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis.

Vented Doors Provide Maximum Air Flow.

Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line.

Locking Mechanism Design on Casters.

Dimension & Weight

|
Unit Dimension
23.50" x 35.25" x 39.50"

Additional Information

|
Date First Available
March 26, 2010
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Excellent rack 5/1/2018 11:48:12 AM

Pros: - Build quality is top notch
- Locking
- Heavy duty grommets for cable management
- Has built in cooling fans standard
- Caster wheels roll smoothly
- Excellent size
- Bang for your buck is much higher here than most other half racks on the market

Cons: - Just barely too wide to put in a standard bedroom closet if using in a home environment (by about a 1/4") - but that is just being extremely nitpicky, and is not even remotely the target environment for this unit

Overall Review: Couldn't be happier with this unit - it's a fantastic rack

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
One of the better small racks on the market 11/15/2015 1:20:46 PM

Pros: Adjustable rack rails, locks for safety, less heavy than I expected considering it's an enclosed cabinet (~215 lbs.).

Cons: Very large and a bit awkward to move around. The exhaust fans are in the middle of the rack instead of being more towards the rear which would make more sense for keeping the hot air moving up and out.

Overall Review: I bought this to house a lab environment that I'm using in my home. A couple of racked servers, a switch, router, and a UPS. Biggest pros are the adjustable rack rails, allowing it to accommodate rack rails of different lengths, and the security locks to keep people and pets out.

Did you find this review helpful?
Ownership: less than 1 day
Verified Owner
5/ 5
Amazing 8/13/2014 12:02:52 PM

Pros: Lots of space, sturdy design, clean well made handles and latches. Very usable range of mounting and the double doors are great. Two fans on top are nice and there is plenty of ventilation.

Cons: No real issues. Two sets of keys could be a problem far down the road, but they give you 4 of each key, so if you lose that many keys, you shouldn't have any keys anyways.

Overall Review: I would suggest this rack mount for almost any range of uses. I am using them to host 3 2U power supplies, but they would host servers, switches and almost any other rack system with out any issues. The I Star sliding rail also fit great and make installs cake.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
8/16/2010 5:41:11 PM

Pros: The cabinet is extremely well built and rugged. My cabinet holds two four unit chassis, a router, and a switch with plenty of room for cables and ups. The four rubber cable guides on the top and bottom of the cabinet makes cable management a breeze. The cabinet has wheels allowing great mobility for cleaning purposes, moving, and makes it easy to get to servers on the inside from the rear. Overall I highly recommend this cabinet and would buy it again for myself or customer in the future.

Cons: Its heavy but its a cabinet, what would you expect? Wheels make it easy to move around which is a plus.

Overall Review: Again excellent quality and truly a satisfying purchase.

Did you find this review helpful?
Manufacturer Response:
Dear Newegg Customer:

Thank you for choosing the iStarUSA brand to be part of your total computing system. We proudly stand behind our products and hope that you will find your next purchase an iStarUSA brand.

We would like to take this opportunity and recommend the following iStarUSA accessories on Newegg.com to go with your purchase and your rack mounts:

iStarUSA WA-P1UB-FP 1U Cover Bezel Plate for Cabinet
iStarUSA WA-CM2UB 2U Cable Management Rack Kit
iStarUSA IS-26 Industrial type of Ball Bearing Sliding Rails with Length 26"

At www.iStarUSA.com, you can find the full list of compatible accessories by typing WN1510 in the search bar.

Warmest,
iStarUSAcare Service
2010

DYK: At our website, you can view product photos, specs, and drawings. Go to www.istarusa.com and enter the model number in the search bar, or, select the product division and find the product series on the left hand side menu.
