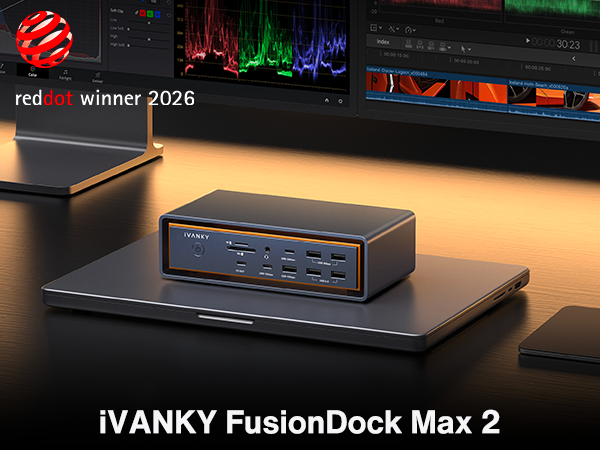

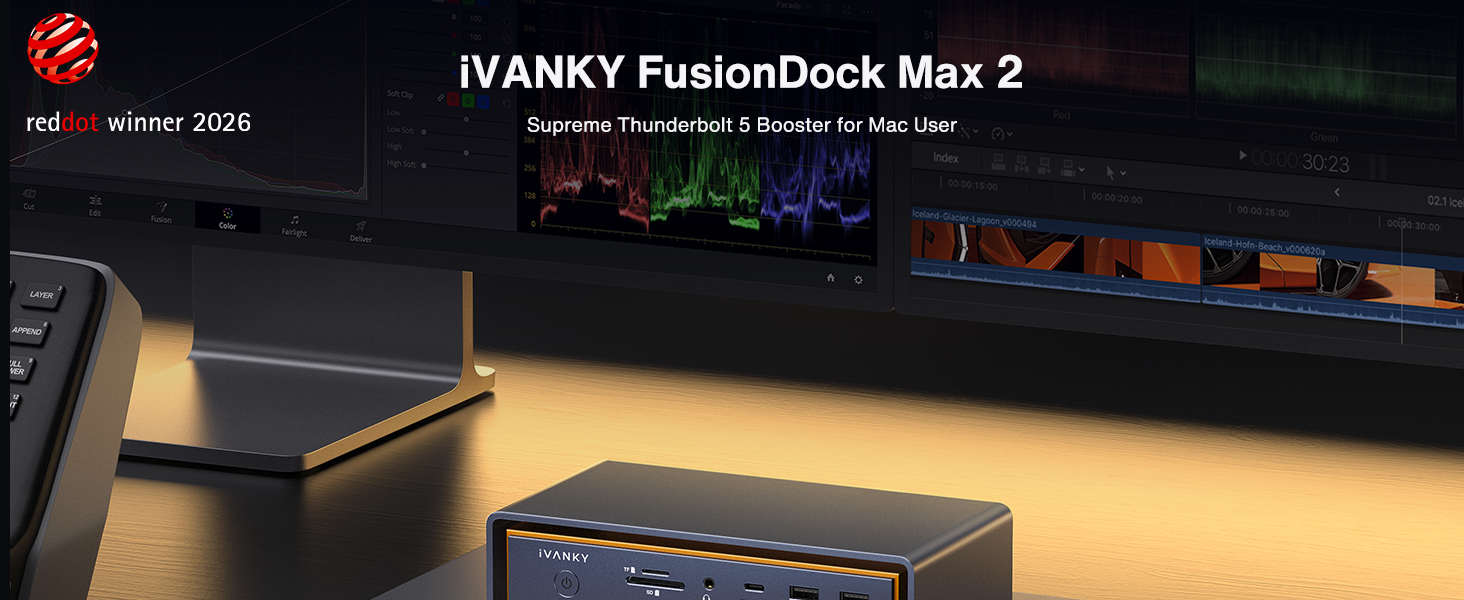

iVANKY FusionDock Max 2 23-in-1 Thunderbolt 5 Docking Station Triple 6K@60Hz, 140W PD, 2.5GbE, Intel Certified

Built for Mac power users, the Intel Certified FusionDock Max 2 delivers 120Gbps Thunderbolt 5 bandwidth with three TB5 downstream ports, turning a MacBook Pro into a full production workstation from triple-display editing to high-speed storage and networking.

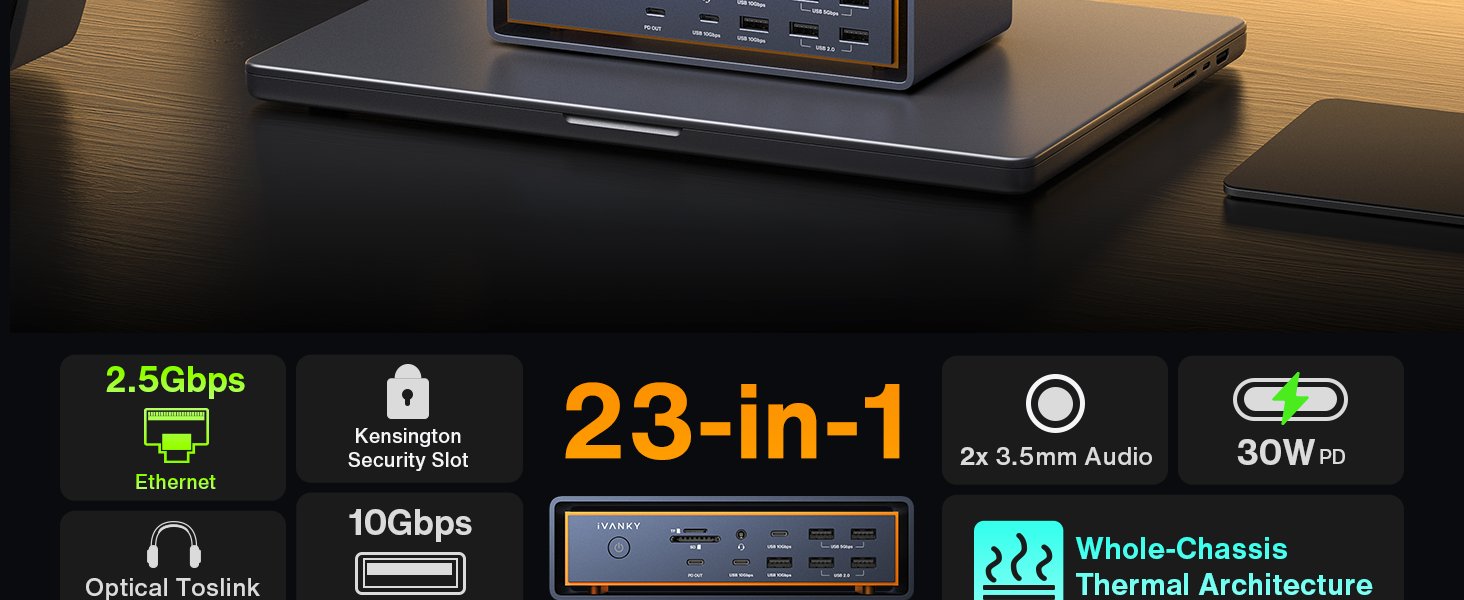

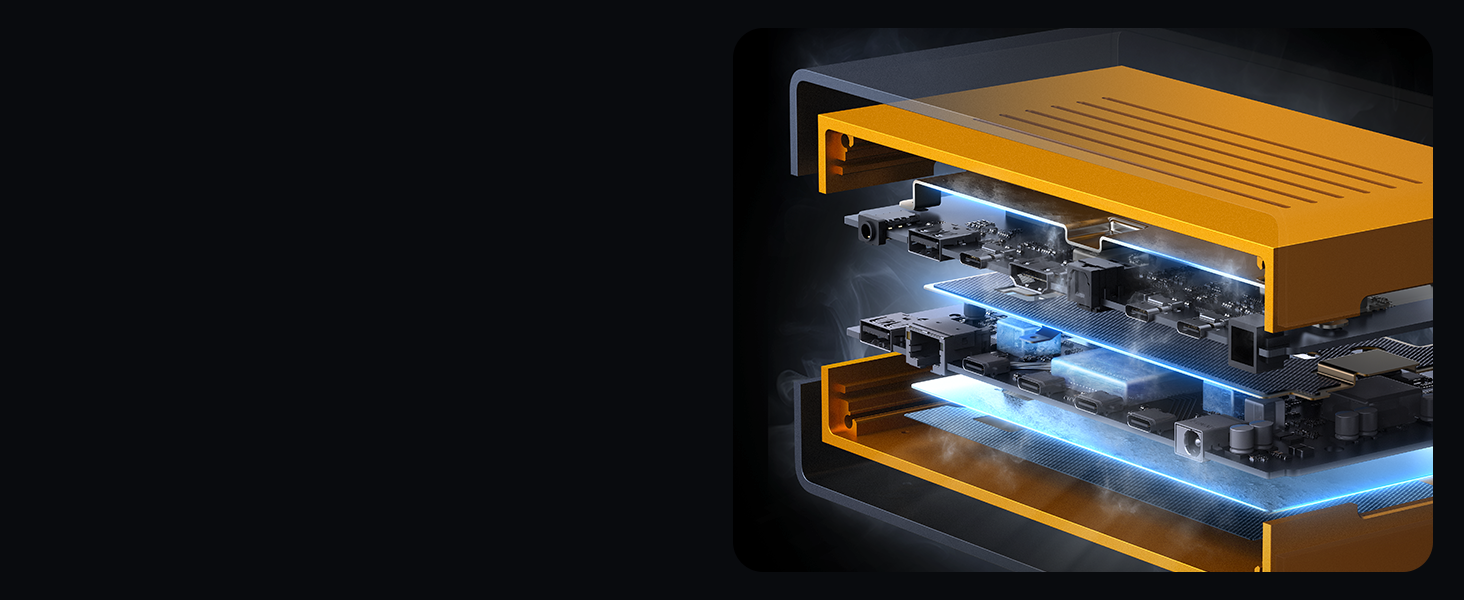

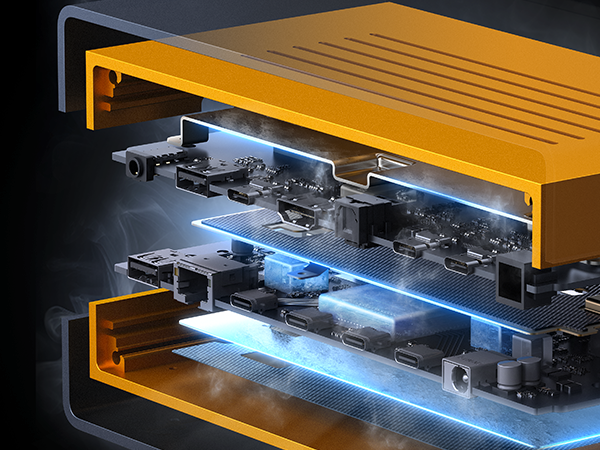

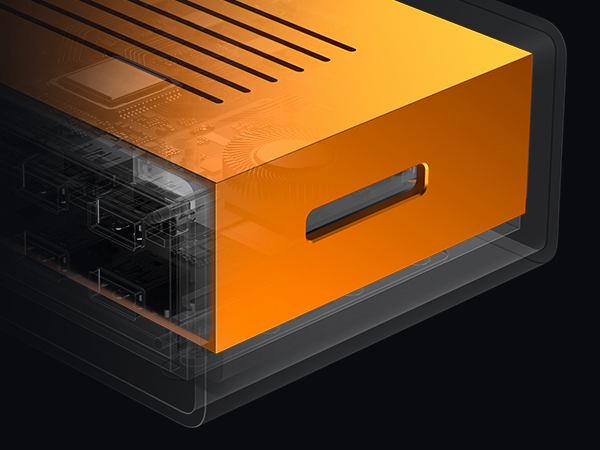

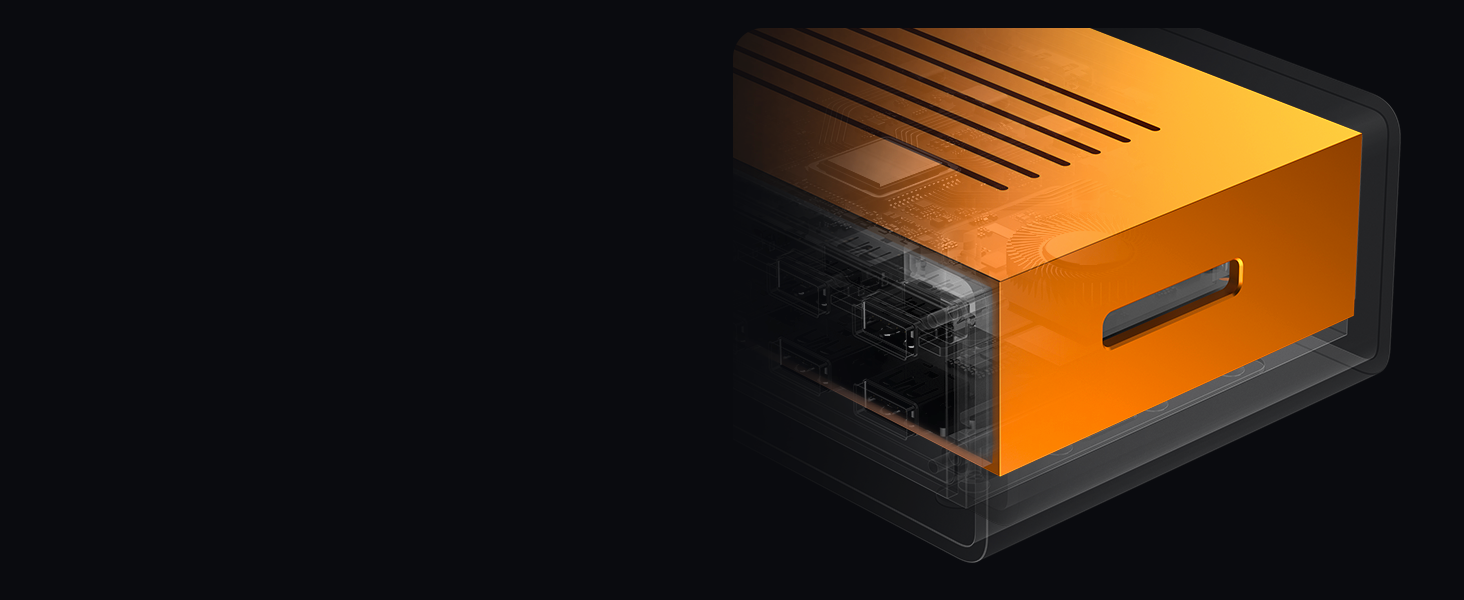

Silent, Fanless Cooling

Aerospace-grade thermal materials draw heat from critical components through the metal frame and spread it across the full-aluminum chassis, so there is no internal fan and no fan noise. In a 12-hour full-load test, the hottest outer-frame point reached 49 Degree C (120 Degree F) below the applicable 60 Degree C (140 Degree F) UL touch-temperature limit. Surface warmth under load is expected as heat moves outward.

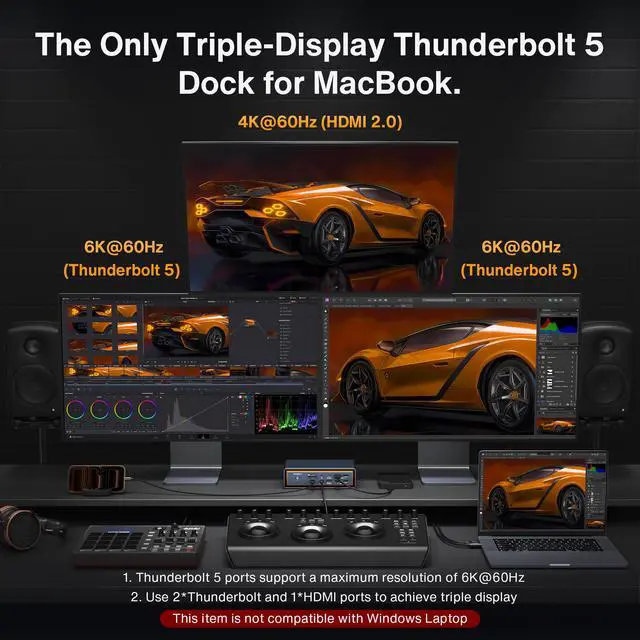

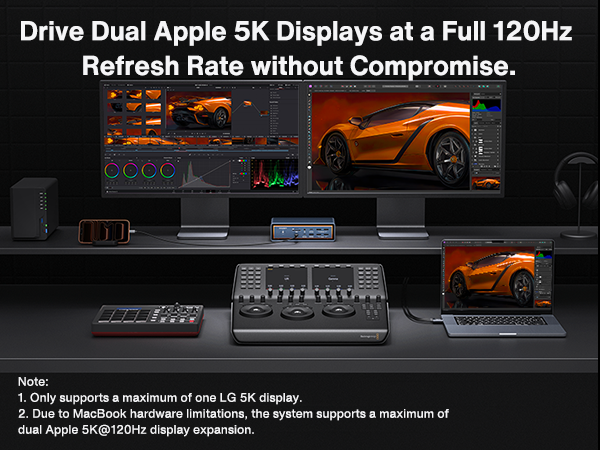

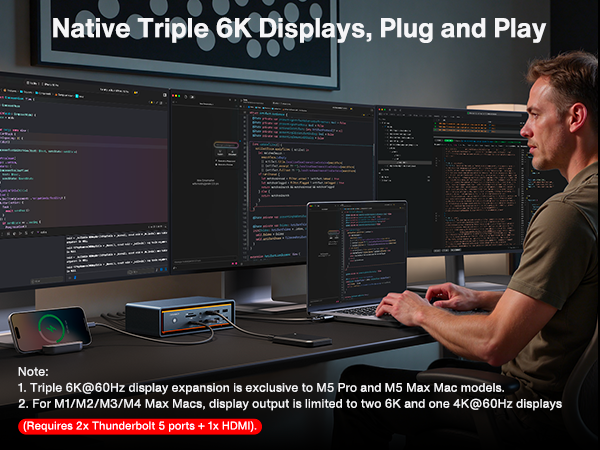

Triple Displays up to 6K@60Hz

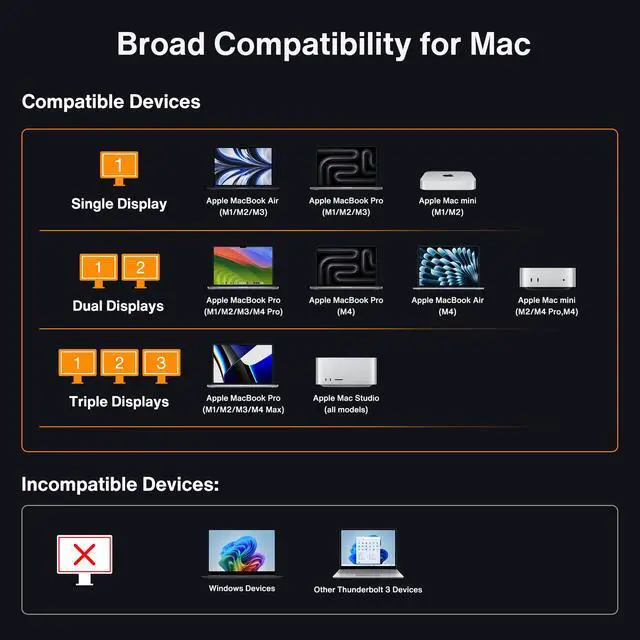

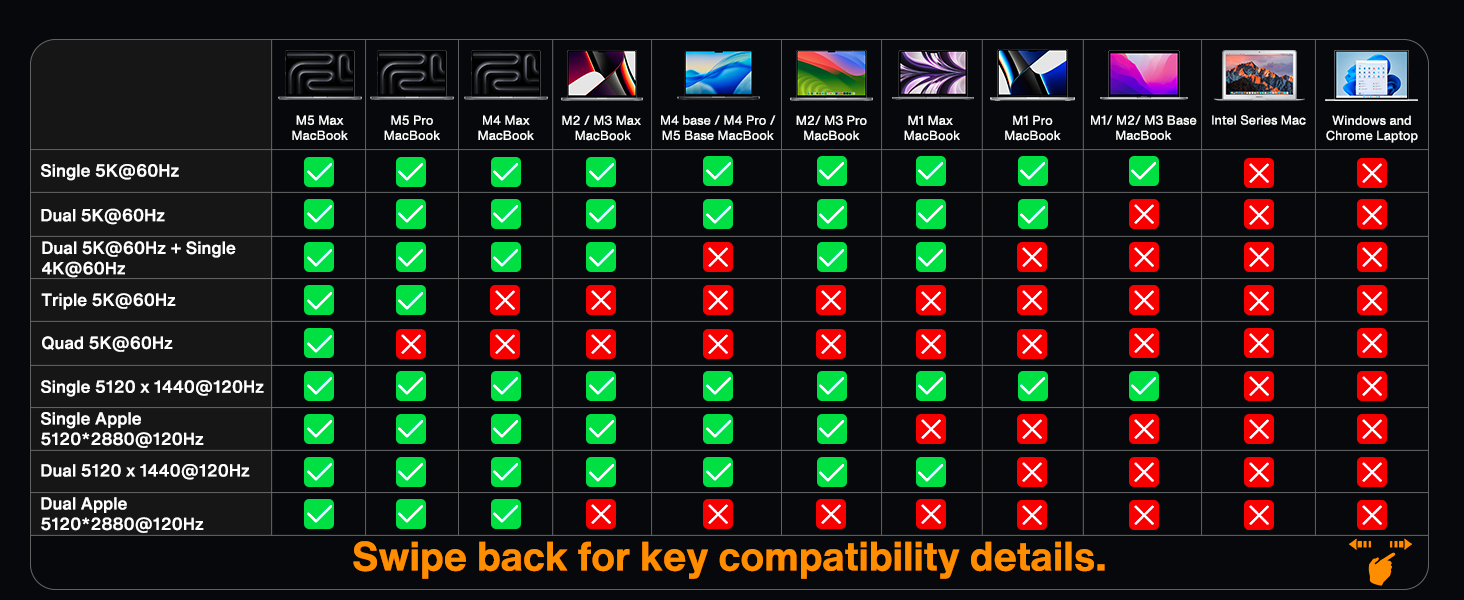

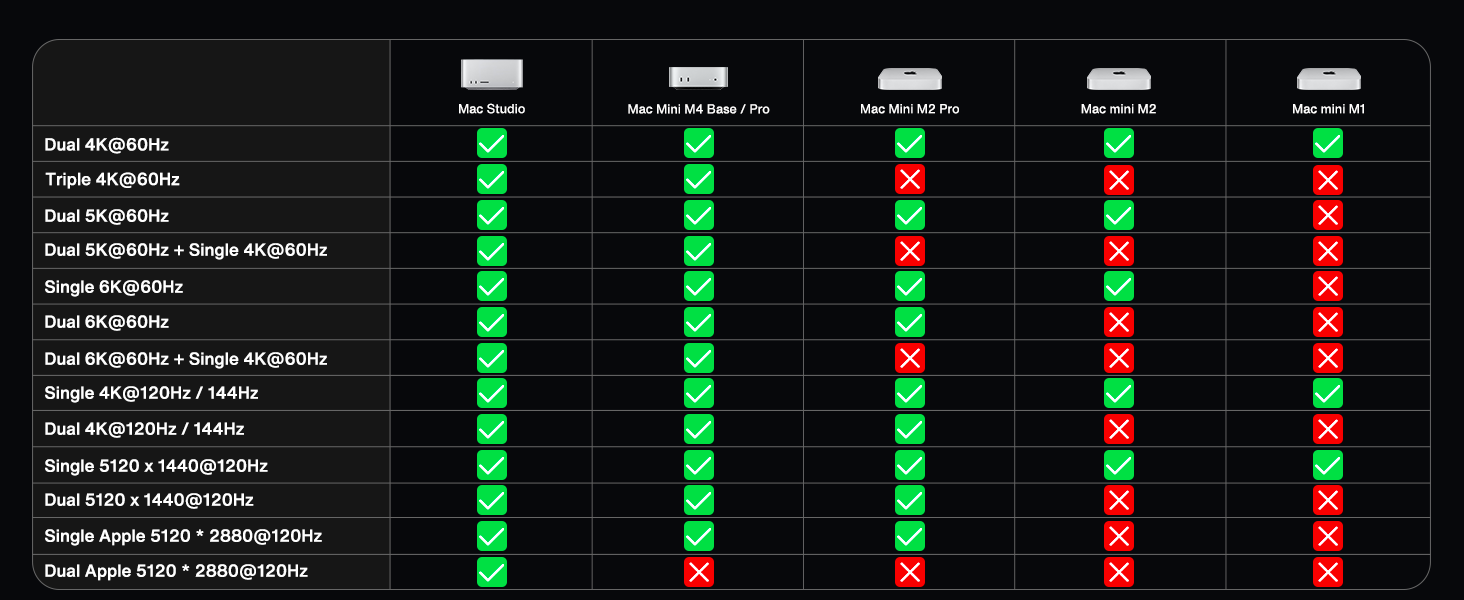

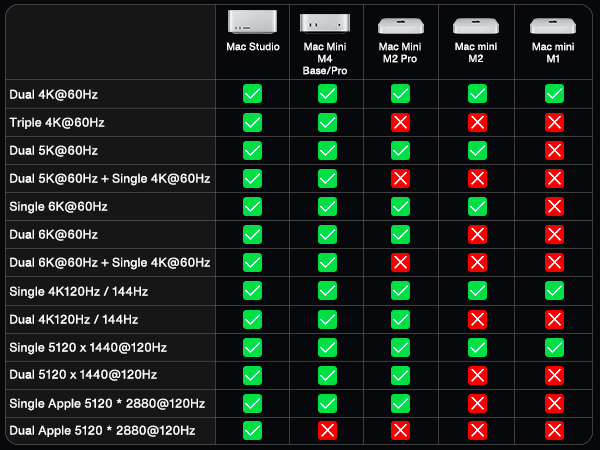

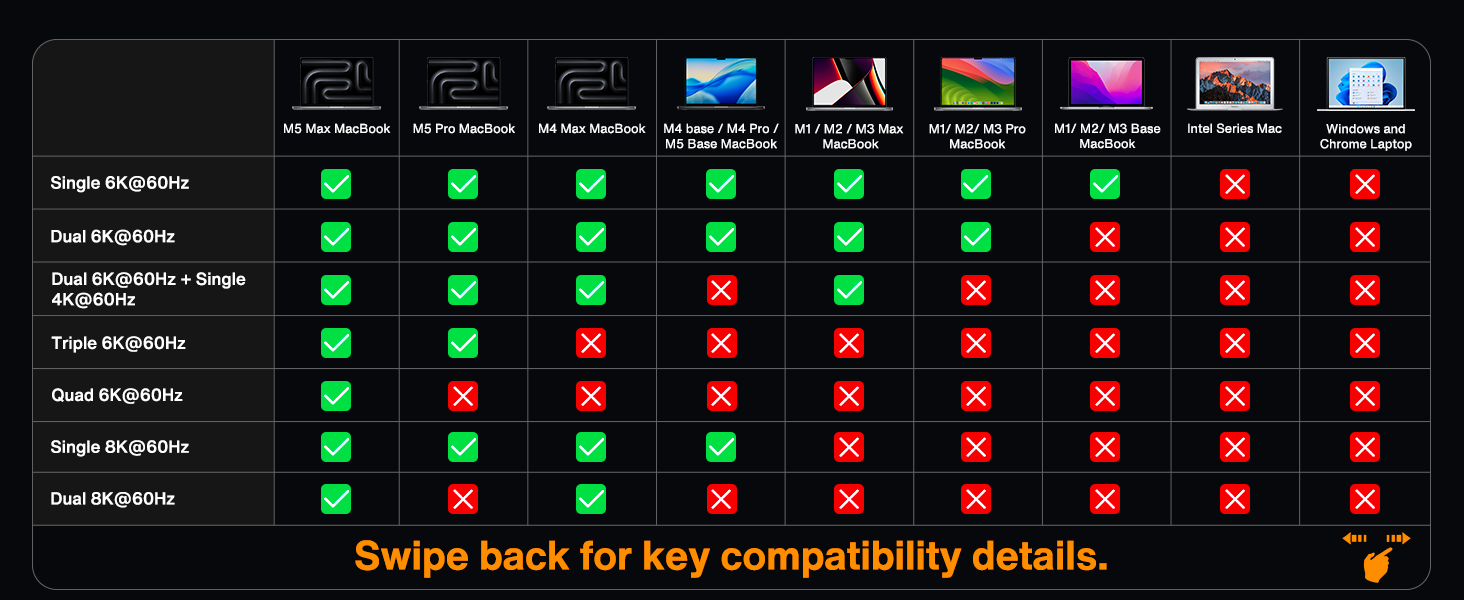

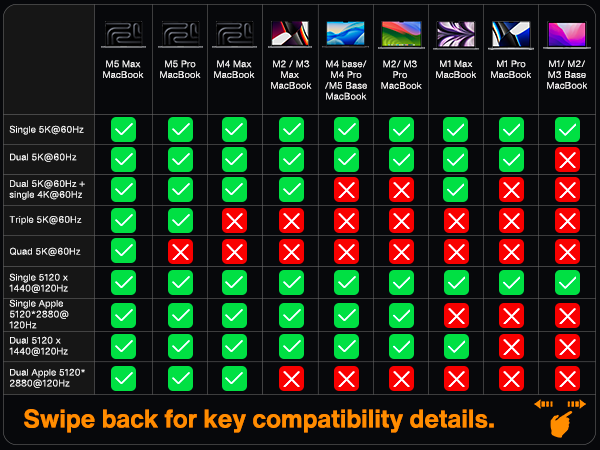

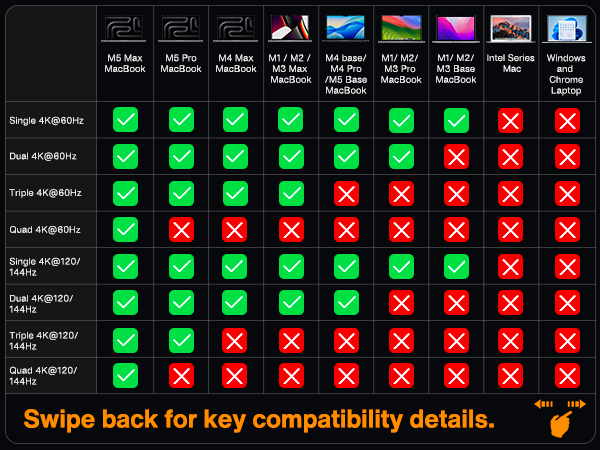

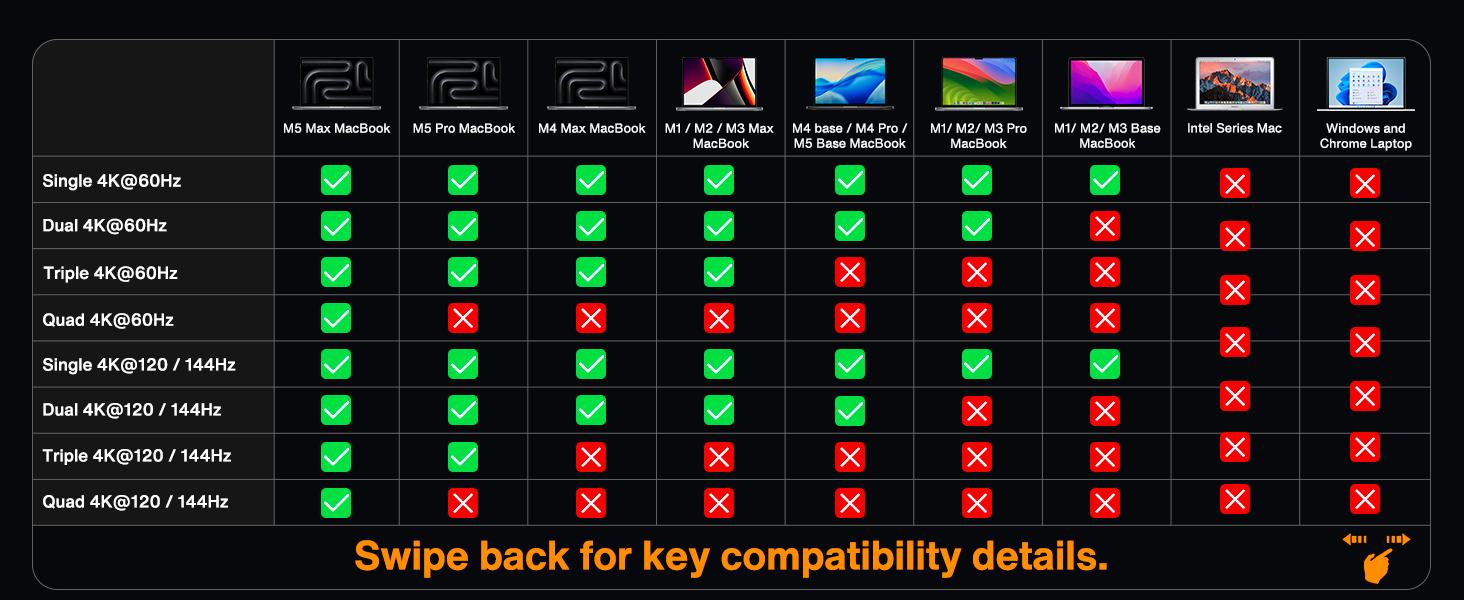

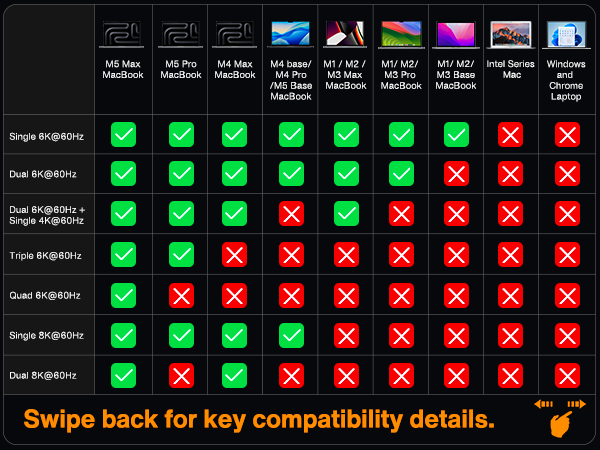

Connect up to three extended displays from one dock: MacBook models with M1/M2/M3/M4 Max chips support Triple extended displays (Dual 6K@60Hz + Single 4K@60Hz); M4/M5 base and M1/M2/M3/M4 Pro chips support Dual 6K@60Hz; M1/M2/M3 base chips support a Single 6K@60Hz extended display.

120Gbps Data Transfer

Three 120Gbps Thunderbolt 5 ports handle upstream and downstream data at full speed, while ten USB ports support up to 10Gbps transfers enough bandwidth and capacity for external drives, RAID arrays, and everyday peripherals. The dock passes through up to 140W PD to keep your MacBook charged.

Fast Storage and Networking

The SD/TF 4.0 card slot supports transfers up to 312MB/s for quick photo and video offloads, and the RJ45 2.5GbE Ethernet port maintains a smooth, stable wired connection for large file transfers and production environments.

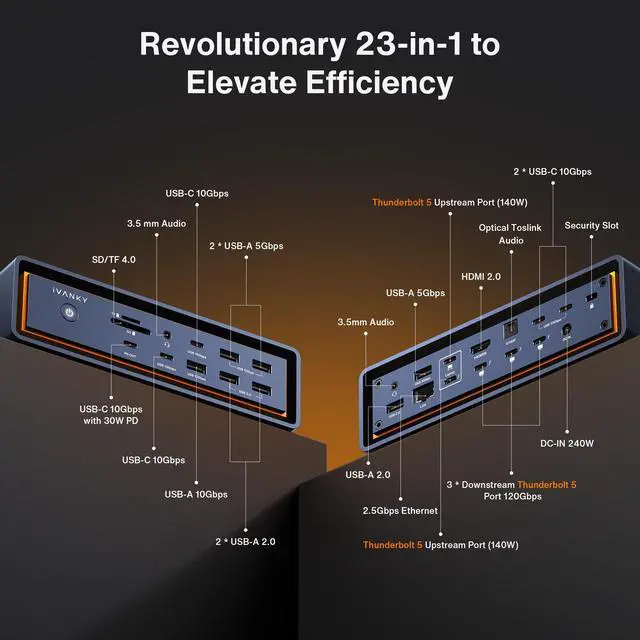

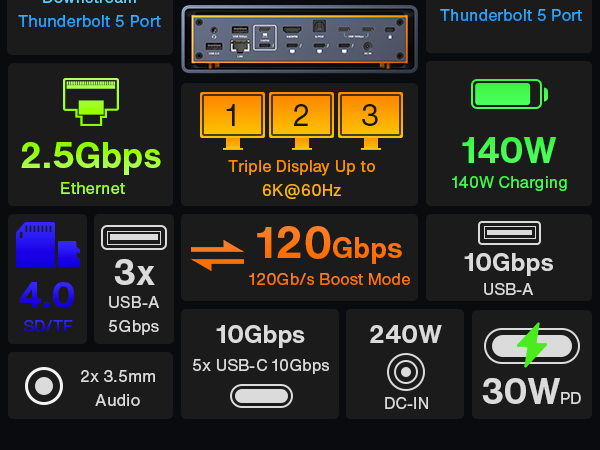

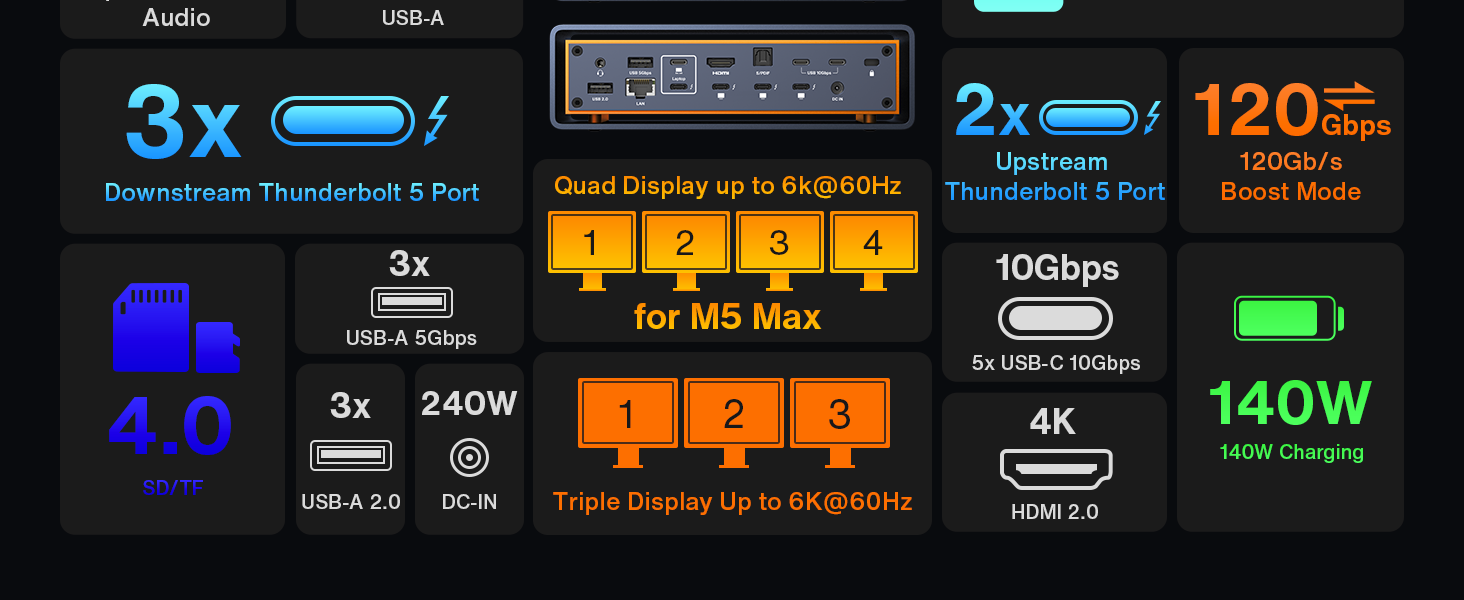

Ports Overview Full Connectivity at a Glance

1. Upstream 1 x Thunderbolt 5 port (front, DP PD up to 140W) and 1 x USB-C port (up to PD 140W) with a magnetic detachable cable, connecting your laptop with up to 140W input charging
2. Thunderbolt 5 Downstream 3 x Thunderbolt 5/USB-C ports (rear), each supporting PD 15W charging, high-speed data transfer, and daisy-chaining for displays and storage
3. USB-A Ports 1 x USB-A 10Gbps (rear, 5V/1.5A), 3 x USB-A 5Gbps (rear), and 3 x USB-A 480Mbps (rear) for keyboards, mice, printers, and other peripherals
4. USB-C Ports 1 x USB-C 10Gbps (9V/3A) and 4 x USB-C 10Gbps (5V/2A) for phones, tablets, and USB-C accessories
5. Video Output 1 x Display output (VMM7100) for connecting an external monitor
6. Networking 1 x RJ45 port (rear, 2.5GbE) for stable high-speed wired networking
7. Audio 2 x 3.5mm TRRS audio input/output jacks (front) and 1 x Optical Audio (Toslink) port (front) for speakers, headsets, and microphones
8. Card Slots 1 x SD/TF card slot (SD 4.0, front) for fast photo and video offloads

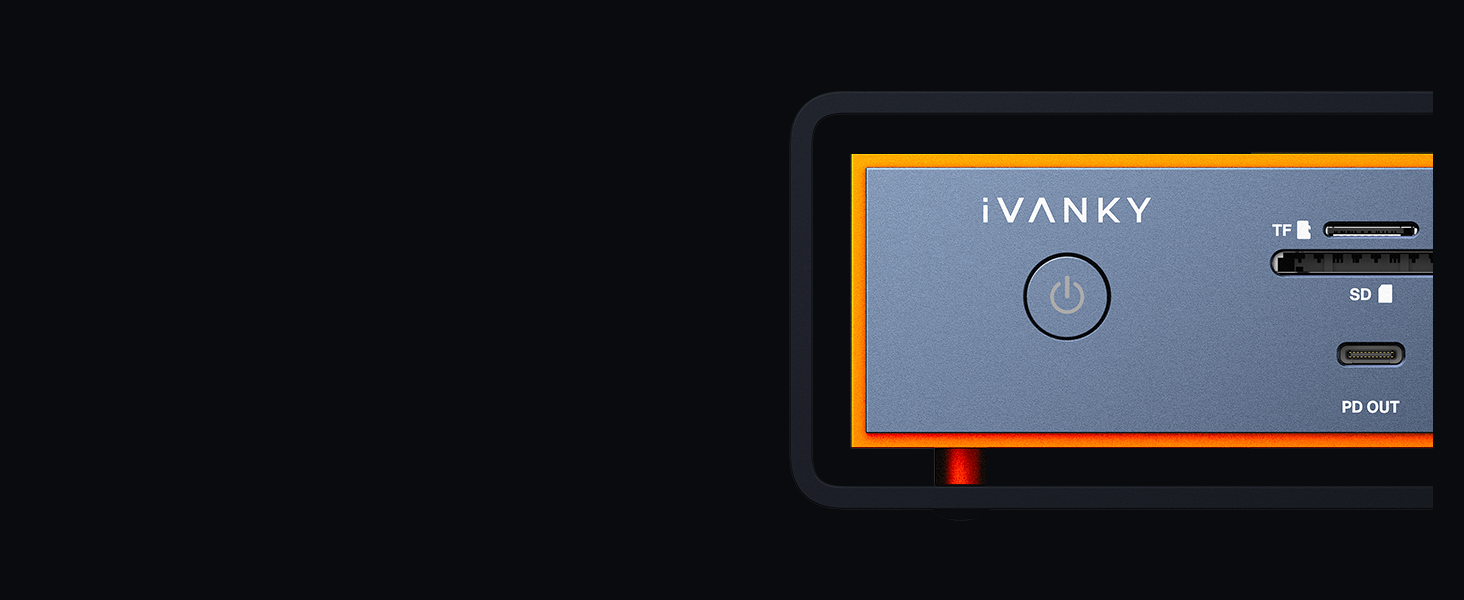

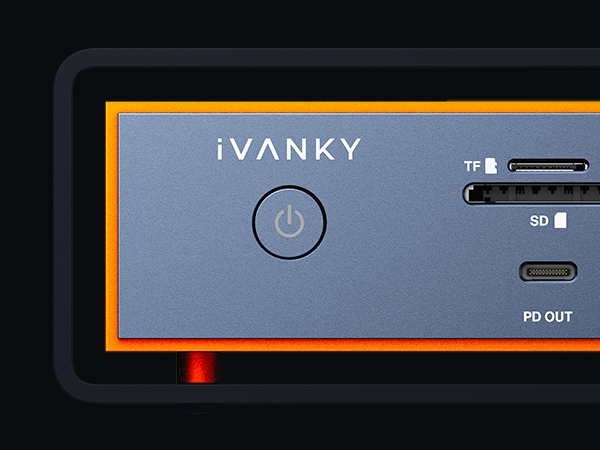

9. LED Indicator Power LED (front, green when powered on)

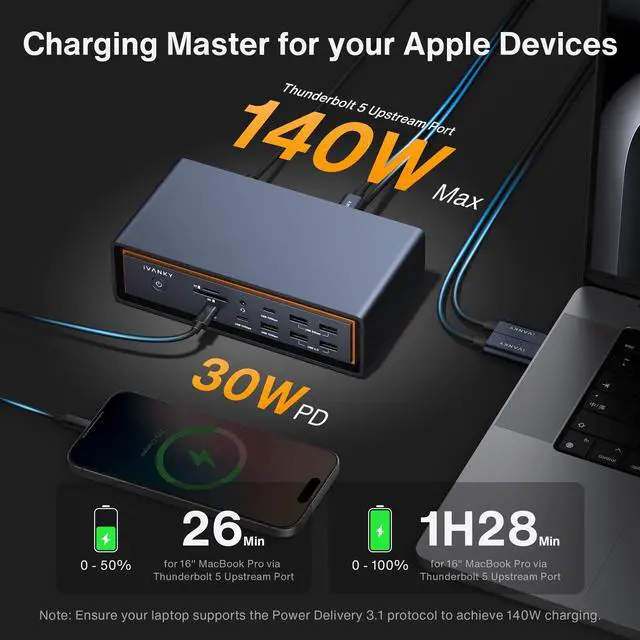

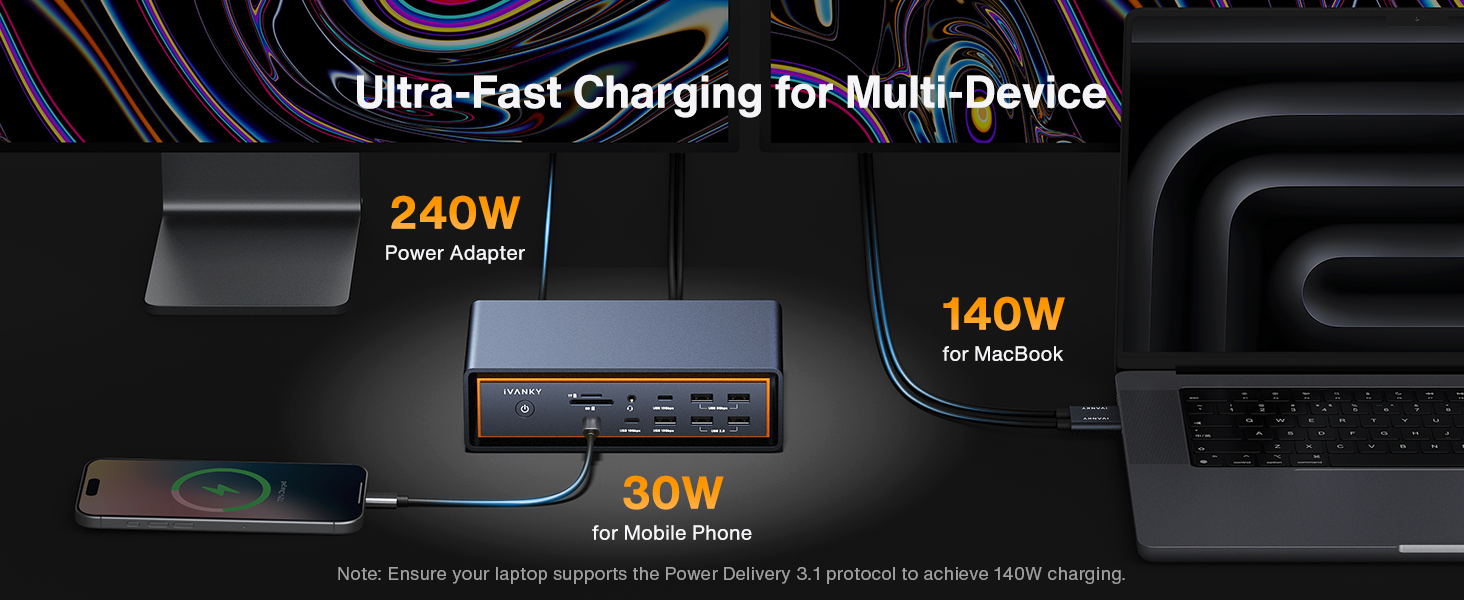

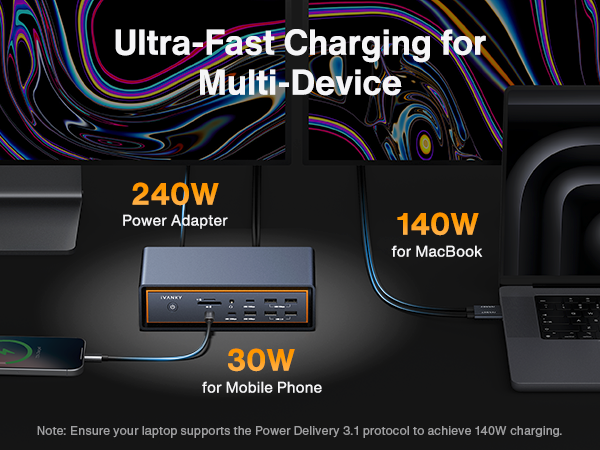

10. Power DC 230W power input; supports PD 3.1 charging up to 140W for compatible laptops

Please Note

1. Designed exclusively for Mac; not compatible with Windows or Chrome laptops
2. Supports connection to one Mac only and does not support switching between Macs
3. Display output combinations vary by MacBook chip (Max / Pro / base); please verify your model before purchase
4. Fanless design: the aluminum chassis may feel warm under heavy load; this is normal heat dissipation, not a malfunction

What's in the Box

1. Main unit*1
2. Magnetic Thunderbolt cable*1
3. Thunderbolt 5 cable*1
4. 240 W adapter*1
5. FAQ*1
6. User manual*1
