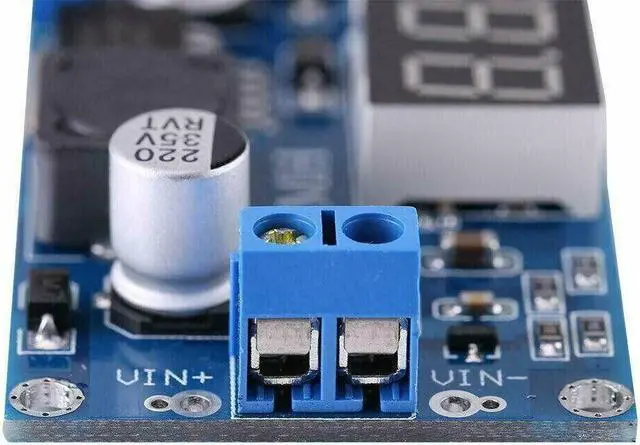

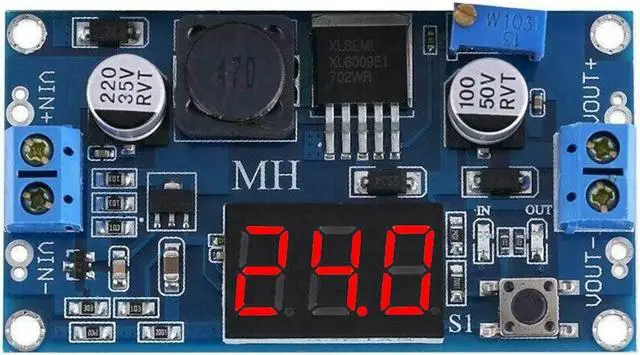

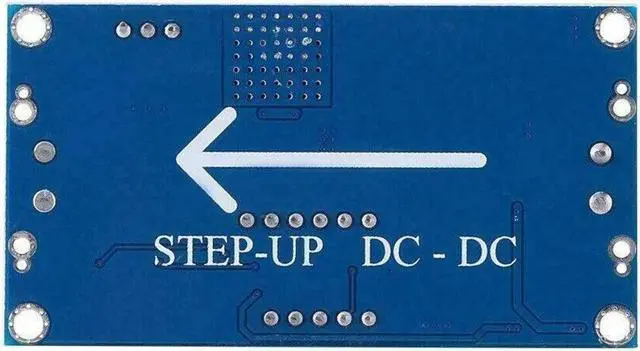

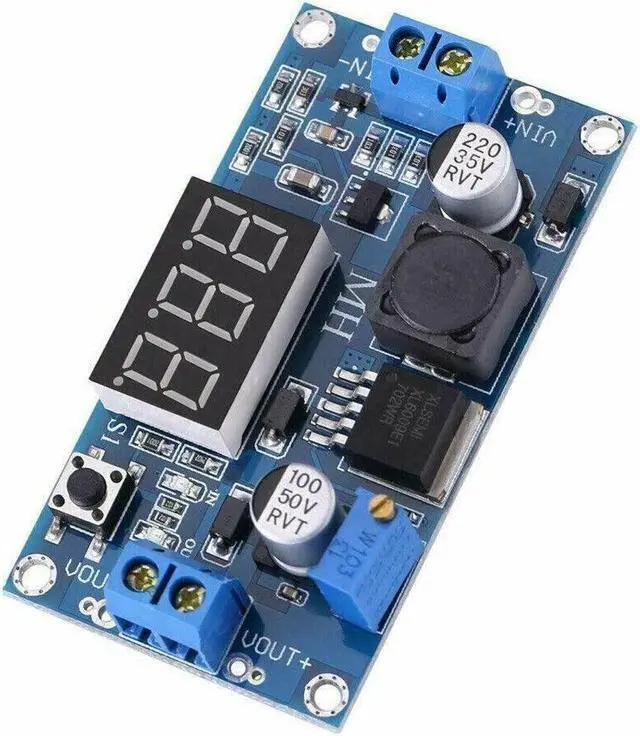

XL6009 LED DC-DC 4.5-32V to 5-35V Voltage Step Up Adjustable Boost w/ Voltmeter
- It may be necessary to turn the potentiometer up to 15 times before the output voltage changes This is a boost module, the output voltage must be greater than input voltage Boost voltage to a stable regulated output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher powered electronics from a 12V battery, and a wide range of automotive, electronic, and LED projects Constant voltage regulation

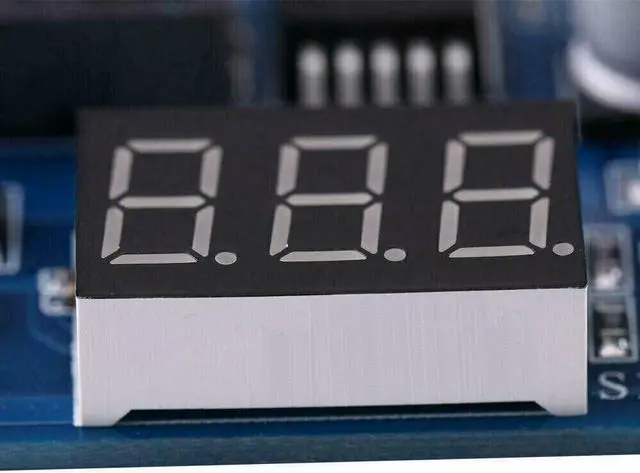

- The built in voltmeter makes for simple installation and adjustment and helps to monitor the supply or device power. A small button switches the voltmeter between input and output.
- The XLSEMI XL6009 boost regulator IC has an integrated MOSFET, over-temperature protection, and over-current protection
- Input: 4.5-32V DC Output Voltage: 5-35V Output Current: 4A (max 3A recommended) 30W Maximum Power 400KHz Switching Frequency <30mV Output ripple ±0.5% Load Regulation Up to 92% efficiency (depending on the voltage diff
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
It may be necessary to turn the potentiometer up to 15 times before the output voltage changes This is a boost module, the output voltage must be greater than input voltage Boost voltage to a stable regulated output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher powered electronics from a 12V battery, and a wide range of automotive, electronic, and LED projects Constant voltage regulation
The built in voltmeter makes for simple installation and adjustment and helps to monitor the supply or device power. A small button switches the voltmeter between input and output.
The XLSEMI XL6009 boost regulator IC has an integrated MOSFET, over-temperature protection, and over-current protection
Input: 4.5 -32V
DC Output Voltage: 5-35V
Output Current: 4A (max 3A recommended) 30W Maximum Power 400KHz Switching Frequency <30mV Output ripple ±0.5% Load Regulation Up to 92% efficiency (depending on the voltage difference between input and output) Size: 66x36x14mm
XL6009 Datasheet:
https: //www. jacobsparts. com/files/XL6009. pdf
The built in voltmeter makes for simple installation and adjustment and helps to monitor the supply or device power. A small button switches the voltmeter between input and output.
The XLSEMI XL6009 boost regulator IC has an integrated MOSFET, over-temperature protection, and over-current protection
Input: 4.5 -32V
DC Output Voltage: 5-35V
Output Current: 4A (max 3A recommended) 30W Maximum Power 400KHz Switching Frequency <30mV Output ripple ±0.5% Load Regulation Up to 92% efficiency (depending on the voltage difference between input and output) Size: 66x36x14mm
XL6009 Datasheet:
https: //www. jacobsparts. com/files/XL6009. pdf
