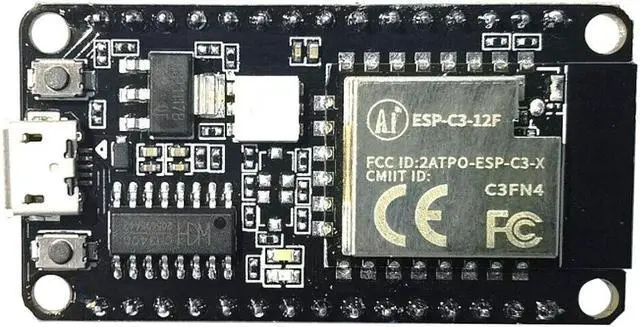

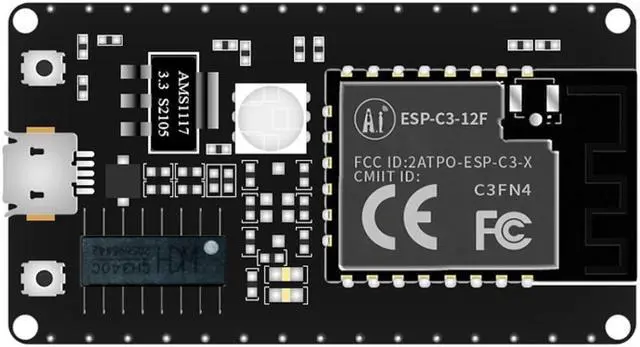

ESP-C3-12F ESP32-C3 RISC-V MCU 2.4GHz WIFI Bluetooth Development Board CH340
- The ESP32-C3 is a low cost RISC-V MCU with 802.11n WIFI and Bluetooth 5.0 LE capability. The ESP-C3-12F development board combines the ESP32-C3 with 4MB of SPI flash, a PCB antenna, a breakout board, a USB TTL serial adapter, and an RGB LED. It is pin compatible with the popular ESP-12E development boards.
- ESP32-C3 family is an ultra-low-power and highly-integrated MCU-based SoC solution that supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE)
- 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160 MHz
- IEEE 802.11 b/g/n-compliant Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band 1T1R mode with data rate up to 150 Mbps 4 × virtual Wi-Fi interfaces
- Compatible with Arduino, MicroPython, and NodeMCU Applications include: Lighting control, smart buttons, smart plugs, robotics, mesh networking, industrial field buses, health monitors, audio devices, proximity sensors, smart agriculture, and so much more
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: ESP-C3-12F-KIT development board

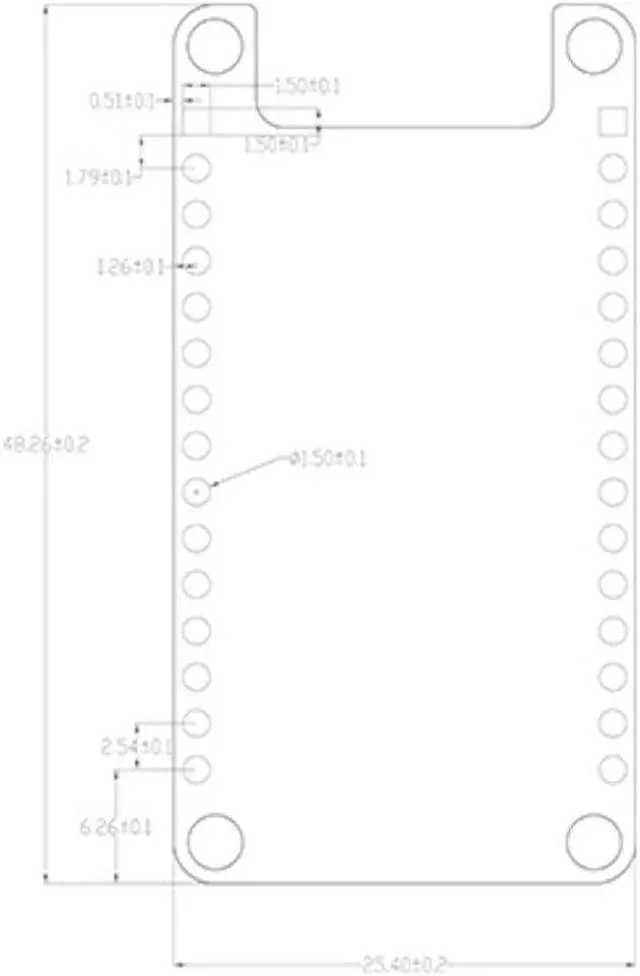

Package size: DIP-30 24.0 x 16.0 x 3.1 mm (± 0.25 mm)
Antenna: On-board PCB antenna
Spectrum range: 2400 - 2483.5MH z
Operating temperature: -40 - 85
Storage environment: -40 - 125, <90% RH
Power Supply Requirement: 5V >500mA
Supported Interfaces: UART / GPIO / ADC / PWM / I2C / I2S

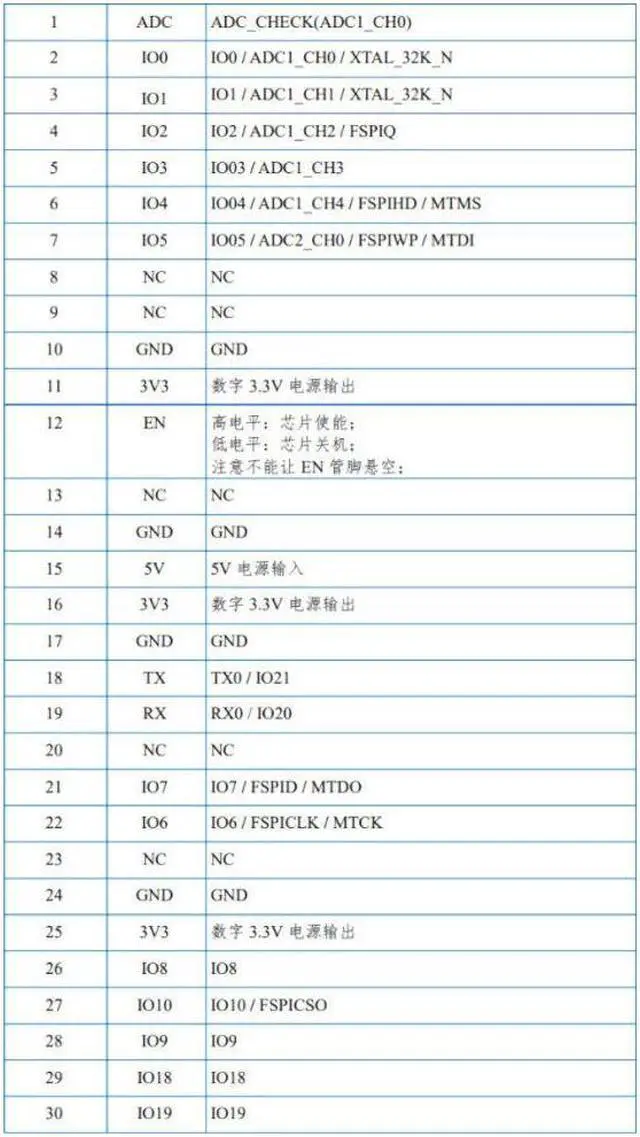

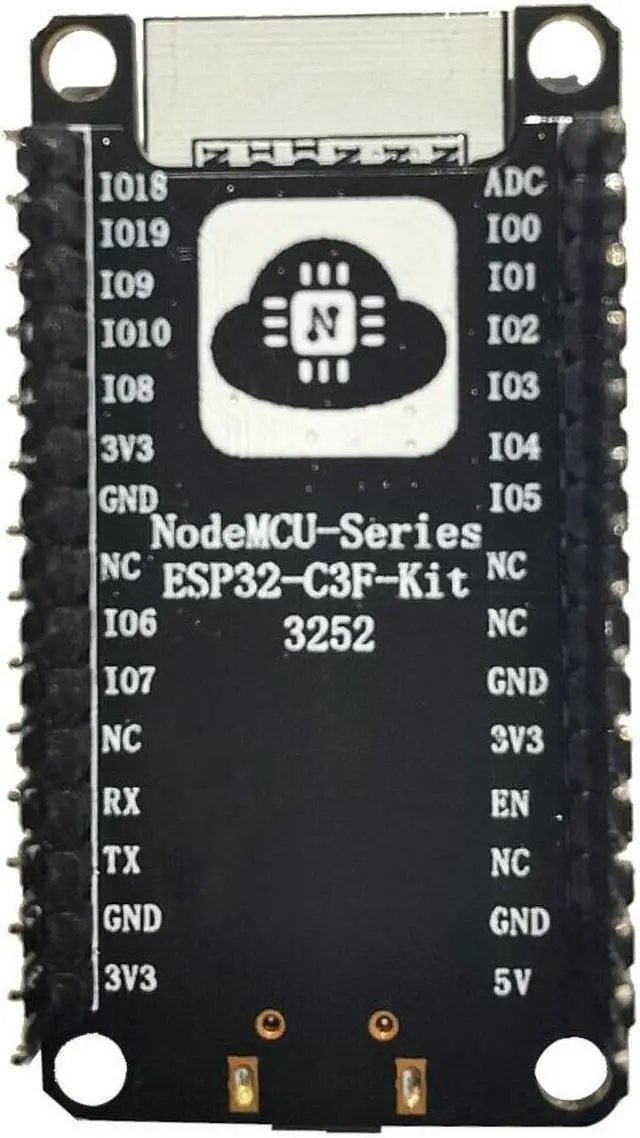

IO Ports: IO0, IO1, IO2, IO3, IO4, IO5, IO8, IO9, IO10, IO18, IO19, IO20, IO21
Serial port speed: 110 - 4608000 bps, default 115200 bps
Bluetooth: BLE 5.0
Security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
Onboard RGB LED: IO3 Red, IO4 Green, IO5 Blue
ESP32-C3 datasheet:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3_datasheet_en. pdf
ESP-C3-12F-KIT specification:
https: //www. jacobsparts. com/files/ESP32-C3/esp-c3-12f-kit-v 1.0 _specification. pdf
Package size: DIP-30 24.0 x 16.0 x 3.1 mm (± 0.25 mm)
Antenna: On-board PCB antenna
Spectrum range: 2400 - 2483.5MH z
Operating temperature: -40 - 85
Storage environment: -40 - 125, <90% RH
Power Supply Requirement: 5V >500mA
Supported Interfaces: UART / GPIO / ADC / PWM / I2C / I2S
IO Ports: IO0, IO1, IO2, IO3, IO4, IO5, IO8, IO9, IO10, IO18, IO19, IO20, IO21
Serial port speed: 110 - 4608000 bps, default 115200 bps
Bluetooth: BLE 5.0
Security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
Onboard RGB LED: IO3 Red, IO4 Green, IO5 Blue
ESP32-C3 datasheet:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3_datasheet_en. pdf
ESP-C3-12F-KIT specification:
https: //www. jacobsparts. com/files/ESP32-C3/esp-c3-12f-kit-v 1.0 _specification. pdf
