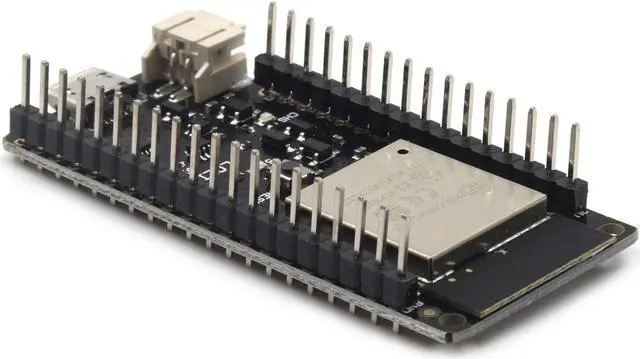

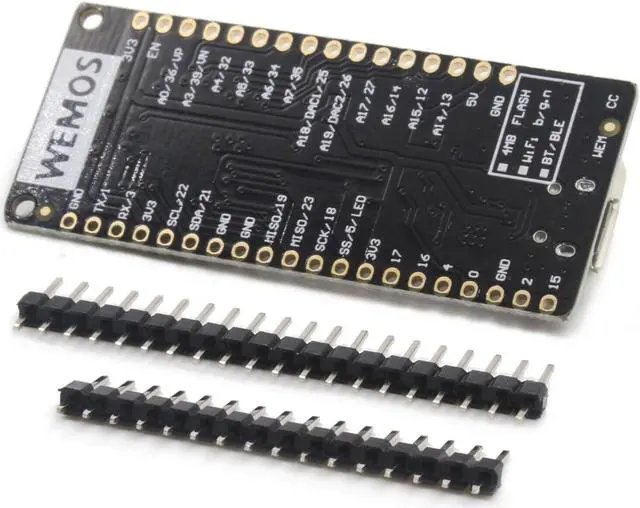

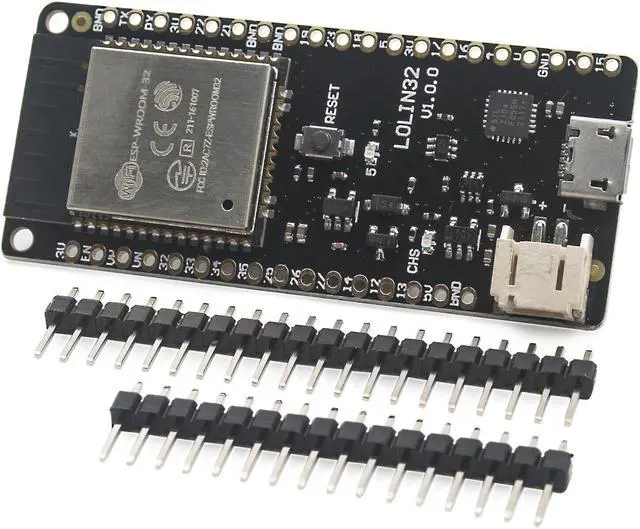

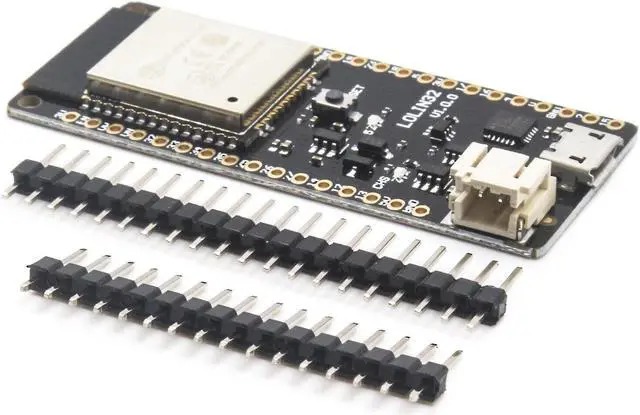

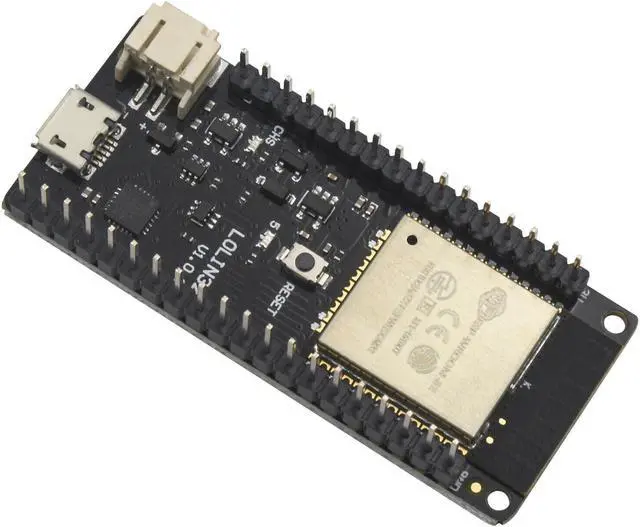

LoLin32 ESP32 WiFi & Bluetooth Development Board CP2104 w/ Lithium Battery Conn.
- ESP32 Module: ESP-WROOM-32 240MHz dual core microprocessor 4MB SPI flash memory
- 32 Inputs / Outputs: 26x Digital I / O (3.3V) All outputs can be PWM 18x analog inputs 3x UART 3x SPI 2x I2S 2x DAC 2x I2C
- Sleep Mode Consumption: 5 A Integrated sensors: Hall Effect, 10x inputs for capacitive touch interface
- CP2104 USB serial interface chip for simple communications and programming
- Powered via USB and optionally via an attached lithium battery JST PH 2.0 battery connector 500mA maximum charging current dedicated charge indicator LED
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

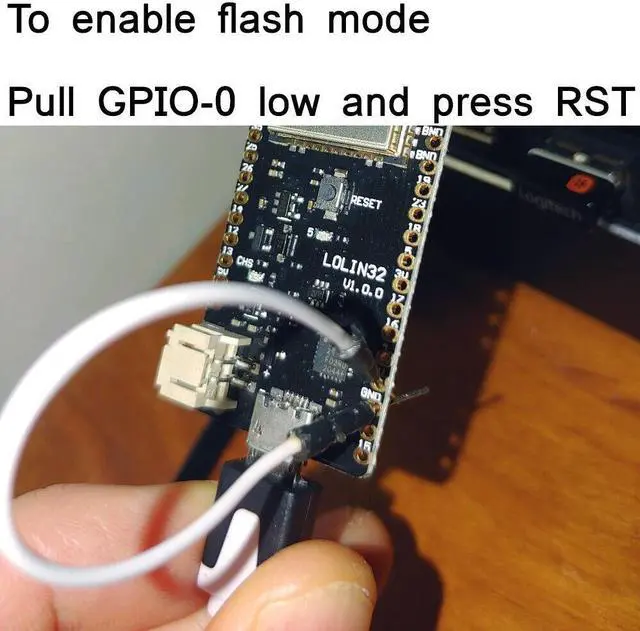

Note: It may help with flashing to install a 10k resistor between GPIO-0 and GND.
