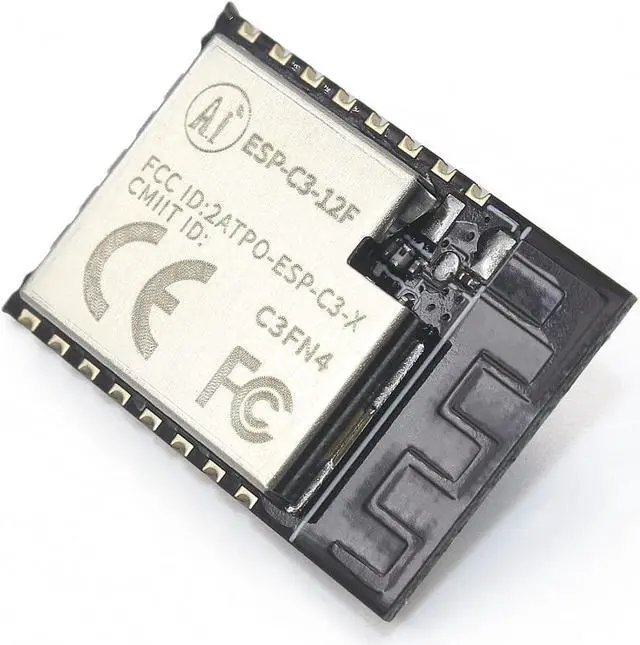

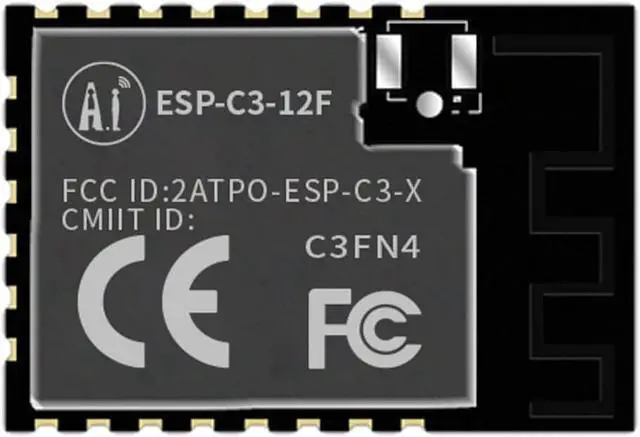

ESP-C3-12F ESP32-C3 RISC-V MCU 2.4GHz WiFi Bluetooth Microcontroller Module 4MB
- The ESP32-C3 is a low cost RISC-V MCU with 802.11n WIFI and Bluetooth 5.0 LE capability. The ESP-C3-12F module combines the ESP32-C3 with 4MB of SPI flash, a PCB antenna, and a breakout board. It is pin compatible with the ESP-12F.
- ESP32-C3 family is an ultra-low-power and highly-integrated MCU-based SoC solution that supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE)
- 32-bit RISC-V single-core processor with a four-stage pipeline that operates at up to 160 MHz
- IEEE 802.11 b/g/n-compliant Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band 1T1R mode with data rate up to 150 Mbps 4 × virtual Wi-Fi interfaces
- Compatible with Arduino, MicroPython, and NodeMCU Applications include: Lighting control, smart buttons, smart plugs, robotics, mesh networking, industrial field buses, health monitors, audio devices, proximity sensors, smart agriculture, and so much more
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Module model: ESP-C3-12F
Package: SMD-22

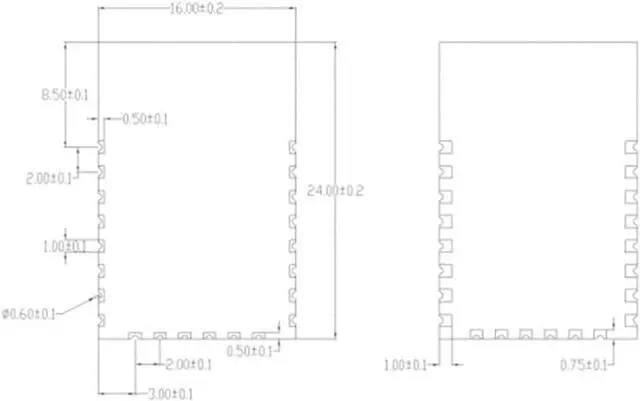

Size: 24.0 x 16.0 x 3.1 mm (± 0.2 mm)
Antenna: Onboard PCB antenna
Compatible spectrum range: 2400 - 2483.5MH z
Operating temperature: -40 - 85
Storage environment: -40 - 125, <90% RH
Supply voltage: 3.0V - 3.6V, supply current >500mA
Supported interfaces: UART / GPIO / ADC / PWM / I2C / I2S

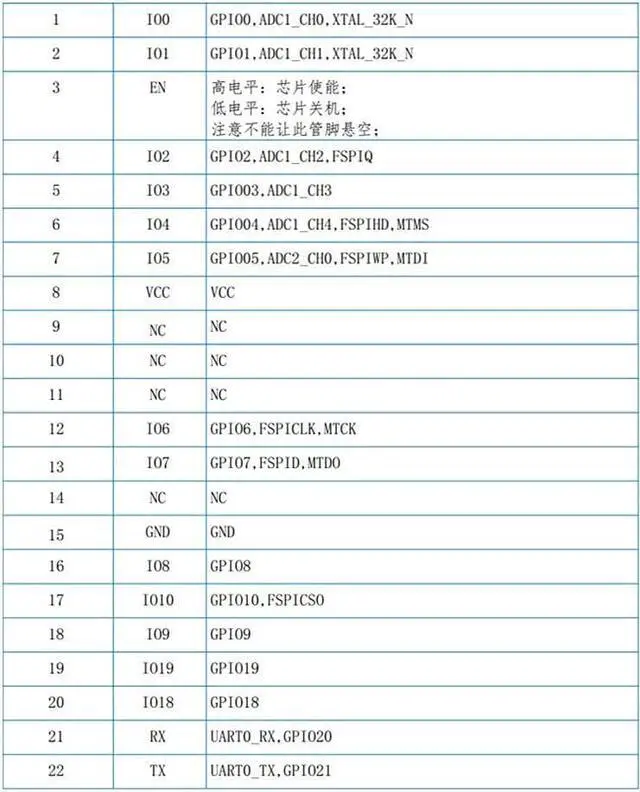

IO ports: IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9, IO10, IO18, IO19, IO20, IO21
serial port speed: support 110-4608000bps, default 115200bps
Bluetooth: BLE 5.0
security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
ESP32-C3 datasheet:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3_datasheet_en. pdf
ESP32-C3F specification:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3f_specification. pdf
Package: SMD-22
Size: 24.0 x 16.0 x 3.1 mm (± 0.2 mm)
Antenna: Onboard PCB antenna
Compatible spectrum range: 2400 - 2483.5MH z
Operating temperature: -40 - 85
Storage environment: -40 - 125, <90% RH
Supply voltage: 3.0V - 3.6V, supply current >500mA
Supported interfaces: UART / GPIO / ADC / PWM / I2C / I2S
IO ports: IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9, IO10, IO18, IO19, IO20, IO21
serial port speed: support 110-4608000bps, default 115200bps
Bluetooth: BLE 5.0
security: WEP / WPA-PSK / WPA2-PSK
SPI Flash: 4MB
ESP32-C3 datasheet:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3_datasheet_en. pdf
ESP32-C3F specification:
https: //www. jacobsparts. com/files/ESP32-C3/esp32-c3f_specification. pdf
