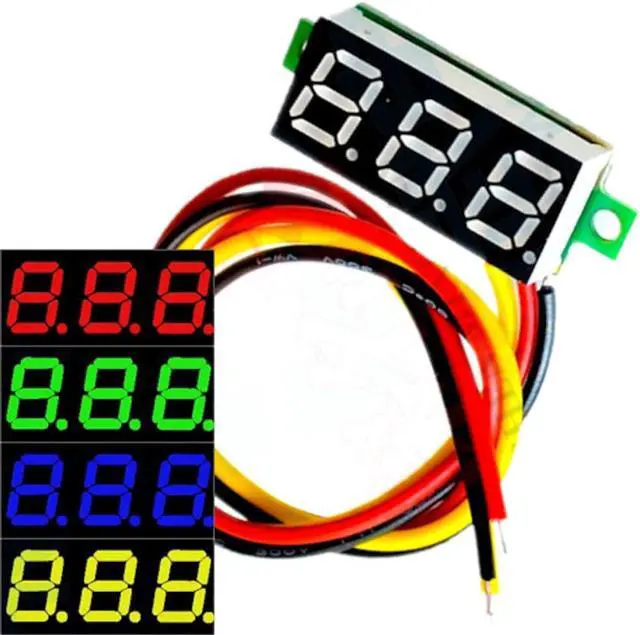

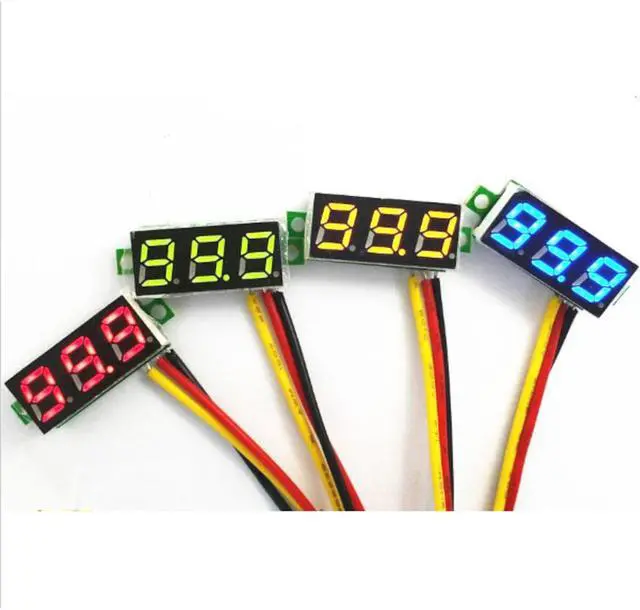

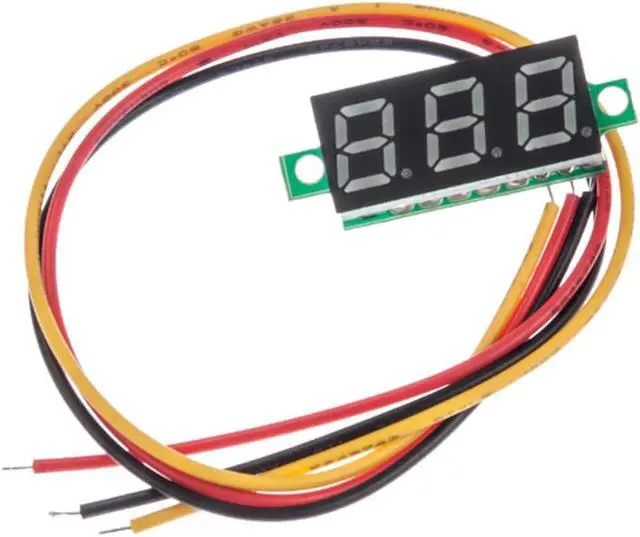

Ultra-small 0-100V DC 3-Wire Voltmeter 3-Digit LED Volt Meter Voltage Tester
- Monitor DC voltage between 0V and 100V with this simple 3-wire voltmeter

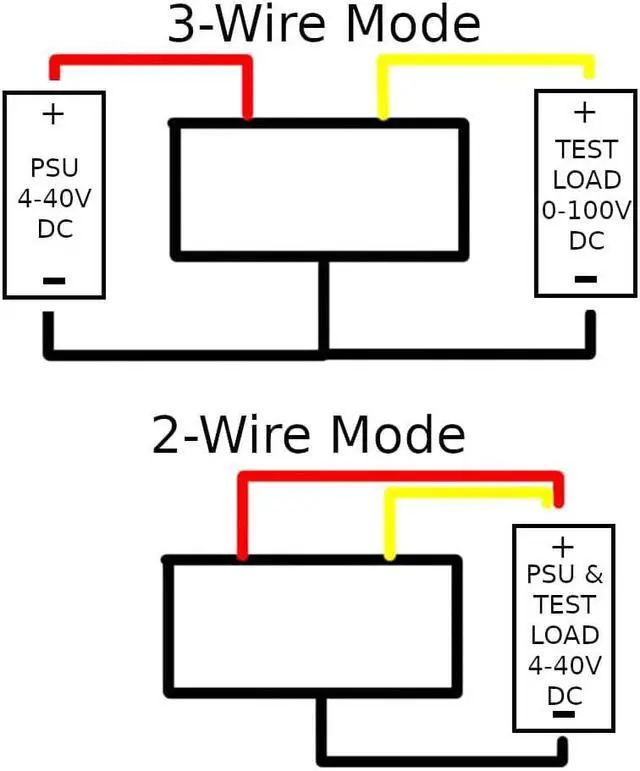

- Use a separate 4-40V DC power supply allowing voltage readings down to 0V and up to 100V or use it as a 2-wire voltmeter for 4-40V.
- Working current: <20mA Refresh rate: 200ms Auto ranging 0.01V precision Reverse polarity protection
- Size: 23x11.7x9.2mm (30mm wide including posts) Wire Length: 15cm
- Operating Temp: -10 - 65 DC only, not for use with AC Supply voltage above 40V will damage the unit
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Monitor DC voltage between 0V and 100V with this simple 3-wire voltmeter
Use a separate 4-40V DC power supply allowing voltage readings down to 0V and up to 100V or use it as a 2-wire voltmeter for 4-40V.
Working current: <20mA Refresh rate: 200ms Auto ranging 0.01V precision Reverse polarity protection
Size: 23x 11.7 x 9.2 mm (30mm wide including posts)
Wire Length: 15cm
Operating Temp: -10 - 65 DC only, not for use with AC Supply voltage above 40V will damage the unit
Use a separate 4-40V DC power supply allowing voltage readings down to 0V and up to 100V or use it as a 2-wire voltmeter for 4-40V.
Working current: <20mA Refresh rate: 200ms Auto ranging 0.01V precision Reverse polarity protection
Size: 23x 11.7 x 9.2 mm (30mm wide including posts)
Wire Length: 15cm
Operating Temp: -10 - 65 DC only, not for use with AC Supply voltage above 40V will damage the unit
