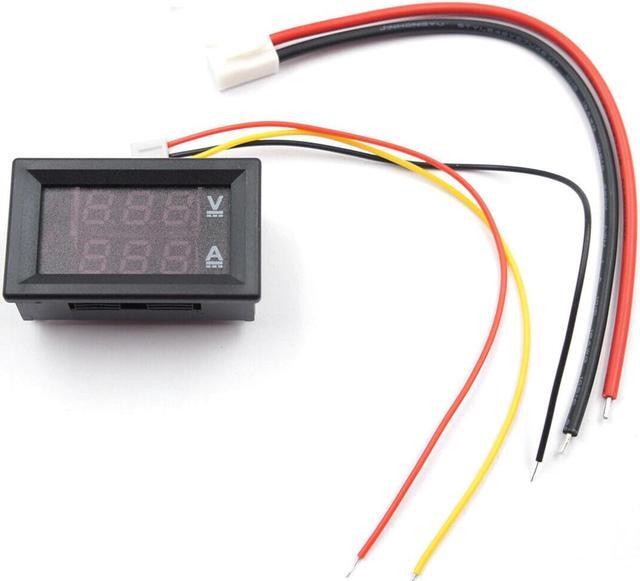

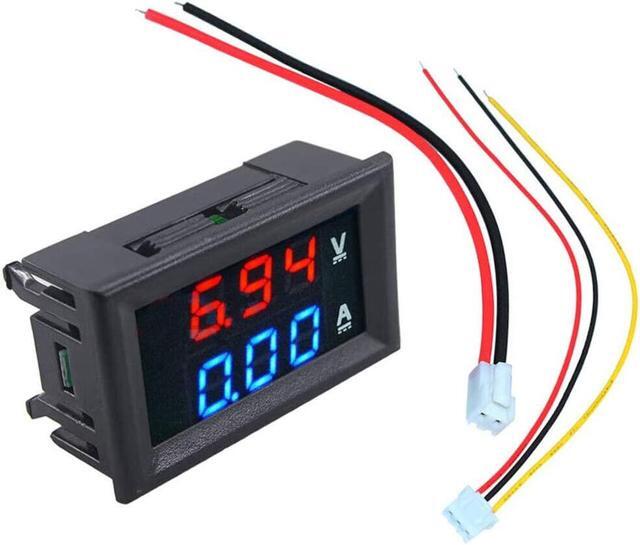

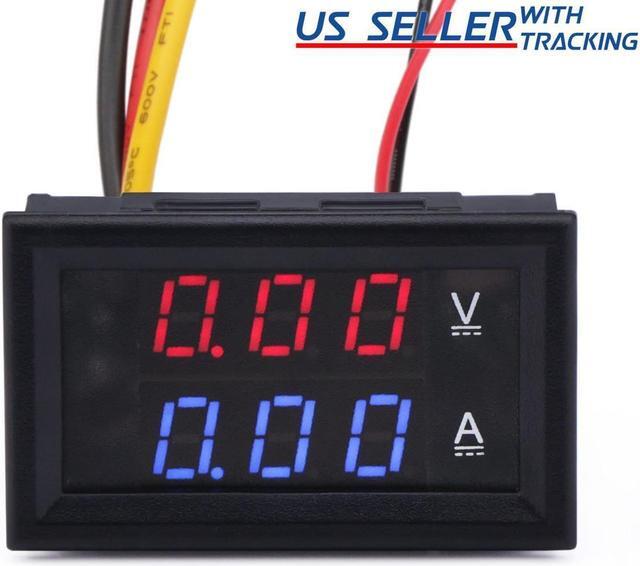

DC 100V 10A Voltmeter Ammeter LED Dual Volt Amp Meter Voltage Current Tester
- Simultaneously monitor DC voltage up to 100V and current up to 10A
- Auto ranging 0.01V 0.01A precision ±0.1% voltage tolerance ±1% current tolerance Working current: <20mA Refresh rate: 300ms
- Size: 48x29x22mm Hole size: 46x27mm calibration potentiometers for both voltage and current
- Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage

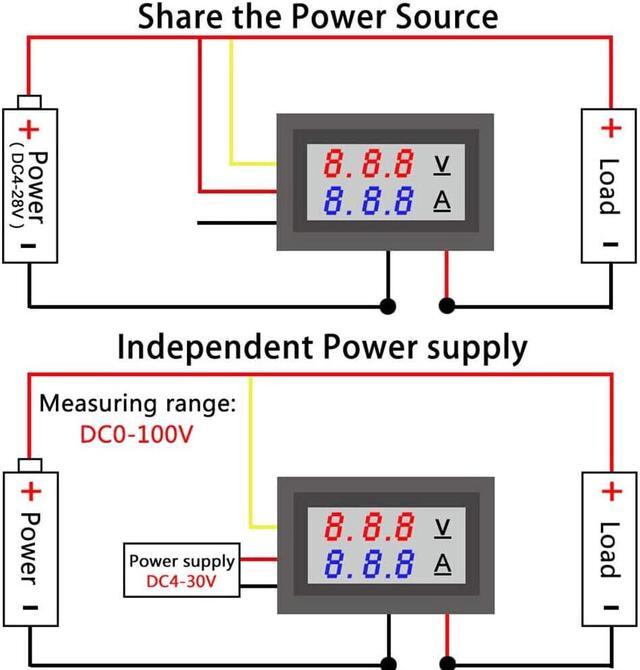

- Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Simultaneously monitor DC voltage up to 100V and current up to 10A
Auto ranging 0.01V 0.01A precision ± 0.1 % voltage tolerance ±1% current tolerance
Working current: <20mA Refresh rate: 300ms

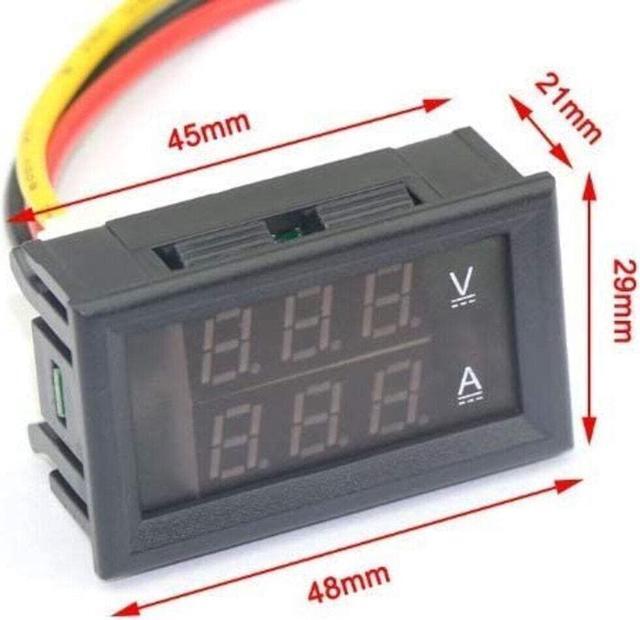

Size: 48x29x22mm

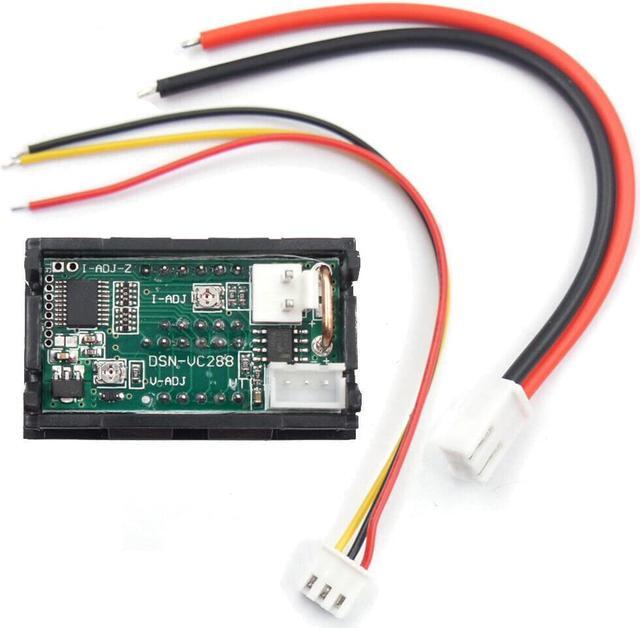

Hole size: 46x27mm calibration potentiometers for both voltage and current
Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage
Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
Auto ranging 0.01V 0.01A precision ± 0.1 % voltage tolerance ±1% current tolerance
Working current: <20mA Refresh rate: 300ms
Size: 48x29x22mm
Hole size: 46x27mm calibration potentiometers for both voltage and current
Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage
Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
