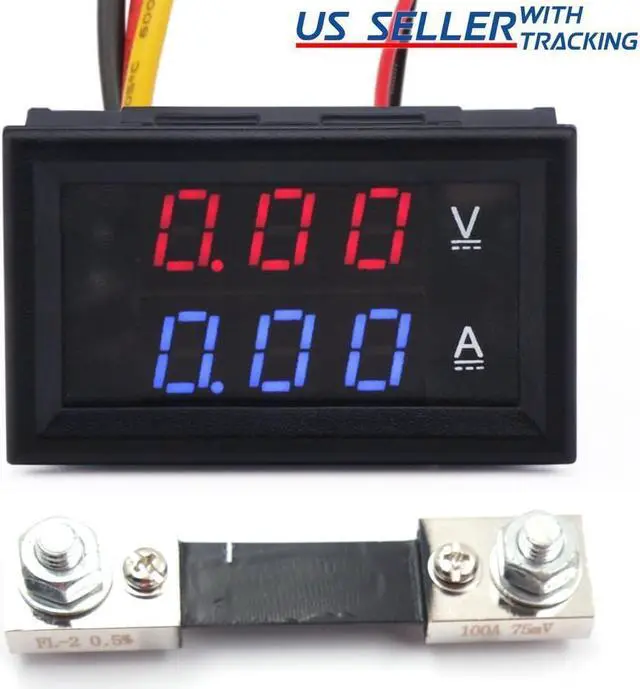

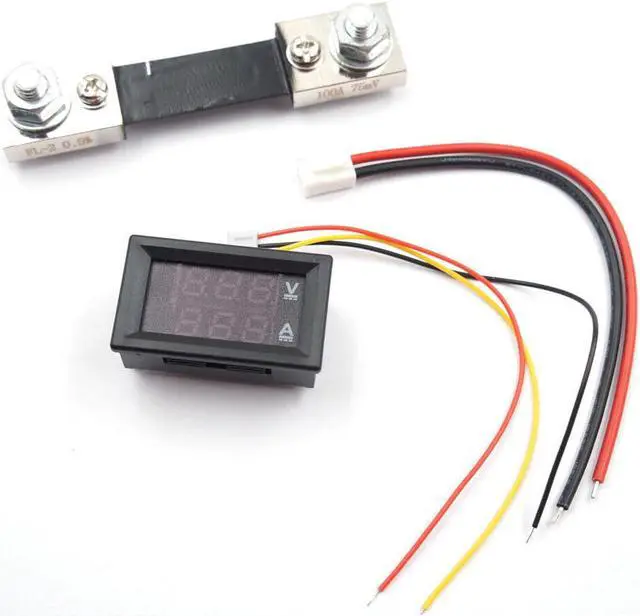

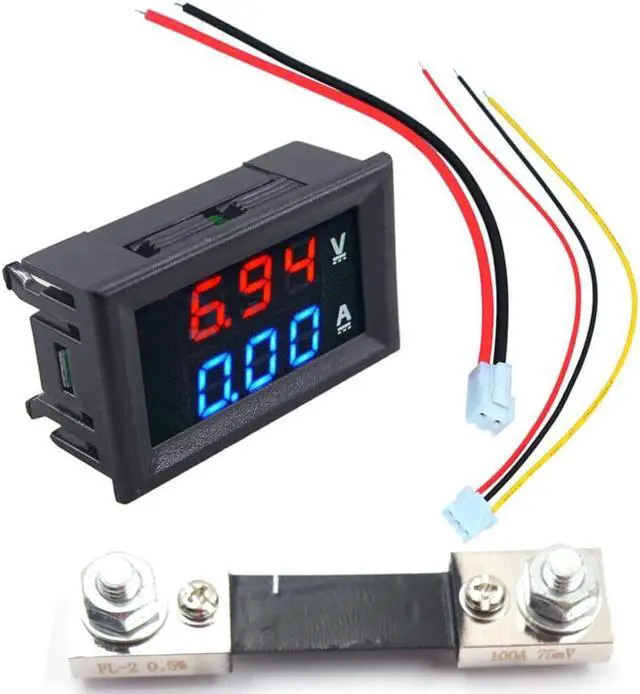

DC 100V 100A Voltmeter Ammeter Volt Amp Meter Voltage Current Tester with Shunt
- Simultaneously monitor DC voltage up to 100V and current up to 100A A heavy duty 75m external shunt handles the current
- Auto ranging 0.01V 0.01A precision ±0.1% voltage tolerance ±1% current tolerance Working current: <20mA Refresh rate: 300ms
- Size: 48x29x22mm Hole size: 46x27mm Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage

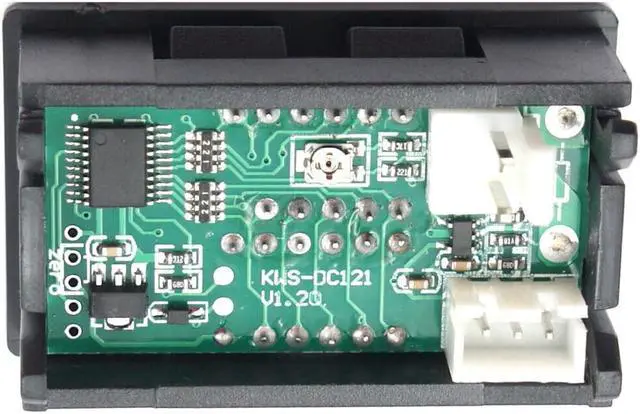

- There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.

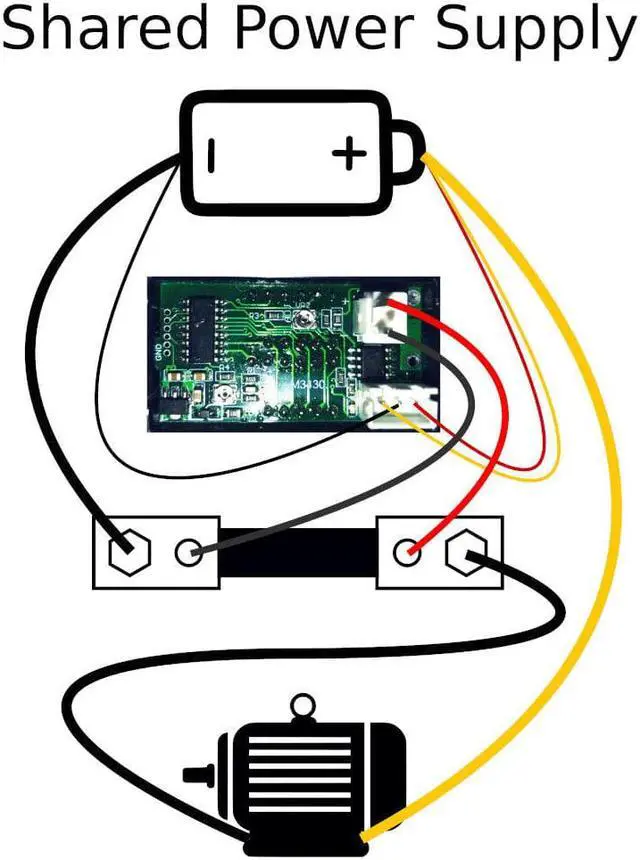

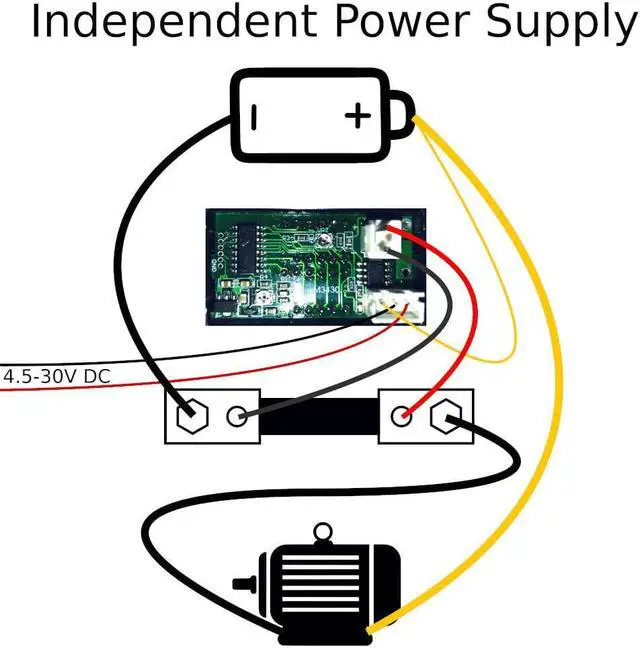

- Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Simultaneously monitor DC voltage up to 100V and current up to 100A A heavy duty 75m external shunt handles the current
Auto ranging 0.01V 0.01A precision ± 0.1 % voltage tolerance ±1% current tolerance
Working current: <20mA Refresh rate: 300ms
Size: 48x29x22mm
Hole size: 46x27mm
Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage
There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.
Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
Auto ranging 0.01V 0.01A precision ± 0.1 % voltage tolerance ±1% current tolerance
Working current: <20mA Refresh rate: 300ms
Size: 48x29x22mm
Hole size: 46x27mm
Operating Temp: -10 - 65 DC only, not for use with AC 4-28V supply voltage
There are potentiometers on the back of the unit to calibrate voltage and current. In order to get accurate readings, it is necessary to calibrate against a known voltage and current on first use. The meter may display 0 current until it has been calibrated.
Note: If the meter supply voltage (thin red wire) is the same as the load, then it must only be used with 4-28V or the meter may be damaged
