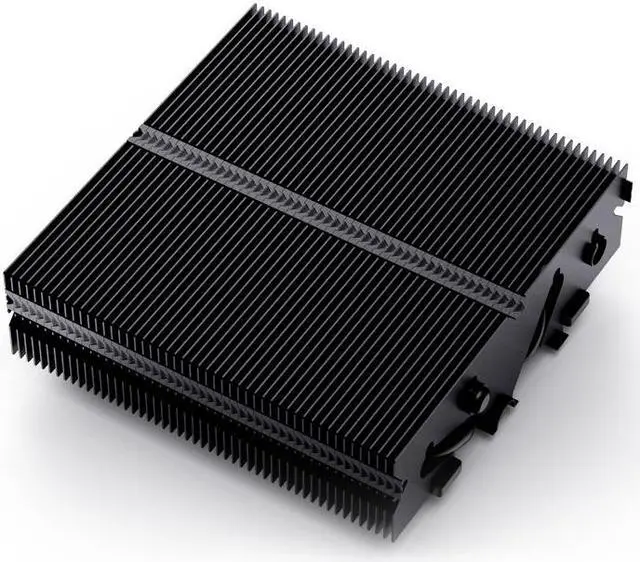

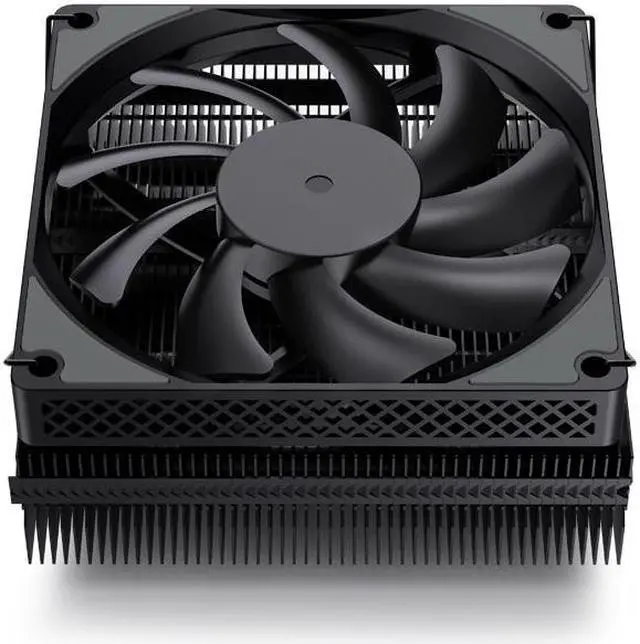

JONSBO HX4170D BLACK JONSBO HX4170D BLACK High Performance CPU Cooling , H45.30mm,Down-flow Radiator, Full reflow Welded Fins Strong Copper Base with 4 High Load Heat Pipes, Black
High Performance top flow cooler / low profile CPU Cooling
Overall height 45.3mm :Suitable for all types of mini cases with height restrictions on radiators
D-TDP 170W : Powerful performance comparable to tower radiators

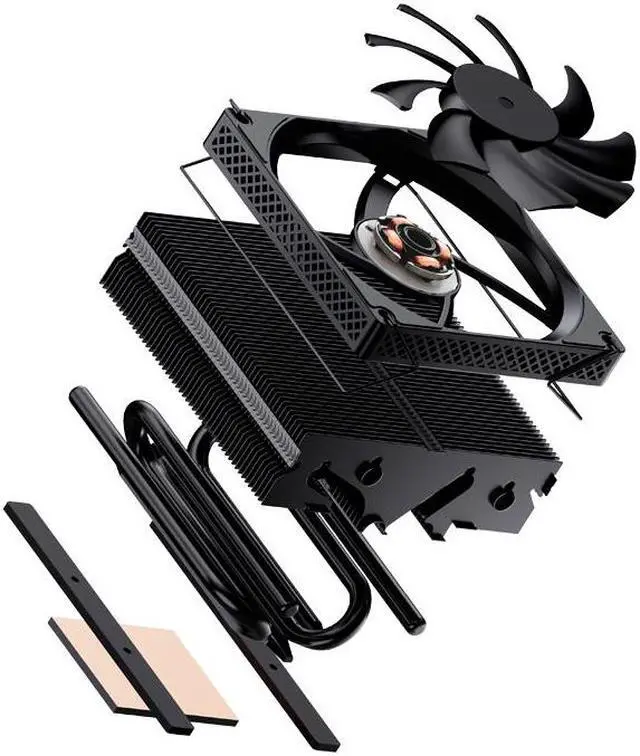

4 sets of heat pipes with A total of 50 layers of fins, the total heat dissipation area is about 2300CM3

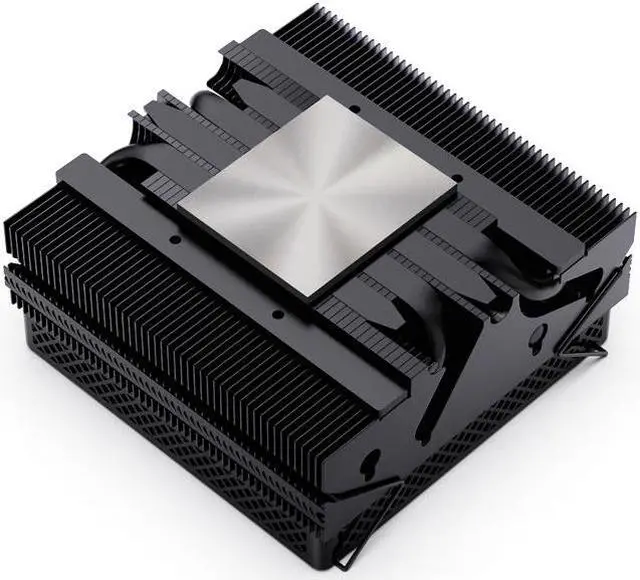

Heat pipes, fins. Base full reflow soldering process

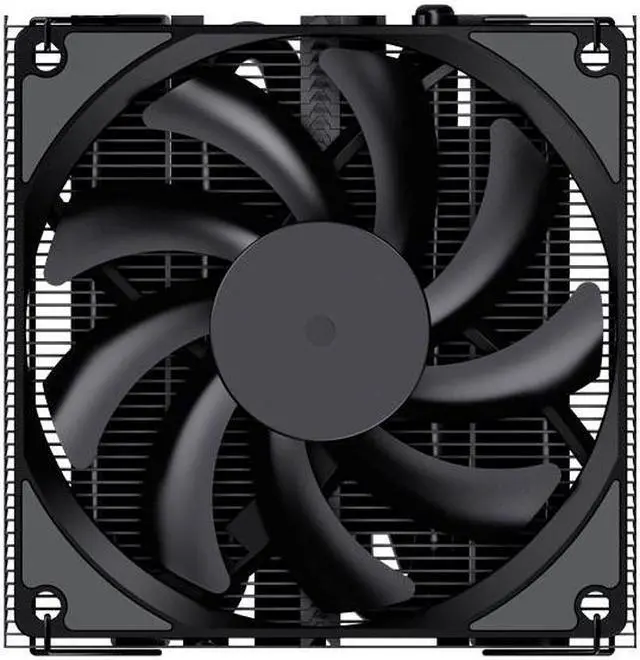

Only 12.5mm thick, high wind pressure 9cm fan
FDB Dynamic Hydraulic Bearings: 600-3300RPM PWM temperature control support, 5 years warranty
Win-win co-operation : With Standard 1g German Thermal Grizzly Hydronau silicone grease
Good compatibility with Mini-ITX motherboards
Dimension : L 95 x W 95 x H 45.3mm /3.74x3.74x1.78inch
Net Weight: 290g/0.64lb
Support Intel platform- Intel: LGA1200/115X/1700 AMD: AM4
+
+
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
JONSBO HX4170D BLACK CPU Cooling, TDP 170W, H 45.30 mm, Downward Pressure Radiator, Full reflow Welded Fins Strong Copper Base with 4 High Load Heat Pipes, Black
Learn more about the JONSBO HX4170D BLACK
Model
Brand
Jonsbo
Model
HX4170D BLACK
Details
Color
Black
Type
Fan & Heatsinks
Fan Size
92mm
CPU Socket Compatibility
LGA1200/115X/1700 AMD: AM4
Bearing Type
Fluid Dynamic
RPM
600-3300 RPM ( +10% )
Air Flow
5.92-38.85 CFM
Noise Level
28.4 dBA
Power Connector
PWM 4PIN
LED
No
Heatsink Material
Aluminum & Copper
Fan Mounting Types to Heatsink
Horizontal
Dimensions & Weight
Max CPU Cooler Height
45.3mm
Fan Dimensions
92mm (L)*92mm(W)*12.5mm (H)
Heatsink Dimensions
95mm (L)*95mm(W)*32.3mm (H) Full size :95mm (L)*95mm(W)*45.3mm (H)
Weight
290g/0.64lb
Features
Features
High Performance Down-flow CPU Cooling,TDP 170W, H45.30mm Radiator, Full reflow Welded Fins Strong Copper Base with 4 High Load Heat Pipes, black
Package Contents
Package Contents
Standard 1g German “Thermal Grizzly Hydronau “ silicone grease,All Metal Clasp
