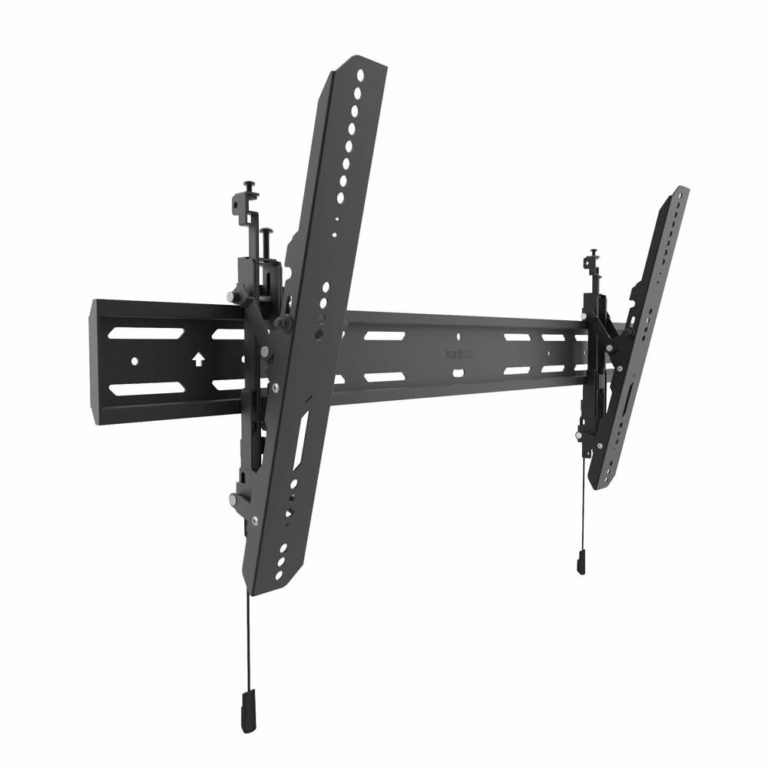

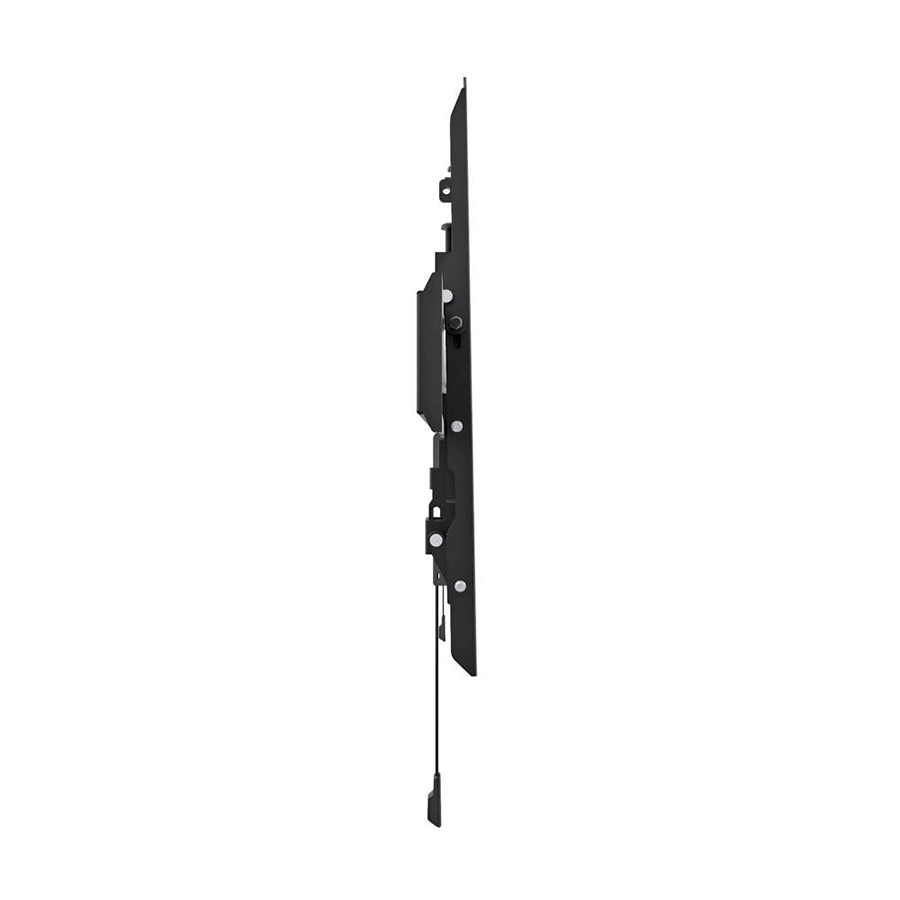

PT400
Low-Profile Tilting TV Mount
The Kanto PT400 low profile tilting TV mount is designed to improve line-of-sight with your TV. Its pre-tensioned mounting brackets provide 12° of forward tilt and come equipped with adjustable screws to facilitate precision leveling. Torx screws and a locking feature are also included to protect against theft, while quick-release cords provide an easy way of removing your TV when unlocked. Featuring a 35-inch wall plate, the Kanto PT400 low profile tilting TV mount ensures an easy installation on both 16 and 24-inch stud centers, and comes with all the necessary hardware for wood stud and concrete installations.
100 x 100 - 800 x 400
200 lb
40? - 120"
Tilting"

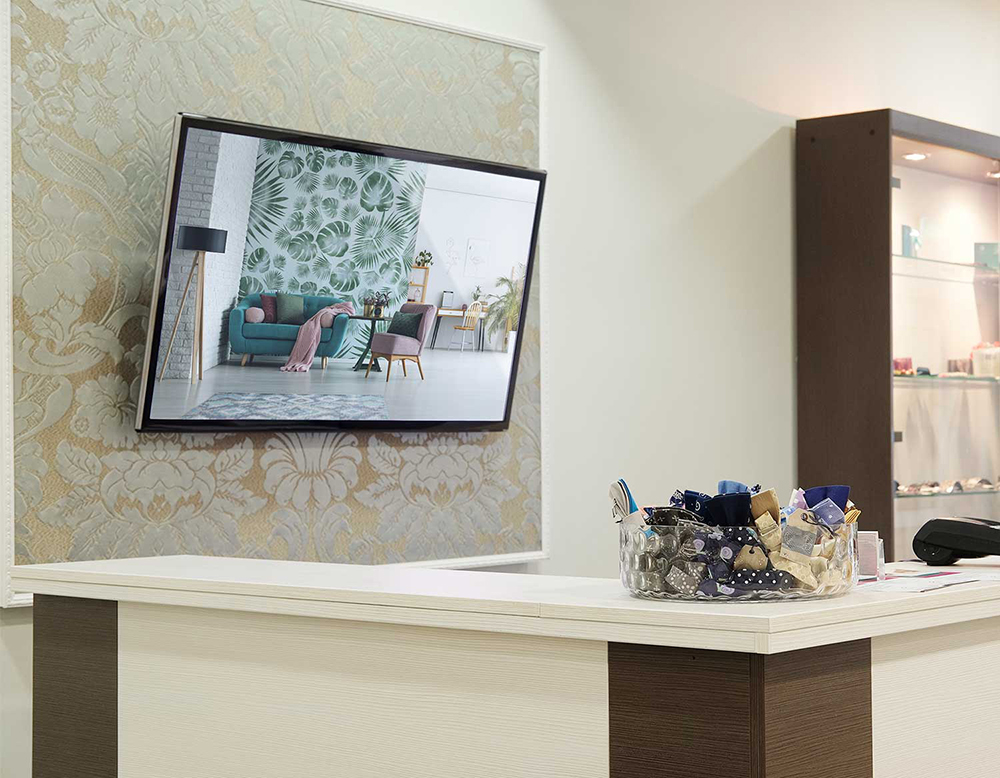

Find your ideal viewing angle.
Features at a glance
12° of Forward Tilt
Low Profile Design
Extra Wide Wall Plate
Post-Installation Leveling
Quick Release Cords
Added Security

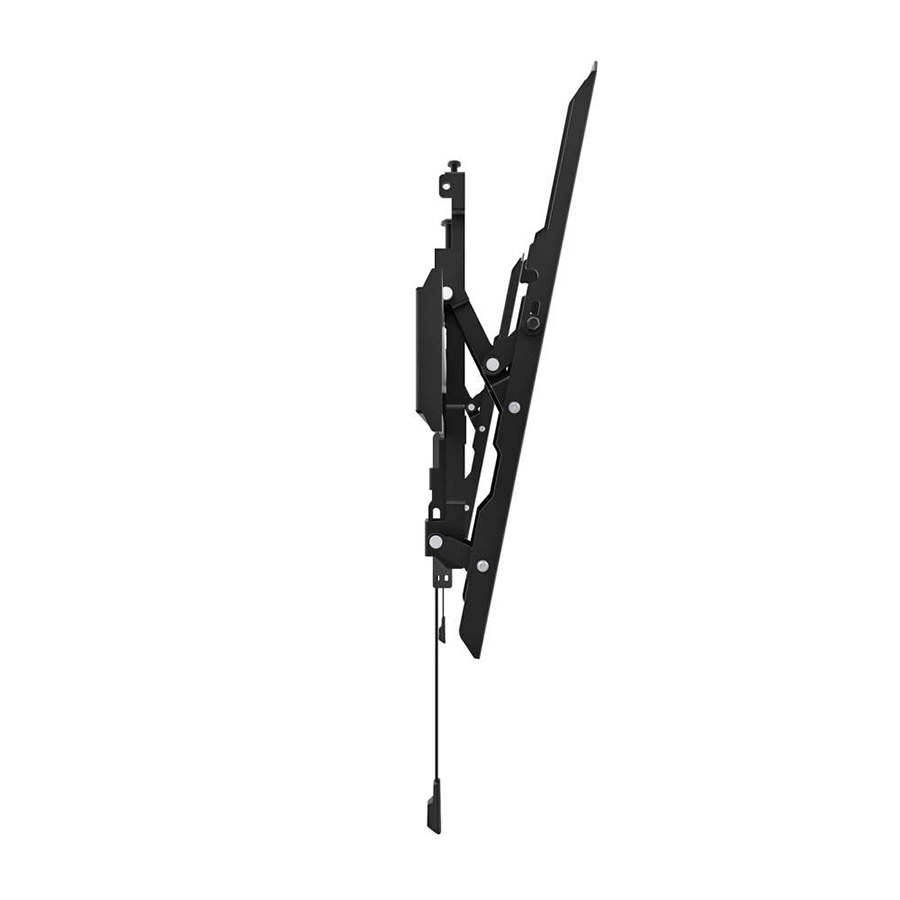

12° of Forward Tilt
Tilt your TV up to 12° forward to reduce glare and improve line-of-sight with your screen.
Low Profile Design
With a combined thickness of 1.4”, the Kanto PT400 low profile tilting TV mount’s slim wall plate and mounting brackets allow your TV to sit remarkably close to the wall.

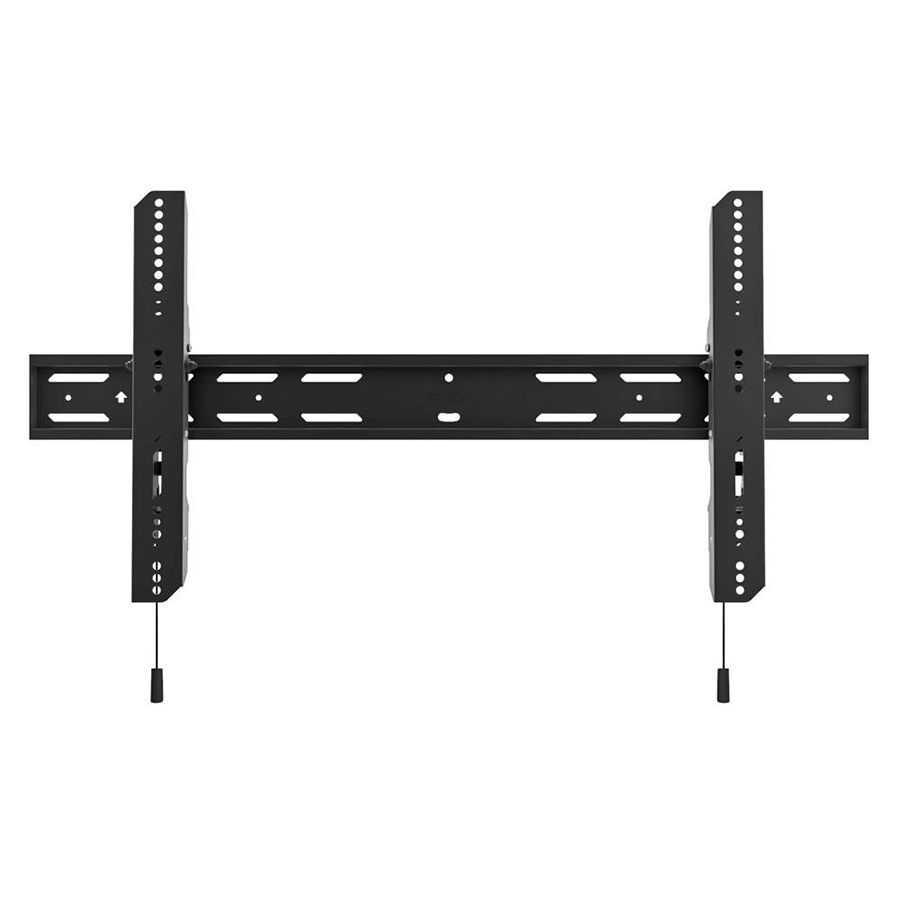

Extra Wide Wall Plate
Measuring 35? wide, the solid steel wall plate can be installed across three studs with 16? spacing, or two studs with 24? spacing.

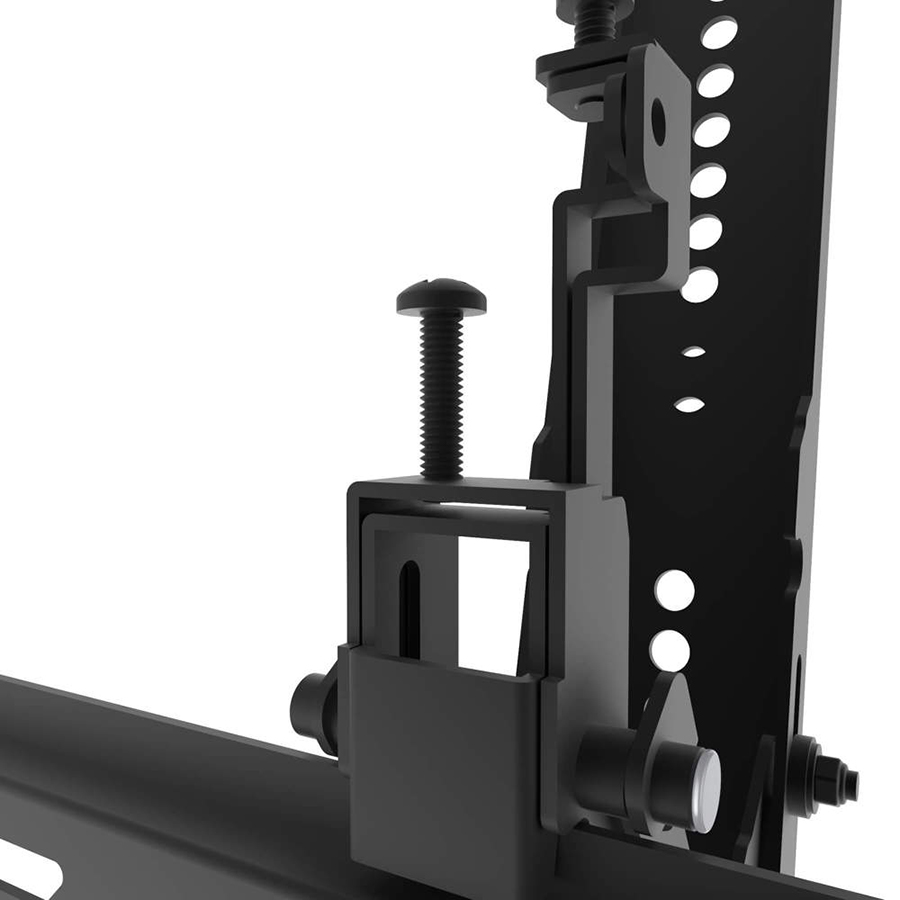

Post-Installation Leveling
Ensure your TV is perfectly level by adjusting the individual screws located on top of each mounting bracket.

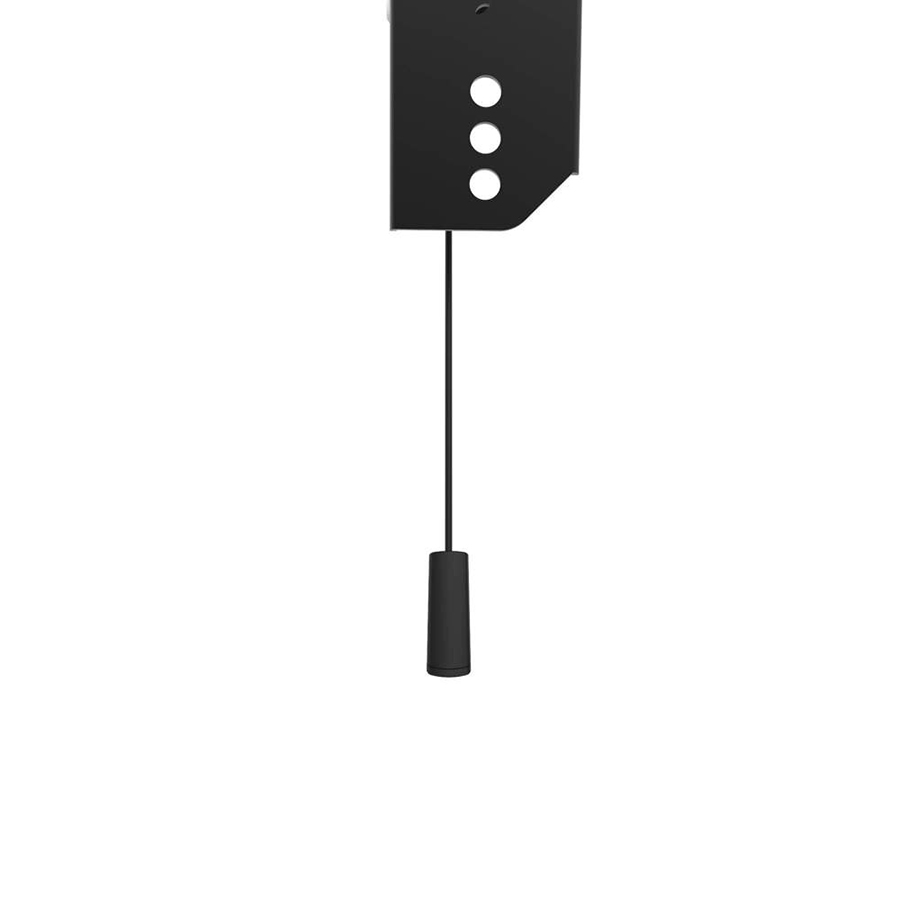

Quick Release Cords
Removing your TV from the wall is as easy as pulling on two quick-release cords. Each cord includes a magnetic end, allowing them to be conveniently tucked out of sight.

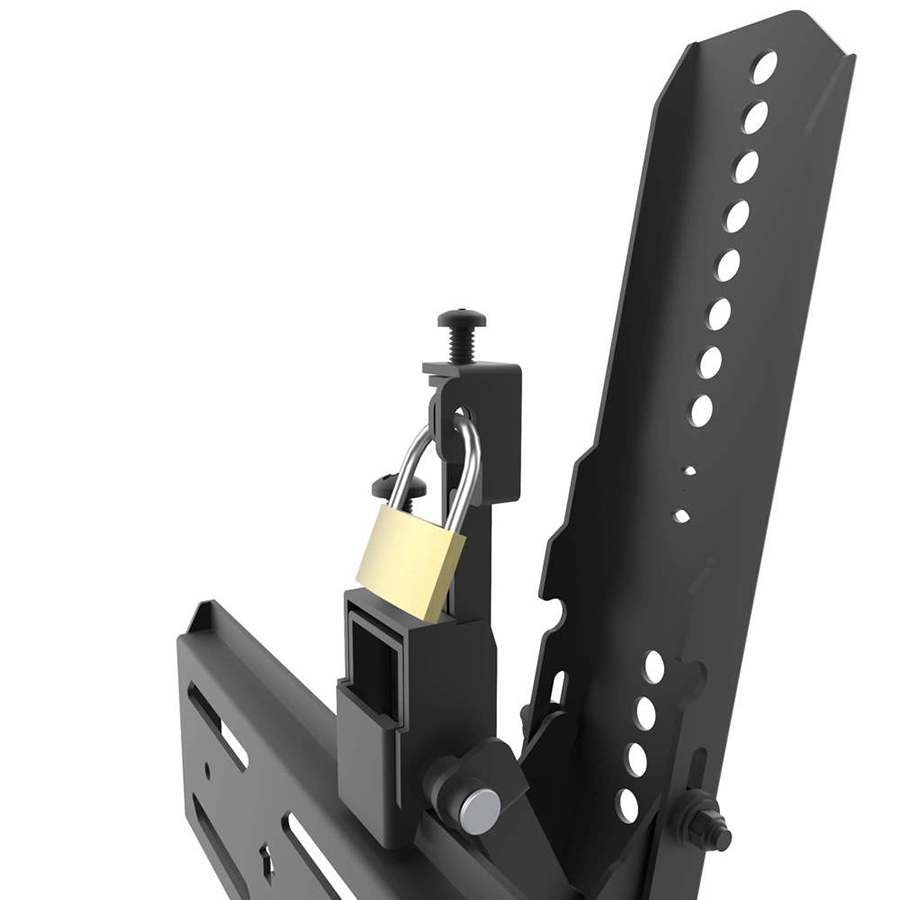

Added Security
Two Torx screws can be tightened with the provided key to prevent your TV from being removed. Alternatively, a lock can be attached to the mounting brackets to secure them in place (lock not included).
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PT300 or PT400 Tilting TV mount.
ADDITIONAL QUESTIONS?
Looking for an answer and want to help yourself? Visit our self-serve Knowledge Base https://kantoliving.freshdesk.com/support/home for questions that other customers might have already asked. And if your question isn’t already answered, reach out and we will be happy to help.
Specs
It's in the details
5
Year Warranty

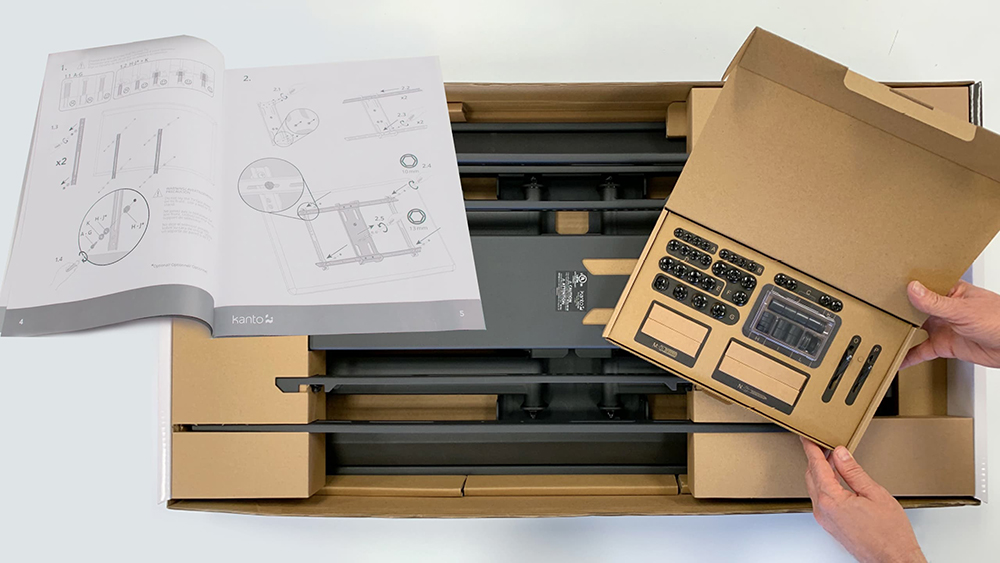

What’s Included
- Installation Manual
- All mounting hardware for wood stud and concrete installation
Profile: Sits 1.4? (3.5 cm) from the wall
Material: Solid steel with durable powder coated finish
- Integrated cable management
- Adjustable horizontal leveling
- Magnetic quick-release cords
- Lockable arms (lock not included)
100×100 to 800×400
Specifications
TV Sizes: 40” to 120”
Weight Allowance: 200 lb (91 kg)
VESA Sizes: 100×100 to 800×400
Wall Plate: 34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers
Measurements
Shipping box weight: 10.8 lb (4.9 kg)
Shipping box dimensions: 36.2? x 6.8? x 3.3? (91.9 x 17.3 x 8.4 cm)
Product weight: 8.2 lb (3.7 kg)
