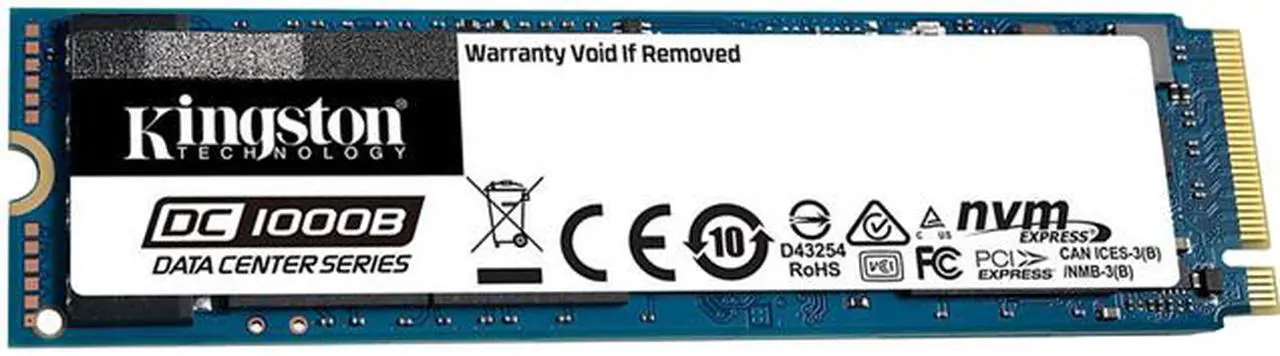

Kingston DC1000B SEDC1000BM8/960G M.2 2280 960GB PCIe NVMe Gen3 x4 3D TLC Enterprise Solid State Drive
- M.2 2280
- 3D TLC
- PCIe NVMe Gen3 x4
- 960GB
Specs
Reviews
Learn more about the Kingston Technology Corp. SEDC1000BM8/960G
| Brand | Kingston |
|---|---|
| Series | DC1000B |
| Model | SEDC1000BM8/960G |
| Form Factor | M.2 2280 |
|---|---|
| Capacity | 960GB |
| Memory Components | 3D TLC |
| Interface | PCIe NVMe Gen3 x4 |
| Max Sequential Read | Up to 3400 MBps |
|---|---|
| Max Sequential Write | Up to 925 MBps |
| 4KB Random Read | Up to 199,000 IOPS |
| 4KB Random Write | Up to 25,000 IOPS |
| Read Latency | 161 µs |
| Write Latency | 75 µs |
| MTBF | 2,000,000 hours |
| Features | Total Bytes Written (TBW): 1095TBW M.2 (2280) NVMe Performance Incredible speeds of up to 3400 MB/s and 199K IOPS. Optimized Server Boot Drive Enhanced for boot workloads as well as caching and logging applications. On-board (PLP) Power Loss Protection Reduce the possibility of data loss and/or corruption on ungraceful power-off. Maximize Drive Bays Move boot drives internally frees up front loading drive bays for additional data storage. |
|---|
| Power Consumption (Idle) | 1.29W |
|---|---|
| Power Consumption (Active) | Average Read: 1.67W Average Write: 4.25W Max Read: 1.78W Max Write: 5.73W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Max Vibration Resistance | Operating: 2.17G Peak (7-800 Hz) Non-operating: 20G Peak (10-2000 Hz) |
| Height | 3.80mm |
|---|---|
| Width | 22.00mm |
| Depth | 80.00mm |
| Weight | 9.00g |
| Date First Available | February 06, 2021 |
|---|
