Question 1

Can someone tell me what 8GB RAM module to get so I can upgrade the RAM on this model?  Thank you!

Accepted Answer

I bought the Crucial module listed below for about $27, but there are quite a few other brands with good reputations.  Just be sure to meet the specs listed here.

Crucial 8GB 204-Pin DDR3 SO-DIMM DDR3L 1600 (PC3L 12800) Laptop Memory Model
CT102464BF160B, Newegg Item #: N82E16820148679

Question 2

Can this laptop be plugged into a docking station? Is there a docking station for it?

Accepted Answer

The ThinkPad E560 is not compatible with mechanical docking stations. However, the ThinkPad OneLink Dock will should work, Levinio part number 4X10A06077.

Question 3

The picture shows the laptop with windows 10 but it says Windows 7 is installed... what operating system is on the laptop initially?

Accepted Answer

I bought mine in June and it came with Windows 7.  Contacted Lenovo and they sent me a flash drive that had Windows 10 software, license.

Question 4

could I add another 4GB RAM or do I need to replace 4GB by a 8GB RAM?

Accepted Answer

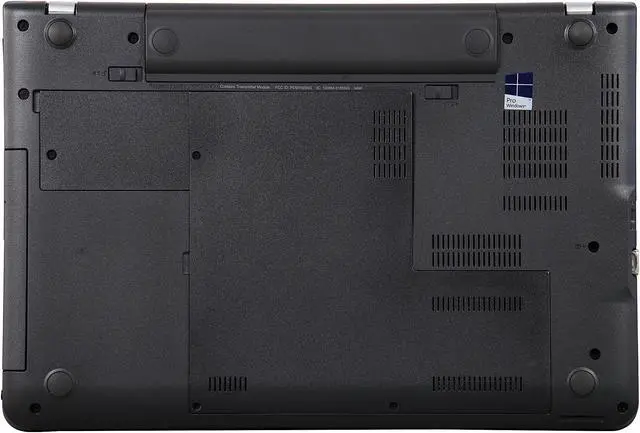

I add at least 4 Gig to every one of these I have bought. They have a large access panel on the bottom and it is all very easy... I have used these https://www.newegg.com/Product/Product.aspx?Item=N82E16820231703 or the 8 gig version. This link has 2 sticks so you would need to get the same in single stick version. I buy lots of these laptops so I always buy multiple sticks...

Question 5

This has been downgraded to windows 7 - Can I take it back to windows 10 for free?

Accepted Answer

Of course. This unit will have no issue running Microsoft Windows 10 Professional or any Windows 10 version.

Question 6

Some of the spec listings I see for configuration 20EV002FUS of the E60 -- such as NewEgg's -- say the 500gb HDD it comes with is 7200rpm, while others (including the Lenovo site) say 5400.  Others don't specify.  What did you get?

Accepted Answer

The 20EV002FUS we most recently received had the Seagate ST500LM021 500GB 7200RPM HDD.

Question 7

Can this downgrade be reversed to install 10 Pro?

Accepted Answer

Yes, just Google Windows 10 Media Creation Tool to create installation media and the install will detect the License key from the Bios Chip.

Question 8

Is there wired LAN port? If yes, what is speed, is it gigabit or 10/100?

Accepted Answer

Yes there is a wired LAN Port 10/100/1000

Question 9

Does this laptop ship with Windows 10 as of 8/10/2016?

Accepted Answer

Microsoft really wants everyone to run Windows 10.  But.. the customer is king and some people won't buy a new computer unless good old comfy Windows 7 is on it -- perhaps your school or office isn't ready top support Windows 10 for example.  So, since the customer is king, Microsoft came up with a goofy named "downgrade rights" (doubletalk for "ok. ok. . we need to sell a copy of windows.  We'll sell you both and when you are ready to move up from Windows 7, the Windows 10 license is there dormant but paid for."

Question 10

How do I "upgrade" this machine to Windows 10?  Several people have said it can be done for free, but I'm wondering how to do it.  The free upgrade period for Windows 10 has passed.

Accepted Answer

I ordered a flash drive from Lenovo.  The Windows 10 license, flash drive, and shipping was free.  Can't recall how I found where to order the upgrade.  Might have been with the literature that came with the laptop or on the product listing page.

Color	Black
Other Features	Fingerprint reader

CPU Type	Intel Core i5 6th Gen
Processor Name	Intel Core i5-6200U
Core Name	Skylake
Turbo Frequency	Up to 2.8 GHz
Number of Cores	Dual-core Processor
CPU L3 Cache	3 MB

Screen Size	15.6"
Touchscreen	Non-Touch Screen
Wide Screen Support	Yes
Resolution	1366 x 768

GPU/VPU	Intel HD Graphics 520
Video Memory	Shared system memory
Graphic Type	Integrated Card

Memory	4GB
Memory Speed	DDR3L 1600
Memory Spec	4 GB x 1
Memory Slot (Total)	2
Memory Slot (Available)	1
Max Memory Supported	16 GB

Meet Your Seller

Sponsored Products

Lenovo Laptop ThinkPad Intel Core i5-6200U 4GB Memory 500GB HDD Intel HD Graphics 520 15.6" Non-Touch Screen Windows 7 Professional 64-Bit (Downgrade From Windows 10 Pro) E560 (20EV002FUS)

Learn more about the Lenovo E560 (20EV002FUS)

Customer Reviews of the Lenovo E560 (20EV002FUS)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Brand	Lenovo
Series	ThinkPad
Model	E560 (20EV002FUS)
Part Number	20EV002FUS

LAN	10/100/1000Mbps
WLAN	802.11ac Wireless LAN
Bluetooth	Bluetooth 4.0

USB	3 x USB 3.0 (one Always On)
Video Port	1 x VGA
HDMI	1 x HDMI
Other port	Lenovo OneLink connector
Audio Ports	1 x Headphone/Microphone Combo Jack

Keyboard	6-row, spill-resistant, multimedia Fn keys, numeric keypad
Backlit Keyboard	Non-backlit
Webcam	720p
Card Reader	4-in-1 reader (MMC, SD, SDHC, SDXC)

AC Adapter	45-watt AC Adapter
Battery	6-cell lithium ion, 48 WHr
Battery Life	Up to 9 Hour(s)

Dimensions (W x D x H)	14.84" x 10.04" x 1.07"
Weight	5.39 lbs.

General
Style	Standard
Type	Mainstream
Usage	Business

Item#: 9SIAETUKGP9137
