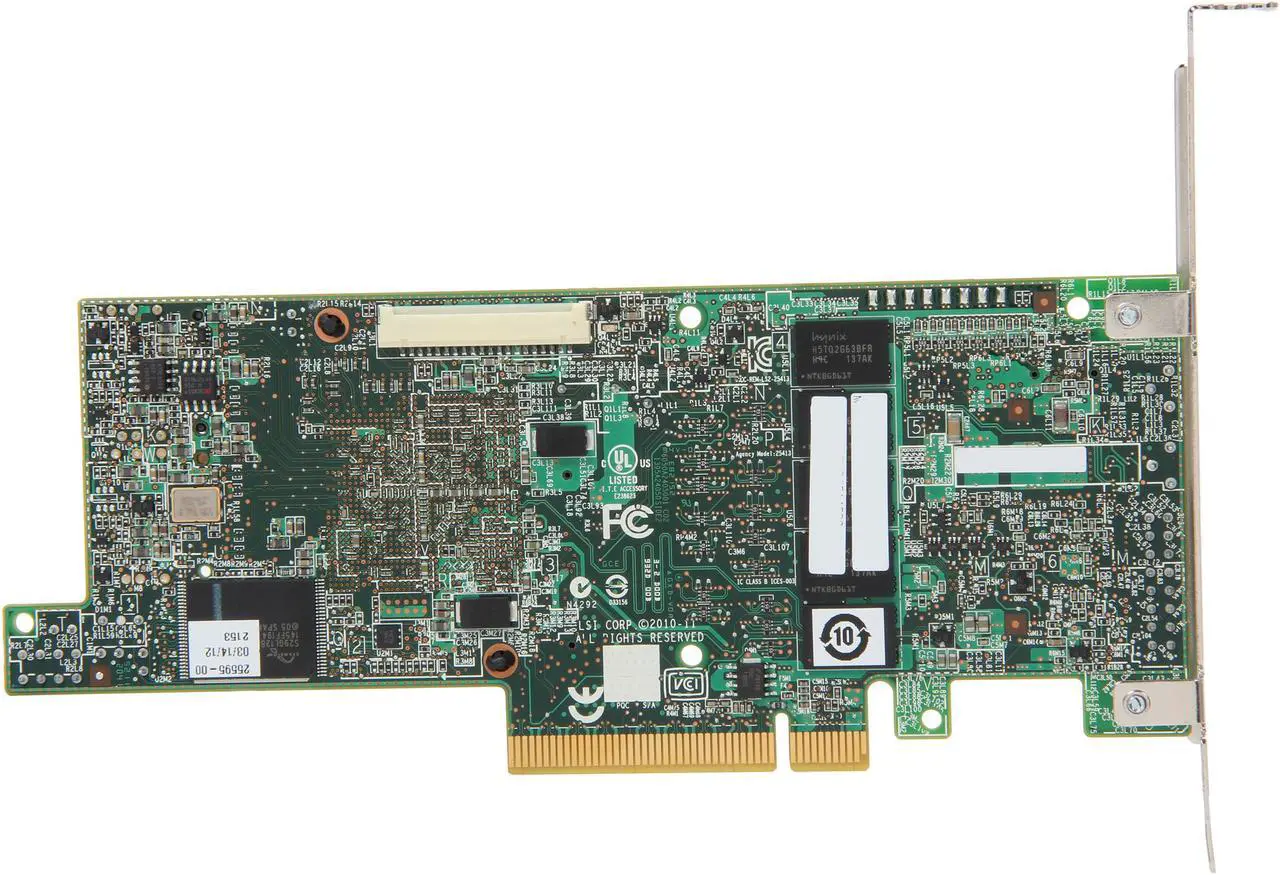

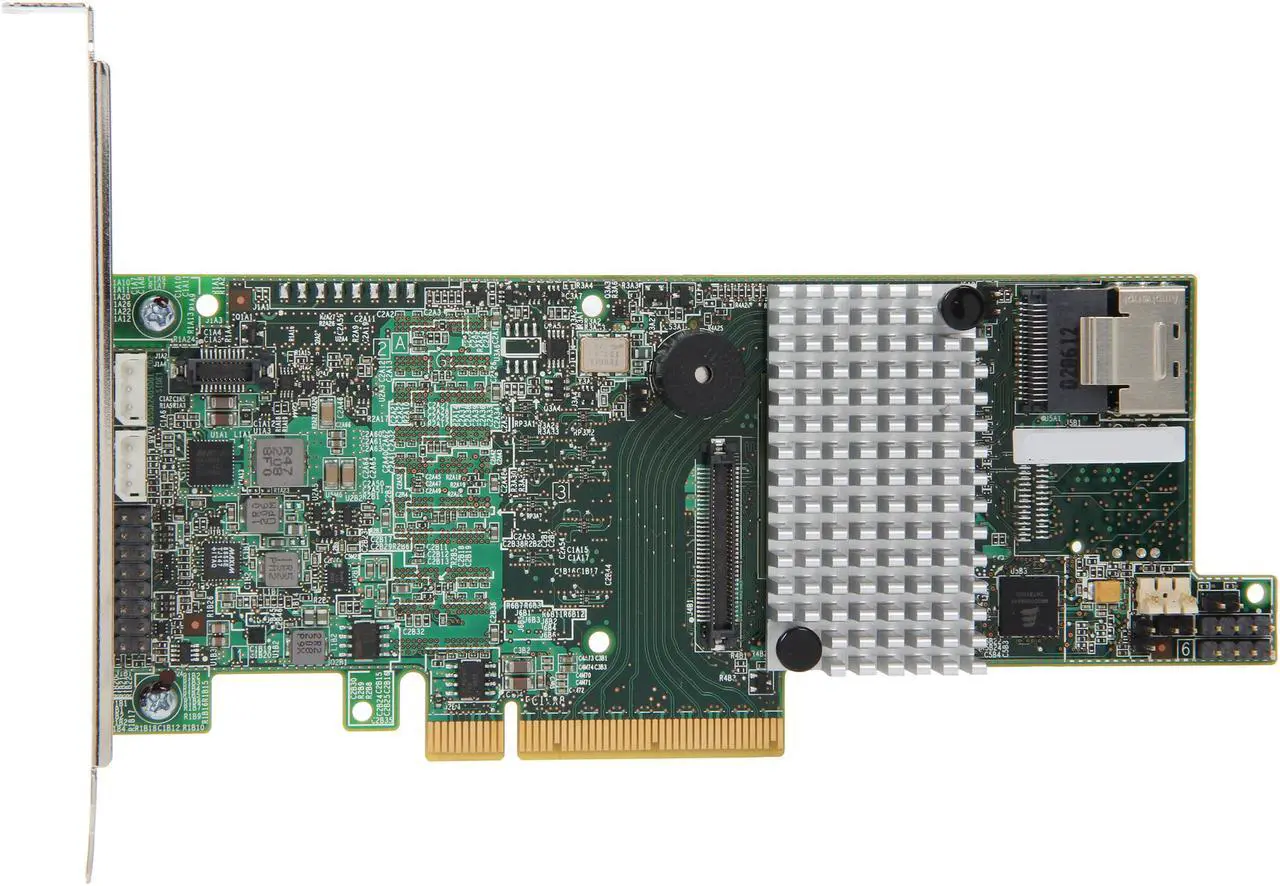

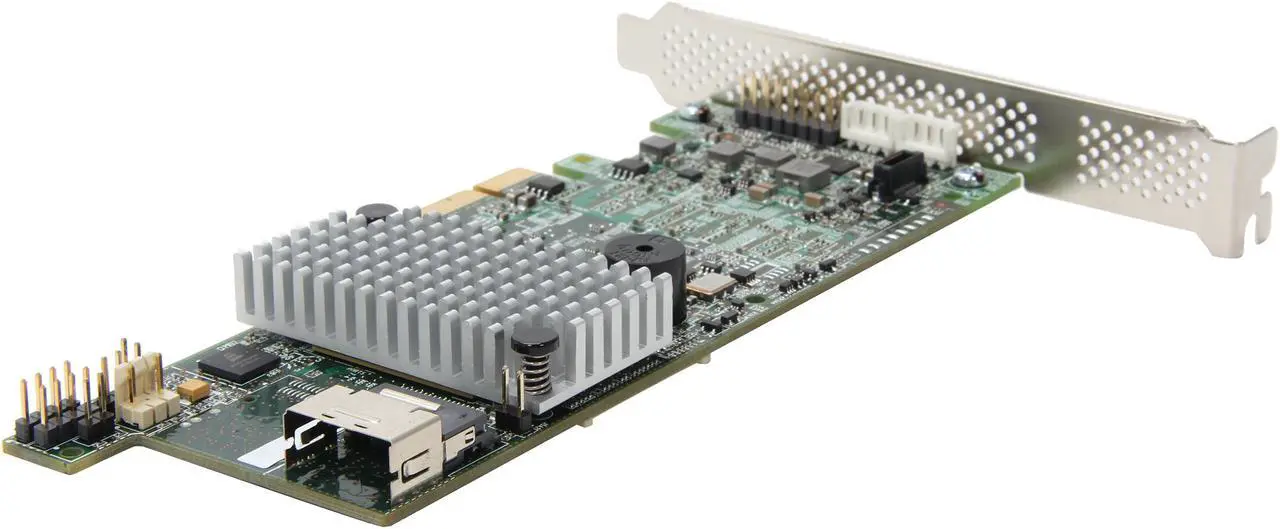

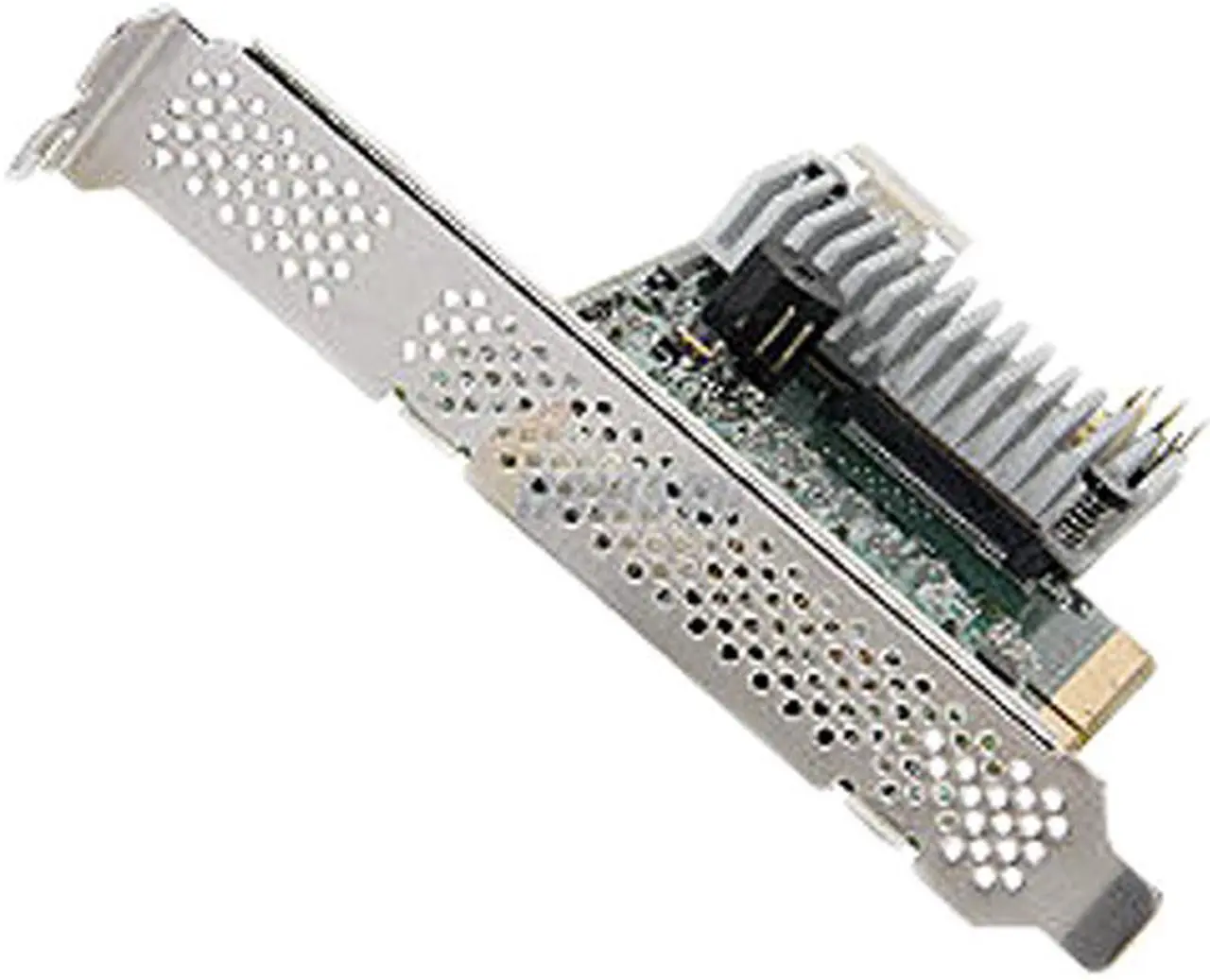

    LSI MegaRAID LSI00306 (9266-4i Kit) PCI-Express 2.0 x8 Low Profile SATA / SAS RAID Controller - Kit--Avago Technologies

    Be the first to review this product...
    • RAID 0/1/5/6/10/50/60
    • 1 x SFF-8087 mini-SAS Internal Connectors
    • Up to 6Gb/s
    +
    +
    Specs
    Reviews

    Learn more about the LSI LSI00306 (9266-4i Kit)

    Model
    Brand LSI
    Series MegaRAID
    Model LSI00306 (9266-4i Kit)
    Form Factor Low Profile
    Details
    Type SATA / SAS
    Internal Connectors 1 x SFF-8087 mini-SAS
    Interface PCI-Express 2.0 x8
    Transfer Rate Up to 6Gb/s
    Cache Memory 1 GB 1333MHz DDRIII SDRAM
    RAID RAID 0/1/5/6/10/50/60
    Operating Systems Supported Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more.

    * Visit the LSI download Center for the most complete list of supported operating systems.
    Dimensions MD2 Low profile (2.536" x 6.60")
    Features
    Features I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)

    Device Support: Up to 128 SAS and/or SATA hard drives and SSDs

    Solution Provided:
    Four-port internal SATA+SAS solution for high I/O and bandwidth-intensive storage applications using SAS, SATA or SSDs; reduced maintenance costs and total cost of ownership with supported CacheVault technology.

    RAID Features:
    Online Capacity Expansion (OCE)
    Online RAID Level Migration (RLM)
    Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
    Single controller Multipathing (failover)
    Load Balancing
    Configurable stripe size up to 1MB
    Fast initialization for quick array setup
    Check Consistency for background data integrity
    SSD Support with SSD Guard
    Patrol read for media scanning and repairing
    64 logical drive support
    Up to 64TB LUN support
    DDF compliant Configuration on Disk (COD)
    S.M.A.R.T support
    Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Emergency SATA hot spare for SAS arrays
    Enclosure management - SES (inband) - SGPIO (sideband)

    Operating Voltage: +3.3V, +12V

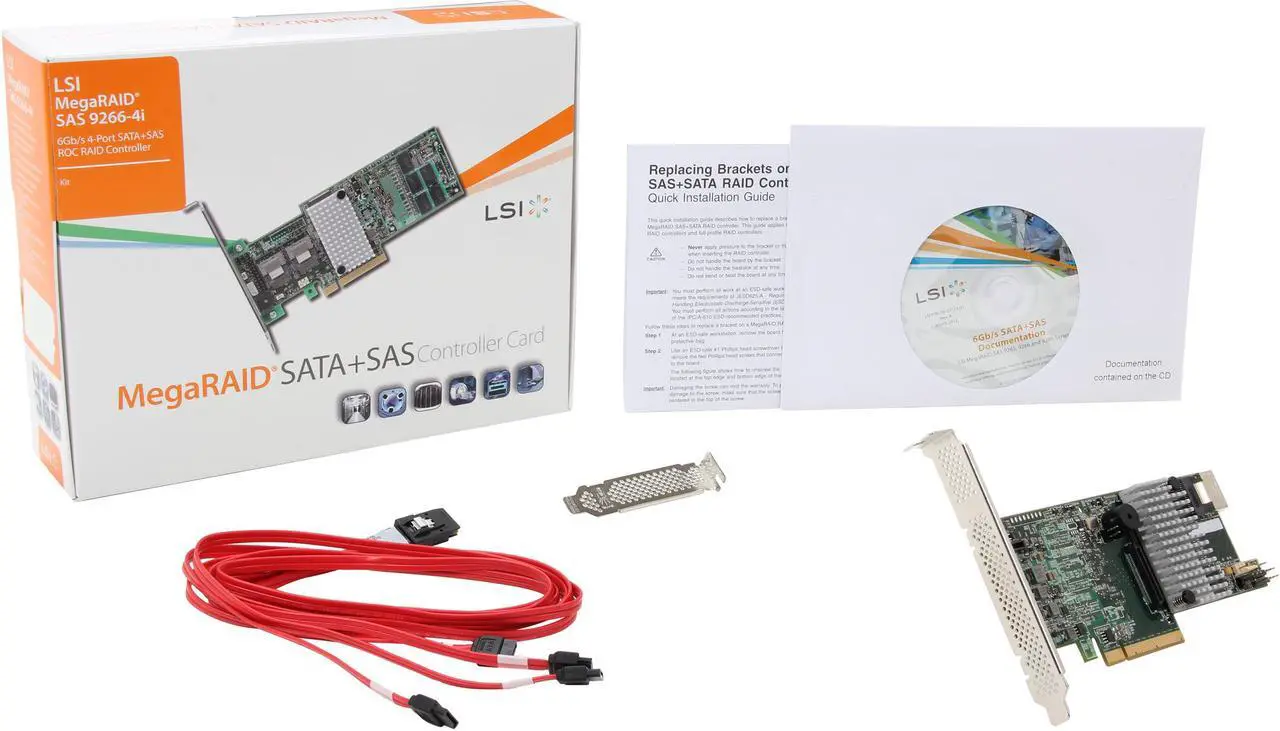

    Kit Version
    Package Contents
    Package Contents MR SAS 9266-4i
    QIG
    Documentation CD

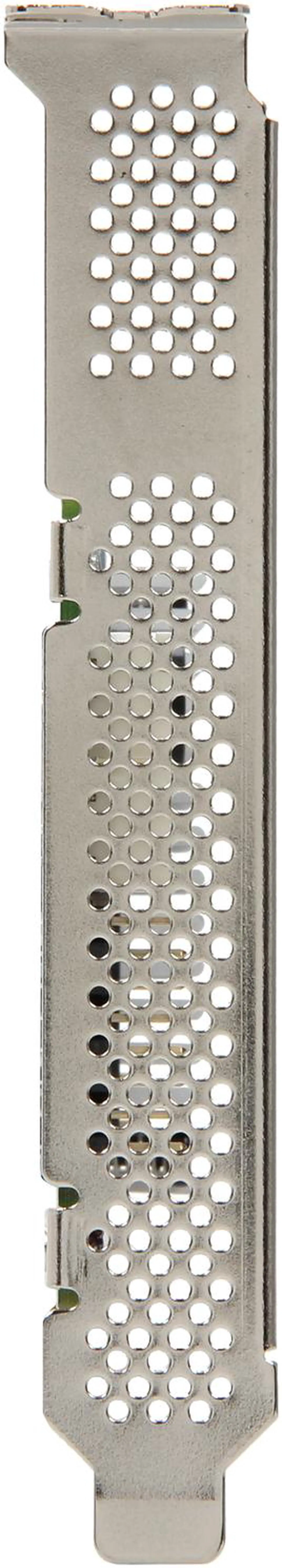

    LP bracket
    (1) 1-meter Mini-SAS SFF-8087 to SATA fanout cable
    Additional Information
    Date First Available March 08, 2023

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: 30 days
    • This item is covered by TA Factory Return Policy
