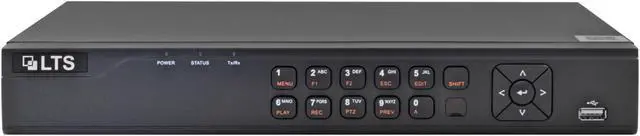

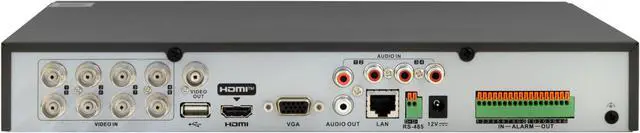

LTS LTD8308K-ETC 8-Channel H.265+ HD-TVI DVR with 2TB Pre-Installed Storage

LTS LTD8308K-ETC 8-Channel H. 265+ HD-TVI DVR

The LTD8308K-ETC Platinum Professional Level 8 Channel HD-TVI DVR - Compact from LTS has a compact design and supports H. 265+/H. 265/H. 264 Zip+/H. 264 video comrpression. It has an 8 Channel Video Recorder and works with TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1). Other features include live view, storage, playback up to 8 HD-TVI/ analog cameras + 1 IP camera up to 4MP.

Features:
8 Channel Video Recorder
No HDD Included
Compact Case H. 265/H. 265+
Support TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1)
1st and 2nd channel support up to 3MP HD-TVI input
Support Live View, Storage, Playback up to 8 HD-TVI/ Analog Cameras + 1 IP Camera up to 4MP
Up to 1080P (1920*1080) HDMI Video Output
CVBS Output
1x SATA slot, up to 6TB each HDD
2x USB 2.0

Specifications

:

Video / Audio Input:
Video compression: H. 264
HD-TVI video input: 8-channel
Video input interface: BNC ( 1.0 Vp-p, 75 O), PAL / NTSC self-adaptive
IP input: 2ch(1080p@30fps)
Audio compression: G. 711u
Audio input: 1-ch, RCA ( 2.0 Vp-p, 1 kO)
Two-way audio input: 1-ch, RCA ( 2.0 Vp-p, 1 kO)

Video / Audio Output:
HDMI/VGA output 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution: Main
stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate: Main
stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate: 32 Kbps-4 Mbps
Audio output: 1-ch, RCA (Linear, 1 kO)
Audio bit rate: 64 Kbps
Dual-stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 8-ch
Playback resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network:
Remote connection: 128
Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS

Hard Disk:
SATA: 1 SATA interface
Capacity: Up to 4TB capacity for each disk

External Interface:
Network interface: 1:10 M / 100M self-adaptive Ethernet interface

General:
Power supply: 12V DC
Power Consumption: = 20 W
Working temperature: -10 °C~+55°C(14°F ~ 131 °F)
Working humidity: 10% ~ 90%
Chassis: 1U chassis
Dimension: 315 × 230 × 45 mm ( 12.4" x 9.1" x 1.8" )
