Matrox MXO2 LE (Desktop) MXO2LE/N/D

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the matrox MXO2LE/N/D

Model
Brand	Matrox
Model	MXO2LE/N/D

Performance
Video	input SDI - HD/SD Component - HD/SD Y/C Composite HDMI - HD/SD output 2 SDI - HD/SD Component - HD/SD - 12-bit Y/C - 12-bit Composite - 12-bit HDMI - HD/SD
Audio	input: 2 XLR - stereo pair (balanced) 2 RCA - stereo pair (unbalanced) 2 AES/EBU SDI embedded - up to 8 channels HDMI embedded - up to 8 channels output 4 XLR - 2 stereo pairs (balanced) 6 RCA - for surround sound monitoring (unbalanced) 2 AES/EBU SDI embedded - up to 8 channels HDMI embedded - up to 8 channels

Compatibility
System Requirements	PC and Intel-based Mac Pro and Apple Xserve desktop systems Mac OS X v10.5 or later (Snow Leopard support available via driver update on Matrox site) Windows XP (32-bit), Windows Vista (32- and 64-bit), Windows 7 (64-bit) One free PCIe slot to install the Matrox PCIe host adapter One free ExpressCard/34 slot to install the Matrox PCIe host ExpressCard/34 adapter If using MXO2 with Final Cut Studio 2, 2GB physical memory (RAM) when working with compressed HD and uncompressed SD sources, or 4GB physical memory (RAM) when working with uncompressed HD sources HDMI monitor that supports 1920 x 1080 and "dot-by-dot" mode is recommended for 1:1 pixel mapping

Feature
Feature	Works with PCs and Intel-based Mac Pro and Apple Xserve desktop systems Lightweight Fits in your travel bag 4-pin XLR power connector for AC or field battery operation HD/SD SDI, HD/SD analog component, Y/C, and composite inputs and outputs Genlock - SD analog black burst (bi-level) or HD tri-level sync 10-bit HDMI input, output, and monitoring with calibration controls including blue-only 10-bit real-time hardware up/down/cross conversion on capture and output Up to five user selectable simultaneous video outputs: HD and/or SD on HDMI, SDI, and analog RS-422 machine control for frame-accurate capture and print-to-tape Captures to a variety of codecs: Apple ProRes 422 HQ, 10-bit uncompressed HD, and many more File-based workflow support - XDCAM, XDCAM HD, XDCAM EX, P2, P2HD RED workflow support HD-SDI closed captioning support Works with Final Cut Pro, Adobe Premiere Pro, Apple Color, Adobe After Effects and all QuickTime applications that support the V-out component

Package Contents

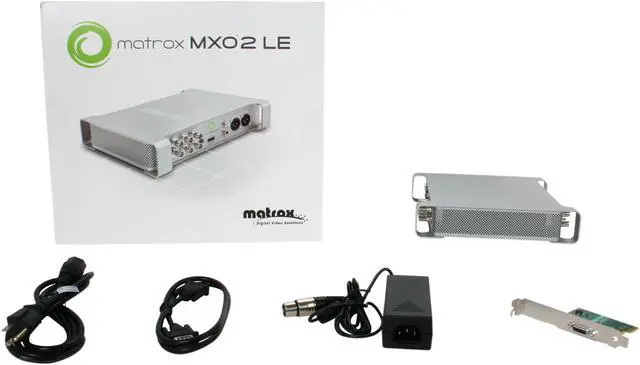

Package Content	Matrox MXO2 LE Input/Output Device Matrox MXO2 PCIe Host Adapter Matrox MXO2 LE PCIe cable 3' (1m) Matrox MXO2 LE External Power Supply IEC-C13 Power Cord

Additional Information
First Listed on Newegg	January 12, 2011
