What is the capacity and form factor of the MSI SPATIUM Series SSD?

The capacity is 1TB and the form factor is M.2 2280.

What is the maximum sequential read speed of the MSI SPATIUM Series M.2 2280 1TB SSD?

The maximum sequential read speed is up to 3400 MBps.

Home
Components & Storage
SSD
Internal SSDs
MSI
Item#: N82E16820140064

SanDisk Optimus GX 7100 M.2 2280-S3-M 500GB PCI-Express 4.0 x4 3D NAND TLC Internal Solid State Drive (SSD) SDSP71500GAN-000E0

$119^.99 –

$189^.99

Free 30-day Returns

Limit 99999 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

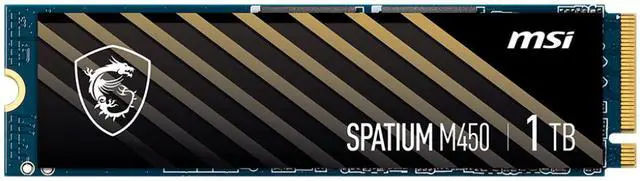

Main image of MSI SPATIUM Series M.2 2280 1TB PCI-Express 4.0 x4 Internal Solid State Drive (SSD) SM450N1TBV1

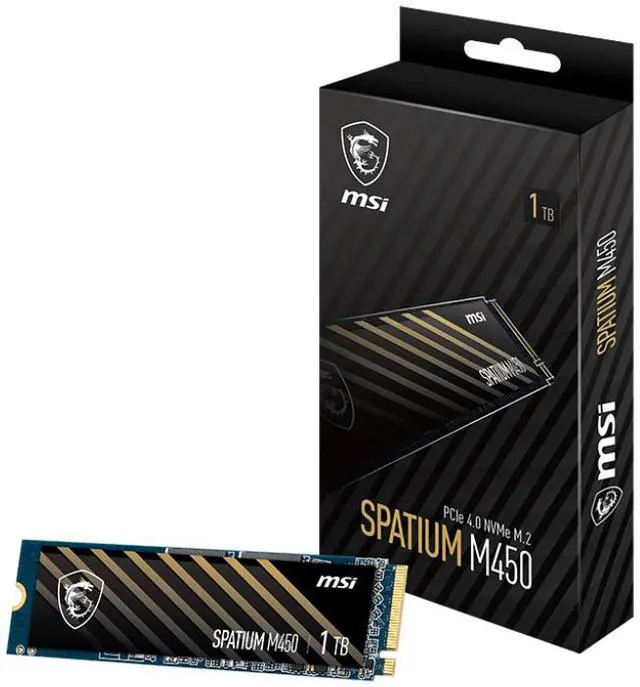

Alt view image 2 of 4 - MSI SPATIUM Series M.2 2280 1TB PCI-Express 4.0 x4 Internal Solid State Drive (SSD) SM450N1TBV1

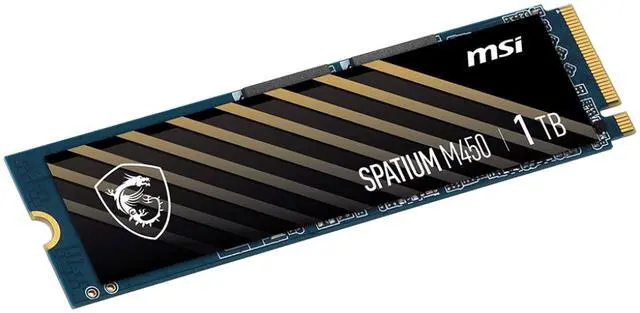

Alt view image 3 of 4 - MSI SPATIUM Series M.2 2280 1TB PCI-Express 4.0 x4 Internal Solid State Drive (SSD) SM450N1TBV1

Alt view image 4 of 4 - MSI SPATIUM Series M.2 2280 1TB PCI-Express 4.0 x4 Internal Solid State Drive (SSD) SM450N1TBV1

Shop All MSI Products

MSI SPATIUM Series M.2 2280 1TB PCI-Express 4.0 x4 Internal Solid State Drive (SSD) SM450N1TBV1

Be the first to review this product...

Sequential Read speeds up to 3400MB/s and Write speeds up to 2400MB/s
1TB capacity in M.2 2280 form factor
PCI-Express 4.0 x4
Up to 350 TBW

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SPATIUM M450 PCIe 4.0 NVMe V1

Model
Brand	MSI
Series	SPATIUM Series
Model	SM450N1TBV1
Device Type	Internal Solid State Drive (SSD)

Details
Form Factor	M.2 2280
Capacity	1TB
Interface	PCI-Express 4.0 x4
Protocol	NVMe 1.4
Controller	PHISON E19T
Cache	No DRAM (HMB)

Performance
Max Sequential Read	Up to 3400 MBps
Max Sequential Write	Up to 2400 MBps
4KB Random Read	Up to 500,000 IOPS
4KB Random Write	Up to 550,000 IOPS
Terabytes Written (TBW)	350TB
MTBF	1,500,000 hours

Features
Features	TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security)

Environmental
Power Consumption (Idle)	35mW
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C

Dimensions & Weight
Height	80.00mm
Width	22.00mm
Depth	2.15mm

Additional Information
First Listed on Newegg	January 16, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
