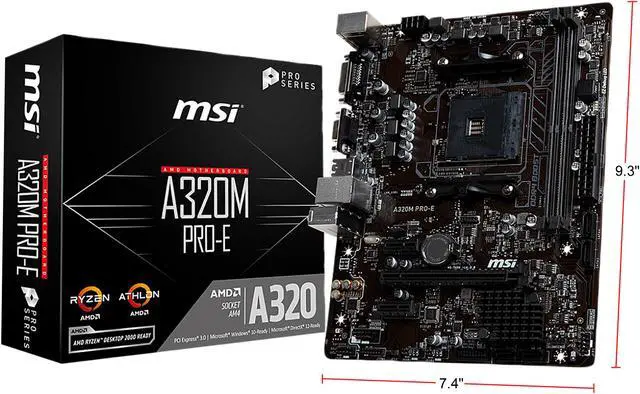

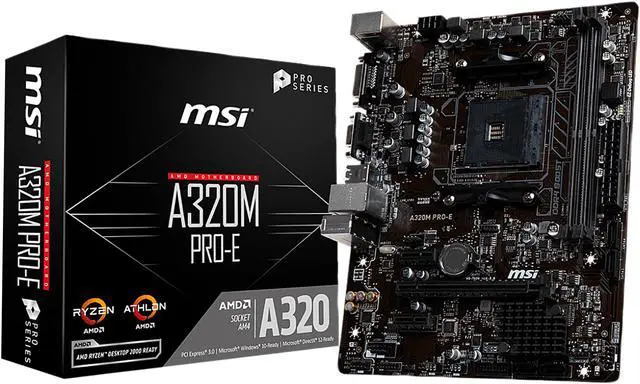

MSI PRO A320M PRO-E AM4 AMD A320 SATA 6Gb/s USB 3.1 Micro ATX AMD Motherboard
Used - Like New Product Type
- AMD A320
- Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4
- DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866*
- * A-series / Athlon X4 processors support a maximum of DDR4 2400
Specs
Learn more about the MSI A320M PRO-E
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | A320M PRO-E |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4 |
| Chipset | AMD A320 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866* * A-series / Athlon X4 processors support a maximum of DDR4 2400 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slot: Supports x16 speed with RYZEN Series Processors Supports x8 speed with AMD Ryzen with Radeon Vega Graphics and A-series / Athlon X4 Processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz Maximum shared memory of 2048MB Only support when using AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics and A-series Processors |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D Port 1 x VGA Port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 (SuperSpeed USB) ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.3" x 7.4" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports AMD Ryzen 1st and 2nd Generation / Ryzen and Athlon with Radeon Vega Graphics / A-series and Athlon X4 Processors for Socket AM4 Supports DDR4 Memory, up to 3200 (OC) MHz Audio Boost: Reward your ears with studio grade sound quality EZ Debug LED: Easiest way to troubleshoot X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device Core Boost: With premium layout and fully digital power design to support more cores and provide better performance |
|---|
| First Listed on Newegg | November 07, 2023 |
|---|
