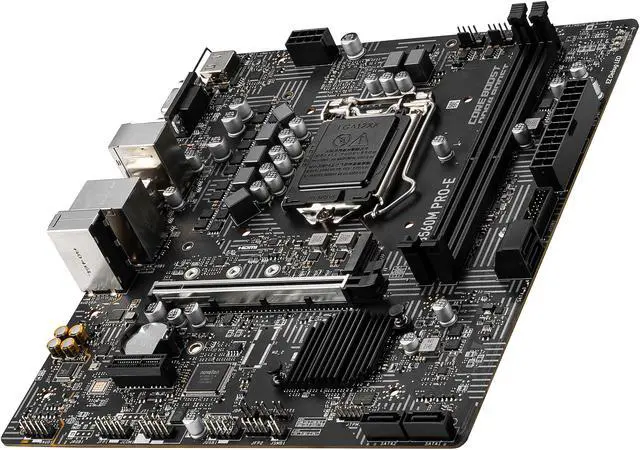

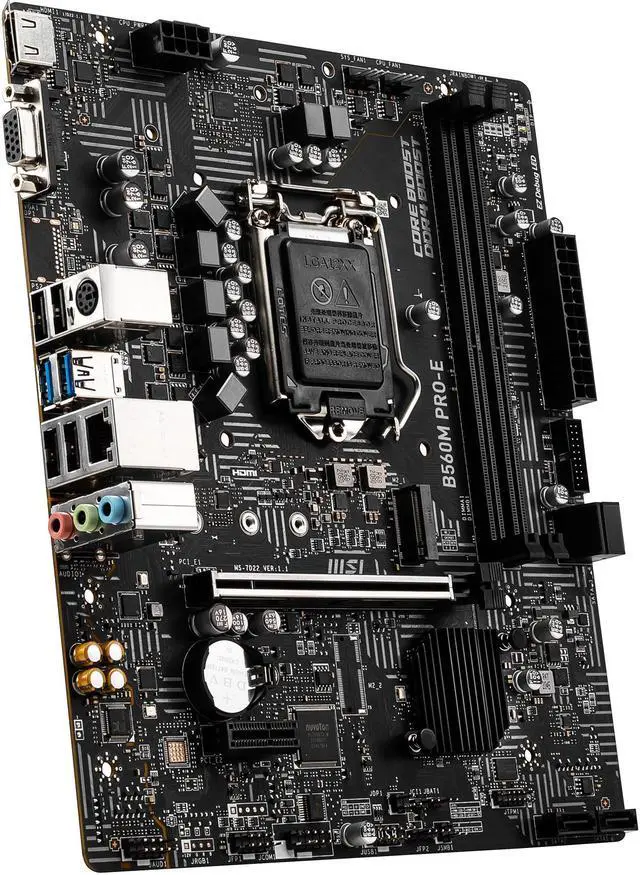

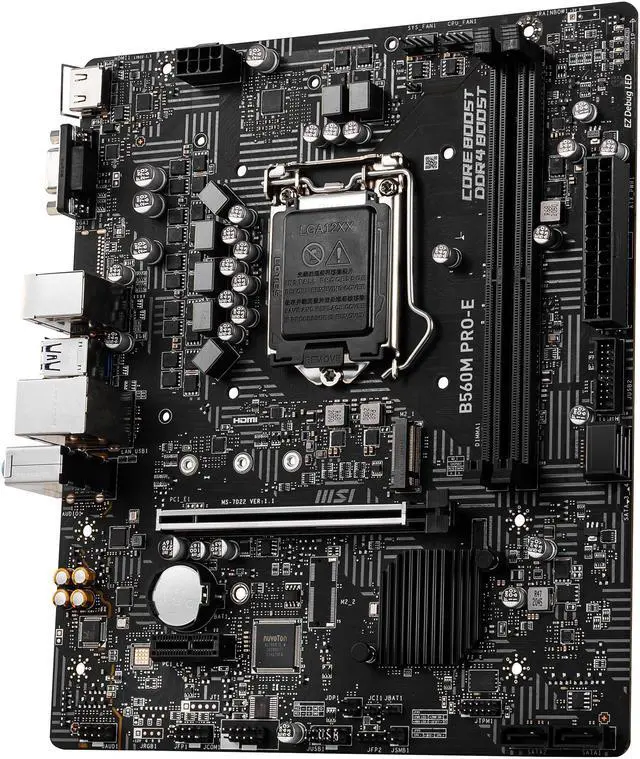

MSI B560M PRO-E LGA 1200 Intel B560 Micro ATX Intel Motherboard
REFURBISHED Product Type
- Intel B560
- Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors
- Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 1DPC 2R Max speed up to 4600+
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI B560M PRO-E
| Brand | MSI |
|---|---|
| Model | B560M PRO-E |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold / Celeron Processors |
| Chipset | Intel B560 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR) Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 1DPC 2R Max speed up to 4600+ |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (Key M): M2_1 slot (From B560 Chipset): Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s* Supports 2242/2260/2280 storage devices * SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

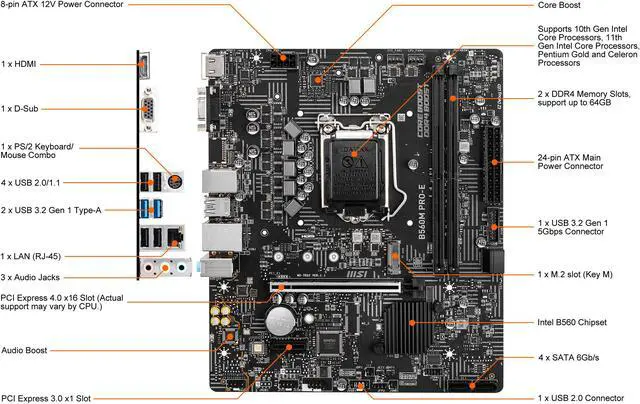

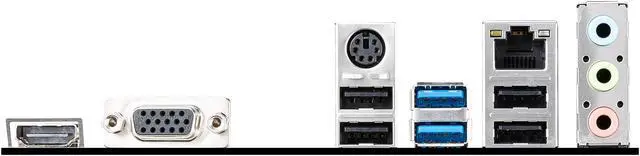

| Back I/O Ports | 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1 3 x Audio Jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.3" x 8.0" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 4800(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Lightning Fast Experience: PCIe 4.0 Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
|---|
| First Listed on Newegg | March 24, 2026 |
|---|
