- Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

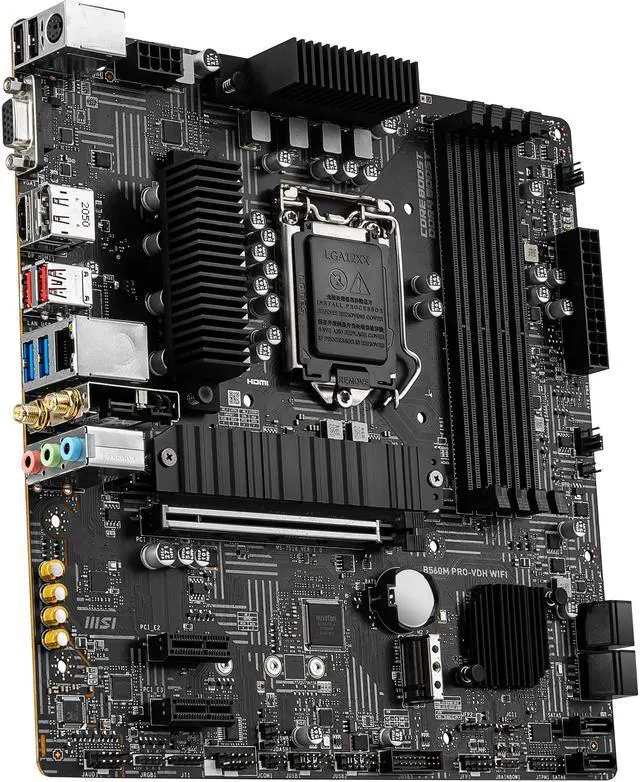

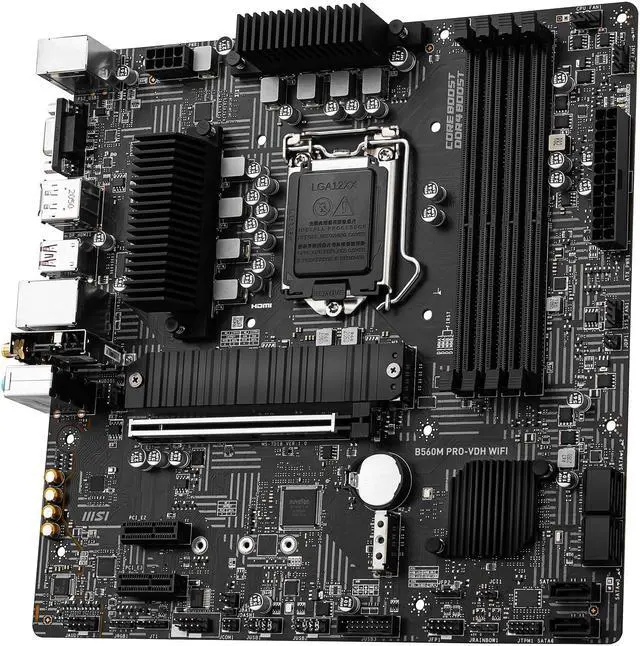

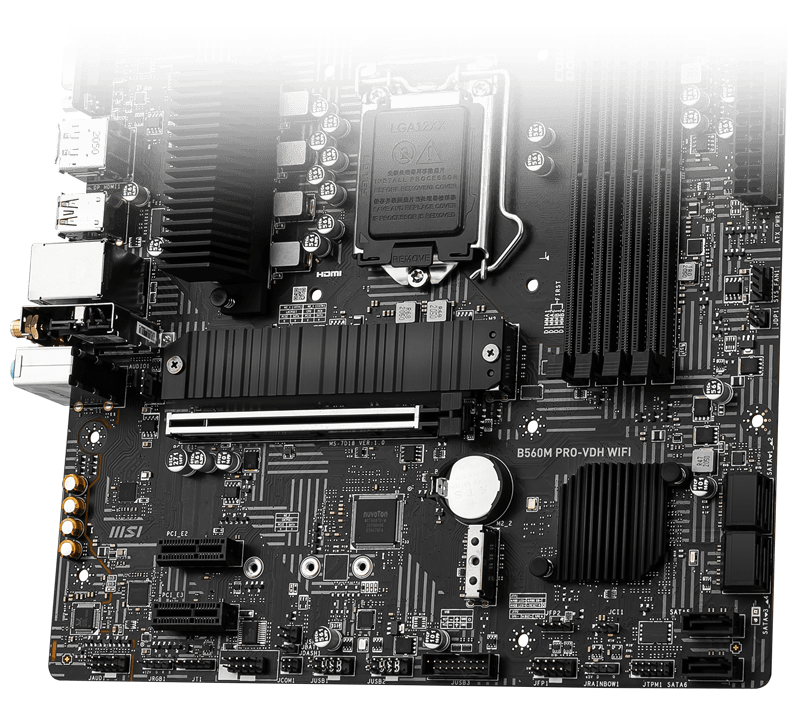

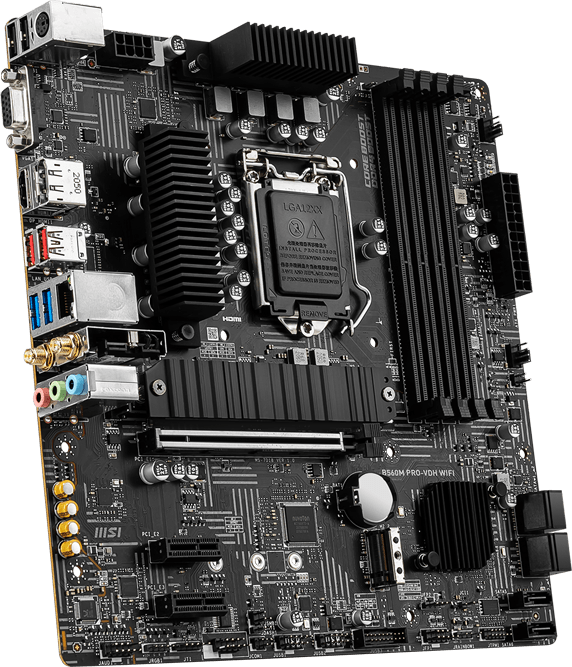

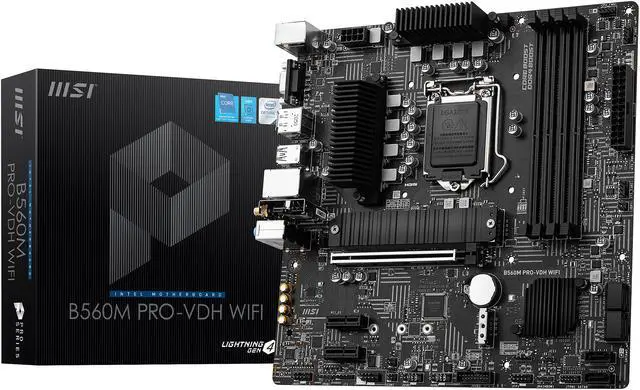

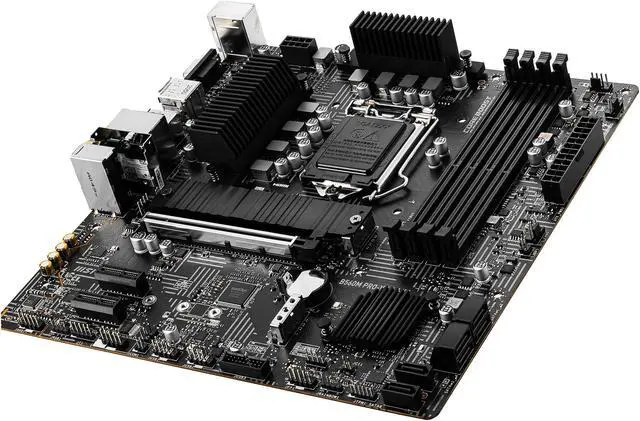

MSI B560M PRO-VDH WIFI

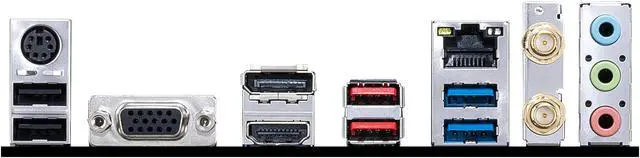

An Intel B560 powered micro ATX motherboard that offers a solid foundation for your next office, home or gaming PC based on the latest 11th / 10th gen Intel Core processors. It combines premium components, comprehensive onboard cooling, and next-gen connectivity including PCI 4.0 and 2.5 GBE LAN. Three video outputs (VGA, DisplayPort, and HDMI) offer broad display compatibility, while built-in Wi-Fi & Bluetooth bring you out-of-the-box wireless convenience, no dongle required.
MSI motherboards feature tons of convenient and smart design for DIY users. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweakers. Makes it so easy to install your own motherboard without any issue.

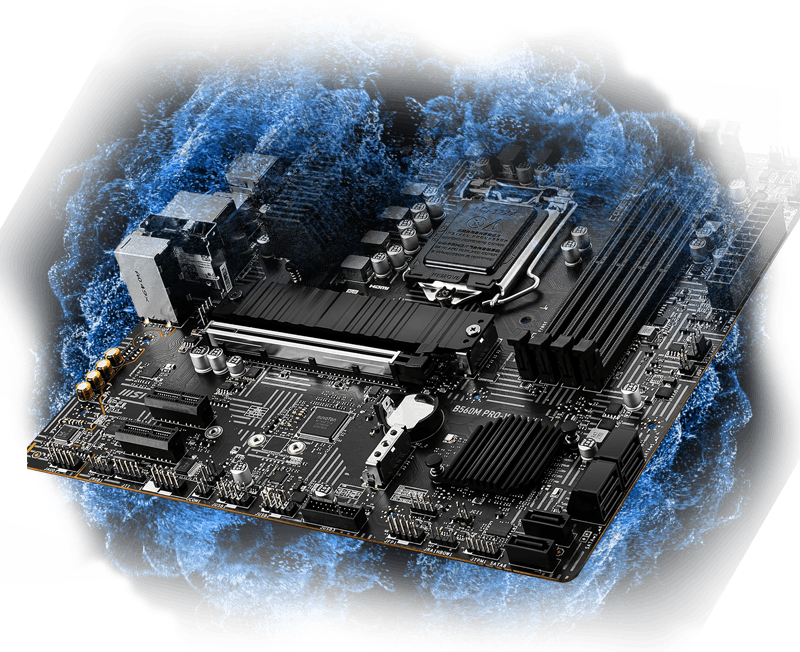

M.2 SHIELD FROZR
World’s fastest SSDs can turn to lower performance when getting hot. Part of the motherboard's heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

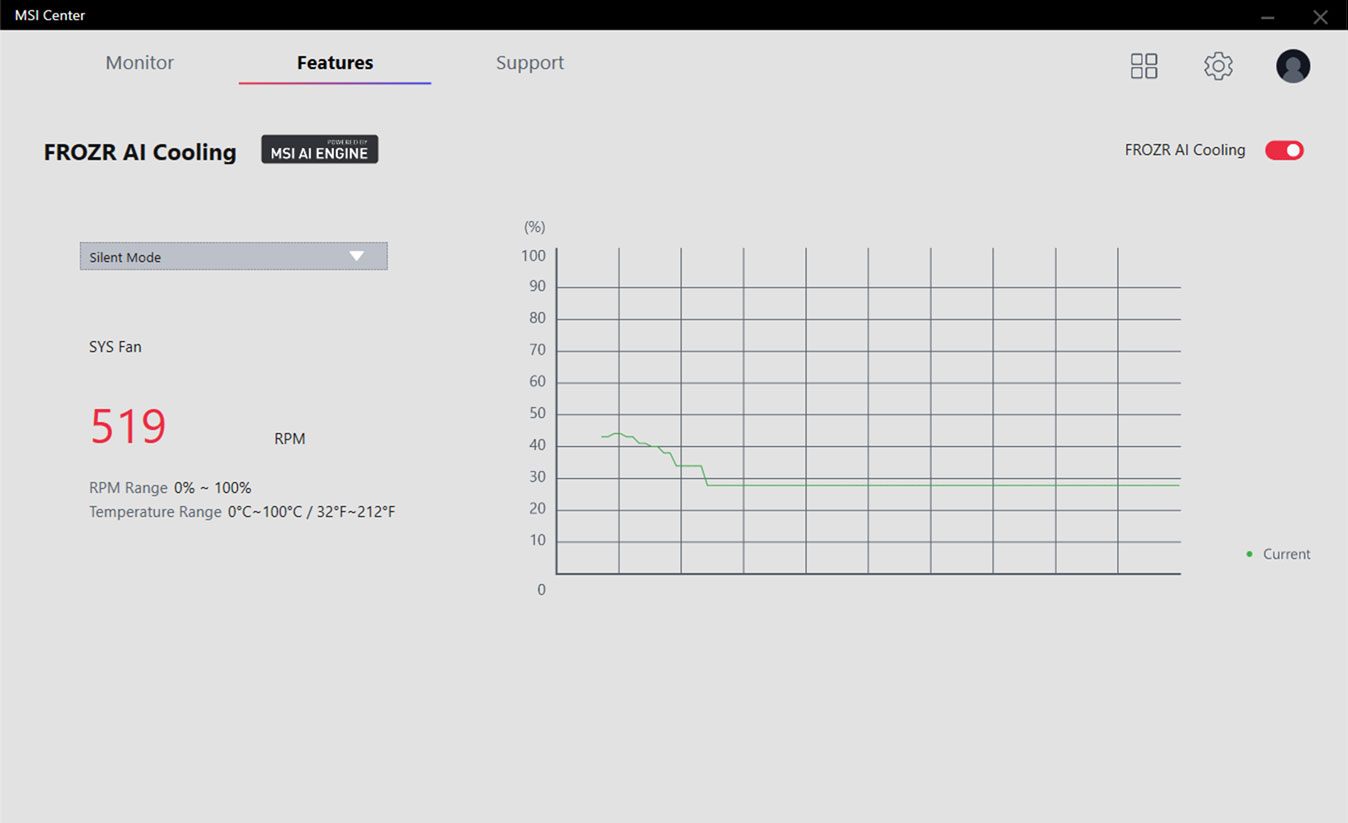

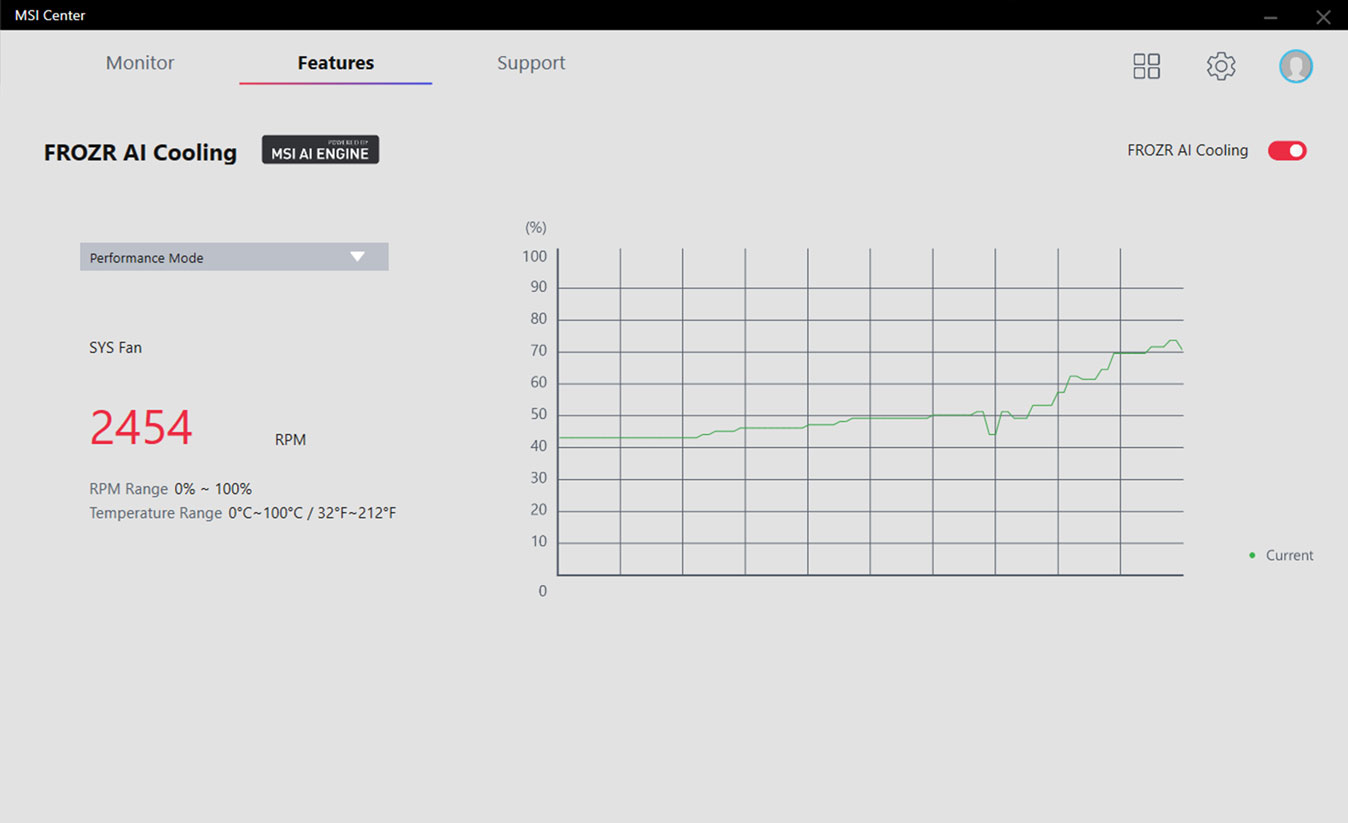

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting parameters of system fans to a proper value by adopting MSI AI ENGINE.
Performance mode
Silent mode

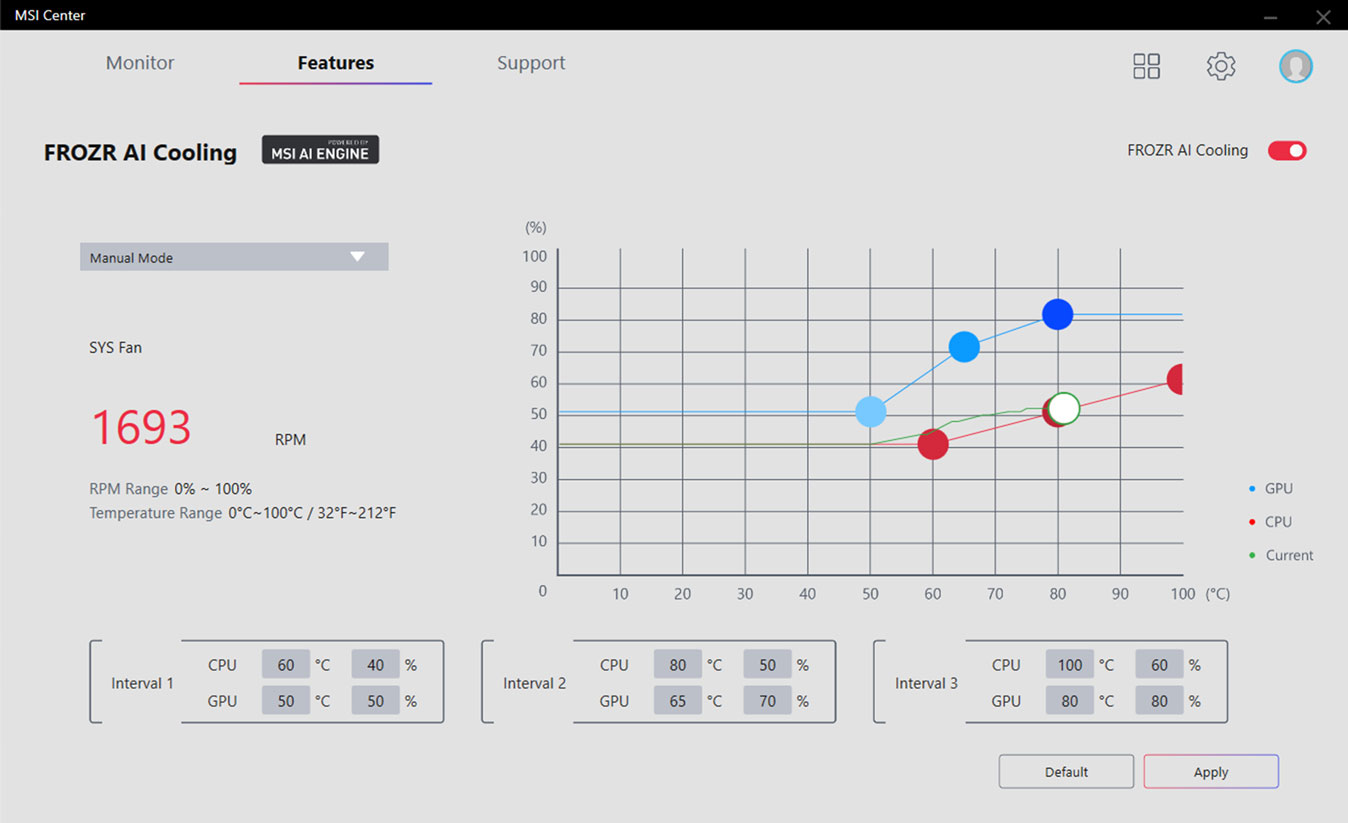

Manual mode

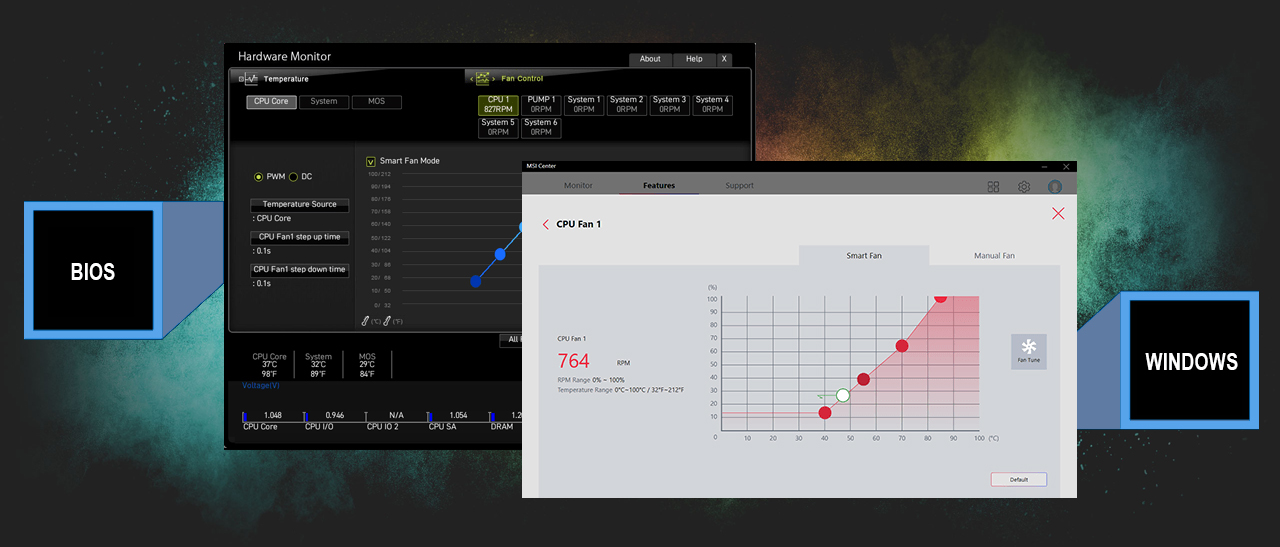

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to four temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

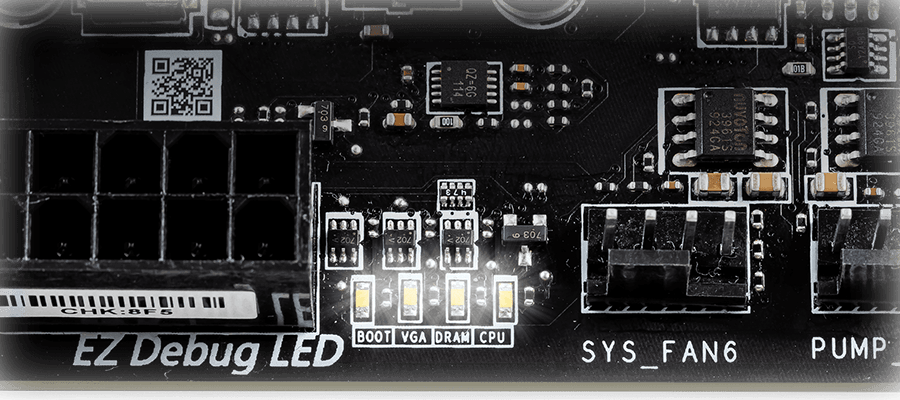

EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
COMPATIBILITY

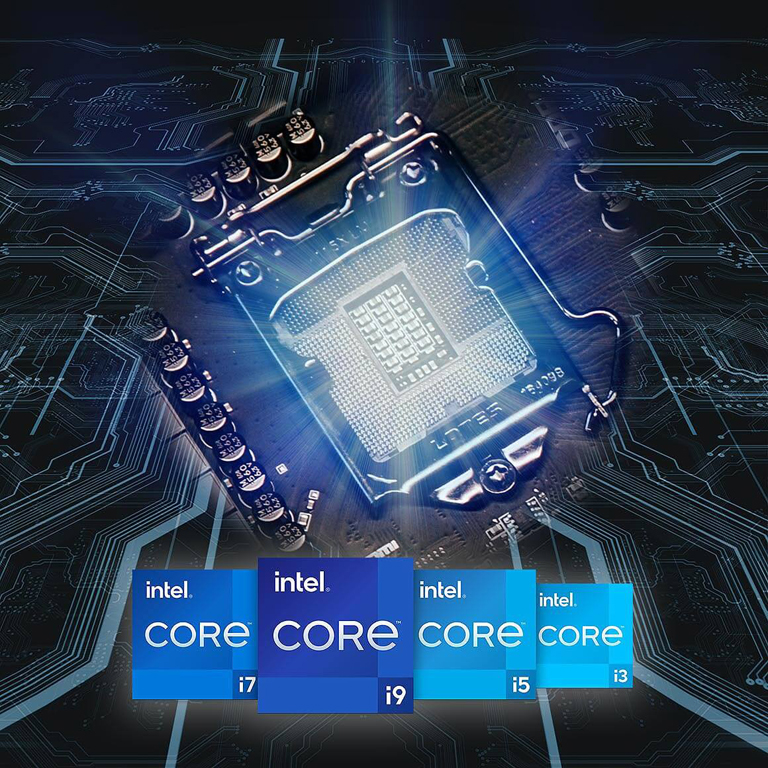

11TH GEN CORE PROCESSORS SUPPORT
EXTREME STABILITY & COMPATIBILITY TESTING FOR MEMORY
WINDOWS 10 CERTIFIED

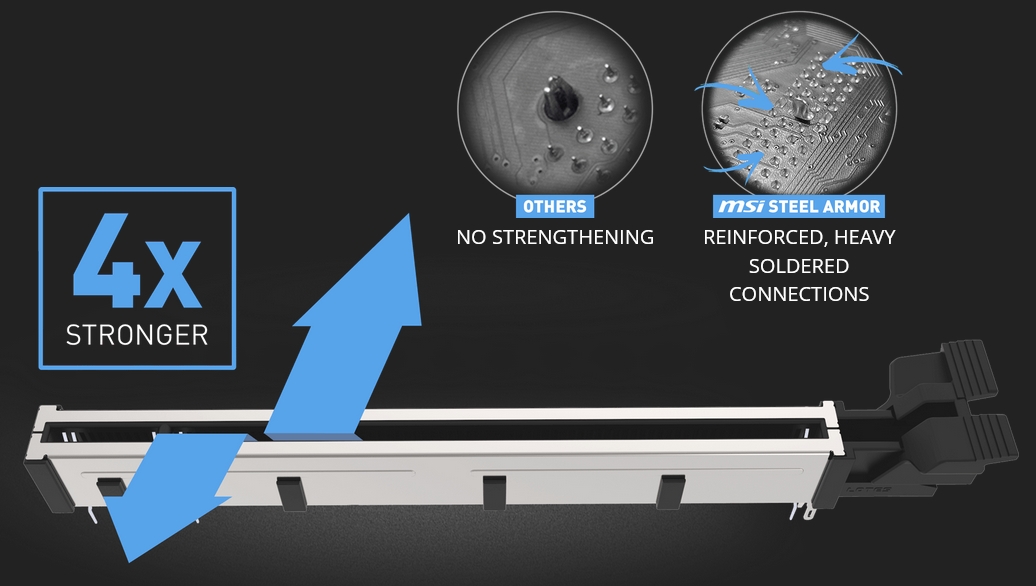

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

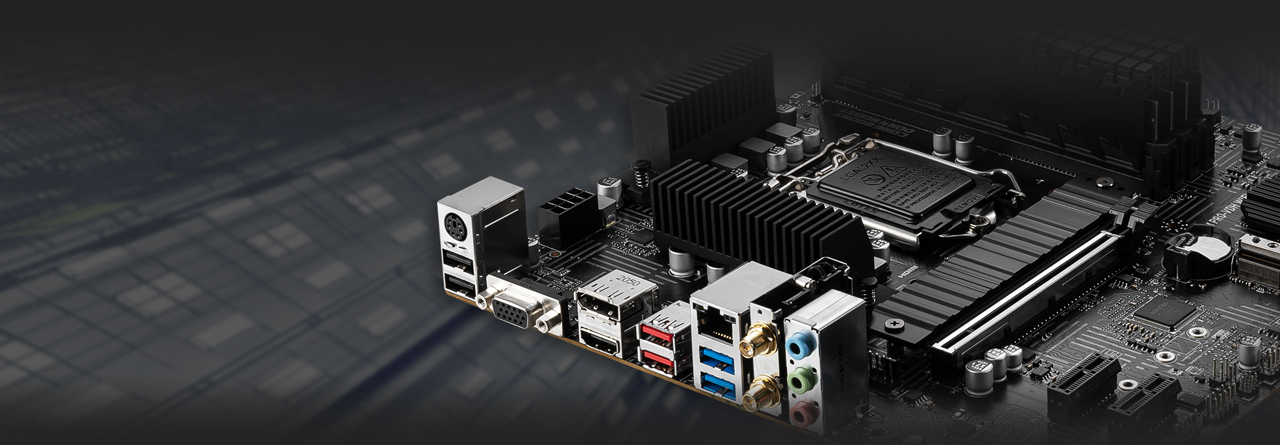

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

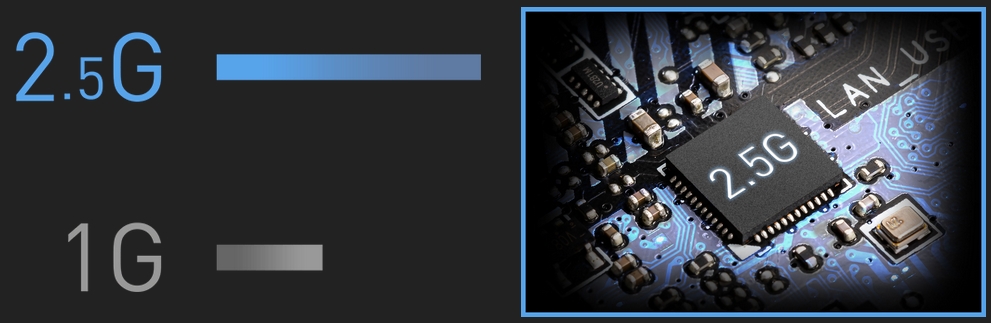

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

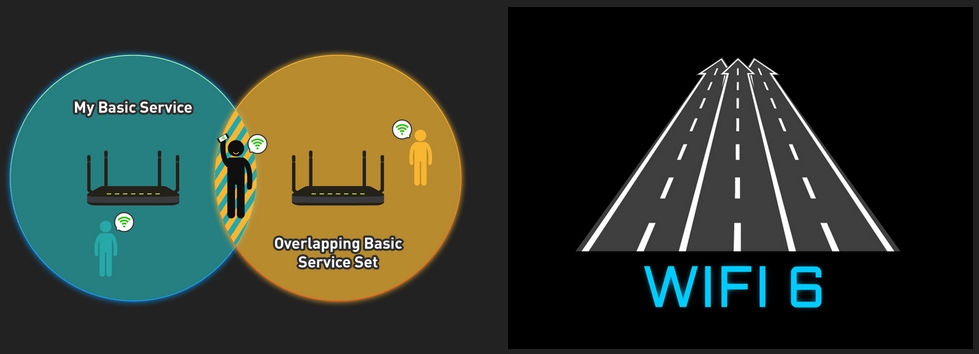

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Compared to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

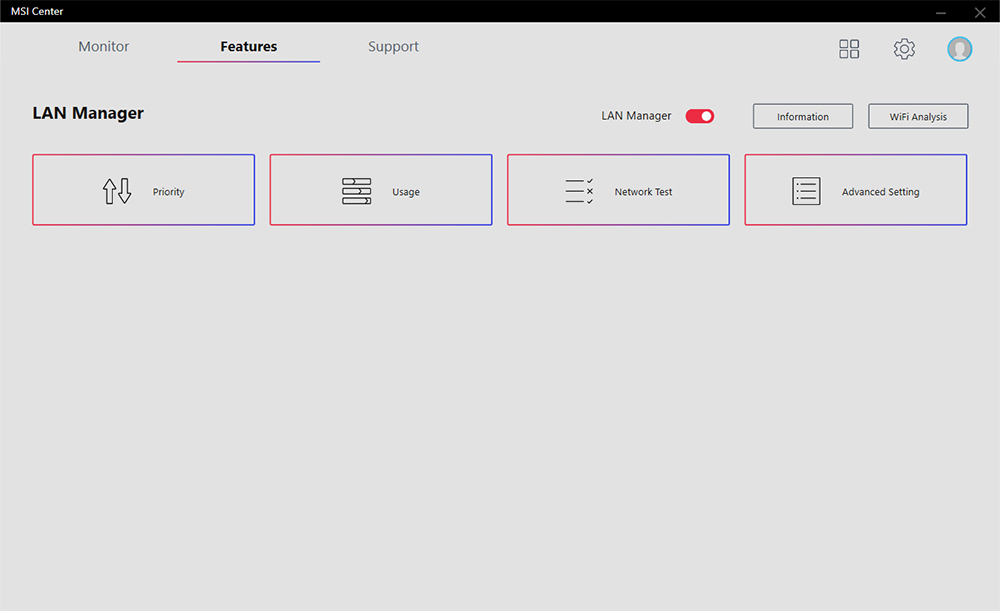

MSI LAN MANAGER
- Allows you to change applications' traffic priority -
- Allows you to customize bandwidth for each application -

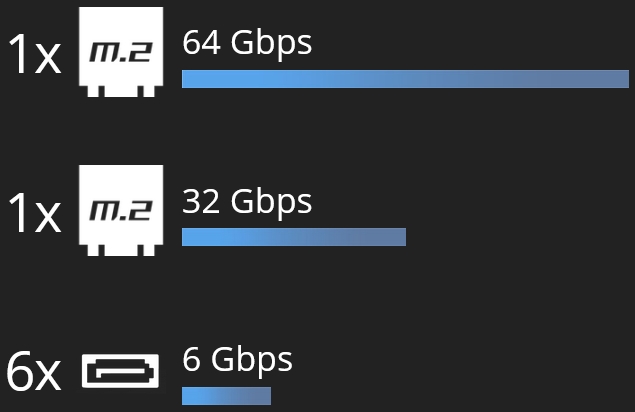

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64Gb/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

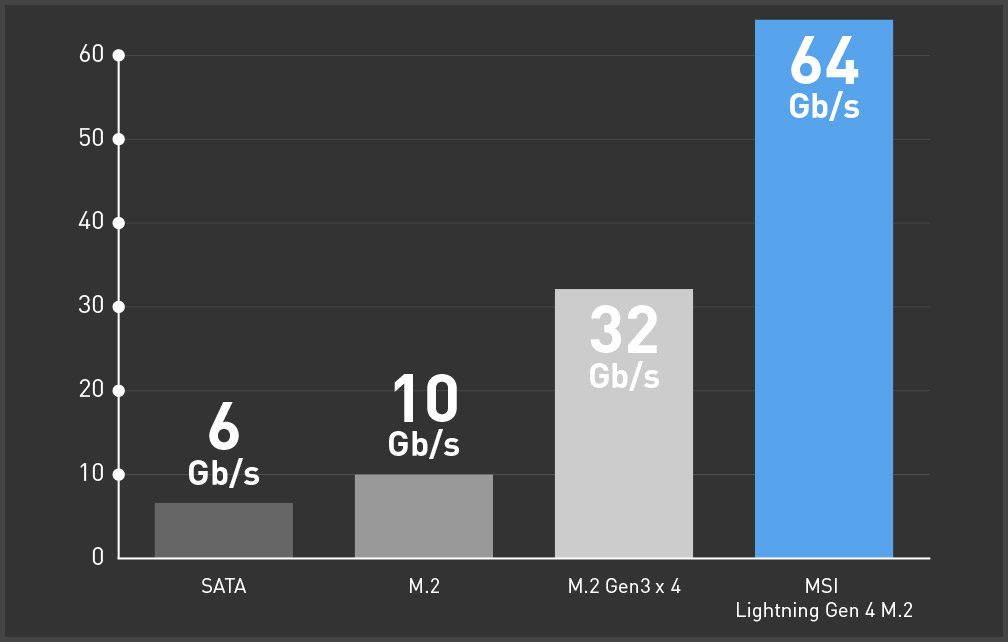

LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

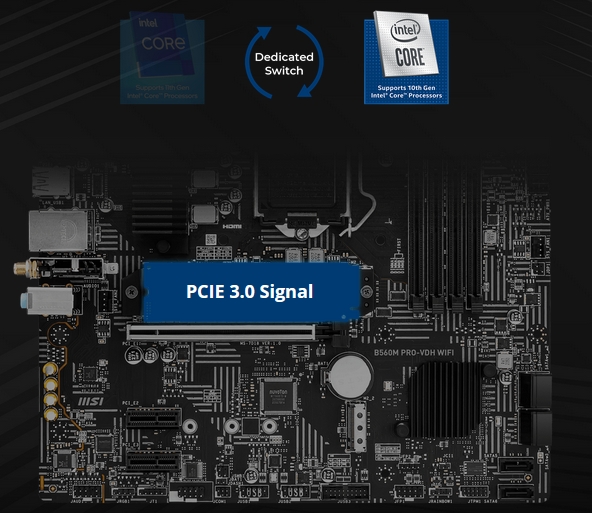

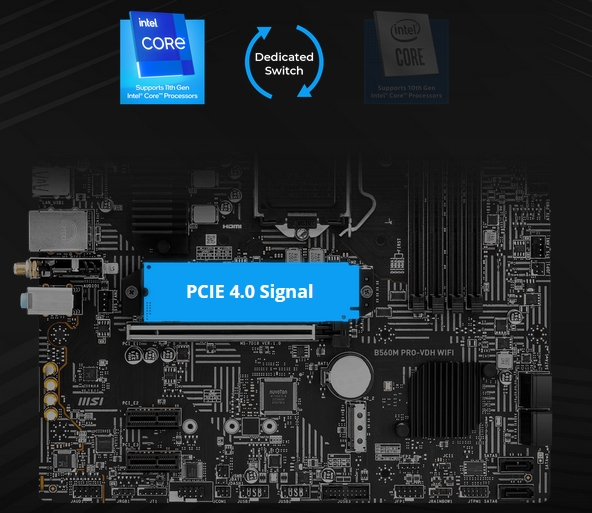

MSI M.2 AUTO SWITCH
MSI motherboard features dedicated switches that allow the first M.2 connector to automatically synchronize to either 11th or 10th Gen Intel Core processors for the maximum compatibility.
USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, providing wide variety of options to connect your USB 3.2 Gen 1 devices.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

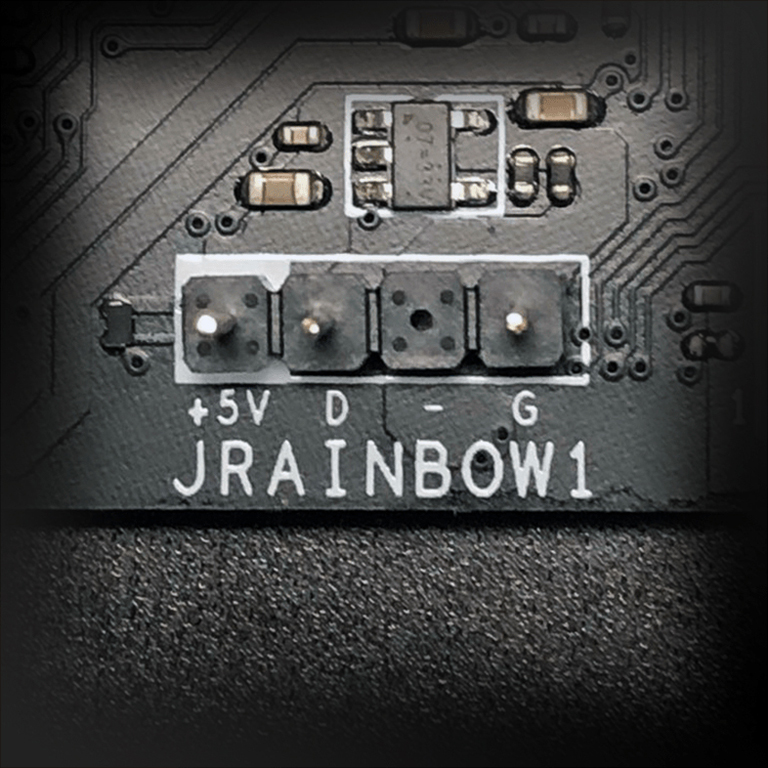

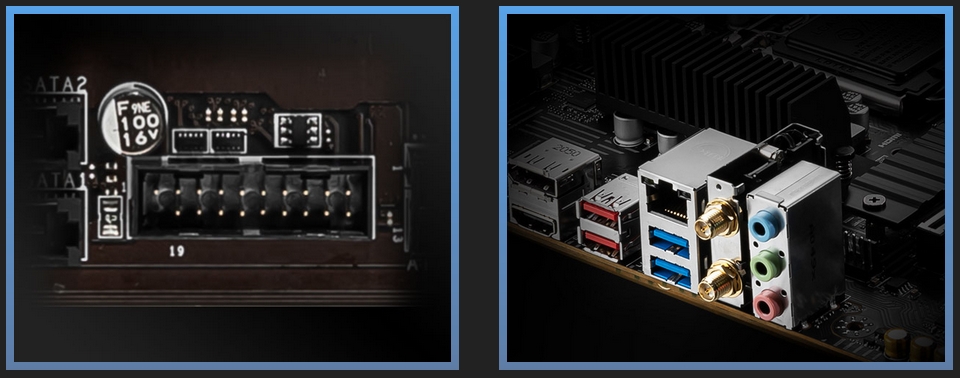

JRAINBOW
Connects 3-pin 5V Addressable LED strip

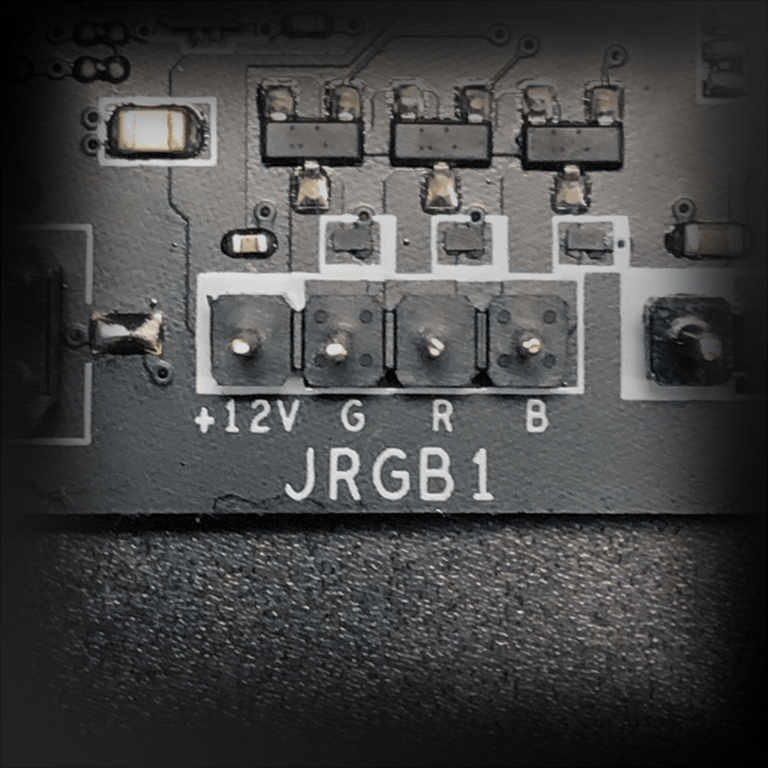

JRGB
Connects 4-pin 12V RGB LED strip
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

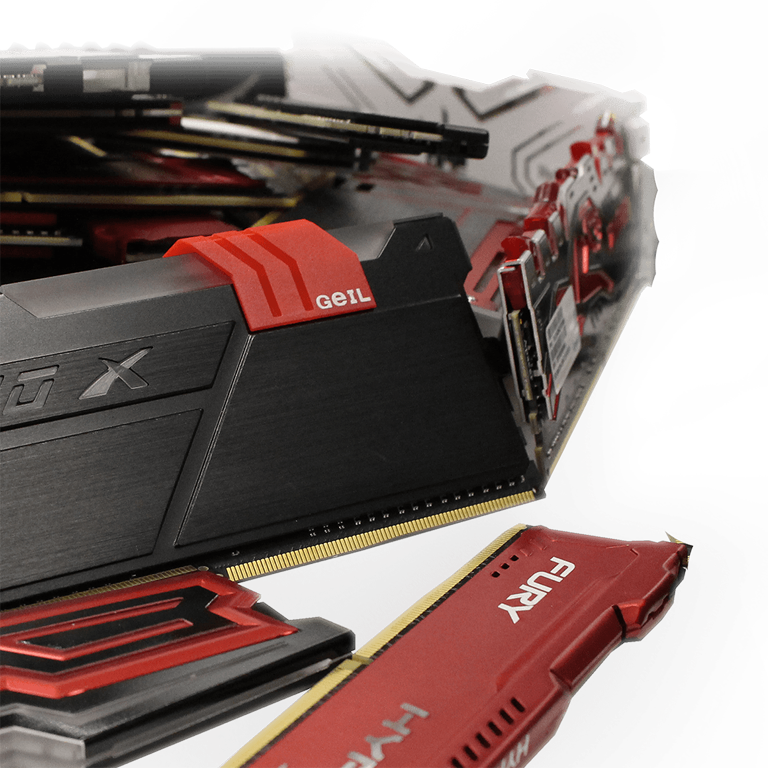

A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
LOWER LANTENCY AND MORE EFFICIENCY
RELEASE HIGHER MEMORY FREQUENCY
AUDIO BOOST
DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound.

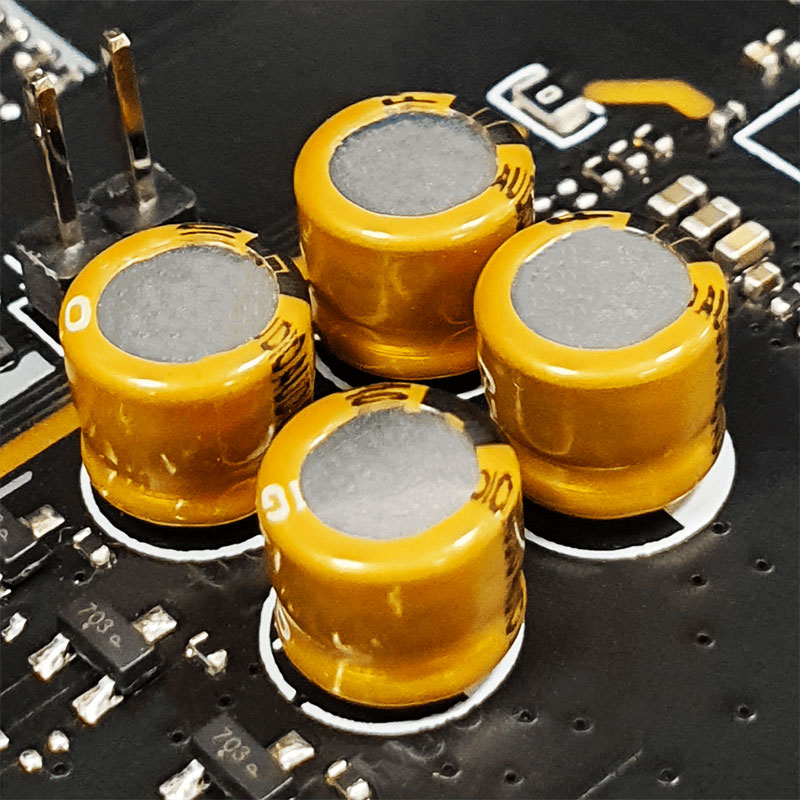

HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

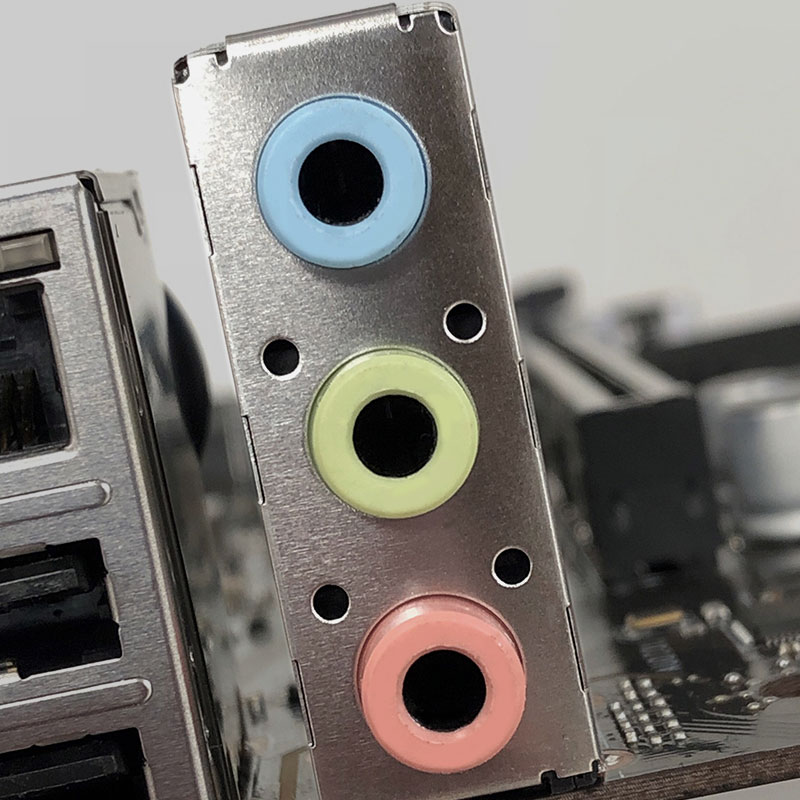

HD AUDIO CONNECTORS
Keep you sound perfect by transmitting your audio with pure digital signal.

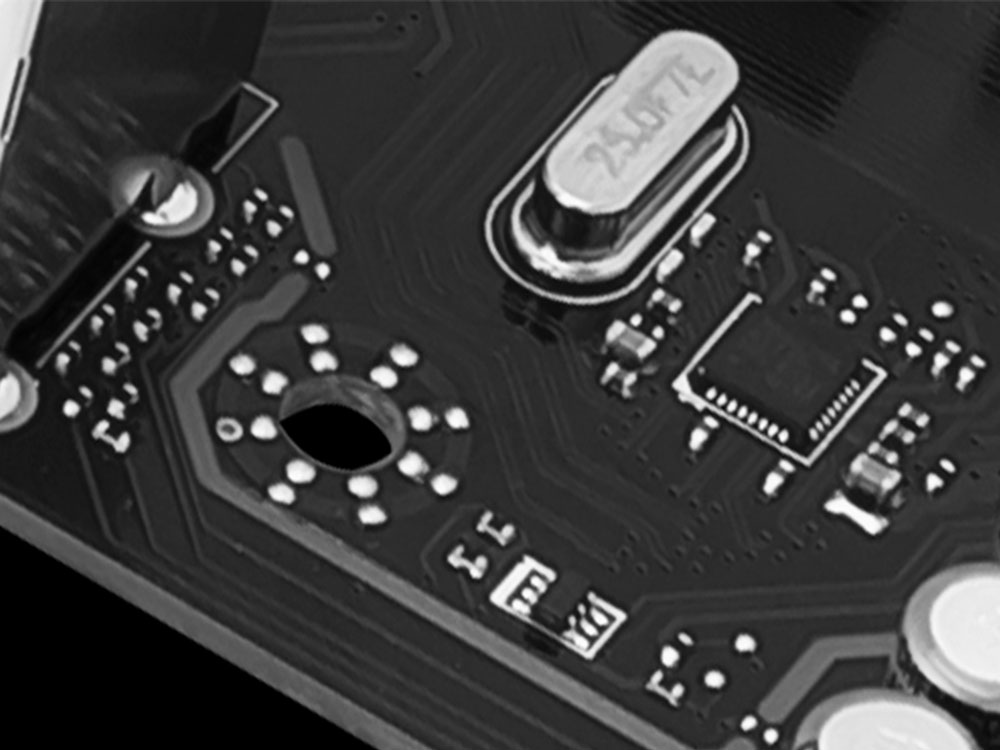

ISOLATED AUDIO SIGNAL
ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

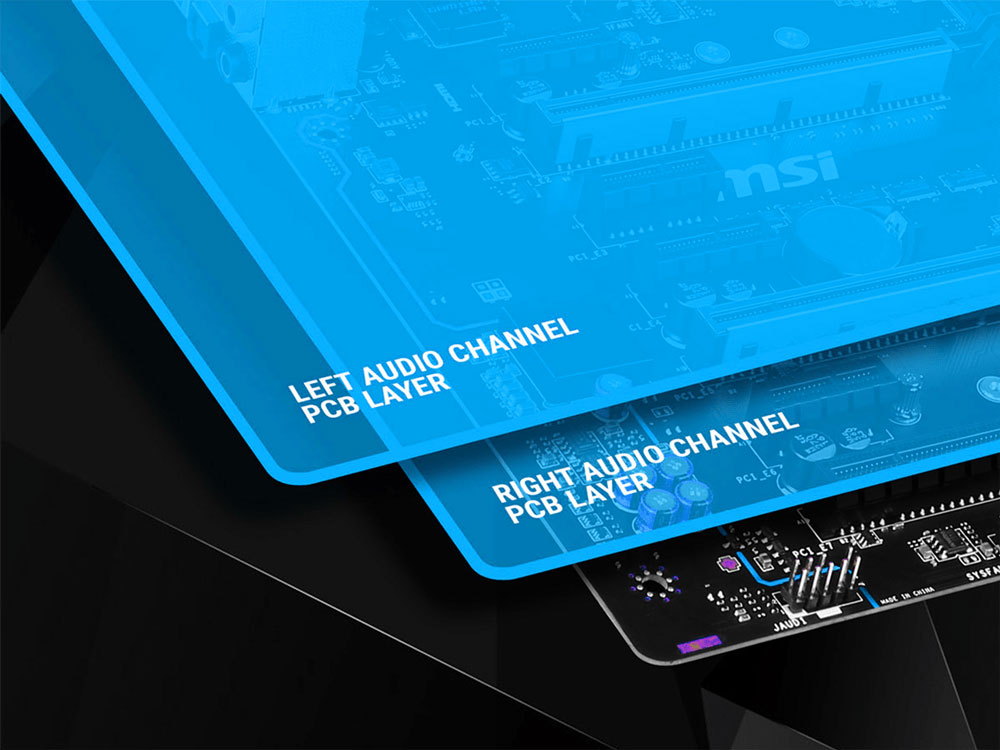

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

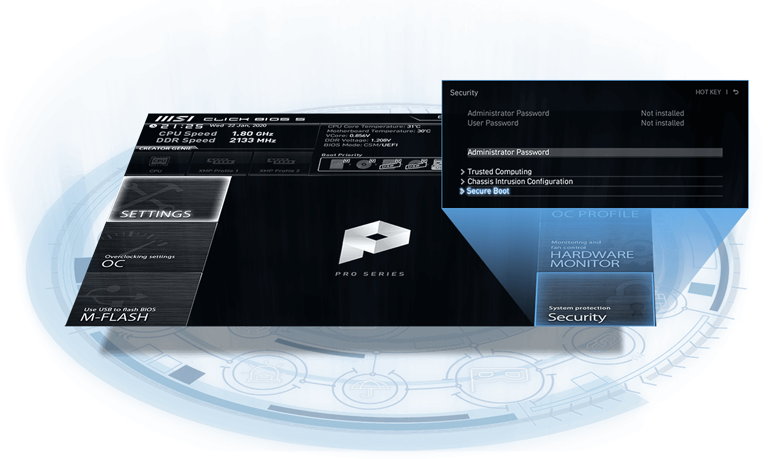

SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for business or daily use.
Secure Boot
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
