NVIDIA Turing Architecture. This revolutionary architecture, combined with our all-new GeForce RTX platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You've never created and enjoyed games like this before. Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what's possible using traditional rendering techniques. NVIDIA Turing is the first GPU capable of real-time ray tracing. GeForce RTX gaming GPUs come loaded with next-generation GDDR6 memory, support for DirectX 12 features, and more. This is graphics reinvented.

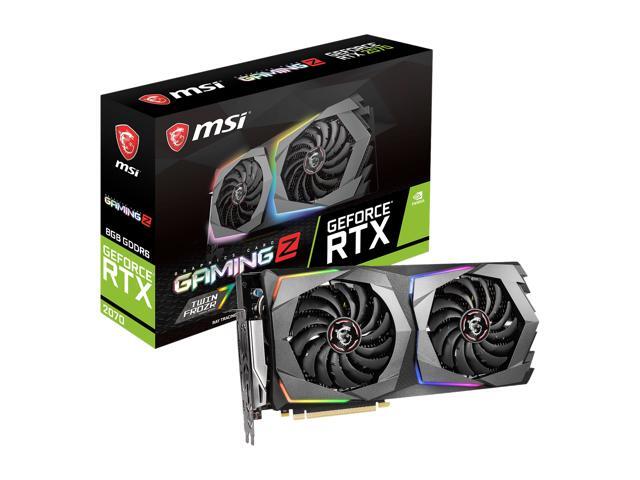

Learn more about the MSI RTX 2070 GAMING Z 8G
Model
Brand
MSI
Model
RTX 2070 GAMING Z 8G
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 20 Series
GPU
GeForce RTX 2070
Core Clock
1410 MHz
Boost Clock
1830 MHz
CUDA Cores
2304 Cores
Memory
Effective Memory Clock
14 Gbps
Memory Size
8GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.5
Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.0b
DisplayPort
3 x DisplayPort 1.4
Other Ports
1 x USB Type-C
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Cooler
Double Fans
Thermal Design Power
225W
System Requirements
Recommended PSU: 550W
Recommended PSU Wattage
550W
Power Connector
1 x 8-pin, 1 x 6-pin
HDCP Ready
2.2
Features
Features
Twin Frozr 7 Thermal Design: TORX Fan 3.0 with Double Ball Bearings - Dispersion fan blade: Steep curved blade accelerating the airflow. - Traditional fan blade: Provides steady airflow to massive heat sink below. Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high. Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.
RGB Mystic Light: Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
Dragon Center: 1 click to optimize all you need for smooth gaming.
Form Factor & Dimensions
Max GPU Length
307 mm
Card Dimensions (L x H)
12.09" x 6.10"
Packaging
Package Contents
Accessories: 1 x Graphics Card Support Bracket
Additional Information
Date First Available
October 09, 2024
