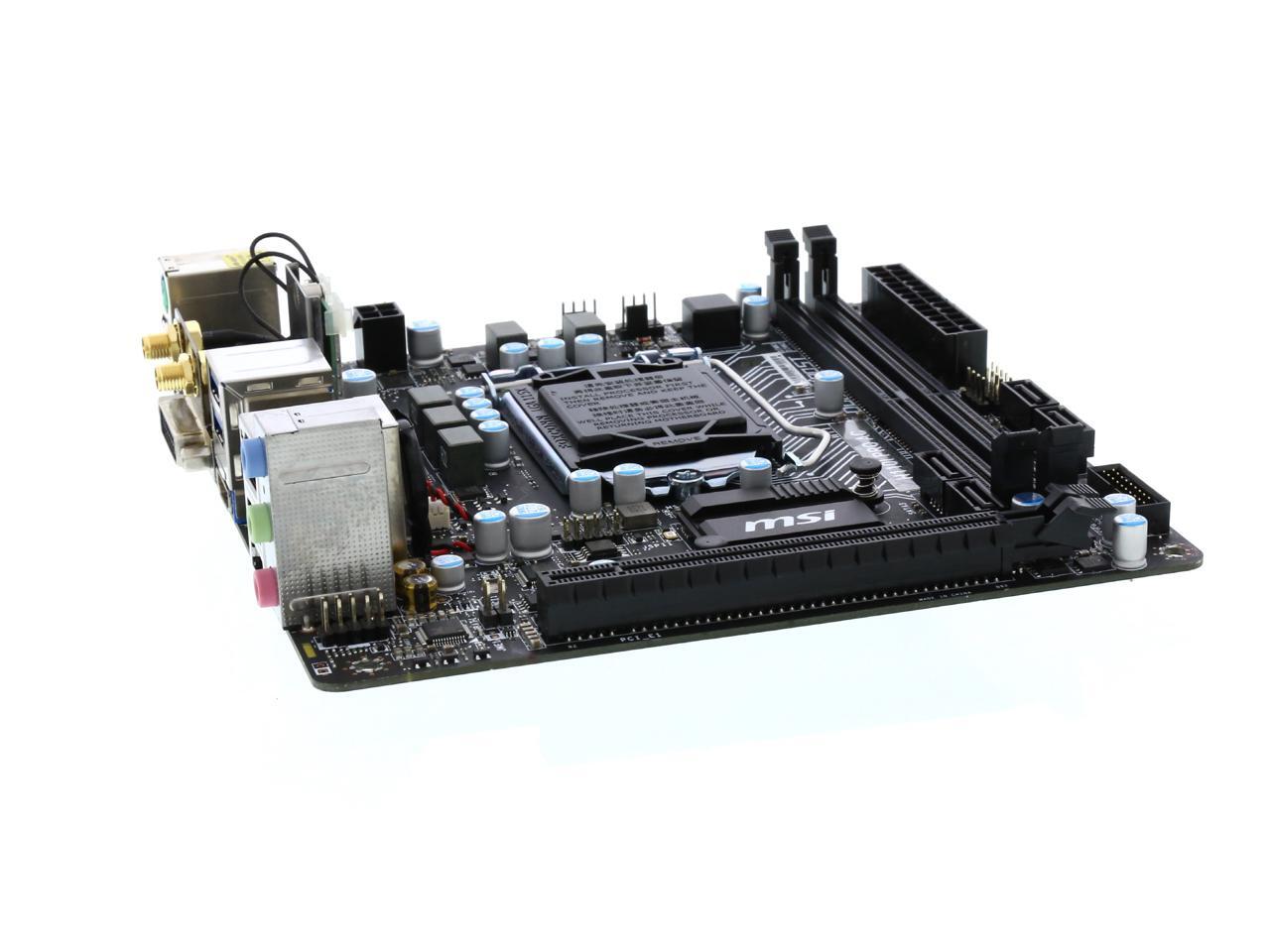

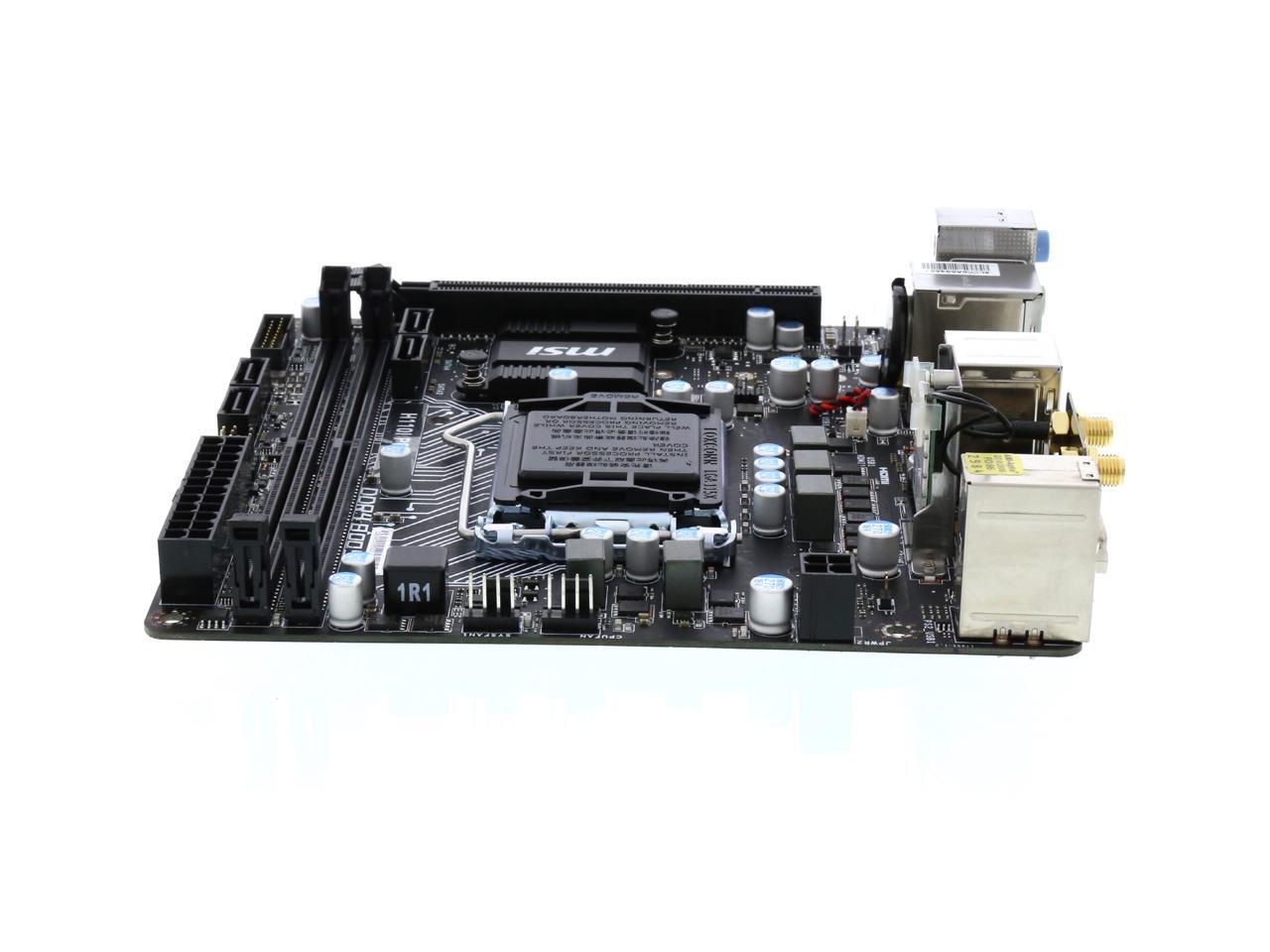

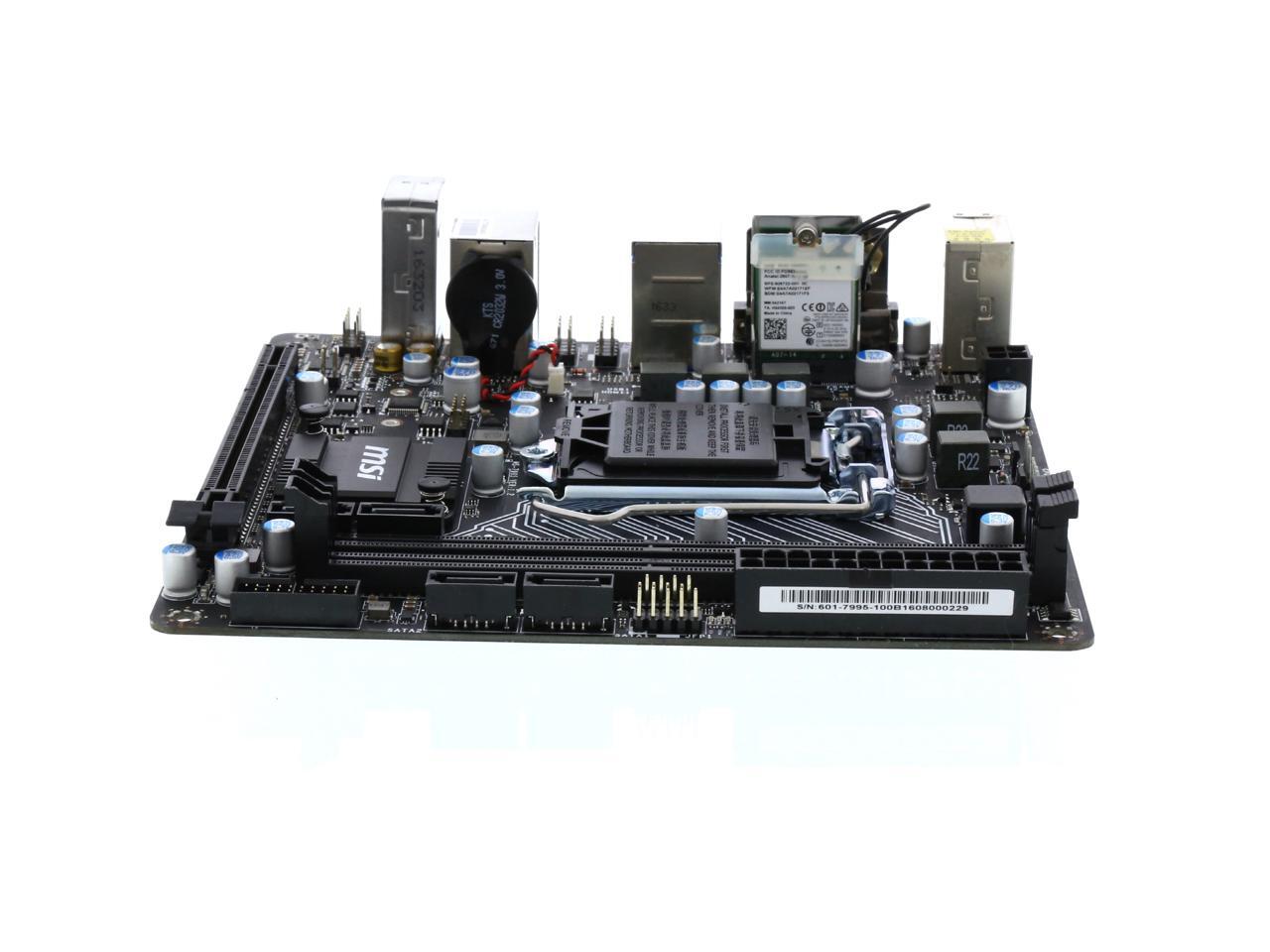

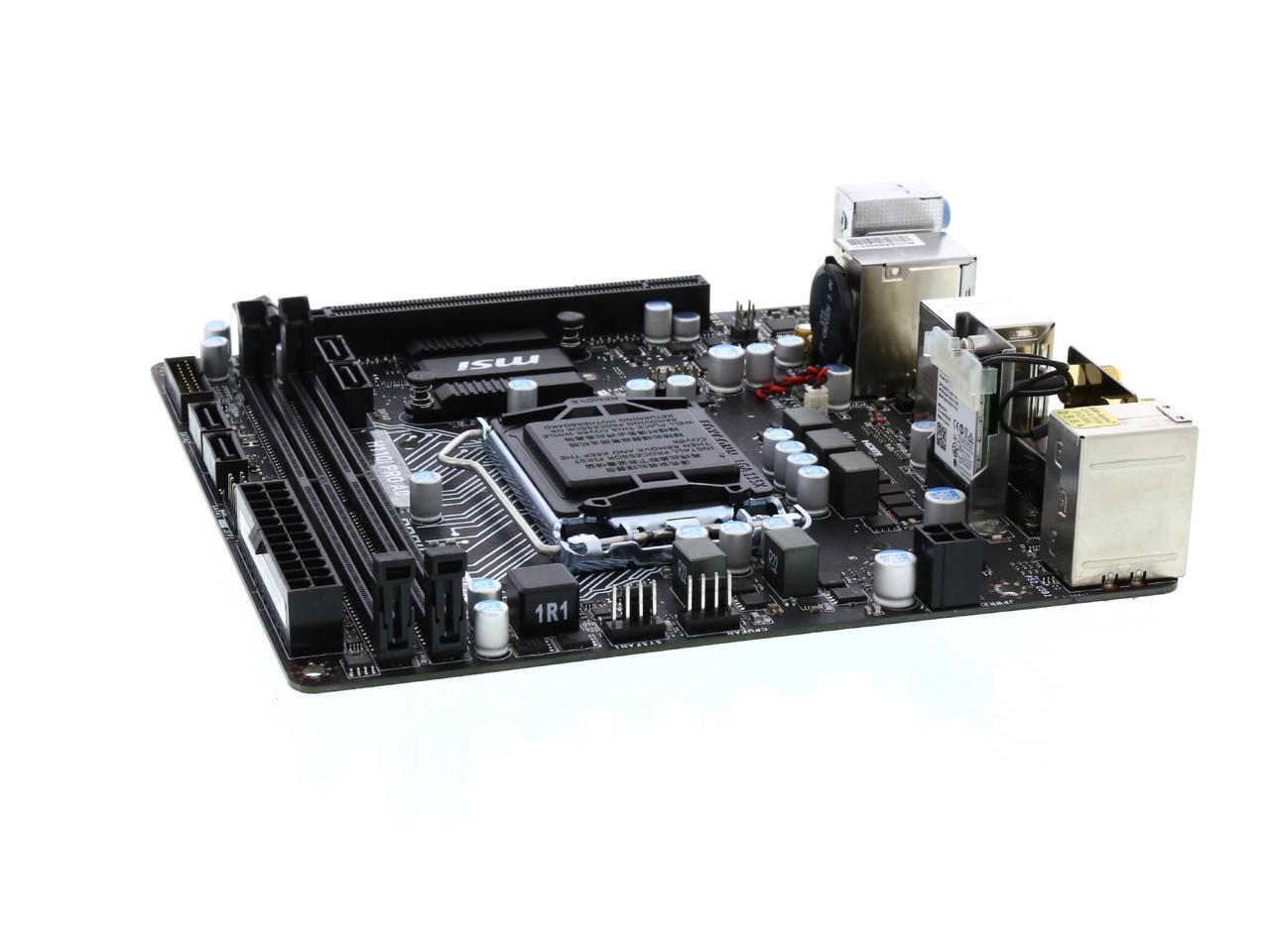

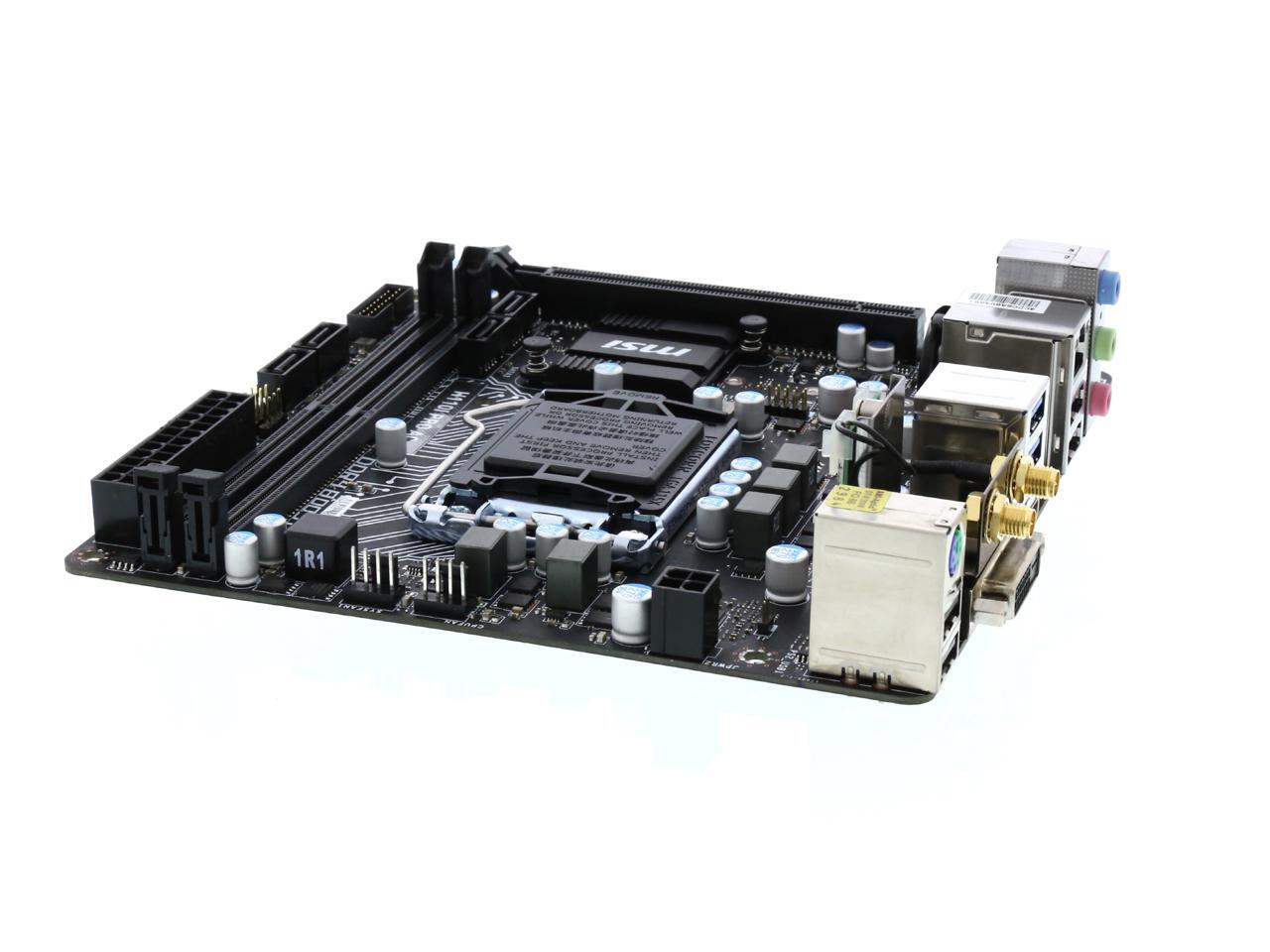

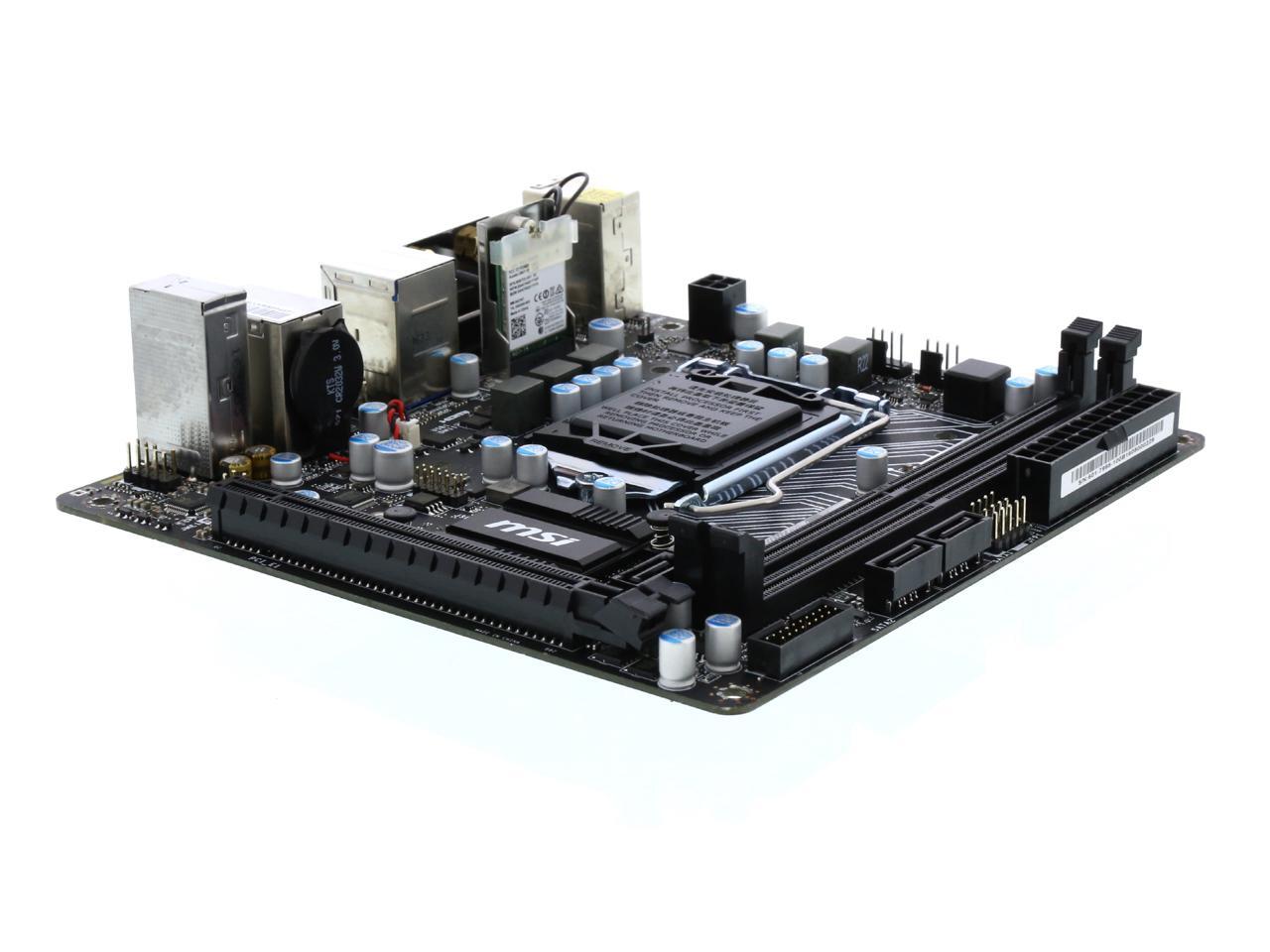

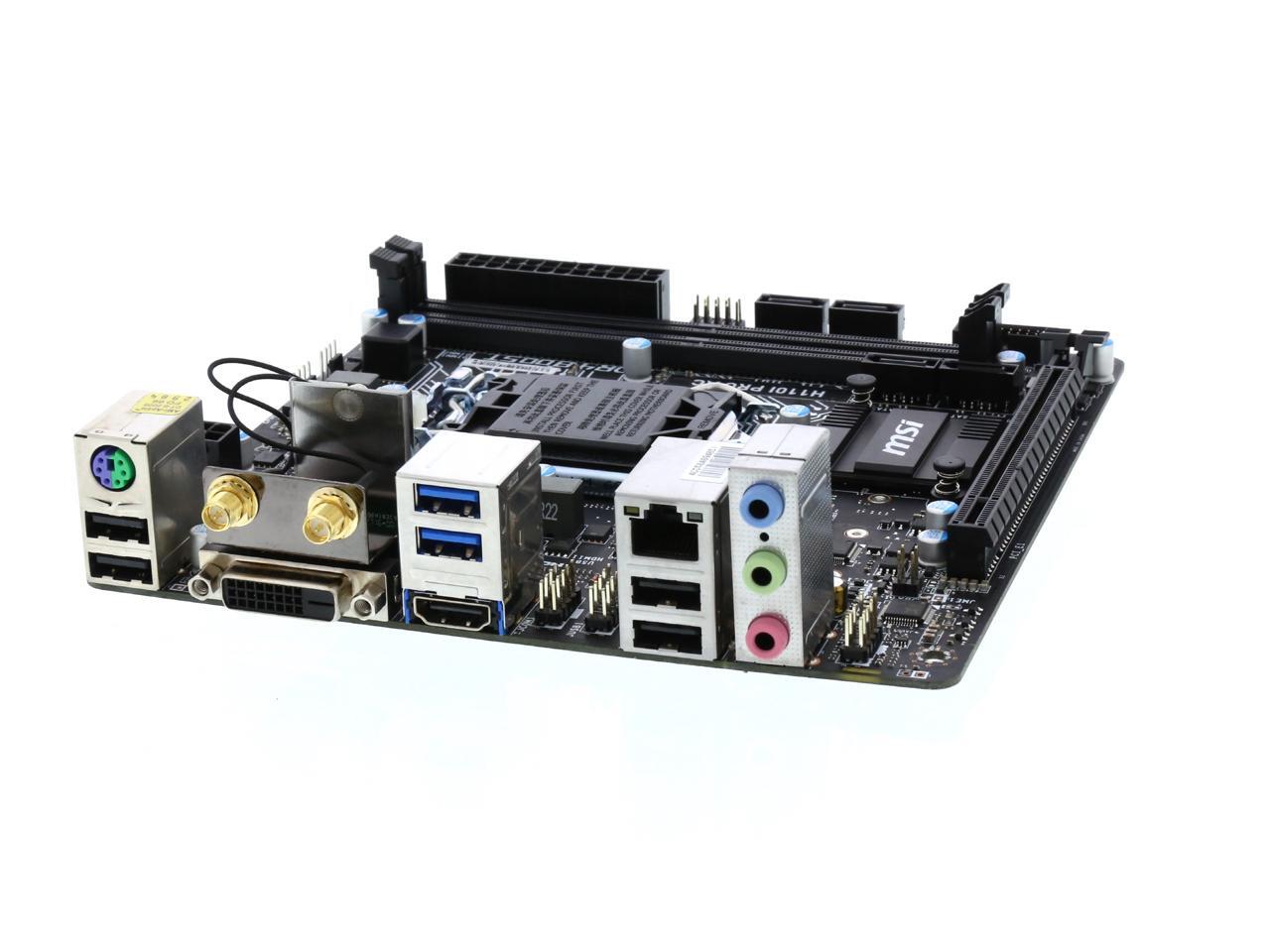

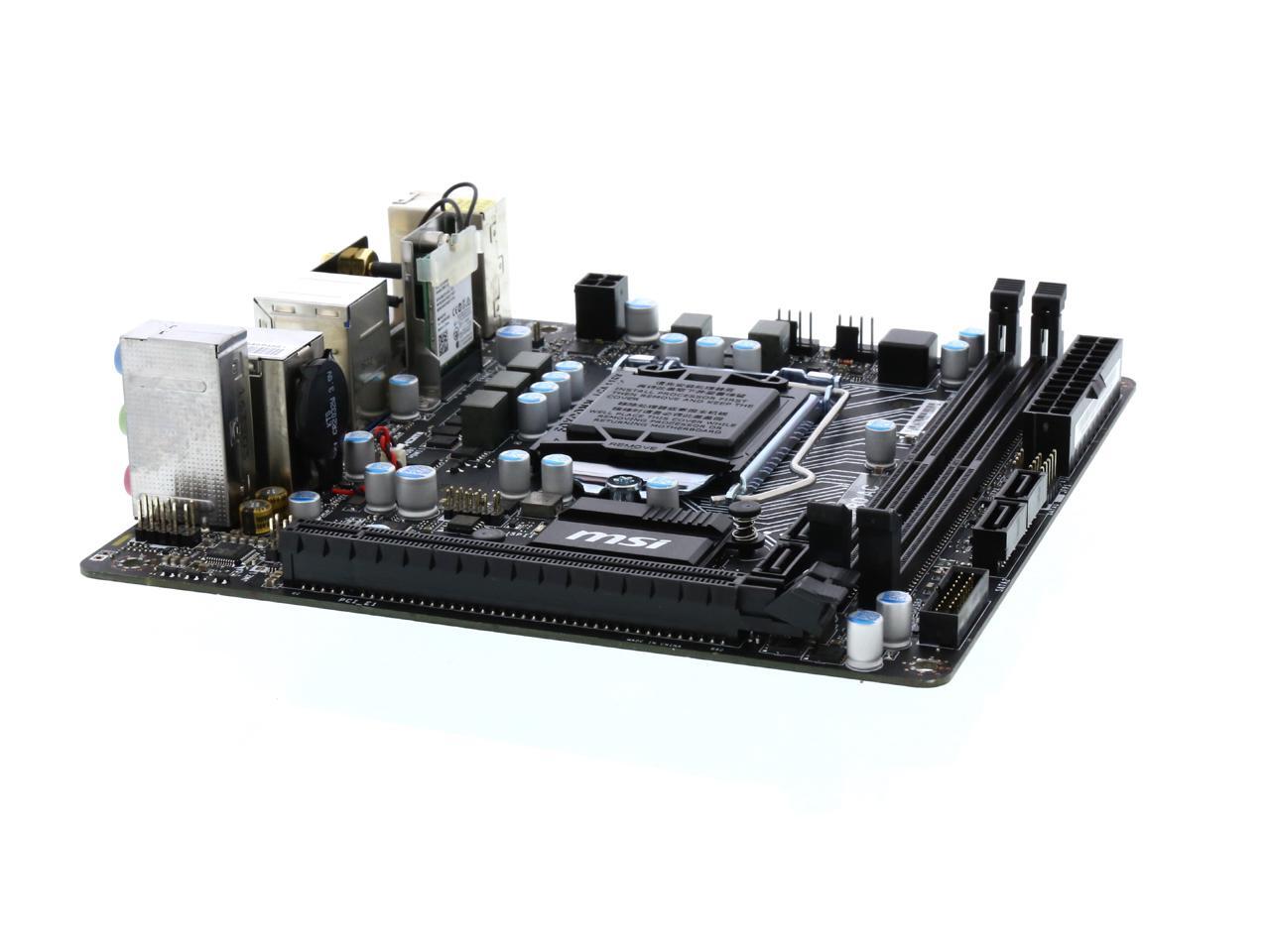

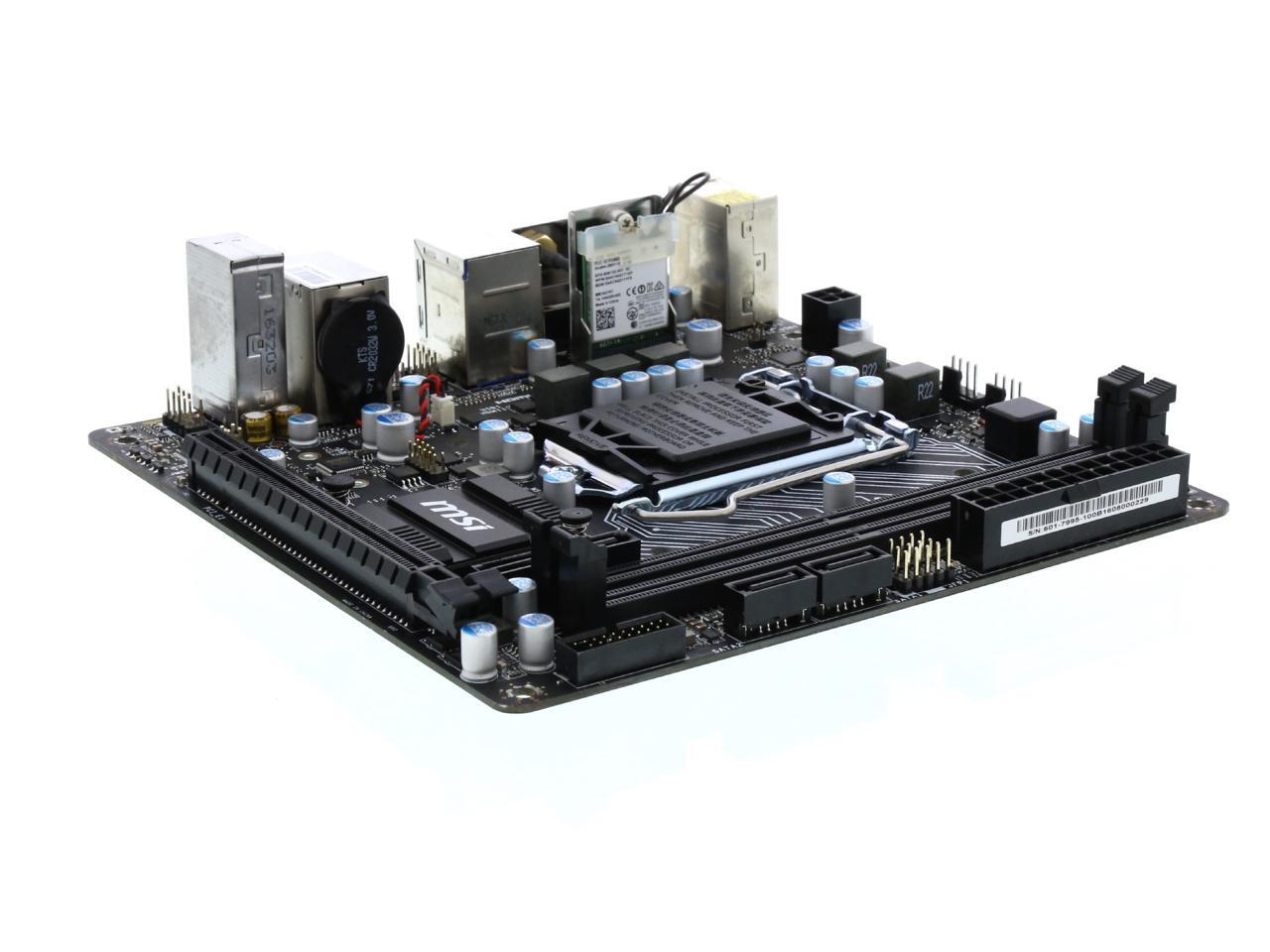

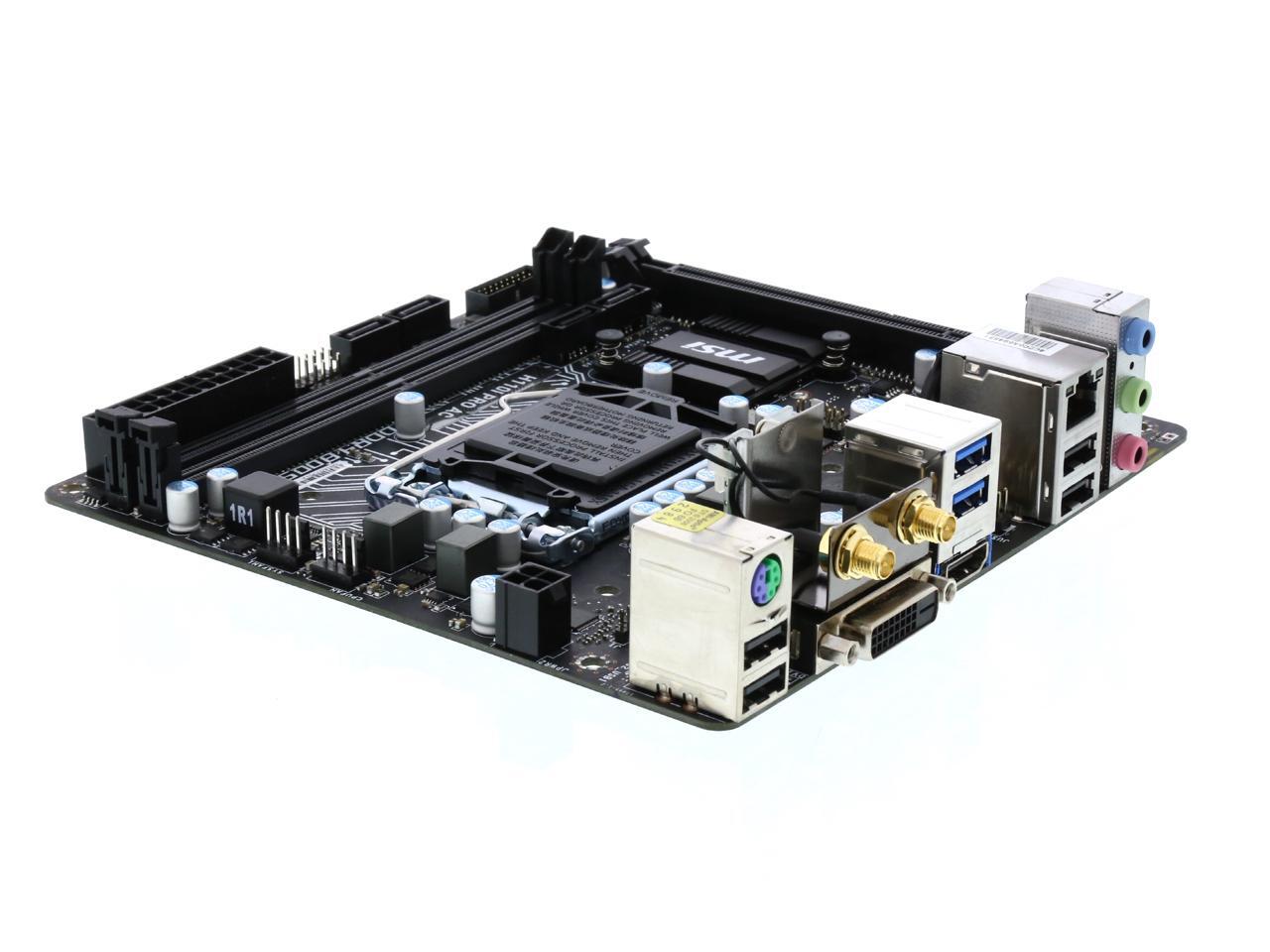

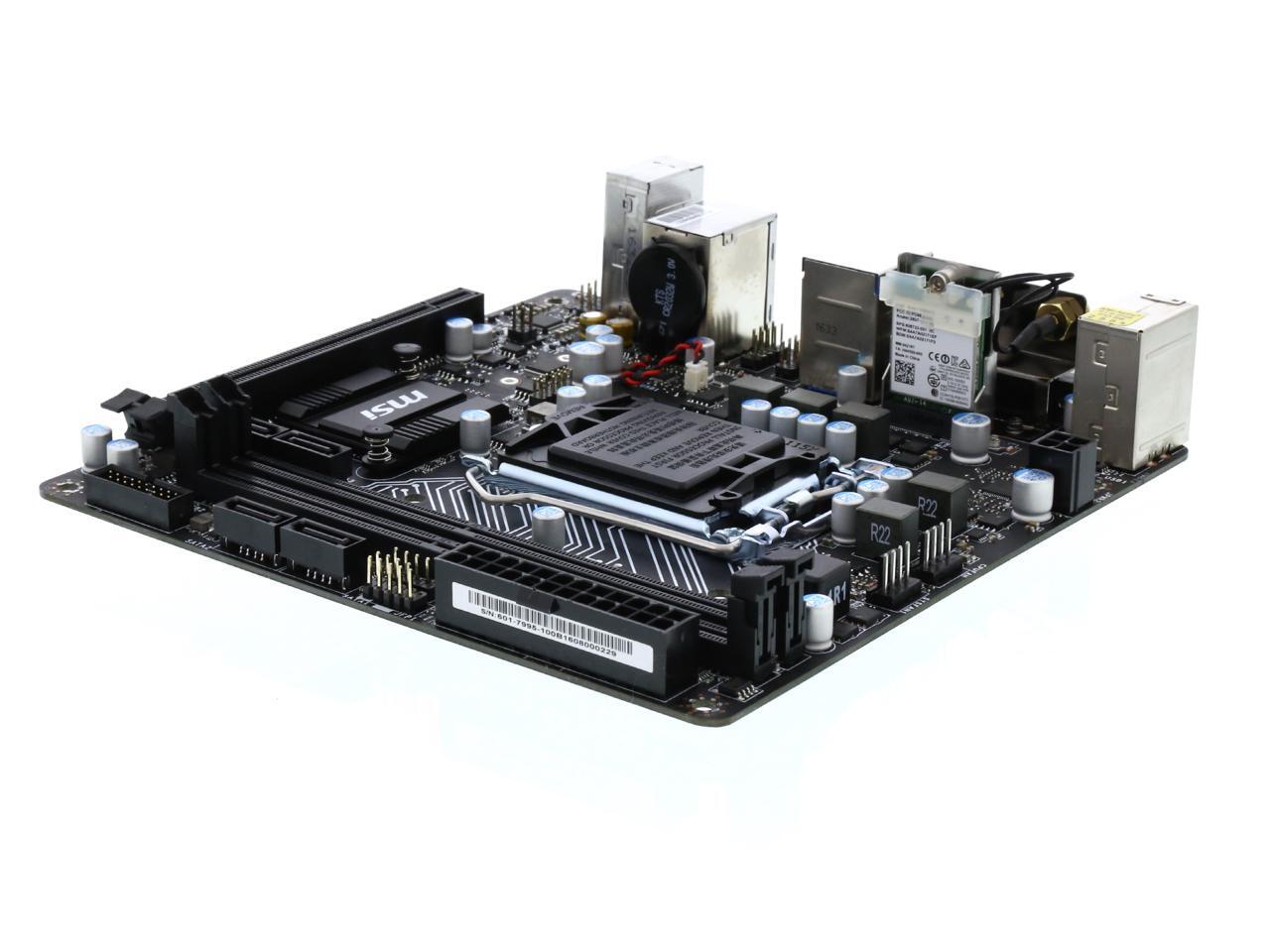

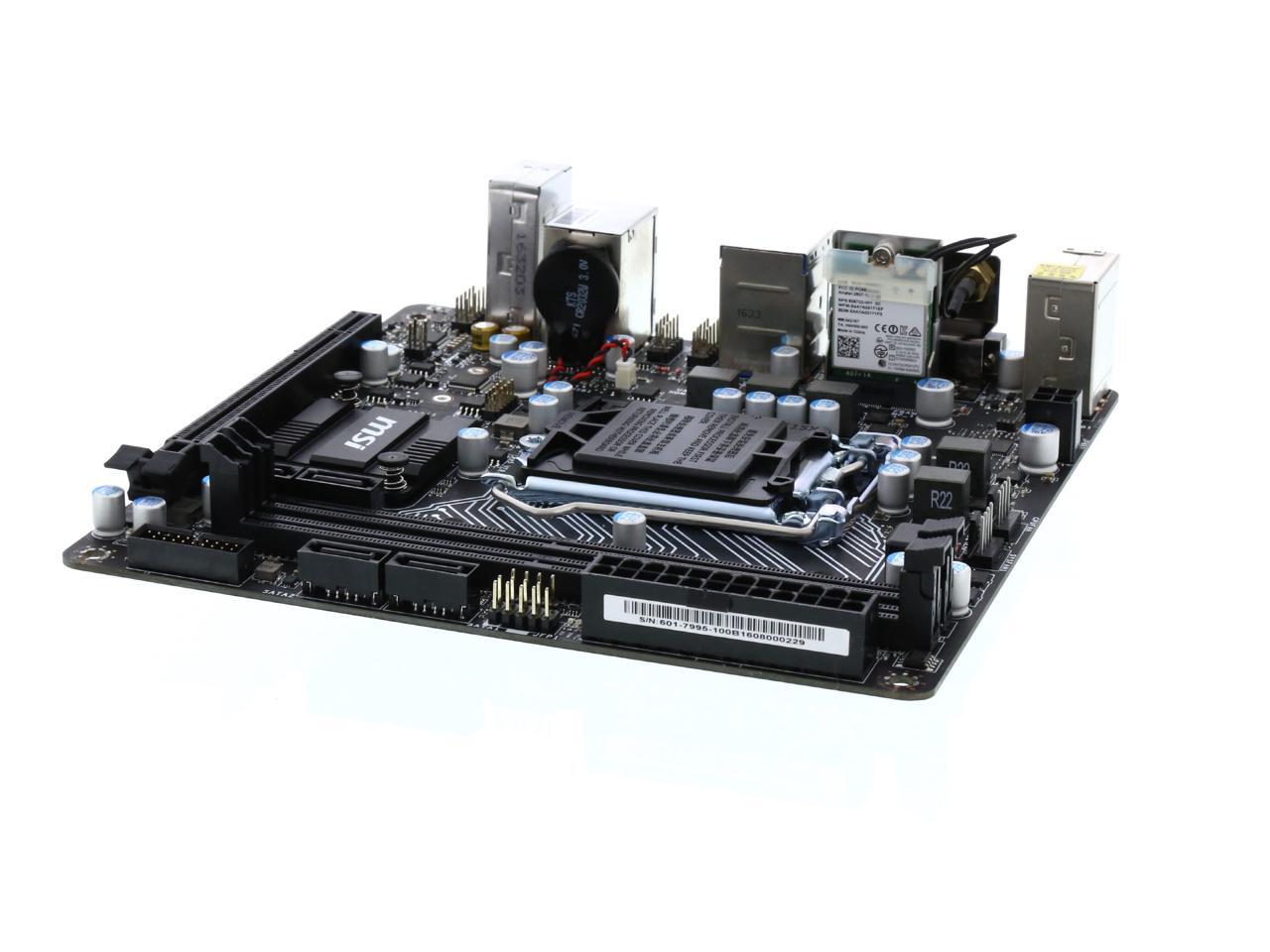

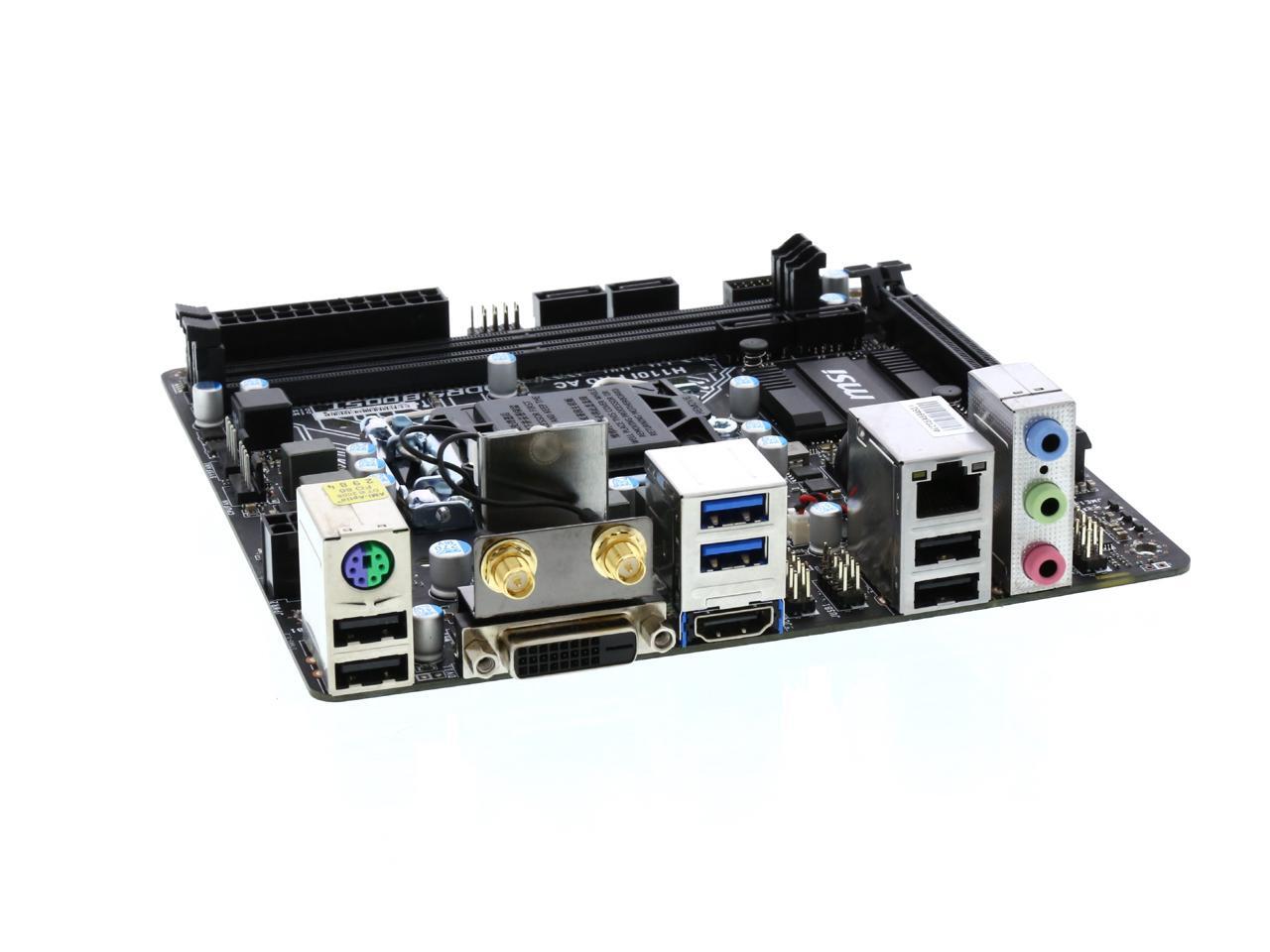

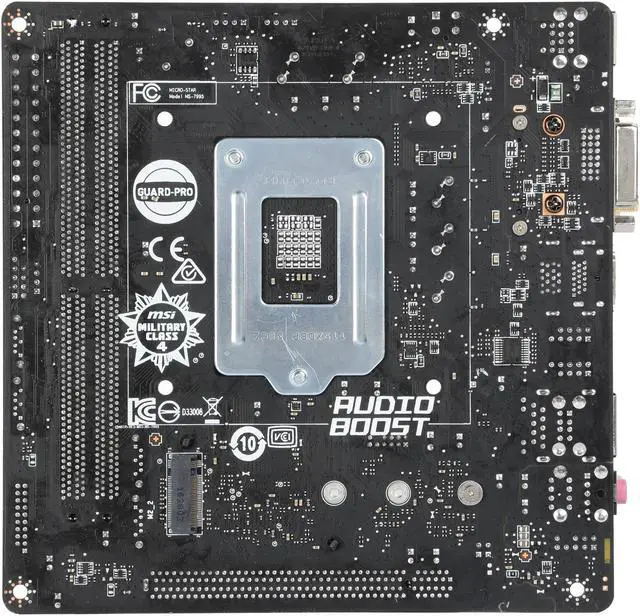

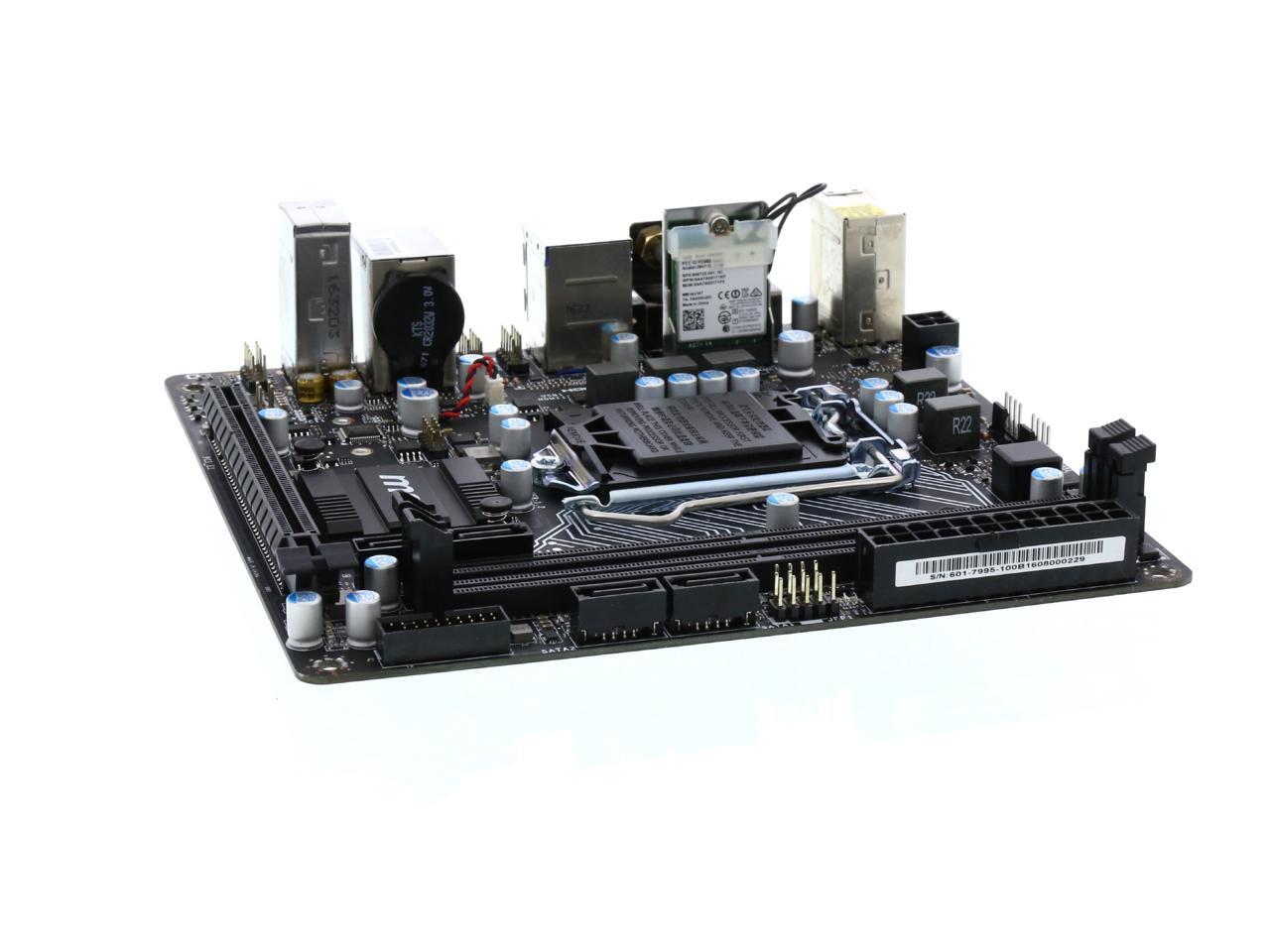

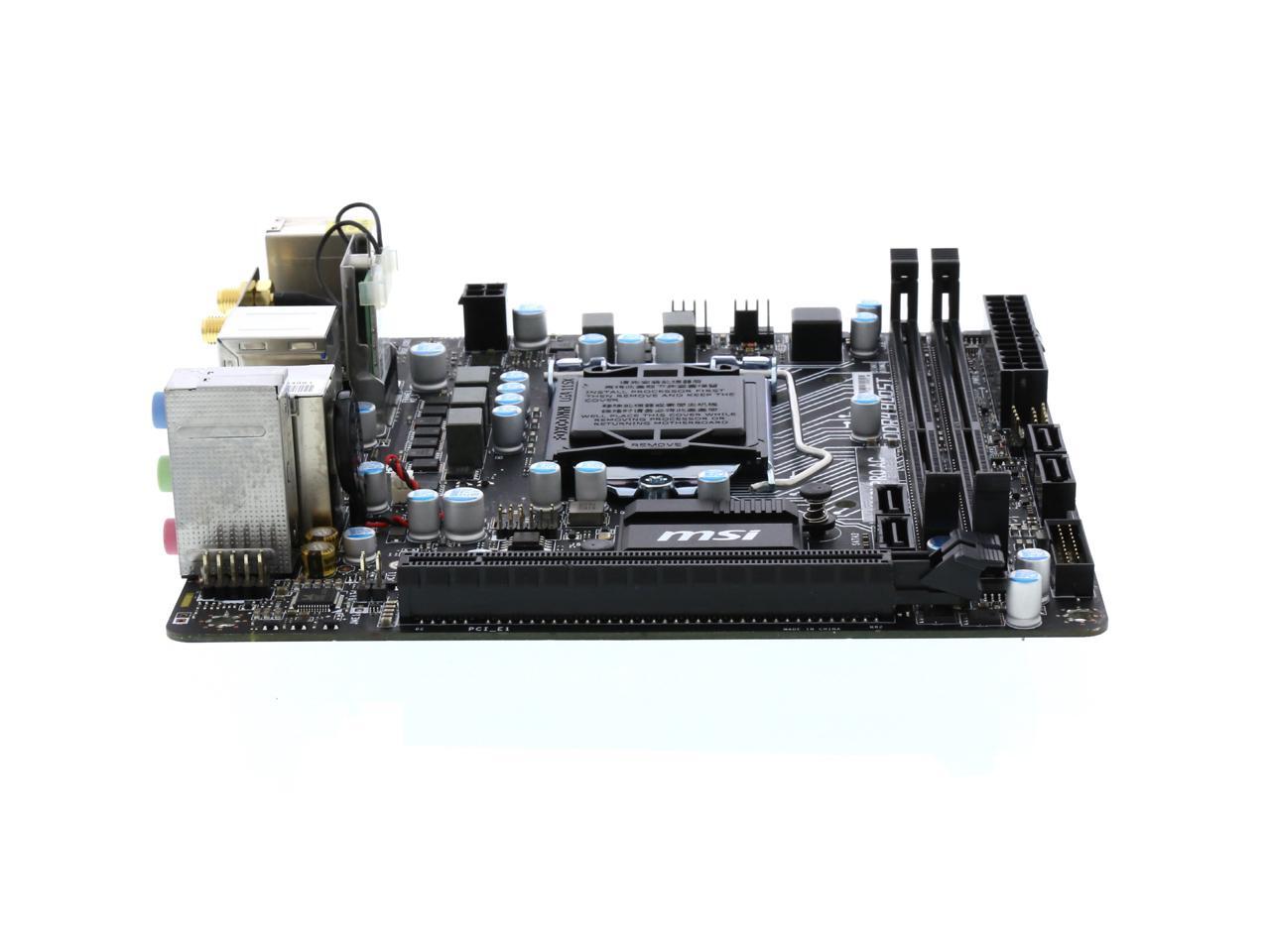

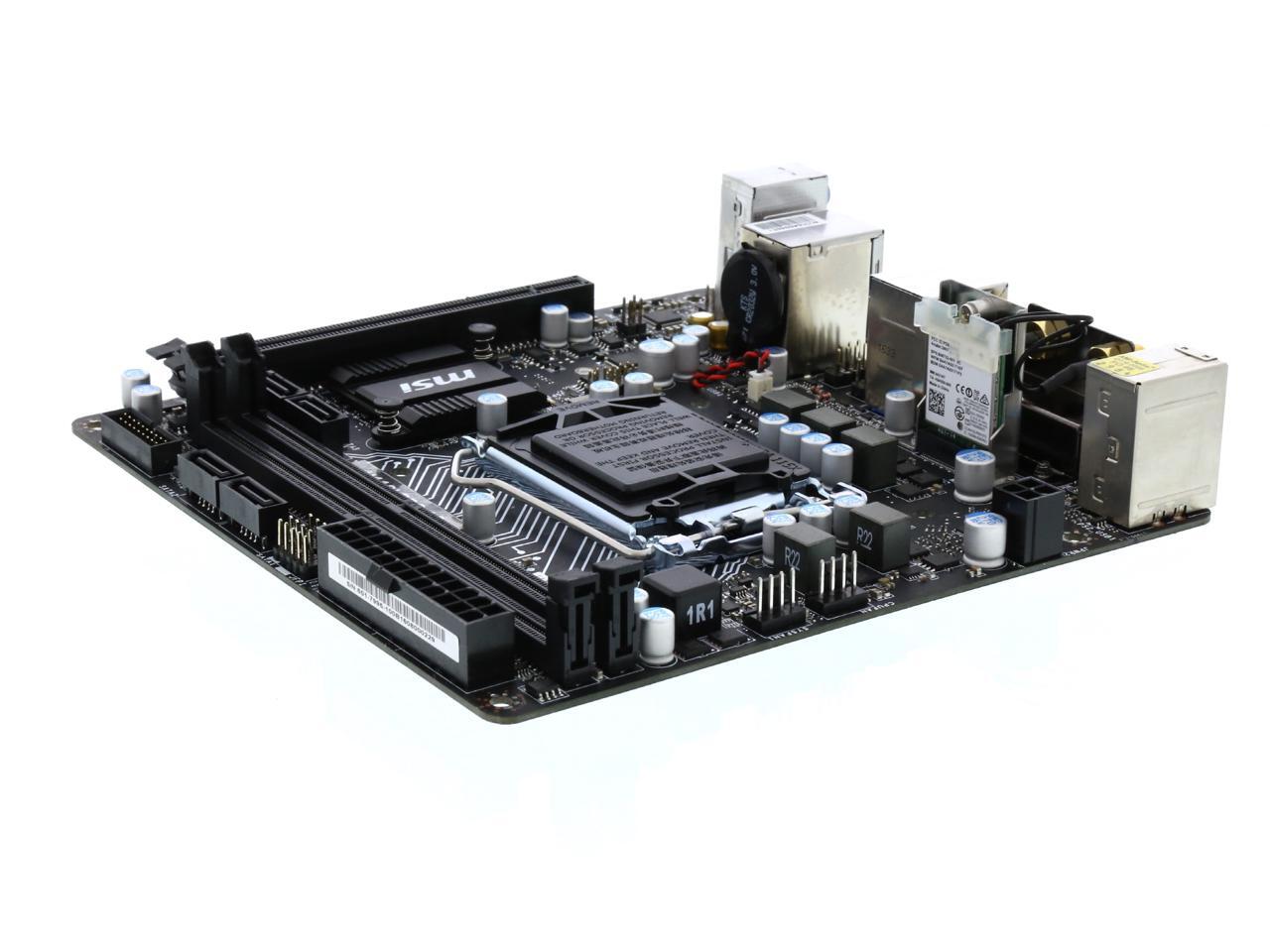

MSI H110I Pro AC LGA 1151 Intel H110 HDMI USB 3.1 Mini ITX Intel Motherboard
REFURBISHED Product Type
- Intel H110
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 2133
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

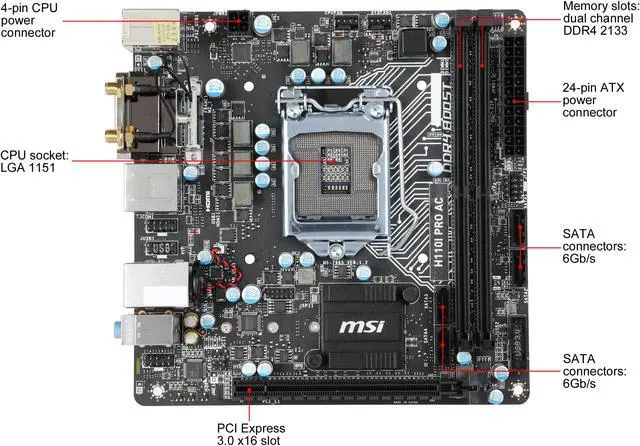

Learn more about the MSI H110I Pro AC
| Brand | MSI |
|---|---|
| Model | H110I Pro AC |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel H110 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in PCIE Gen3 x4 mode on the back side - supports PCIe 2.0x4 standard, 4.2cm/6cm/8cm length M.2 PCIe-interface SSD cards |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed |
| Bluetooth | 1 x Wi-Fi Bluetooth expansion module with Intel Dual Band Wireless-AC 8260 chip in M.2 Key E Socket |

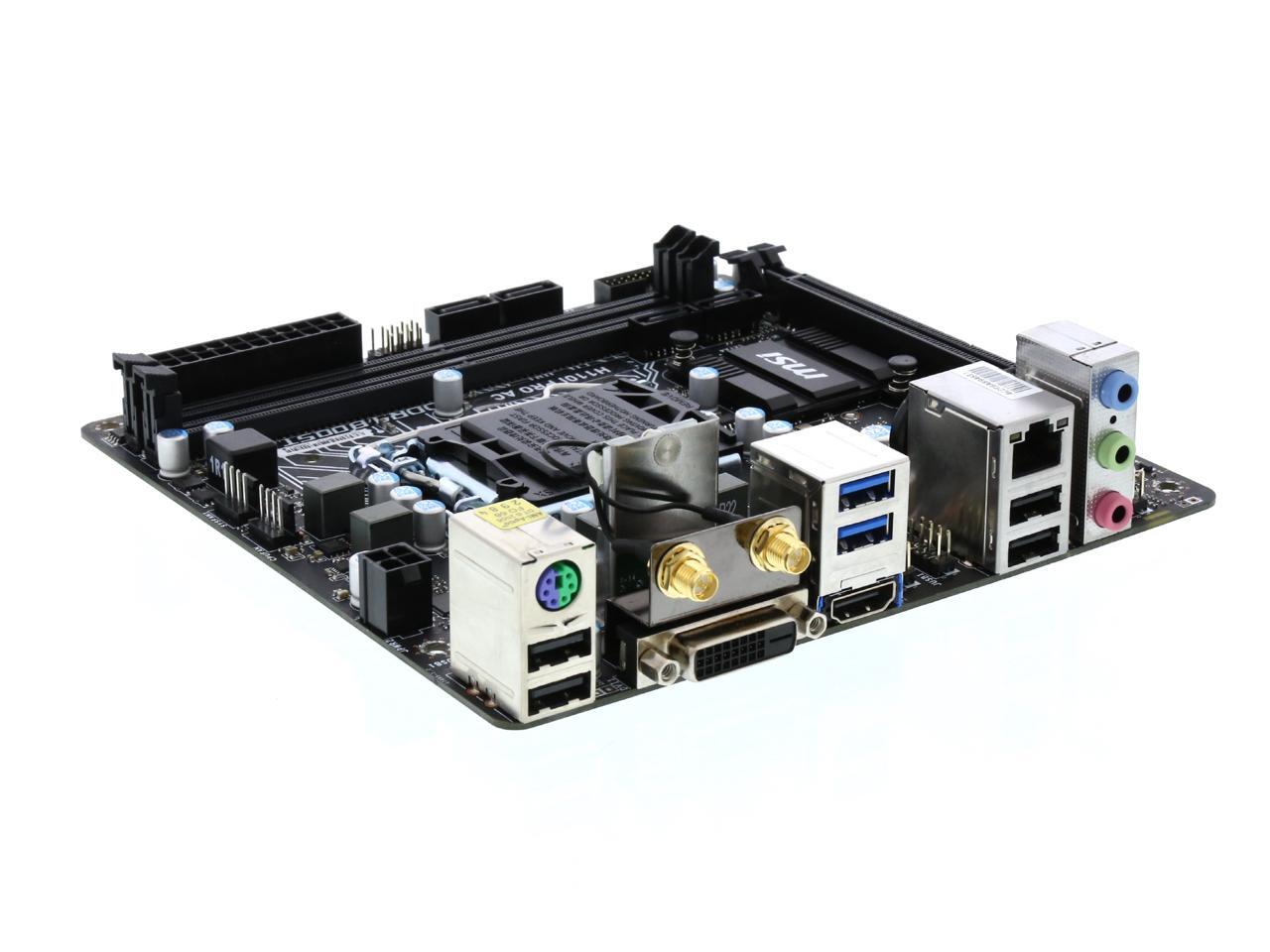

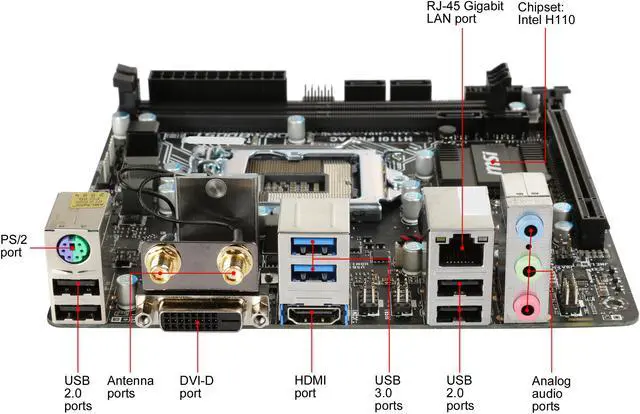

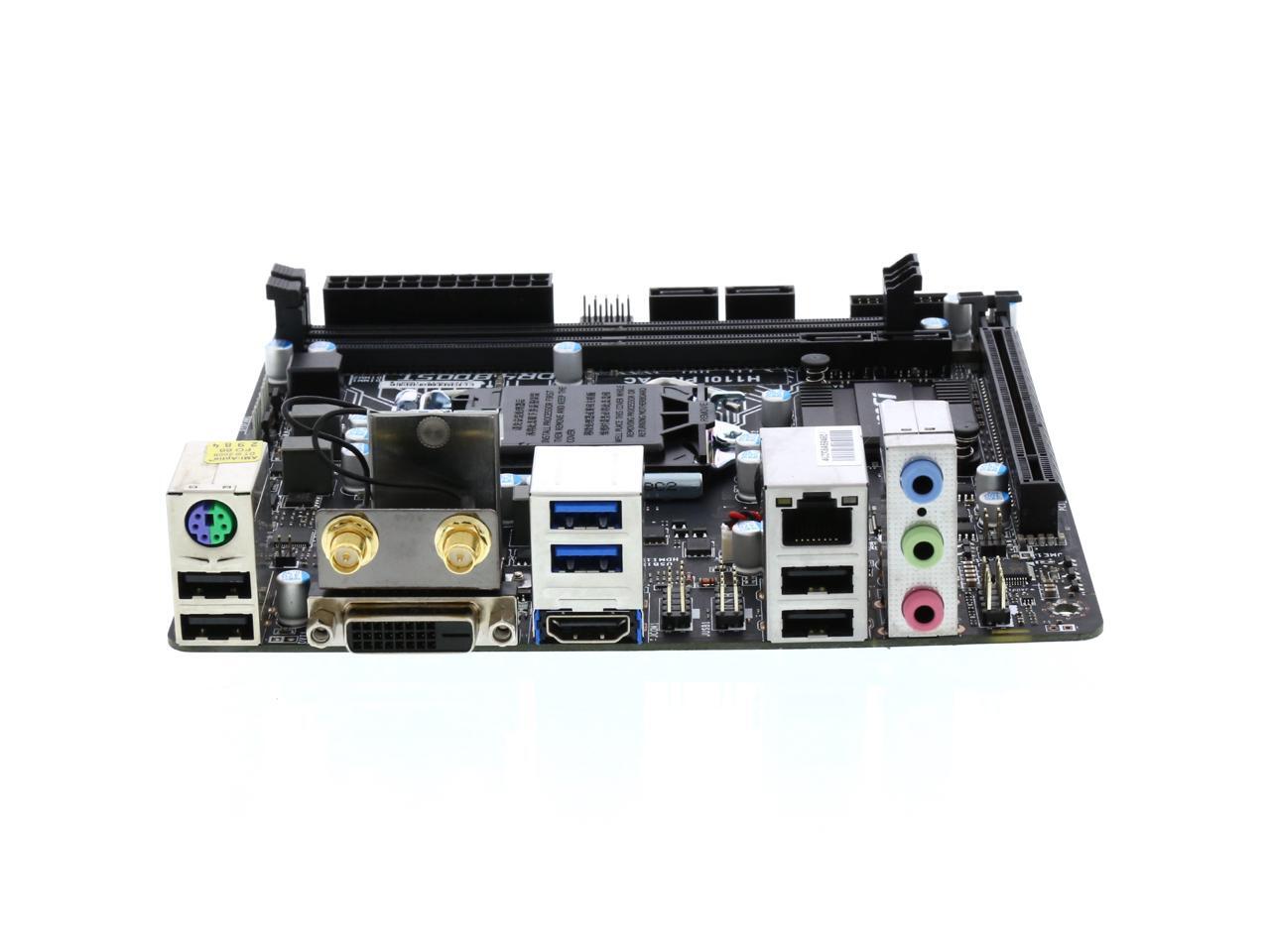

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.1 Gen 2 Type-A / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen1 ports |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial Port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | Mini ITX |
|---|---|

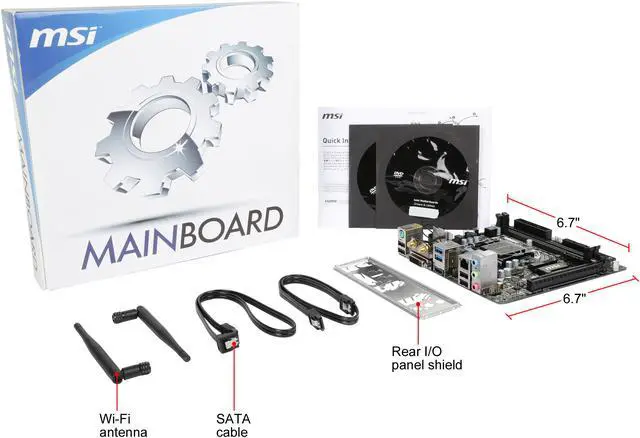

| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-2133 Memory DDR4 Boost: Give your DDR4 memory a performance boost M.2 20Gb/s + USB 3.1 Gen1 + SATA 6Gb/s VGA Armor: Reinforced Armor slot Click BIOS: Secure and Reliable UEFI BIOS solution Audio Boost: Reward your ears with studio grade sound quality Military Class 4: Top Quality & Stability Guard-Pro: Improved Protection and Power Efficiency EZ Debug LED: Easiest way to troubleshoot Overvoltage Protection:Prevent Unforeseen Damage Intel SBB Support: Improves Productivity, Management and Security WHQL CERTIFIED.WINDOWS 10 READY Onboard Graphics - 1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Mounting - 4 mounting holes |
|---|
| First Listed on Newegg | July 07, 2017 |
|---|
