$109.99
Most customers receive within 3-8 days.
Add to wish list(Found on 1 wish list)
Meet Your Seller

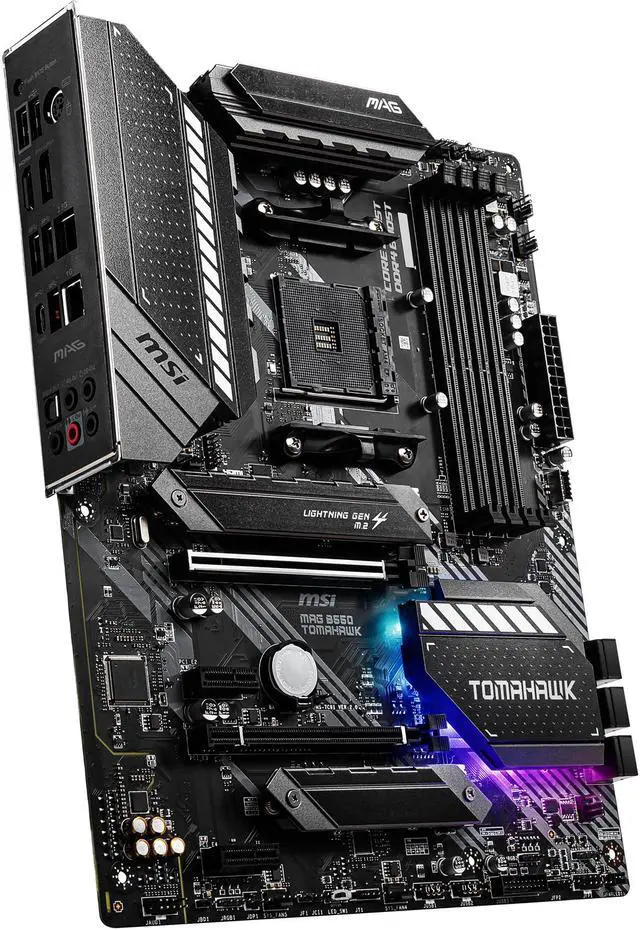

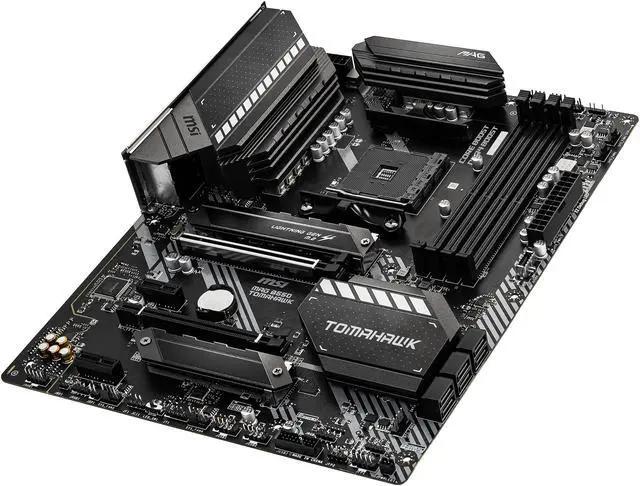

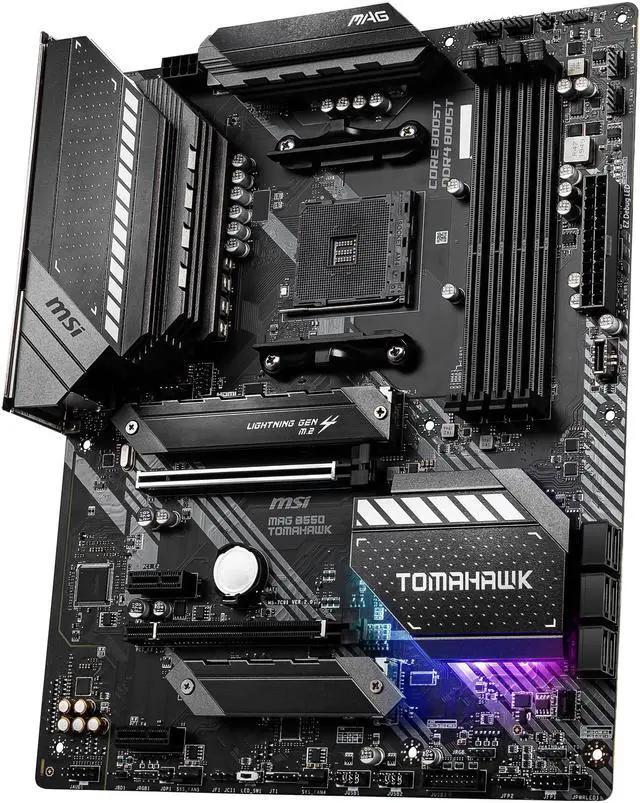

MSI MAG B550 TOMAHAWK AM4 AMD B550 ATX AMD Motherboard
REFURBISHED Product Type
- AMD B550
- Supports AMD Ryzen 5000 / 4000 G-Series / 3000 Series processors
- * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
- DDR4 5100+ / 5000 / 4866 / 4800 / 4733 / 4600 / 4533 / 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (by A-XMP OC MODE)
- DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC)
- 1DPC 1R max speed 5100
- 1DPC 2R max speed 3866
- 2DPC 1R max speed 4000
- 2DPC 2R max speed 3600
+
+
Learn more about the MSI MAG B550 TOMAHAWK
| Brand | MSI |
|---|---|
| Model | MAG B550 TOMAHAWK |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 / 4000 G-Series / 3000 Series processors * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5100+ / 5000 / 4866 / 4800 / 4733 / 4600 / 4533 / 4400+ / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (by A-XMP OC MODE) DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC) 1DPC 1R max speed 5100 1DPC 2R max speed 3866 2DPC 1R max speed 4000 2DPC 2R max speed 3600 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Supports x4 speed. * When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): M2_1 slot (from AMD Processor): Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD B550 chipset): Supports PCIe 3.0x4 Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC1200 / ALC1220P |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Second LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 2.5Gbps + 1Gbps |

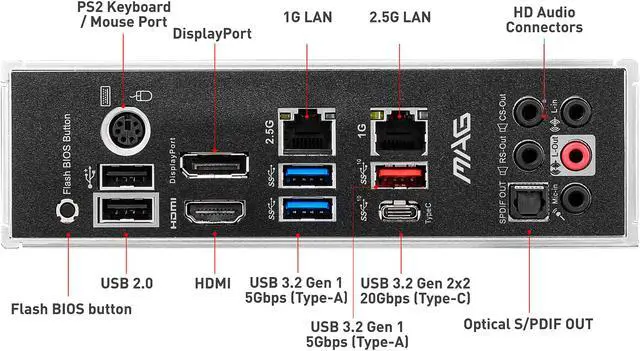

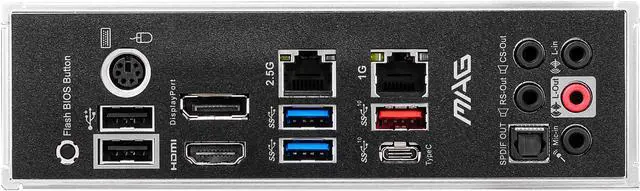

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 2 x LAN (RJ45) 1 x Optical S/PDIF Out 5 x Audio Jacks Flash BIOS Button |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors. Supports DDR4 Memory, up to 5100+(OC) MHz. Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2. Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience. Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost. Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag. Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip. Pre-installed I/O Shielding: Better EMI protection and more convenience for installation. Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience. Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire. |
|---|
| First Listed on Newegg | July 18, 2023 |
|---|
