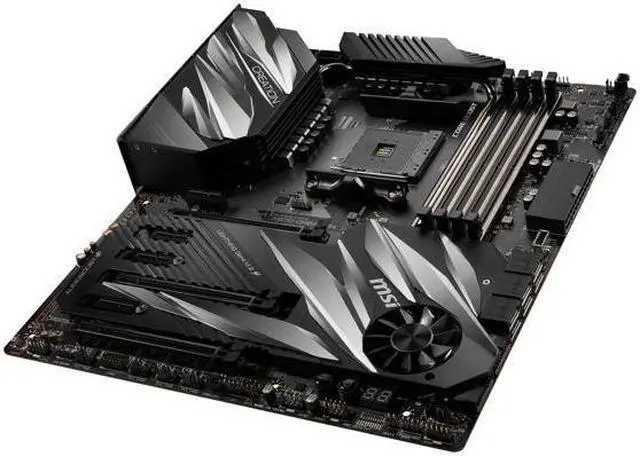

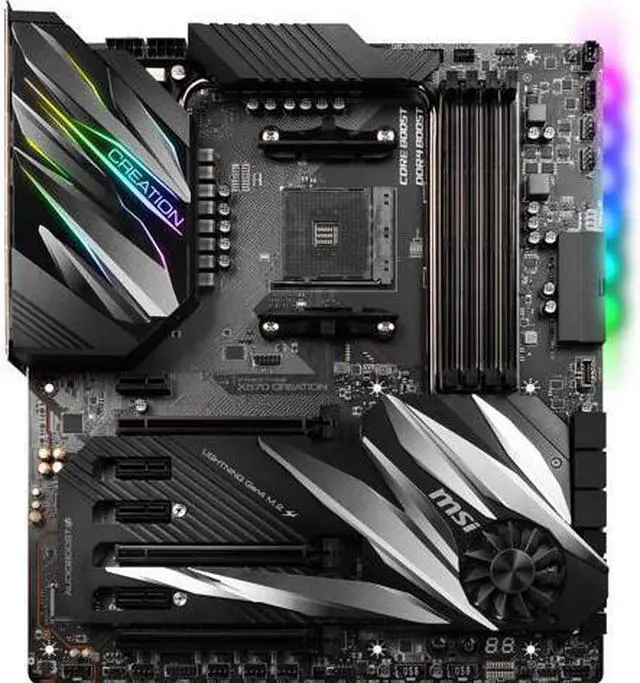

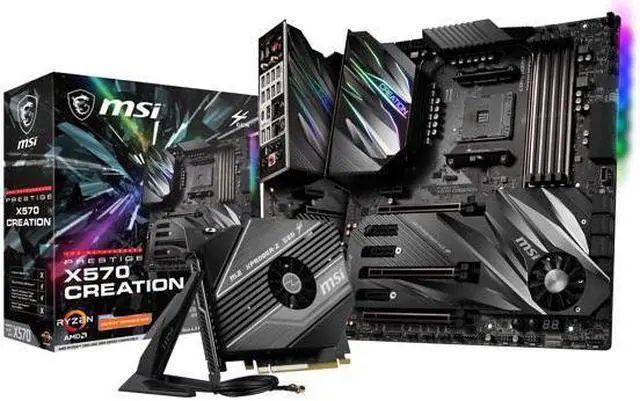

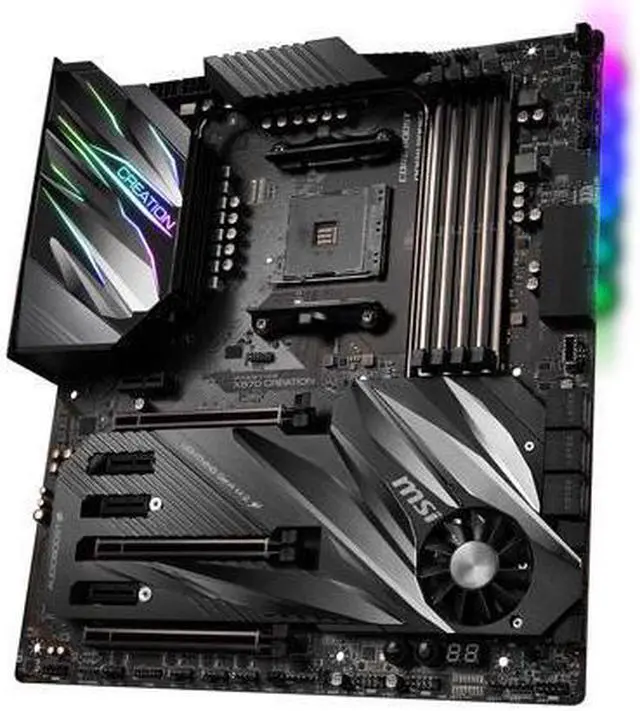

MSI PRESTIGE X570 CREATION Motherboard AMD AM4 SATA 6Gb/s M.2 USB 3.2 Wi-Fi 6 Extended-ATX

PRESTIGE X570 CREATION CREATE YOUR MASTERPIECE Core Boost Technology Dual 8-pin CPU power connectors and optimized power circuits let CREATION unleash maximum performance. Extended Heatsink Design Extended heatsinks on top of the VRM help to dissipate excessive heat even under sustained performance loads. Server-grade PCB Server-grade PCB fully supports the high bandwidth and fast transfer speeds of PCI-E Gen 4. M. 2 Shield Frozr Sustain maximum high-speed M. 2 SSD data transfer with M. 2 SHIELD FROZR and prevent SSD thermal throttling. IR Digital PWM A selection of the highest quality power delivery components including IR digital power, DrMOS, and titanium choke II lets the system run reliably even under extreme conditions.

Extended Heat-Pipe A heatpipe redistributes heat across the MOS heatsinks to the chipset heatsink for expanded thermal dissipation. PCIe Steel Armor Reinforced and shielded PCIe slots for strength and stability. Zero Frozr Technology Fan speed is automatically controlled by an AI tuning system that monitors chipset temperature and can power down temporarily in low-load situations to produce no fan noise. Frozr Heatsink Design The X570 chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth. The airflow fan is built with a durable ball bearing core for long lasting operation.

Wi-Fi 6 Featuring the latest wireless solution, delivering speeds up to 2400Mbps and supports MU-MIMO and BSS color technology. 10G Super LAN Connect to an ultra-fast LAN network. AMD Turbo USB Featuring TURBO USB 3.2 GEN2 with reversible Type-C connector. Pre-installed I/O Shielding Convenient pre-installed design and grounded against static discharge DDR4 Boost with Steel Armor The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from any other circuit. Shielded DIMM slots protect the point of connection from interference. Lightning Gen 4 Solution Transfer data lightning fast across Gen 4 PCI-E and M.

2 with up to 64GB/s bandwidth. LIGHTNING GEN 4 SOLUTION Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth TOTAL THERMAL SOLUTION EXTENDED HEATSINK The extended heatsink ensures the power delivery system can sustain even high-end processors running at full speed. EXTENDED HEAT-PIPE A heatpipe redistributes heat from the extended heatsink to the chipset heatsink for expanded thermal dissipation. M. 2 SHIELD FROZR + FROZR HEATSINK + PATENTED FAN Frozr Heatsink includes a patented fan designed for durability and efficiency with a durable double ball bearing core and Propeller Blade Technology.

SMART COOLING Fan speed is automatically controlled by an AI tuning system that monitors chipset temperature. With Zero FROZR technology, the fan powers down temporarily during low-load situations and produces no fan noise. Manually adjust in Dragon center or MSI UEFI BIOS by selecting from three pre-set modes Boost / Balance / Silence. 10G SUPER LAN SOLUTION Connect to an ultra-fast, high-bandwidth, high-density, and low-latency network with onboard 10G Super LAN. Designers and creative can quickly transfer 4K video, raw images, and other large files across a LAN network with CREATION.

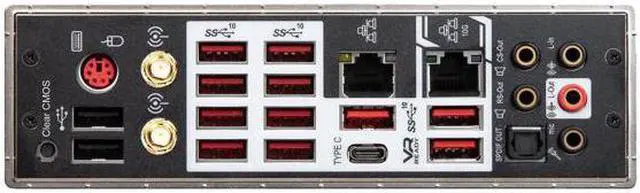

WI-FI 6 & BLUETOOTH Connect to a high-speed WIFI 6 network with onboard Intel® Wi-Fi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4G bps. PRE-INSTALLED IO SHIELDING Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The patent-pending design is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment. DUAL 8 PIN POWER CONNECTORS Double power connectors deliver adequate power for multi-core CPUs even when overclocking. MAXIMIZE YOUR USB DEVICE PERFORMANCE Transfer your favorite games, music and movies over USB faster than ever.

MSI offers a wide variety of options to
