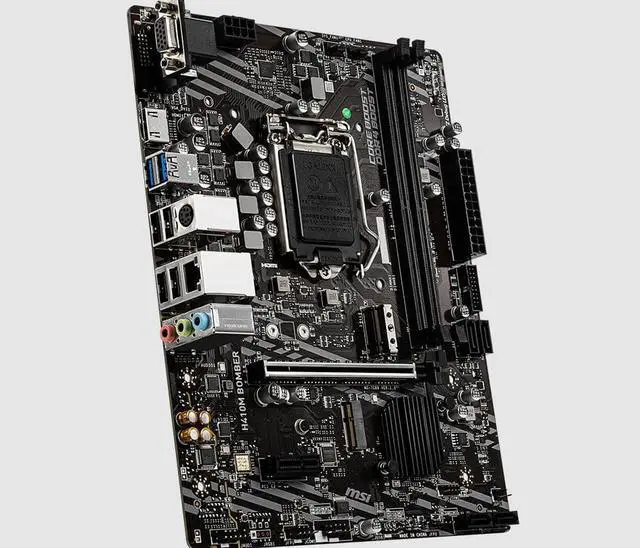

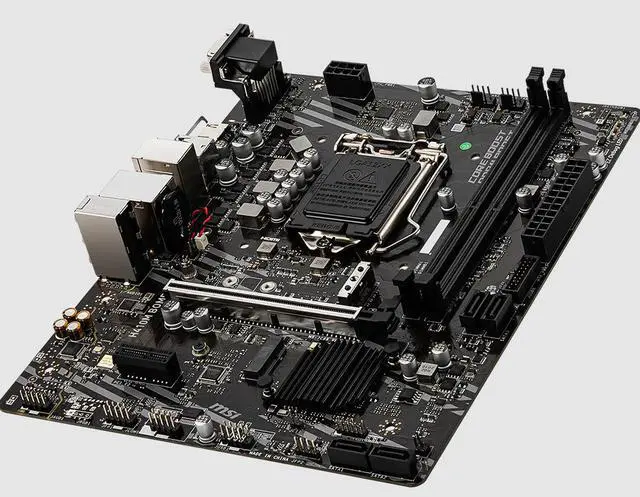

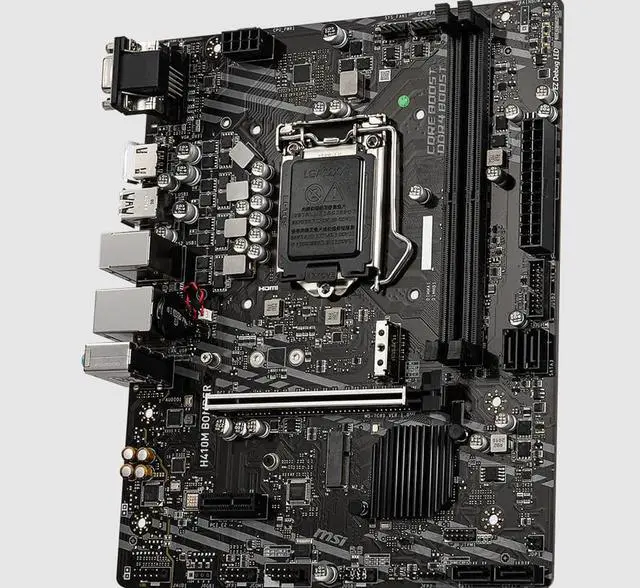

MSI H410M BOMBER DDR4 LGA1200 Motherboard, Support 10th Gen Intel Core / Pentium Celeron multi-core Processor
Used - Very Good Product Type
- 10th Gen Intel Core / Pentium Celeron Multi-core Processor LGA1200
- Support DDR4, expandable to 2933(Max) MHz
- Core acceleration engine: It adopts high-quality layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology that provides pure data signals for best performance and stability.
- Turbo M.2: Running on PCI-E Gen3 x4 can maximize the performance of NVMe
- Audio Boost: Bring an immersive audiovisual feast
- Steel armor: Protect the GPU card from bending and electromagnetic interference for better performance, stability and strength.
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
CHIPSET Intel® H410 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB1 Intel® Core™ i7/ i9 Supports up to DDR4 2933 MH Intel® Core™ i5 and below Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) EXPANSION SLOT 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) 1x M. 2 slot with E key for WiFi module only ONBOARD GRAPHICS 1x VGA port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz Maximum shared memory is 1GB STORAGE Intel® H410 Chipset 4x SATA 6Gb/s ports 1x M.
2 slot (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices USB Intel® H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) AUDIO Realtek® ALC892/ALC897 Codec 7.1 -Channel High Definition Audio LAN 1x Intel® I219V Gigabit LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
2 slot (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices USB Intel® H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) AUDIO Realtek® ALC892/ALC897 Codec 7.1 -Channel High Definition Audio LAN 1x Intel® I219V Gigabit LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
